Name: 16 - SUSPENSION - 16.2 - UPRIGHTS FRONT
Rating: 4.2 (1 reviews)

16 - SUSPENSION - 16.2 - UPRIGHTS FRONT of McLaren McLaren Elva

View All

McLaren Elva - 16 - SUSPENSION - 16.2 - UPRIGHTS FRONT

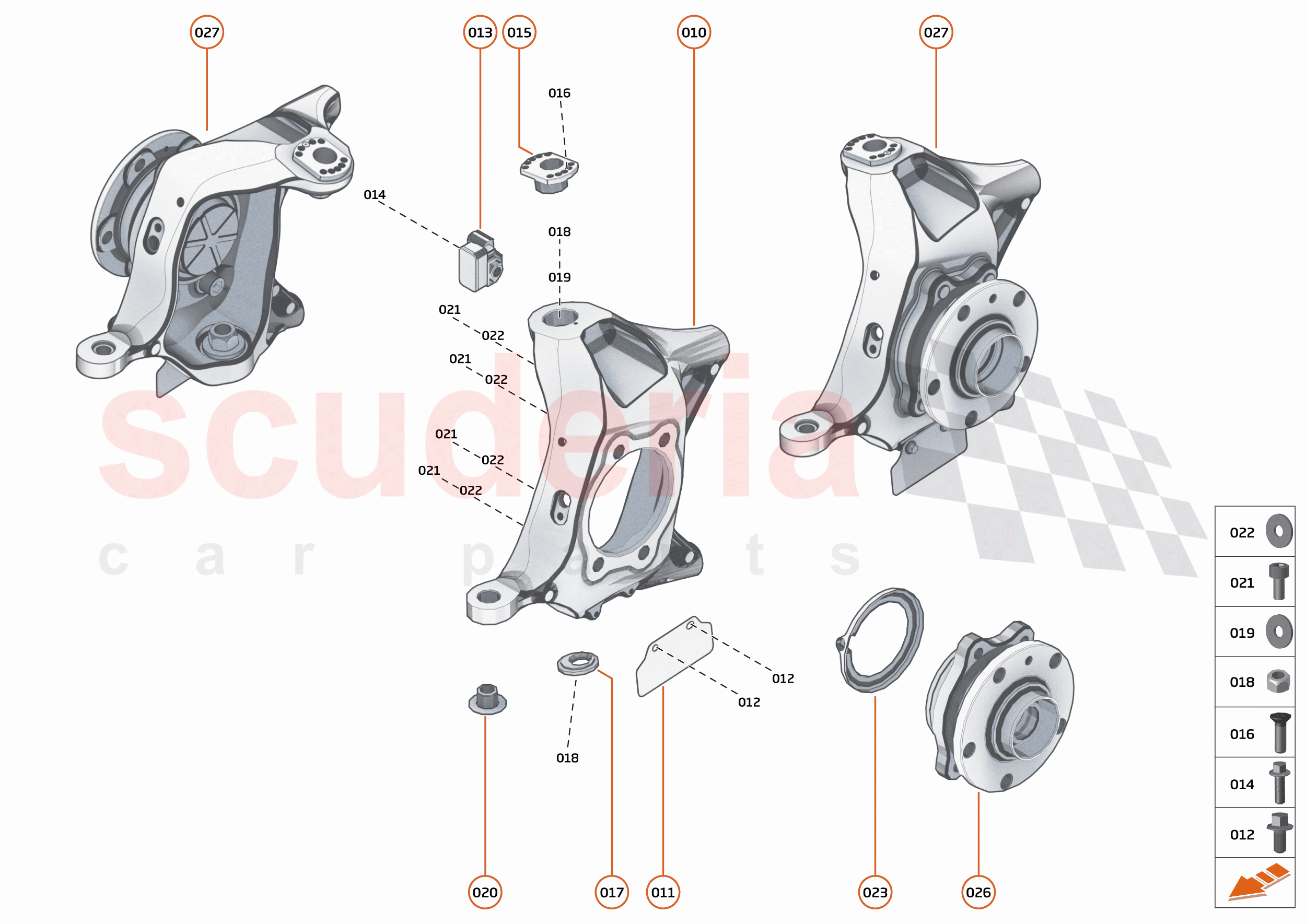

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	14B0431CP	HEATSHIELD - SUSPENSION UPRIGHT - LOWER	$16.09	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA759	BLT-HX HD-FL-M5X0.8X8-8.8-81-L - M5X8 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16MB093CP	SENSOR HUB ACCELEROMETER - FR LH OR RR LH OR RR RH	$120.83	To Order
	16MB358CP	SENSOR HUB ACCELEROMETER FR RH - ONLY	$528.06	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA083	SCREW - M6X20 - FLANGE HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11B0541CP	TOPHAT - CAMBER ADJUSTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13BA206CP	SCREW - CSK HEX SOCKET HD - M3X12-	$1.90	To Order

Photo	Part No	Description	Price (each)	Stock
	11B0739CP	WASHER - CAMBER ADJUSTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA229	NUT - M14X1.5 - LOCKED HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11B0320CP	WASHER - DIA 35X3.9X14.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13B0750CP	TOPHAT - TRACKROD - 1.6 TAPER	$25.37	To Order

Photo	Part No	Description	Price (each)	Stock
	14BA220CP	HEX SOCKET HD CAP M12X30 8.8	$3.36	To Order

Photo	Part No	Description	Price (each)	Stock
	14B0714CP	WASHER - M12X23	$2.82	To Order

Photo	Part No	Description	Price (each)	Stock
	13BA459RP	PROTECTOR CAP - HUB	$16.22	To Order

Photo	Part No	Description	Price (each)	Stock
	13BA350RP	WHEEL HUB ASSY - BEARING	$491.14	To Order

Photo	Part No	Description	Price (each)	Stock
	14BA248CP	UPRIGHT - SUSPENSION - FRONT - RH	$1,726.40	To Order
	14BA247CP	UPRIGHT - SUSPENSION - FRONT - LH	$1,712.02	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
011	14B0431CP	HEATSHIELD - SUSPENSION UPRIGHT - LOWER	14B0431CP HEATSHIELD - SUSPENSION UPRIGHT - LOWER	$16.09	1
012	00RA759	BLT-HX HD-FL-M5X0.8X8-8.8-81-L - M5X8 - HEX	00RA759 BLT-HX HD-FL-M5X0.8X8-8.8-81-L - M5X8 - HEX	-	2	Enquire
013	16MB093CP	SENSOR HUB ACCELEROMETER - FR LH OR RR LH OR RR RH	16MB093CP SENSOR HUB ACCELEROMETER - FR LH OR RR LH OR RR RH	$120.83	2
013	16MB358CP	SENSOR HUB ACCELEROMETER FR RH - ONLY	16MB358CP SENSOR HUB ACCELEROMETER FR RH - ONLY	$528.06	2
014	00RA083	SCREW - M6X20 - FLANGE HEX	00RA083 SCREW - M6X20 - FLANGE HEX	-	1	Enquire
015	11B0541CP	TOPHAT - CAMBER ADJUSTMENT	11B0541CP TOPHAT - CAMBER ADJUSTMENT	-	1	Enquire
016	13BA206CP	SCREW - CSK HEX SOCKET HD - M3X12-	13BA206CP SCREW - CSK HEX SOCKET HD - M3X12-	$1.90	1
017	11B0739CP	WASHER - CAMBER ADJUSTMENT	11B0739CP WASHER - CAMBER ADJUSTMENT	-	1	Enquire
018	00RA229	NUT - M14X1.5 - LOCKED HEX	00RA229 NUT - M14X1.5 - LOCKED HEX	-	2	Enquire
019	11B0320CP	WASHER - DIA 35X3.9X14.5	11B0320CP WASHER - DIA 35X3.9X14.5	-	1	Enquire
020	13B0750CP	TOPHAT - TRACKROD - 1.6 TAPER	13B0750CP TOPHAT - TRACKROD - 1.6 TAPER	$25.37	1
021	14BA220CP	HEX SOCKET HD CAP M12X30 8.8	14BA220CP HEX SOCKET HD CAP M12X30 8.8	$3.36	4
022	14B0714CP	WASHER - M12X23	14B0714CP WASHER - M12X23	$2.82	4
023	13BA459RP	PROTECTOR CAP - HUB	13BA459RP PROTECTOR CAP - HUB	$16.22	1
026	13BA350RP	WHEEL HUB ASSY - BEARING	13BA350RP WHEEL HUB ASSY - BEARING	$491.14	1
027	14BA248CP	UPRIGHT - SUSPENSION - FRONT - RH	14BA248CP UPRIGHT - SUSPENSION - FRONT - RH	$1,726.40	1
027	14BA247CP	UPRIGHT - SUSPENSION - FRONT - LH	14BA247CP UPRIGHT - SUSPENSION - FRONT - LH	$1,712.02	1

Uprights Front

McLaren Elva - 16 - SUSPENSION - 16.2 - UPRIGHTS FRONT
