McLaren Artura - 22 - ENGINE - 22.1 - IC ENGINE - COOLING

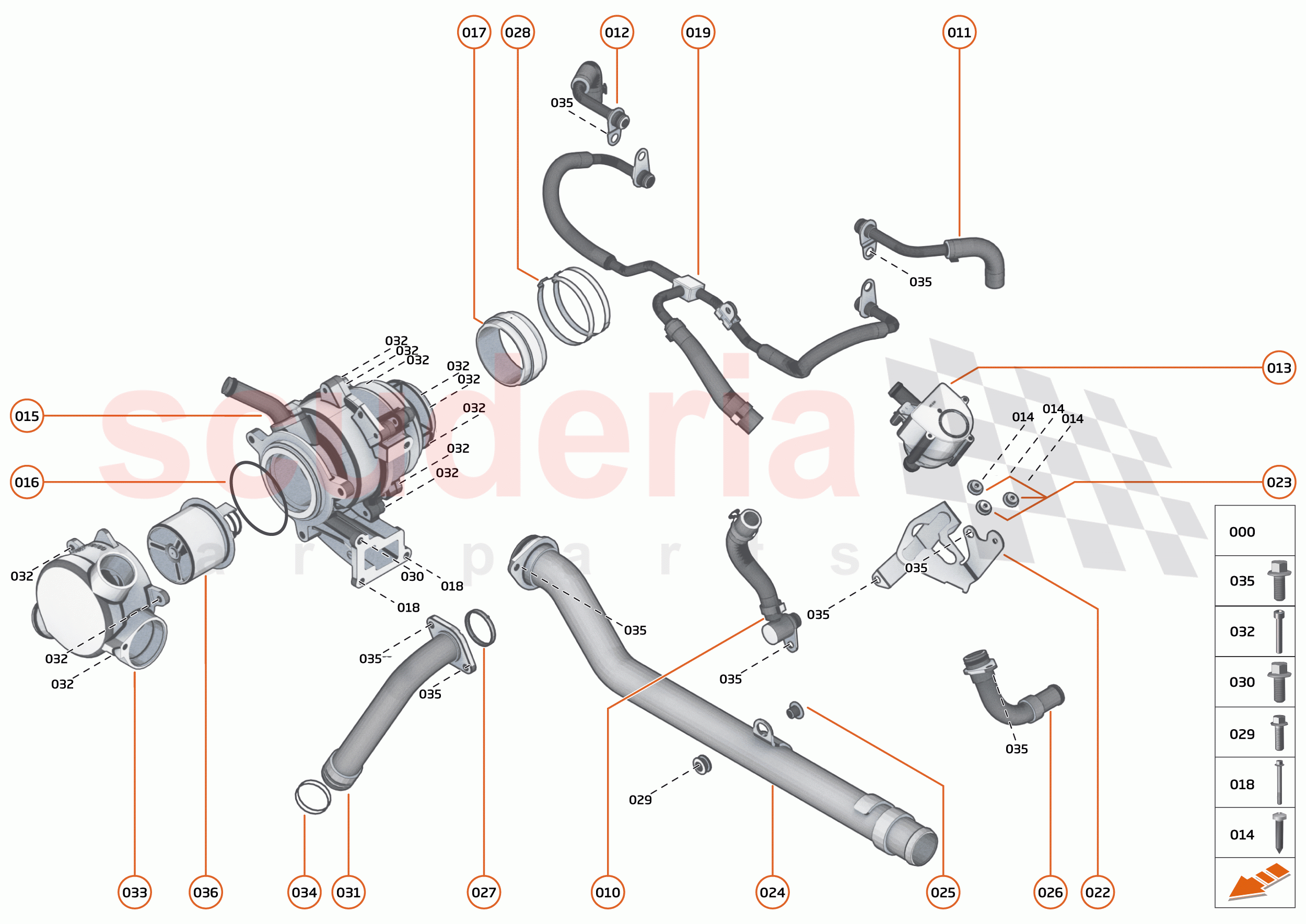

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	16FA359CP	RUN-ON PUMP FEED HOSE	$84.36	To Order

Photo	Part No	Description	Price (each)	Stock
	16FA362CP	TURBO COOLANT RETURN LH	$65.99	To Order

Photo	Part No	Description	Price (each)	Stock
	16FA363CP	TURBO COOLANT RETURN RH	$63.58	To Order

Photo	Part No	Description	Price (each)	Stock
	16FA417CP	RUN ON PUMP-TURBOCHARGER	$172.62	To Order

Photo	Part No	Description	Price (each)	Stock
	16FA425CP	SCR-PAN HD-TORX-NO6X22-STL-81	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16FC199CP	COOLANT PUMP - ASSY	$1,421.58	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB501CP	THERMOSTAT - LIP SEAL	$35.52	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB631CP	BELLOWS - PUMP	$76.15	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1784CP	BOLT - M6X80 - HEX	$18.25	To Order
	11FA031CP	BOLT - M6X80 - HEX - 02482939-1	$11.14	To Order

Photo	Part No	Description	Price (each)	Stock
	16FA909CP	TURBO COOLANT FEED	$204.73	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB594CP	BRACKET-RUN ON PUMP	$46.79	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB632CP	RUN-ON PUMP AV MOUNT ASSY	$12.12	To Order

Photo	Part No	Description	Price (each)	Stock
	16FC009CP	PIPE RADIATOR RETURN	$6.40	To Order
	16FC008CP	RADIATOR RETURN PIPE ASSY	$223.39	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB623CP	RADIATOR RETURN COMPRESSION - LIMITER	$17.72	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB597CP	PIPE TRANSMISSION FEED	$131.99	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB625CP	BYPASS PIPE SEAL	$16.22	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB647CP	CLAMP-STEPLESS EAR-OETIKER - 58.9-62	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1794CP	SCREW - M6X25 HEX	$7.50	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1793CP	BOLT - M6X20 - HEX	$10.13	To Order

Photo	Part No	Description	Price (each)	Stock
	16FC034CP	PIPE BYPASS-THERMOSTAT	$324.96	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB901CP	COOLANT PUMP-SCREW M6X18	$3.27	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB903CP	COOLANT PUMP-THERMOSTAT COVER	$161.23	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB900CP	BYPASS PIPE-O RING-26.7X1.78-ISO 3601	$9.72	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1792CP	BOLT - M6X16 - ENGINE	$12.17	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB500CP	COOLANT PUMP - THERMOSTAT	$121.84	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	16FA359CP	RUN-ON PUMP FEED HOSE	16FA359CP RUN-ON PUMP FEED HOSE	$84.36	1
011	16FA362CP	TURBO COOLANT RETURN LH	16FA362CP TURBO COOLANT RETURN LH	$65.99	1
012	16FA363CP	TURBO COOLANT RETURN RH	16FA363CP TURBO COOLANT RETURN RH	$63.58	1
013	16FA417CP	RUN ON PUMP-TURBOCHARGER	16FA417CP RUN ON PUMP-TURBOCHARGER	$172.62	1
014	16FA425CP	SCR-PAN HD-TORX-NO6X22-STL-81	16FA425CP SCR-PAN HD-TORX-NO6X22-STL-81	-	3	Enquire
015	16FC199CP	COOLANT PUMP - ASSY	16FC199CP COOLANT PUMP - ASSY	$1,421.58	1
016	16FB501CP	THERMOSTAT - LIP SEAL	16FB501CP THERMOSTAT - LIP SEAL	$35.52	1
017	16FB631CP	BELLOWS - PUMP	16FB631CP BELLOWS - PUMP	$76.15	1
018	11F1784CP	BOLT - M6X80 - HEX	11F1784CP BOLT - M6X80 - HEX	$18.25	2
018	11FA031CP	BOLT - M6X80 - HEX - 02482939-1	11FA031CP BOLT - M6X80 - HEX - 02482939-1	$11.14	2
019	16FA909CP	TURBO COOLANT FEED	16FA909CP TURBO COOLANT FEED	$204.73	1
022	16FB594CP	BRACKET-RUN ON PUMP	16FB594CP BRACKET-RUN ON PUMP	$46.79	1
023	16FB632CP	RUN-ON PUMP AV MOUNT ASSY	16FB632CP RUN-ON PUMP AV MOUNT ASSY	$12.12	3
024	16FC009CP	PIPE RADIATOR RETURN	16FC009CP PIPE RADIATOR RETURN	$6.40	1
024	16FC008CP	RADIATOR RETURN PIPE ASSY	16FC008CP RADIATOR RETURN PIPE ASSY	$223.39	1
025	16FB623CP	RADIATOR RETURN COMPRESSION - LIMITER	16FB623CP RADIATOR RETURN COMPRESSION - LIMITER	$17.72	1
026	16FB597CP	PIPE TRANSMISSION FEED	16FB597CP PIPE TRANSMISSION FEED	$131.99	1
027	16FB625CP	BYPASS PIPE SEAL	16FB625CP BYPASS PIPE SEAL	$16.22	1
028	16FB647CP	CLAMP-STEPLESS EAR-OETIKER - 58.9-62	16FB647CP CLAMP-STEPLESS EAR-OETIKER - 58.9-62	-	2	Enquire
029	11F1794CP	SCREW - M6X25 HEX	11F1794CP SCREW - M6X25 HEX	$7.50	1
030	11F1793CP	BOLT - M6X20 - HEX	11F1793CP BOLT - M6X20 - HEX	$10.13	2
031	16FC034CP	PIPE BYPASS-THERMOSTAT	16FC034CP PIPE BYPASS-THERMOSTAT	$324.96	1
032	16FB901CP	COOLANT PUMP-SCREW M6X18	16FB901CP COOLANT PUMP-SCREW M6X18	$3.27	11
033	16FB903CP	COOLANT PUMP-THERMOSTAT COVER	16FB903CP COOLANT PUMP-THERMOSTAT COVER	$161.23	1
034	16FB900CP	BYPASS PIPE-O RING-26.7X1.78-ISO 3601	16FB900CP BYPASS PIPE-O RING-26.7X1.78-ISO 3601	$9.72	2
035	11F1792CP	BOLT - M6X16 - ENGINE	11F1792CP BOLT - M6X16 - ENGINE	$12.17	12
036	16FB500CP	COOLANT PUMP - THERMOSTAT	16FB500CP COOLANT PUMP - THERMOSTAT	$121.84	1
037	16FB902CP	COOLANT PUMP-THERMOSTAT ASSEMBLY	16FB902CP COOLANT PUMP-THERMOSTAT ASSEMBLY	-	1	Enquire
038	16FC191CP	O-RING TURBO COOLANT FEED-RTN-OIL FEED	16FC191CP O-RING TURBO COOLANT FEED-RTN-OIL FEED	$3.81	1
039	16FC190CP	O-RING FOR RADIATOR RTN PIPE	16FC190CP O-RING FOR RADIATOR RTN PIPE	-	1	Enquire
042	16FC620CP	ENGINE PIPE-O RING-37.77IDX2.62D-ISO3601	16FC620CP ENGINE PIPE-O RING-37.77IDX2.62D-ISO3601	$8.51	1
