33 - HEAT INSULATION - 33.2 - HEATSHIELDS - VEHICLE MOUNTED of McLaren McLaren McLaren 765LT

View All

McLaren McLaren 765LT - 33 - HEAT INSULATION - 33.2 - HEATSHIELDS - VEHICLE MOUNTED

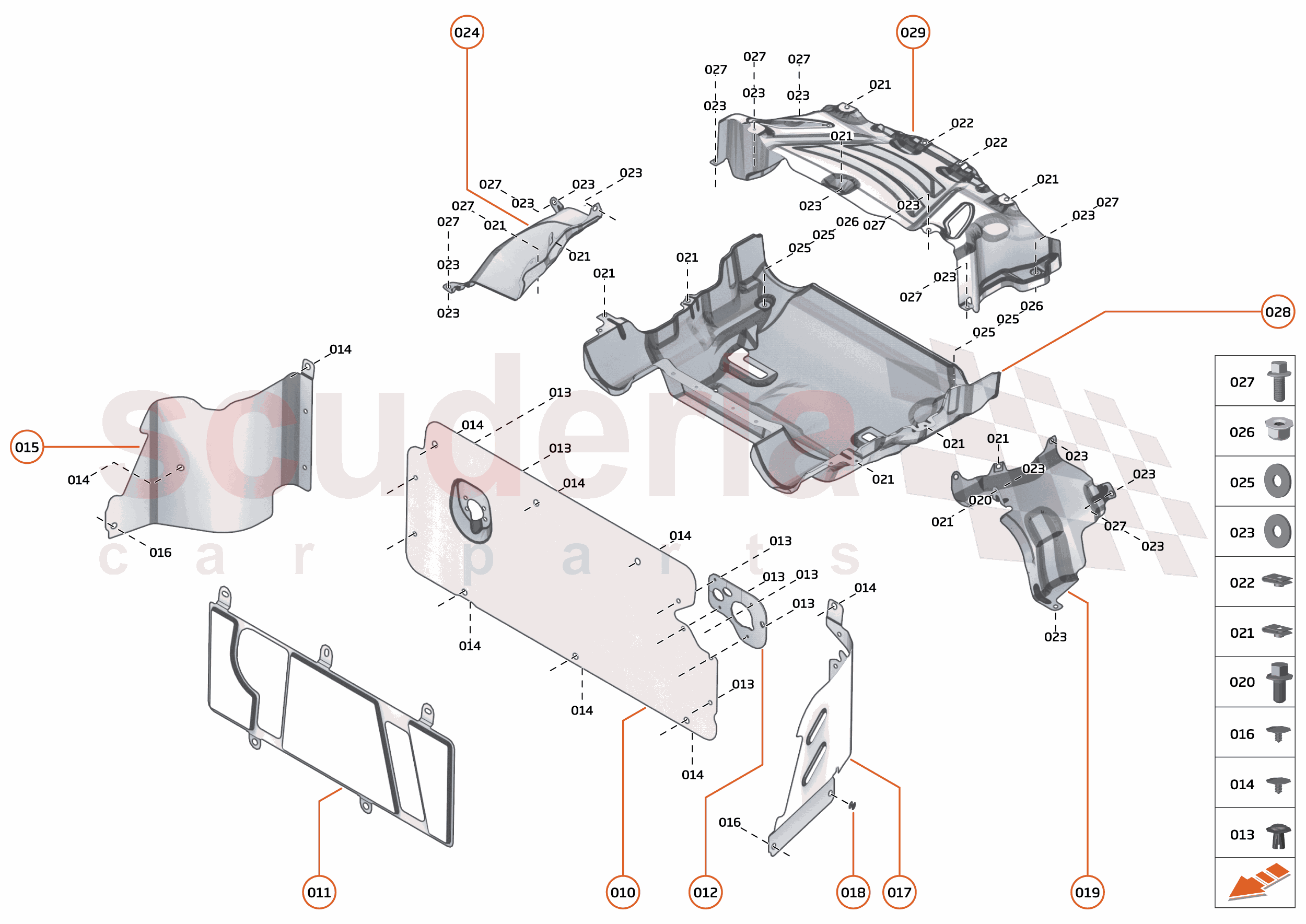

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	14E0025CP	HEATSHIELD - BULKHEAD - CENTRE - HEATSHIELD CTR-BULKHEAD	$86.23	To Order

Photo	Part No	Description	Price (each)	Stock
	14E0074CP	NVH - BULKHEAD - CENTRE	$67.06	To Order

Photo	Part No	Description	Price (each)	Stock
	14H0083CP	GASKET - BULKHEAD	$13.21	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA146	SCRIVET - DIA 8 X 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG003	FIRTREE 7.2X15X24	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14E0066CP	HEATSHIELD - BULKHEAD - RH	$142.97	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG054	CLIP - FIRTREE - 8X14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14EA014CP	HEATSHIELD - BULKHEAD - LH	$396.54	To Order
	15EA014CP	HEATSHIELD - BULKHEAD - LH	$340.37	To Order

Photo	Part No	Description	Price (each)	Stock
	00RM005	ANIXTER RIVET - BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14E0044CP	HEATSHIELD - AIR GUIDE - FRONT - LH	$121.26	To Order

Photo	Part No	Description	Price (each)	Stock
	00RX003	BOLT - M6X1X12 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB183	CLIP - U-NUT - M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA301	Clip - Spier - M5 - 0.5/2.1-SS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC077	CONVERTIBLE ROOF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14E0045CP	HEATSHIELD - AIR GUIDE - FRONT - RH	$121.26	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC063	WASHER - M5X20X1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA582	NUT - M5 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA313	Screw - M6x16 - Hex - Silver	Enquire	To Order
	00RA409	BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14EA005RP	HEATSHIELD MUFFLER LOWER ROW	Enquire	To Order
	14EA006RP	HEATSHIELD LWR-MUFFLER EU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14EA050RP	HEATSHIELD UPR-MUFFLER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	14E0025CP	HEATSHIELD - BULKHEAD - CENTRE - HEATSHIELD CTR-BULKHEAD	14E0025CP HEATSHIELD - BULKHEAD - CENTRE - HEATSHIELD CTR-BULKHEAD Row ID: ID__14E0025CP_ContPgHS; Resolution: Available;	$86.23	1
011	14E0074CP	NVH - BULKHEAD - CENTRE	14E0074CP NVH - BULKHEAD - CENTRE Row ID: ID__14E0074CP_ContPgHS; Resolution: Available;	$67.06	1
012	14H0083CP	GASKET - BULKHEAD	14H0083CP GASKET - BULKHEAD Row ID: ID__14H0083CP_ContPgHS; Resolution: Available;	$13.21	1
013	00RA146	SCRIVET - DIA 8 X 14	00RA146 SCRIVET - DIA 8 X 14 Row ID: ID__00RA146_ContPgHS; Resolution: Available;	-	7	Enquire
014	00RG003	FIRTREE 7.2X15X24	00RG003 FIRTREE 7.2X15X24 Row ID: ID__00RG003_ContPgHS; Resolution: Available;	-	2	Enquire
015	14E0066CP	HEATSHIELD - BULKHEAD - RH	14E0066CP HEATSHIELD - BULKHEAD - RH Row ID: ID__14E0066CP_ContPgHS; Resolution: Available;	$142.97	1
016	00RG054	CLIP - FIRTREE - 8X14	00RG054 CLIP - FIRTREE - 8X14 Row ID: ID__00RG054_ContPgHS; Resolution: Available;	-	1	Enquire
017	14EA014CP	HEATSHIELD - BULKHEAD - LH	14EA014CP HEATSHIELD - BULKHEAD - LH Row ID: ID__14EA014CP_ContPgHS; Resolution: Available;	$396.54	1
017	15EA014CP	HEATSHIELD - BULKHEAD - LH	15EA014CP HEATSHIELD - BULKHEAD - LH Row ID: ID__15EA014CP_ContPgHS; Resolution: Available;	$340.37	1
018	00RM005	ANIXTER RIVET - BLACK	00RM005 ANIXTER RIVET - BLACK Row ID: ID__00RM005_ContPgHS; Resolution: Available;	-	2	Enquire
019	14E0044CP	HEATSHIELD - AIR GUIDE - FRONT - LH	14E0044CP HEATSHIELD - AIR GUIDE - FRONT - LH Row ID: ID__14E0044CP_ContPgHS; Resolution: Available;	$121.26	1
020	00RX003	BOLT - M6X1X12 - HEX	00RX003 BOLT - M6X1X12 - HEX Row ID: ID__00RX003_ContPgHS; Resolution: Available;	-	1	Enquire
021	00RB183	CLIP - U-NUT - M6	00RB183 CLIP - U-NUT - M6 Row ID: ID__00RB183_ContPgHS; Resolution: Available;	-	2	Enquire
022	00RA301	Clip - Spier - M5 - 0.5/2.1-SS	00RA301 Clip - Spier - M5 - 0.5/2.1-SS Row ID: ID__00RA301_ContPgHS; Resolution: Available;	-	2	Enquire
023	00RC077	CONVERTIBLE ROOF	00RC077 CONVERTIBLE ROOF Row ID: ID__00RC077_ContPgHS; Resolution: Available;	-	5	Enquire
024	14E0045CP	HEATSHIELD - AIR GUIDE - FRONT - RH	14E0045CP HEATSHIELD - AIR GUIDE - FRONT - RH Row ID: ID__14E0045CP_ContPgHS; Resolution: Available;	$121.26	1
025	00RC063	WASHER - M5X20X1	00RC063 WASHER - M5X20X1 Row ID: ID__00RC063_ContPgHS; Resolution: Available;	-	2	Enquire
026	00RA582	NUT - M5 - HEX	00RA582 NUT - M5 - HEX Row ID: ID__00RA582_ContPgHS; Resolution: Available;	-	2	Enquire
027	00RA313	Screw - M6x16 - Hex - Silver	00RA313 Screw - M6x16 - Hex - Silver Row ID: ID__00RA313_ContPgHS; Resolution: Available;	-	2	Enquire
027	00RA409	BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS	00RA409 BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS Row ID: ID__00RA409_ContPgHS; Resolution: Available;	-	12	Enquire
028	14EA005RP	HEATSHIELD MUFFLER LOWER ROW	14EA005RP HEATSHIELD MUFFLER LOWER ROW Row ID: ID__14EA005RP_ContPgHS; Resolution: Available;	-	1	Enquire
028	14EA006RP	HEATSHIELD LWR-MUFFLER EU	14EA006RP HEATSHIELD LWR-MUFFLER EU Row ID: ID__14EA006RP_ContPgHS; Resolution: Available;	-	1	Enquire
029	14EA050RP	HEATSHIELD UPR-MUFFLER	14EA050RP HEATSHIELD UPR-MUFFLER Row ID: ID__14EA050RP_ContPgHS; Resolution: Available;	-	1	Enquire
