28 - Fuel Tank - 28.1 - Fuel Tank

McLaren McLaren 765LT

Find Your Part

McLaren McLaren 765LT - 28 - FUEL TANK - 28.1 - FUEL TANK

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14KA035CP ASSY - FUEL TANK - COMPLETE - ROW Enquire To Order
14KA037CP ASSY - FUEL TANK - COMPLETE - CHINA Enquire To Order
15KA045CP ASSY - FUEL TANK - COMPLETE - ROW $4,790.17 To Order
Photo Part No Description Price (each) Stock
14KA014CP CONTROLLER - FUEL PUMP Enquire To Order
14KA056CP CONTROLLER - FUEL PUMP $310.88 To Order
14KA063CP CONTROLLER - FUEL PUMP $283.92 To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14KA064CP PIPE - BREATHER - MOULDED - CANISTER $45.19 To Order
Photo Part No Description Price (each) Stock
00RB147 HOSE CLAMP - STEPLESS EAR - 59 DIA Enquire To Order
Photo Part No Description Price (each) Stock
15KA035CP JET PUMP HOSE - FUEL TANK $171.31 To Order
Photo Part No Description Price (each) Stock
14K0087CP PUMP MOUNT - MOULDED $71.94 To Order
Photo Part No Description Price (each) Stock
15MA102CP HARNESS - FUEL CELL - FUEL TANK $174.48 To Order
Photo Part No Description Price (each) Stock
14K0053CP CHARCOAL CANISTER - FILTER $812.40 To Order
Photo Part No Description Price (each) Stock
14K0123CP BRACKET - CANISTER SUPPORT $17.34 To Order
Photo Part No Description Price (each) Stock
14K0140CP PAD - FUEL TANK - CANISTER $11.43 To Order
Photo Part No Description Price (each) Stock
14K0118CP HOSE - FUEL FEED $95.53 To Order
Photo Part No Description Price (each) Stock
14KA013CP BREATHER HOSE - FUEL TANK - CANISTER $85.65 To Order
Photo Part No Description Price (each) Stock
14K0054CP PIPE - PURGE - FUEL TANK $97.98 To Order
Photo Part No Description Price (each) Stock
14K0079CP FLANGE - FUEL TANK $78.54 To Order
15KA004CP FLANGE - FUEL TANK $106.88 To Order
Photo Part No Description Price (each) Stock
12K0229CP SEAL - RETAINING RING - FUEL PUMP $65.75 To Order
Photo Part No Description Price (each) Stock
14KA027CP PAD - FUEL TANK - UPPER - LH $26.51 To Order
Photo Part No Description Price (each) Stock
14KA028CP PAD - FUEL TANK - UPPER - CENTRE $56.01 To Order
Photo Part No Description Price (each) Stock
14KA029CP PAD - FUEL TANK - UPPER - RH $11.26 To Order
Photo Part No Description Price (each) Stock
14KA030CP PAD - FUEL TANK - SEPARATOR $9.66 To Order
Photo Part No Description Price (each) Stock
14KA019CP FUEL PUMP $740.83 To Order
14KA120CP ASSY - TWIN FUEL PUMP Enquire To Order
Photo Part No Description Price (each) Stock
14KA086CP CHARCOAL CANISTER - LEV III Enquire To Order
View All

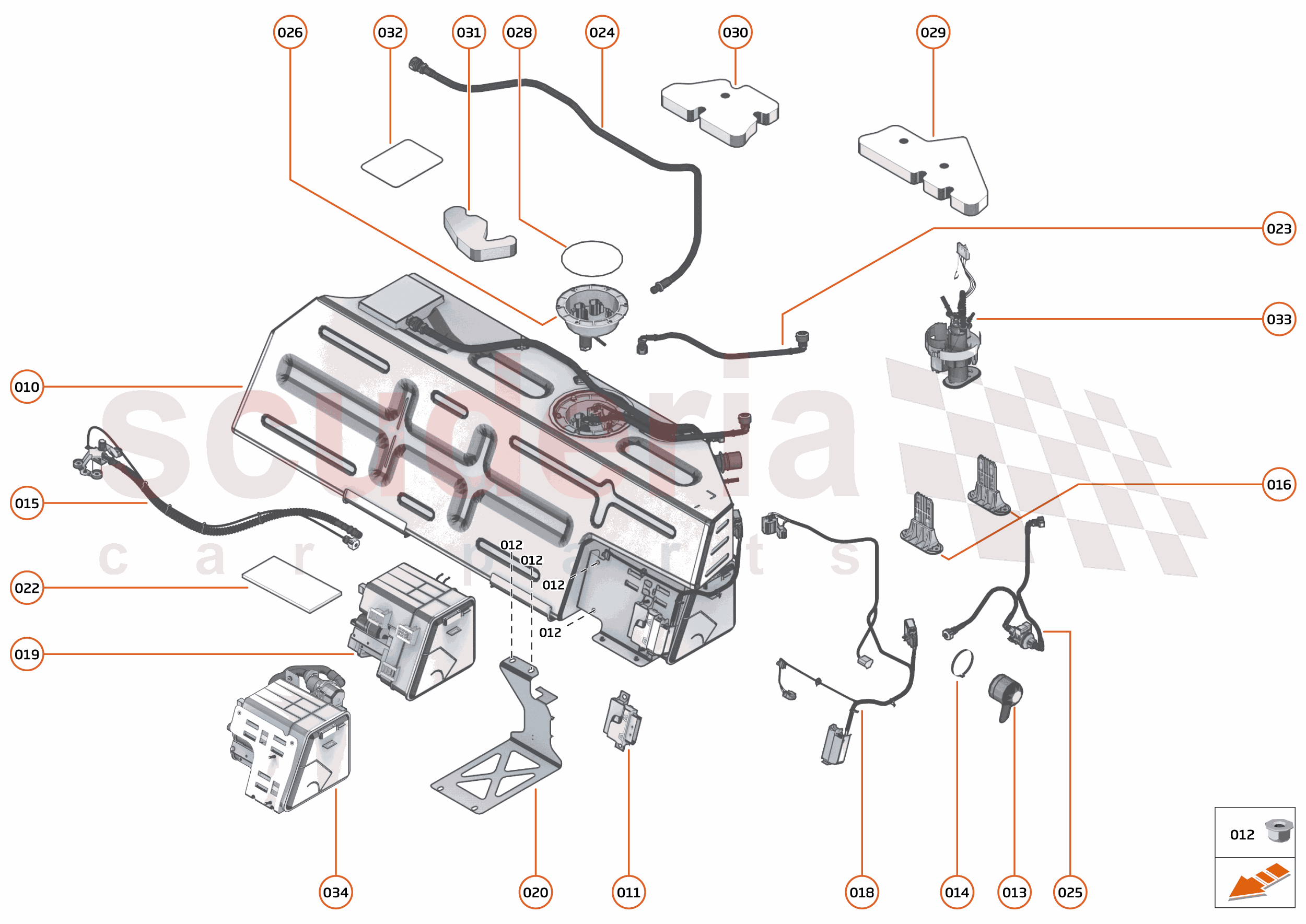

28 - FUEL TANK - 28.1 - FUEL TANK of McLaren McLaren McLaren 765LT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14KA035CP
ASSY - FUEL TANK - COMPLETE - ROW
Row ID: ID__14KA035CP_ContPgHS; Resolution: Available; 		- 1 Enquire
010 14KA037CP
ASSY - FUEL TANK - COMPLETE - CHINA
Row ID: ID__14KA037CP_ContPgHS; Resolution: Available; 		- 1 Enquire
010 15KA045CP
ASSY - FUEL TANK - COMPLETE - ROW
Row ID: ID__15KA045CP_ContPgHS; Resolution: Available; 		$4,790.17 1
011 14KA014CP
CONTROLLER - FUEL PUMP
Row ID: ID__14KA014CP_ContPgHS; Resolution: Available; 		- 1 Enquire
011 14KA056CP
CONTROLLER - FUEL PUMP
Row ID: ID__14KA056CP_ContPgHS; Resolution: Available; 		$310.88 1
011 14KA063CP
CONTROLLER - FUEL PUMP
Row ID: ID__14KA063CP_ContPgHS; Resolution: Available; 		$283.92 1
012 00RA055
NUT - M6 - LOCKING - HEX
Row ID: ID__00RA055_ContPgHS; Resolution: Available; 		- 2 Enquire
013 14KA064CP
PIPE - BREATHER - MOULDED - CANISTER
Row ID: ID__14KA064CP_ContPgHS; Resolution: Available; 		$45.19 1
014 00RB147
HOSE CLAMP - STEPLESS EAR - 59 DIA
Row ID: ID__00RB147_ContPgHS; Resolution: Available; 		- 1 Enquire
015 15KA035CP
JET PUMP HOSE - FUEL TANK
Row ID: ID__15KA035CP_ContPgHS; Resolution: Available; 		$171.31 1
016 14K0087CP
PUMP MOUNT - MOULDED
Row ID: ID__14K0087CP_ContPgHS; Resolution: Available; 		$71.94 2
018 15MA102CP
HARNESS - FUEL CELL - FUEL TANK
Row ID: ID__15MA102CP_ContPgHS; Resolution: Available; 		$174.48 1
019 14K0053CP
CHARCOAL CANISTER - FILTER
Row ID: ID__14K0053CP_ContPgHS; Resolution: Available; 		$812.40 1
020 14K0123CP
BRACKET - CANISTER SUPPORT
Row ID: ID__14K0123CP_ContPgHS; Resolution: Available; 		$17.34 1
022 14K0140CP
PAD - FUEL TANK - CANISTER
Row ID: ID__14K0140CP_ContPgHS; Resolution: Available; 		$11.43 1
023 14K0118CP
HOSE - FUEL FEED
Row ID: ID__14K0118CP_ContPgHS; Resolution: Available; 		$95.53 1
024 14KA013CP
BREATHER HOSE - FUEL TANK - CANISTER
Row ID: ID__14KA013CP_ContPgHS; Resolution: Available; 		$85.65 1
025 14K0054CP
PIPE - PURGE - FUEL TANK
Row ID: ID__14K0054CP_ContPgHS; Resolution: Available; 		$97.98 1
026 14K0079CP
FLANGE - FUEL TANK
Row ID: ID__14K0079CP_ContPgHS; Resolution: Available; 		$78.54 1
026 15KA004CP
FLANGE - FUEL TANK
Row ID: ID__15KA004CP_ContPgHS; Resolution: Available; 		$106.88 1
028 12K0229CP
SEAL - RETAINING RING - FUEL PUMP
Row ID: ID__12K0229CP_ContPgHS; Resolution: Available; 		$65.75 1
029 14KA027CP
PAD - FUEL TANK - UPPER - LH
Row ID: ID__14KA027CP_ContPgHS; Resolution: Available; 		$26.51 1
030 14KA028CP
PAD - FUEL TANK - UPPER - CENTRE
Row ID: ID__14KA028CP_ContPgHS; Resolution: Available; 		$56.01 1
031 14KA029CP
PAD - FUEL TANK - UPPER - RH
Row ID: ID__14KA029CP_ContPgHS; Resolution: Available; 		$11.26 1
032 14KA030CP
PAD - FUEL TANK - SEPARATOR
Row ID: ID__14KA030CP_ContPgHS; Resolution: Available; 		$9.66 1
033 14KA019CP
FUEL PUMP
Row ID: ID__14KA019CP_ContPgHS; Resolution: Available; 		$740.83 1
033 14KA120CP
ASSY - TWIN FUEL PUMP
Row ID: ID__14KA120CP_ContPgHS; Resolution: Available; 		- 1 Enquire
034 14KA086CP
CHARCOAL CANISTER - LEV III
Row ID: ID__14KA086CP_ContPgHS; Resolution: Available; 		- 1 Enquire
035 00RL004
FELT TAPE
Row ID: ID__00RL004_ContPgHS; Resolution: Available; 		- 1 Enquire
