McLaren McLaren 600LT - 15 - HVAC - 15.1 - HVAC INLET AND DISTRIBUTION

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13A3588CP Distribution Unit - HVAC $1,056.18 To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC075 WASHER - NYLON - 14.35X6.45X2.39 Enquire To Order
Photo Part No Description Price (each) Stock
13A4013CP Intake Unit - HVAC $1,489.12 To Order
13A5729CP Intake Unit - HVAC - R1234yf $1,265.76 To Order
Photo Part No Description Price (each) Stock
11A7034CP Drain Tube - HVAC $43.61 To Order
Photo Part No Description Price (each) Stock
11A4152CP Filter - Cabin - HVAC $81.23 To Order
Photo Part No Description Price (each) Stock
11A4612CP Access Panel - HVAC Inlet - Filter $66.36 To Order
Photo Part No Description Price (each) Stock
11A6627CP SENSOR - PRESSURE - HVAC $283.92 To Order
Photo Part No Description Price (each) Stock
11A4434CP CLAMP PLATE - HVAC EVAPORATOR CONNECTION $71.09 To Order
Photo Part No Description Price (each) Stock
11A4134CP HVAC-FLAP MOTOR Enquire To Order
Photo Part No Description Price (each) Stock
11A4137CP HVAC FLAP MOTOR BOLT $5.98 To Order
View All

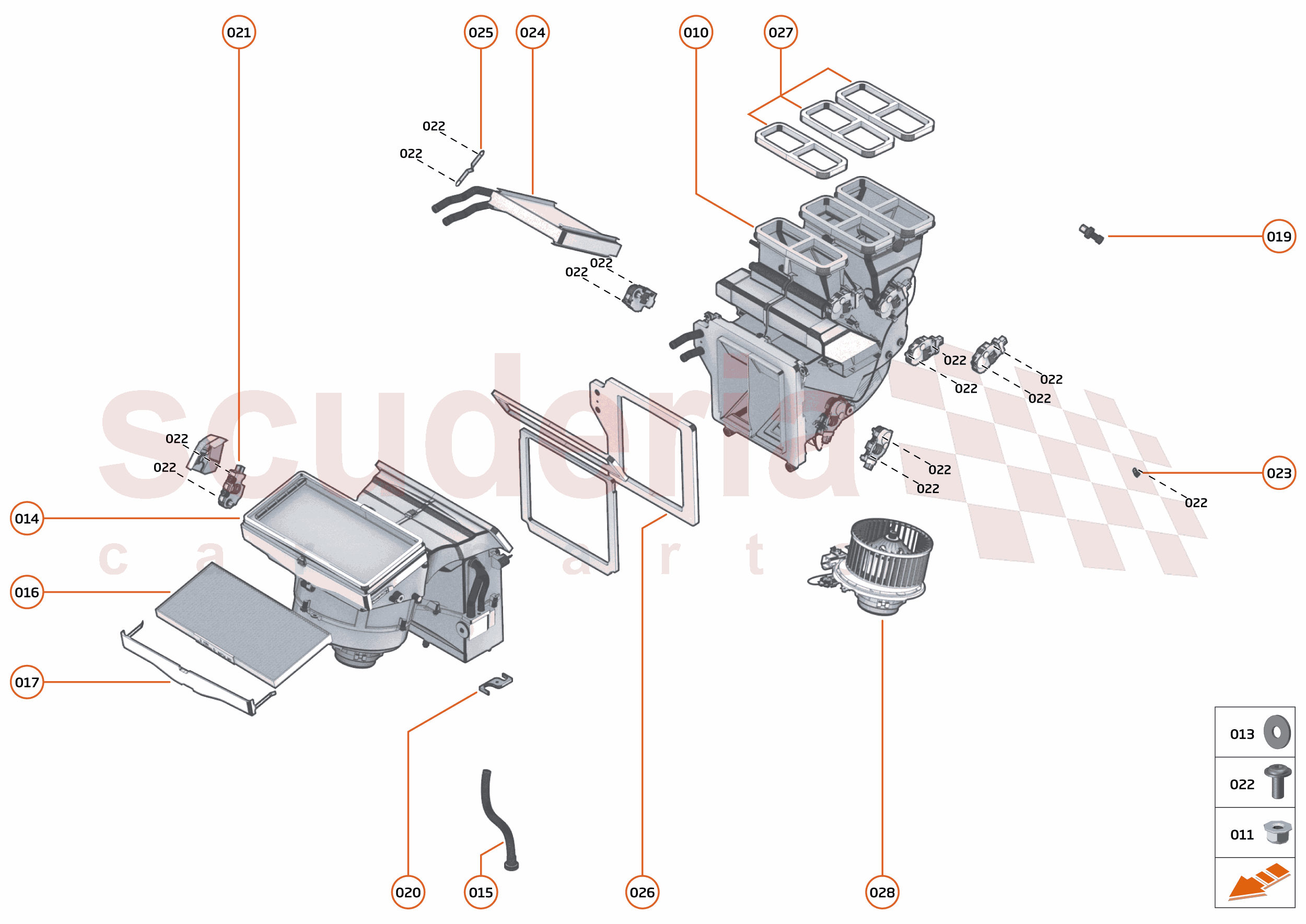

15 - HVAC - 15.1 - HVAC INLET AND DISTRIBUTION of McLaren McLaren McLaren 600LT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 13A3588CP
Distribution Unit - HVAC
Row ID: ID_CCAS0101_13A3588CP_ContPgHS; Resolution: Available; 		$1,056.18 1
011 00RA055
NUT - M6 - LOCKING - HEX
Row ID: ID_CCAS0102_00RA055_ContPgHS; Resolution: Available; 		- 6 Enquire
012 00RA369
Screw - Plas Tech - M6x16mm
Row ID: ID_CCAS0103_00RA369_ContPgHS; Resolution: Available; 		- 2 Enquire
013 00RC075
WASHER - NYLON - 14.35X6.45X2.39
Row ID: ID_CCAS0104_00RC075_ContPgHS; Resolution: Available; 		- 2 Enquire
014 13A4013CP
Intake Unit - HVAC
Row ID: ID_CCAS0105_13A4013CP_ContPgHS; Resolution: Available; 		$1,489.12 1
014 13A5729CP
Intake Unit - HVAC - R1234yf
Row ID: ID_CCAS0125_13A5729CP_ContPgHS; Resolution: Available; 		$1,265.76 1
015 11A7034CP
Drain Tube - HVAC
Row ID: ID_CCAS0106_11A7034CP_ContPgHS; Resolution: Available; 		$43.61 1
016 11A4152CP
Filter - Cabin - HVAC
Row ID: ID_CCAS0107_11A4152CP_ContPgHS; Resolution: Available; 		$81.23 1
017 11A4612CP
Access Panel - HVAC Inlet - Filter
Row ID: ID_CCAS0108_11A4612CP_ContPgHS; Resolution: Available; 		$66.36 1
019 11A6627CP
SENSOR - PRESSURE - HVAC
Row ID: ID_CCAS0110_11A6627CP_ContPgHS; Resolution: Available; 		$283.92 1
020 11A4434CP
CLAMP PLATE - HVAC EVAPORATOR CONNECTION
Row ID: ID_CCAS0111_11A4434CP_ContPgHS; Resolution: Available; 		$71.09 1
021 11A4134CP
HVAC-FLAP MOTOR
Row ID: ID__11A4134CP_ContPgHS; Resolution: Available; 		- 1 Enquire
022 11A4137CP
HVAC FLAP MOTOR BOLT
Row ID: ID__11A4137CP_ContPgHS; Resolution: Available; 		$5.98 1
