McLaren McLaren 570S Spider - 49 - INTERIOR SYSTEMS - 49.10 - SEAT ASSEMBLY - COMPONENTS & HARDWARE - COMMON

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13NA074CP Bracket Kit - Side Valance to Seat Base $1,069.07 To Order
Photo Part No Description Price (each) Stock
13NA073CP Fitting Kit - Side Valance to Seat Base $1,015.14 To Order
Photo Part No Description Price (each) Stock
13NA083CP Side Shield - Backrest - RH $97.98 To Order
Photo Part No Description Price (each) Stock
13NA084CP Side Shield - Backrest - LH $97.98 To Order
Photo Part No Description Price (each) Stock
13NA066CP Fitting Kit - Backrest Shell $1,015.14 To Order
Photo Part No Description Price (each) Stock
13NA057CP OCS ECU FITTING KIT-ARP13435 $42.82 To Order
View All

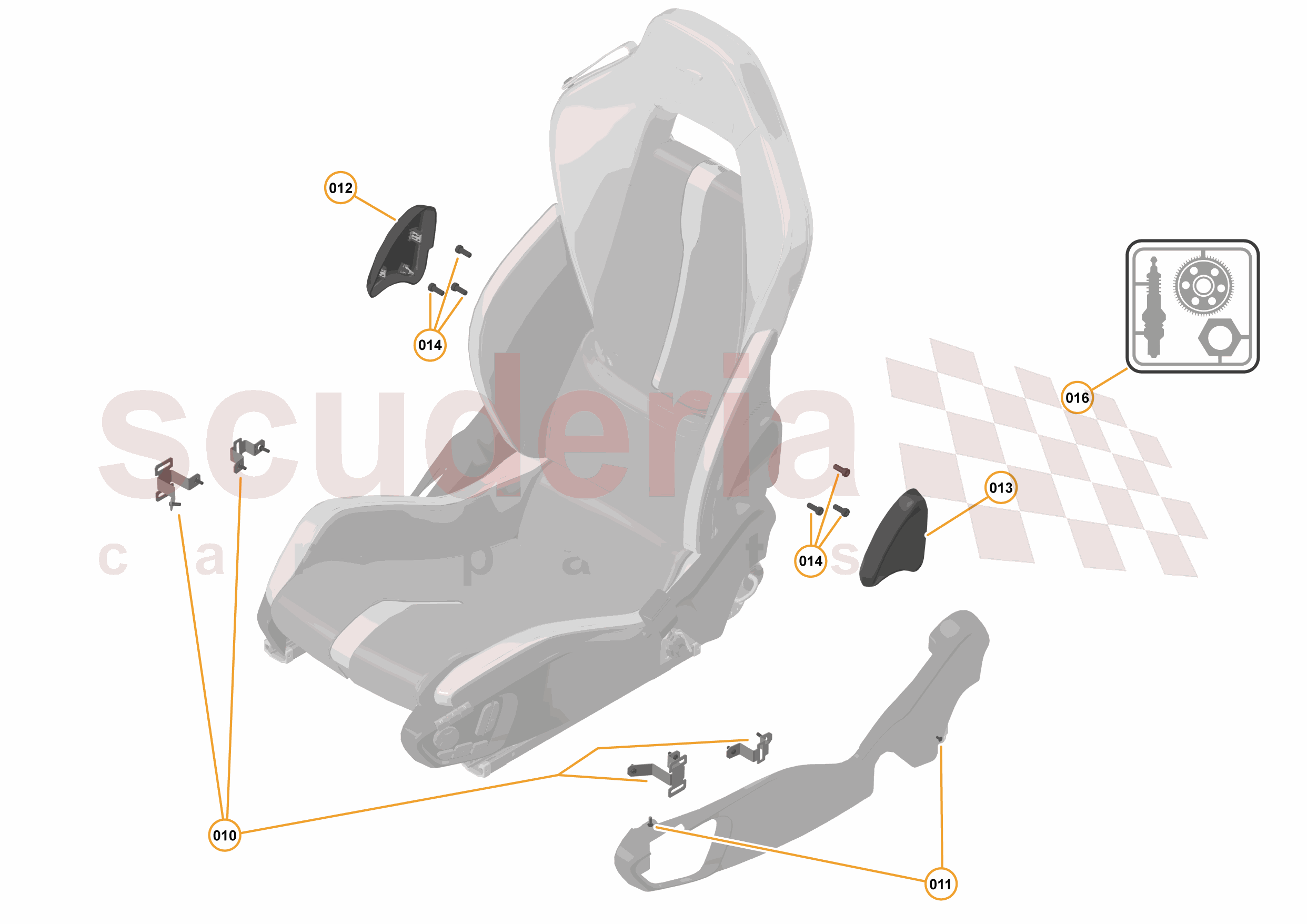

49 - INTERIOR SYSTEMS - 49.10 - SEAT ASSEMBLY - COMPONENTS & HARDWARE - COMMON of McLaren McLaren McLaren 570S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 13NA074CP
Bracket Kit - Side Valance to Seat Base
Row ID: ID_CHNA0739_13NA074CP_ContPgHS; Resolution: Available; 		$1,069.07 1
011 13NA073CP
Fitting Kit - Side Valance to Seat Base
Row ID: ID_CHNA0740_13NA073CP_ContPgHS; Resolution: Available; 		$1,015.14 1
012 13NA083CP
Side Shield - Backrest - RH
Row ID: ID_CHNA0741_13NA083CP_ContPgHS; Resolution: Available; 		$97.98 1
013 13NA084CP
Side Shield - Backrest - LH
Row ID: ID_CHNA0742_13NA084CP_ContPgHS; Resolution: Available; 		$97.98 1
014 13NA066CP
Fitting Kit - Backrest Shell
Row ID: ID_CHNA07A0_13NA066CP_ContPgHS; Resolution: Available; 		$1,015.14 2
016 13NA057CP
OCS ECU FITTING KIT-ARP13435
Row ID: ID__13NA057CP_ContPgHS; Resolution: Available; 		$42.82 1
