32 - Engine - 32.11 - Power Unit Assembly, Short Block & Hardware

McLaren McLaren 540C Coupe

Find Your Part

McLaren McLaren 540C Coupe - 32 - ENGINE - 32.11 - POWER UNIT ASSEMBLY, SHORT BLOCK & HARDWARE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F1191CP ENGINE LADDERFRAME WATER PASSAGE SEAL SOP $14.51 To Order
11F1192CP ENGINE LADDERFRAME COLD START OIL SEAL SOP $14.51 To Order
Photo Part No Description Price (each) Stock
13F0819CP Engine - 3.8 litre V8 Twin Turbo - Non ISG $60,758.41 To Order
13FA015CP Engine - 3.8 litre V8 Twin Turbo - Non ISG - China Enquire To Order
13F0816CP Engine - 3.8 litre V8 Twin Turbo - ISG $50,641.76 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11F0799CP Plug - Engine - Bed Plate - inc. Washer $25.37 To Order
11F1942CP Washer - Ladderframe - M18 - Copper $10.14 To Order
Photo Part No Description Price (each) Stock
11F0798CP Stud Kit - Engine to Transmission $20.62 To Order
Photo Part No Description Price (each) Stock
11F0800CP Over Pressure - Oil Relief Valve - Engine - Assy $99.59 To Order
Photo Part No Description Price (each) Stock
11F2209CP Crank Timing Plug - Engine - inc. O-ring $13.18 To Order
Photo Part No Description Price (each) Stock
11F1018CP Seal - Clutch Cooler Pipe Connection $23.39 To Order
Photo Part No Description Price (each) Stock
11F2577CP GRUB SCREW - OIL CHANNEL - ENGINE $9.51 To Order
Photo Part No Description Price (each) Stock
11F1917CP BOLT- LADDERFRAME - M12X115 $13.60 To Order
View All

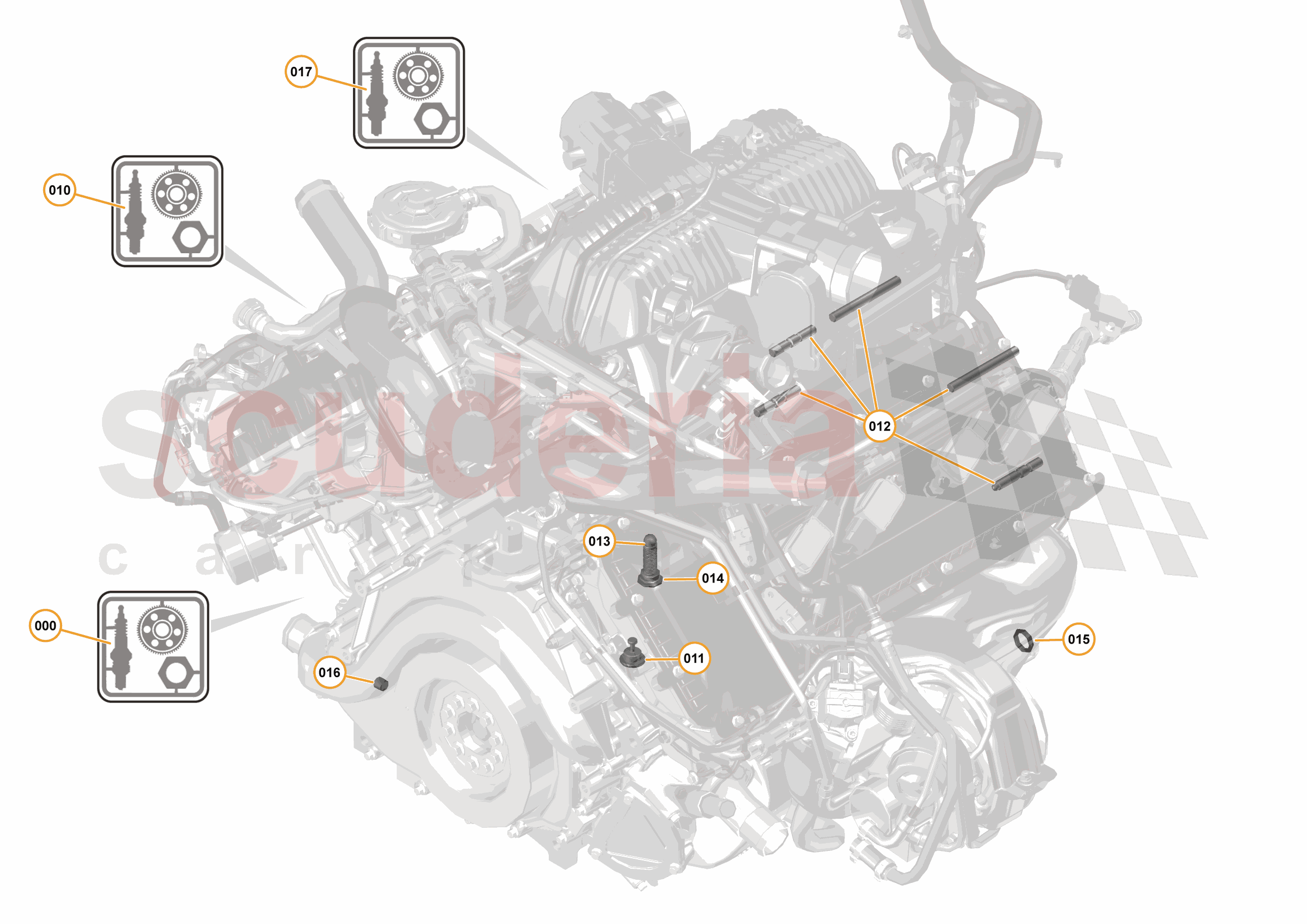

32 - ENGINE - 32.11 - POWER UNIT ASSEMBLY, SHORT BLOCK & HARDWARE of McLaren McLaren McLaren 540C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11F1191CP
ENGINE LADDERFRAME WATER PASSAGE SEAL SOP
Row ID: ID__11F1191CP_ContPgHS; Resolution: Available; 		$14.51 1
000 11F1192CP
ENGINE LADDERFRAME COLD START OIL SEAL SOP
Row ID: ID__11F1192CP_ContPgHS; Resolution: Available; 		$14.51 1
010 13F0819CP
Engine - 3.8 litre V8 Twin Turbo - Non ISG
Row ID: ID_CEFA01D2_13F0819CP_ContPgHS; Resolution: Available; 		$60,758.41 1
010 13FA015CP
Engine - 3.8 litre V8 Twin Turbo - Non ISG - China
Row ID: ID_CEFA01E4_13FA015CP_ContPgHS; Resolution: Available; 		- 1 Enquire
010 13F0816CP
Engine - 3.8 litre V8 Twin Turbo - ISG
Row ID: ID_CEFA01D3_13F0816CP_ContPgHS; Resolution: Available; 		$50,641.76 1
010 13FA016CP
Engine - 3.8 litre V8 Twin Turbo - ISG - China
Row ID: ID_CEFA01E5_13FA016CP_ContPgHS; Resolution: Available; 		- 1 Enquire
011 11F0799CP
Plug - Engine - Bed Plate - inc. Washer
Row ID: ID_CEFA01D4_11F0799CP_ContPgHS; Resolution: Available; 		$25.37 1
011 11F1942CP
Washer - Ladderframe - M18 - Copper
Row ID: ID_CEFA01E3_11F1942CP_ContPgHS; Resolution: Available; 		$10.14 1
012 11F0798CP
Stud Kit - Engine to Transmission
Row ID: ID_CEFA01D5_11F0798CP_ContPgHS; Resolution: Available; 		$20.62 1
013 11F0800CP
Over Pressure - Oil Relief Valve - Engine - Assy
Row ID: ID_CEFA01D6_11F0800CP_ContPgHS; Resolution: Available; 		$99.59 1
014 11F2209CP
Crank Timing Plug - Engine - inc. O-ring
Row ID: ID_CEFA01D7_11F2209CP_ContPgHS; Resolution: Available; 		$13.18 1
015 11F1018CP
Seal - Clutch Cooler Pipe Connection
Row ID: ID_CEFA01D8_11F1018CP_ContPgHS; Resolution: Available; 		$23.39 1
016 11F2577CP
GRUB SCREW - OIL CHANNEL - ENGINE
Row ID: ID_CEFA01D9_11F2577CP_ContPgHS; Resolution: Available; 		$9.51 1
017 11F1917CP
BOLT- LADDERFRAME - M12X115
Row ID: ID__11F1917CP_ContPgHS; Resolution: Available; 		$13.60 1
