23 - M1 - Electrical Distribution - 23.5 - 01 - Electrical Distribution - Powertrain

McLaren McLaren 12C Coupe

Find Your Part

McLaren McLaren 12C Coupe - 23 - M1 - ELECTRICAL DISTRIBUTION - 23.5 - 01 - ELECTRICAL DISTRIBUTION - POWERTRAIN

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA075 NUT - M8-8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA262 HALF NUT - M8 - DIN 439 Enquire To Order
Photo Part No Description Price (each) Stock
00RA299 Bolt - M6x16 - Locking Hex Enquire To Order
Photo Part No Description Price (each) Stock
11M0887CP Wiring Harness - Transmission - External Enquire To Order
11M2902CP Wiring Harness - Transmission - External - MY15 $1,998.55 To Order
Photo Part No Description Price (each) Stock
11M0641CP Wiring Harness - Engine $3,648.15 To Order
Photo Part No Description Price (each) Stock
11F0744CP Harness - Engine Link - Injectors - LH & RH $856.52 To Order
Photo Part No Description Price (each) Stock
11F0745CP Harness - Engine Link - Inlet Manifold $274.40 To Order
Photo Part No Description Price (each) Stock
11F0743CP Harness - Engine Link - Vee $364.82 To Order
Photo Part No Description Price (each) Stock
11M2171CP Wiring Harness - Starter Motor - inc. Carrier Enquire To Order
Photo Part No Description Price (each) Stock
00RL001 CABLE TIE - FIRTREE BASE Enquire To Order
Photo Part No Description Price (each) Stock
00RL004 FELT TAPE Enquire To Order
Photo Part No Description Price (each) Stock
11M0410CP Engine Ground Strap Enquire To Order
View All

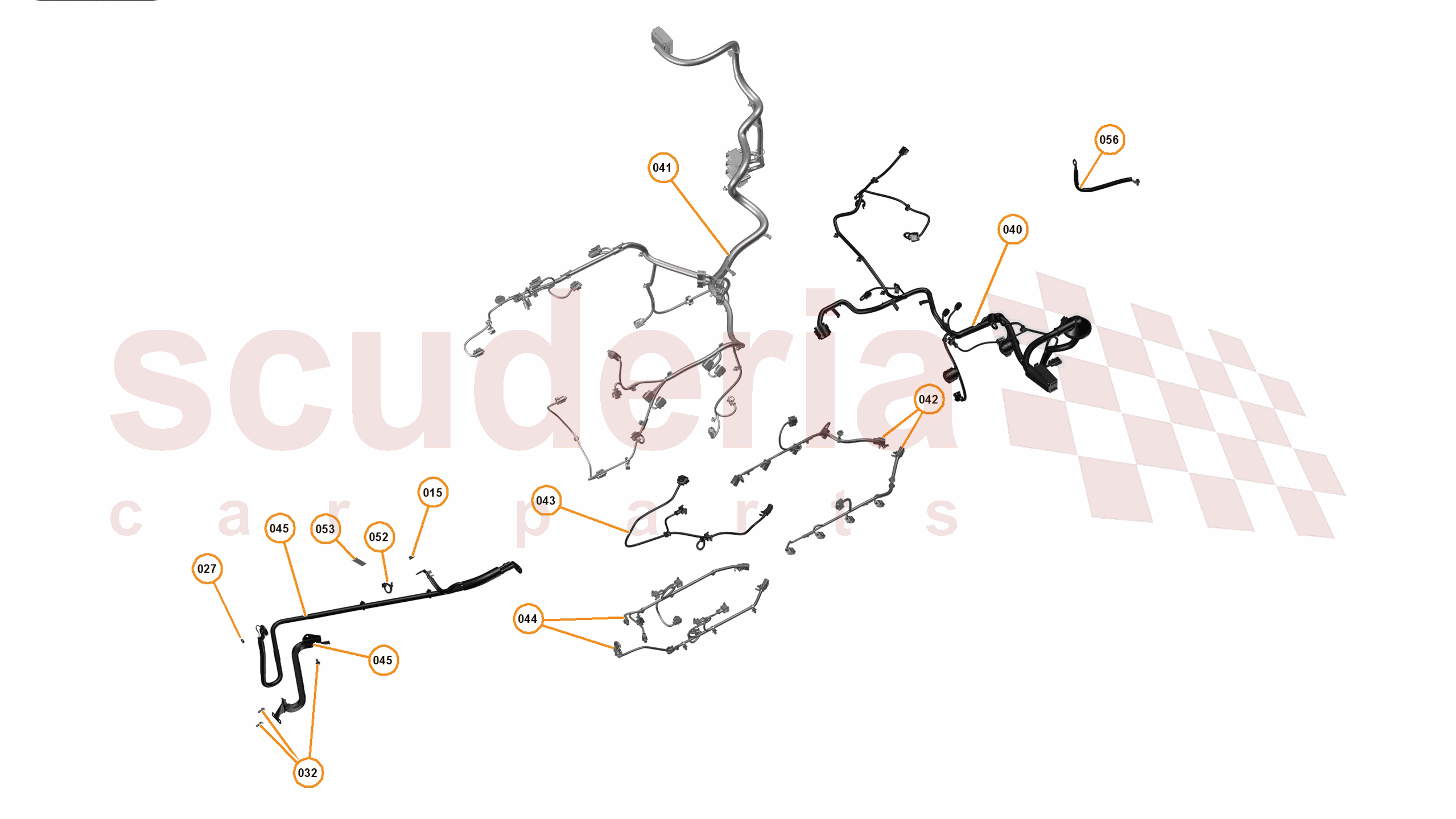

23 - M1 - ELECTRICAL DISTRIBUTION - 23.5 - 01 - ELECTRICAL DISTRIBUTION - POWERTRAIN of McLaren McLaren McLaren 12C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
015 00RA075
NUT - M8-8 - HEX
Row ID: ID_M0M10154_00RA075_ContPgHS; Resolution: Available; 		- 12 Enquire
027 00RA262
HALF NUT - M8 - DIN 439
Row ID: ID_M0M10178_00RA262_ContPgHS; Resolution: Available; 		- 1 Enquire
032 00RA299
Bolt - M6x16 - Locking Hex
Row ID: ID_M0M101J3_00RA299_ContPgHS; Resolution: Available; 		- 19 Enquire
040 11M0887CP
Wiring Harness - Transmission - External
Row ID: ID_M0M10194_11M0887CP_ContPgHS; Resolution: Available; 		- 1 Enquire
040 11M2902CP
Wiring Harness - Transmission - External - MY15
Row ID: ID_M0M101G7_11M2902CP_ContPgHS; Resolution: Available; 		$1,998.55 1
041 11M0641CP
Wiring Harness - Engine
Row ID: ID_M0M10195_11M0641CP_ContPgHS; Resolution: Available; 		$3,648.15 1
042 11F0744CP
Harness - Engine Link - Injectors - LH & RH
Row ID: ID_M0M10196_11F0744CP_ContPgHS; Resolution: Available; 		$856.52 1
043 11F0745CP
Harness - Engine Link - Inlet Manifold
Row ID: ID_M0M10197_11F0745CP_ContPgHS; Resolution: Available; 		$274.40 1
044 11F0743CP
Harness - Engine Link - Vee
Row ID: ID_M0M10198_11F0743CP_ContPgHS; Resolution: Available; 		$364.82 1
045 11M2171CP
Wiring Harness - Starter Motor - inc. Carrier
Row ID: ID_M0M10199_11M2171CP_ContPgHS; Resolution: Available; 		- 1 Enquire
052 00RL001
CABLE TIE - FIRTREE BASE
Row ID: ID_M0M10107_00RL001_ContPgHS; Resolution: Available; 		- 1 Enquire
053 00RL004
FELT TAPE
Row ID: ID_M0M10108_00RL004_ContPgHS; Resolution: Available; 		- 6 Enquire
056 11M0410CP
Engine Ground Strap
Row ID: ID_M0M10111_11M0410CP_ContPgHS; Resolution: Available; 		- 1 Enquire
