TYRE PRESSURE MONITORING SYSTEM (Available with: Tyre Pressure Monitoring System) of Maserati Maserati Quattroporte (2008-2012) 4.2

View All

Maserati Quattroporte (2008-2012) 4.2 - TYRE PRESSURE MONITORING SYSTEM (Available with: Tyre Pressure Monitoring System)

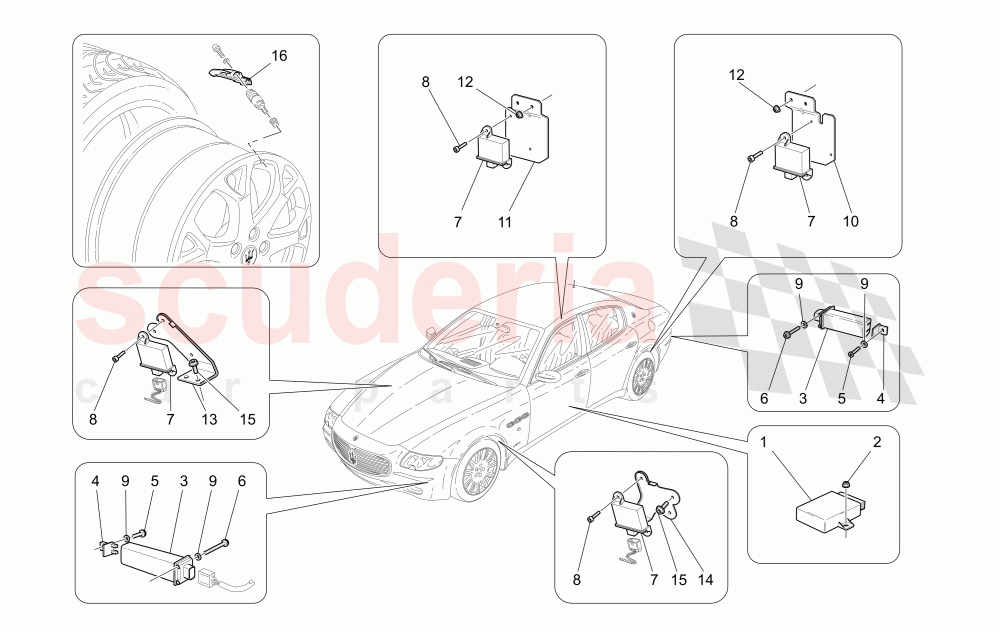

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	310225	TYRE PRESSURE CONTROL UNIT	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	14059211	NUTM6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	239463	Antenna TPMS F1 System 433MHZ	Enquire	To Order
	249361	TPMS ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	195646	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	115670	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13272911	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	237966	TRIGGER TPMS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250657	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12642821	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	269627	LH REAR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	269629	RH REAR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059211	NUTM6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	249946	RH FRONT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	249947	LH FRONT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	290569	TYRES PRESSURE CONTROL SENSOR	Enquire	To Order
	282189	TYRES PRESSURE CONTROL SENSOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	310225	TYRE PRESSURE CONTROL UNIT ARRIVING SOON	310225 TYRE PRESSURE CONTROL UNIT Valid for TPMS 2,5 system ARRIVING SOON	-	1	Enquire
2	14059211	NUTM6	14059211 NUTM6 M6 Valid for TPMS 2,5 system	-	2	Enquire
3	239463	Antenna TPMS F1 System 433MHZ	239463 Antenna TPMS F1 System 433MHZ Valid for TPMS 2,5 system	-	2	Enquire
3	249361	TPMS ANTENNA	249361 TPMS ANTENNA Valid for TPMS 2,5 system	-	2	Enquire
4	195646	CLIP	195646 CLIP Valid for TPMS 2,5 system	-	2	Enquire
5	115670	SCREW	115670 SCREW Valid for TPMS 2,5 system	-	2	Enquire
6	13272911	SCREW	13272911 SCREW Valid for TPMS 2,5 system	-	4	Enquire
7	237966	TRIGGER TPMS	237966 TRIGGER TPMS Valid for TPMS 2,5 system	-	4	Enquire
8	250657	SCREW	250657 SCREW TE M6X16 Valid for TPMS 2,5 system	-	8	Enquire
9	12642821	WASHER	12642821 WASHER Valid for TPMS 2,5 system	-	12	Enquire
10	269627	LH REAR BRACKET	269627 LH REAR BRACKET Valid for TPMS 2,5 system	-	1	Enquire
11	269629	RH REAR BRACKET	269629 RH REAR BRACKET Valid for TPMS 2,5 system	-	1	Enquire
12	14059211	NUTM6	14059211 NUTM6 M6 Valid for TPMS 2,5 system	-	4	Enquire
13	249946	RH FRONT BRACKET	249946 RH FRONT BRACKET Valid for TPMS 2,5 system	-	1	Enquire
14	249947	LH FRONT BRACKET	249947 LH FRONT BRACKET Valid for TPMS 2,5 system	-	1	Enquire
15	85833700	SCREW	85833700 SCREW Valid for TPMS 2,5 system	-	4	Enquire
16	290569	TYRES PRESSURE CONTROL SENSOR	290569 TYRES PRESSURE CONTROL SENSOR 315 MHZ - Valid pfor Japan RHD+LHD, Cina, Hong Kong RHD+LHD, Singapore and Malesia RHD	-	4	Enquire
16	282189	TYRES PRESSURE CONTROL SENSOR	282189 TYRES PRESSURE CONTROL SENSOR 433 MHZ - NOT Valid for Japan RHD+LHD, Cina, Hong Kong RHD+LHD, Singapore e Malesia RHD	-	4	Enquire
