FRONT SHOCK ABSORBER DEVICES (Available with: Skyhook System) of Maserati Maserati Quattroporte (2009-2012) Sport GTS

View All

Maserati Quattroporte (2009-2012) Sport GTS - FRONT SHOCK ABSORBER DEVICES (Available with: Skyhook System)

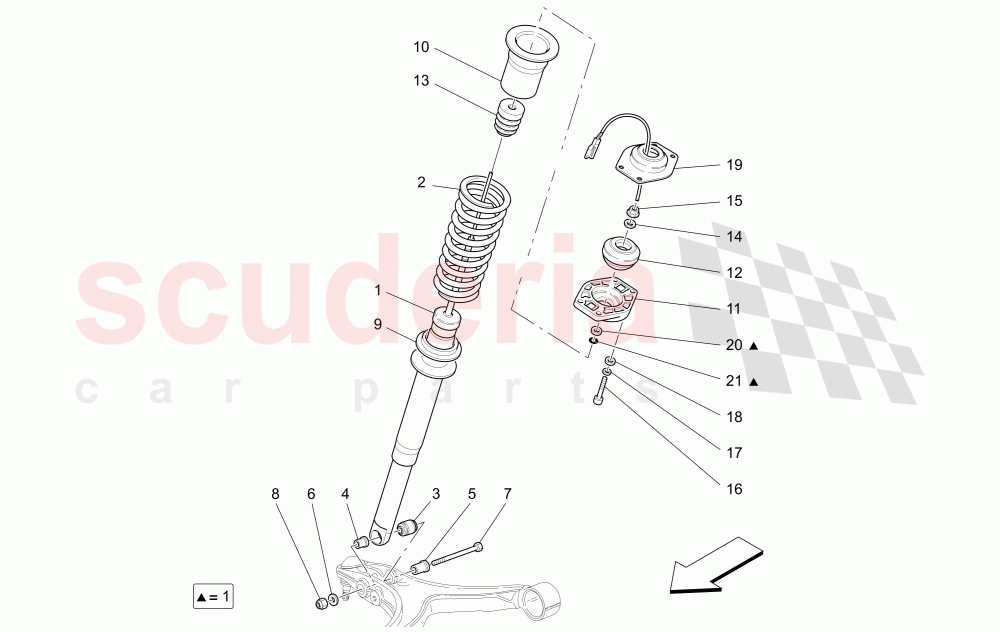

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock

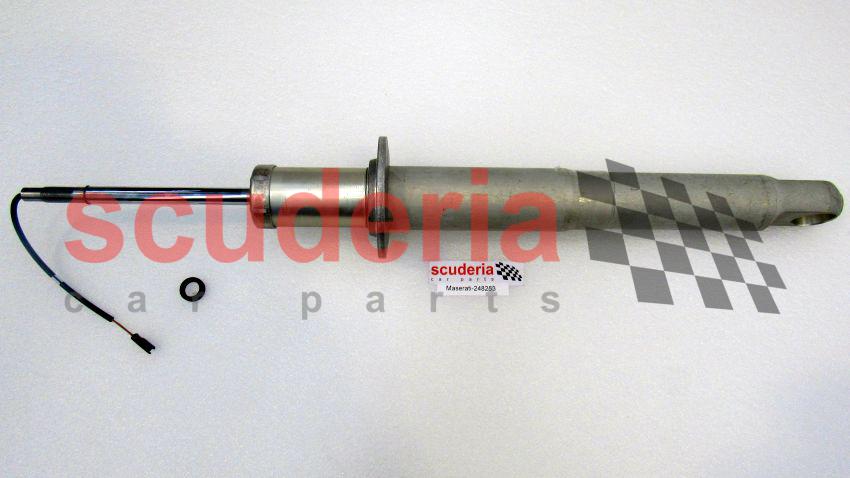

	248253	FRONT SHOCK ABSORBER	Enquire	To Order
	248253	FRONT SHOCK ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263100	SPRING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	157630	Shock Absorber Bush	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	191823	Bushing	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	187059	Bush	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	203663	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	16241234	Hex Head Screw M 12 x 1.25 x 110	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	203666	Nut M12	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	211236	LOWER SPRING SPACER	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	238358	UPPER SPRING SPACER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231388	Front Shock Absorber Top Mount Lower Cup Washer	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	228842	HyperBlock	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	213522	Shock Absorber Pad	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306634	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496524	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	279627	Front Shock Absorber Upper Cup Washer	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	183595	Bushing	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	183594	CirClip	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	248253	FRONT SHOCK ABSORBER	248253 FRONT SHOCK ABSORBER (Old solution with adjustment spacer)	-	1	Enquire
1	248253	FRONT SHOCK ABSORBER	248253 FRONT SHOCK ABSORBER (Solution with fixed spacer, for cars with old solution with adjustment spacer replace both)	-	1	Enquire
2	263100	SPRING IN STOCK	263100 SPRING IN STOCK	-	2	Enquire
3	157630	Shock Absorber Bush	157630 Shock Absorber Bush	-	2	Enquire
4	191823	Bushing IN STOCK	191823 Bushing IN STOCK	-	2	Enquire
5	187059	Bush IN STOCK	187059 Bush IN STOCK	-	2	Enquire
6	203663	WASHER IN STOCK	203663 WASHER IN STOCK	-	2	Enquire
7	16241234	Hex Head Screw M 12 x 1.25 x 110 IN STOCK	16241234 Hex Head Screw M 12 x 1.25 x 110 IN STOCK	-	2	Enquire
8	203666	Nut M12 IN STOCK	203666 Nut M12 IN STOCK	-	2	Enquire
9	211236	LOWER SPRING SPACER ARRIVING SOON	211236 LOWER SPRING SPACER ARRIVING SOON	-	2	Enquire
10	238358	UPPER SPRING SPACER IN STOCK	238358 UPPER SPRING SPACER IN STOCK	-	2	Enquire
11	231388	Front Shock Absorber Top Mount Lower Cup Washer IN STOCK	231388 Front Shock Absorber Top Mount Lower Cup Washer IN STOCK	-	2	Enquire
12	228842	HyperBlock IN STOCK	228842 HyperBlock IN STOCK	-	2	Enquire
13	213522	Shock Absorber Pad	213522 Shock Absorber Pad	-	2	Enquire
16	14306634	SCREW IN STOCK	14306634 SCREW IN STOCK	-	8	Enquire
17	84653800	WASHER	84653800 WASHER	-	8	Enquire
18	14496524	WASHER IN STOCK	14496524 WASHER D. 8.40-17 X1.6 IN STOCK	-	8	Enquire
19	279627	Front Shock Absorber Upper Cup Washer IN STOCK	279627 Front Shock Absorber Upper Cup Washer IN STOCK	-	2	Enquire
20	183595	Bushing IN STOCK	183595 Bushing IN STOCK	-	2	Enquire
21	183594	CirClip IN STOCK	183594 CirClip IN STOCK	-	2	Enquire
