COOLING: AIR RADIATORS AND DUCTS

Find Your Part

Maserati Quattroporte (2009-2012) Sport GTS - COOLING: AIR RADIATORS AND DUCTS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
220979 WATER RADIATOR $809.52 To Order
Photo Part No Description Price (each) Stock
233863 RH BRACKET FOR UPPER FIXING WATER RADIATOR $30.43 To Order
Photo Part No Description Price (each) Stock
16044624 SCREW $2.83 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
12601374 WASHERD. 8,40-15X 0,8 $1.62 To Order
Photo Part No Description Price (each) Stock
14040711 NUT M8 FLANGED $2.05 To Order
Photo Part No Description Price (each) Stock
14054511 NUT $1.41 To Order
Photo Part No Description Price (each) Stock
14496524 WASHER $2.05 To Order
Photo Part No Description Price (each) Stock
181114 Pad $14.60 To Order
Photo Part No Description Price (each) Stock
16043021 SCREW $1.97 To Order
Photo Part No Description Price (each) Stock
12601374 WASHERD. 8,40-15X 0,8 $1.62 To Order
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM $3.53 To Order
Photo Part No Description Price (each) Stock
12648925 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
234470 RADIATOR AIR DUCT $597.42 To Order
Photo Part No Description Price (each) Stock
61789700 Bracket $2.00 To Order
Photo Part No Description Price (each) Stock
81637900 BRACKET $4.22 To Order
Photo Part No Description Price (each) Stock
67257100 BRACKET $2.05 To Order
Photo Part No Description Price (each) Stock
14304624 SCREW $1.27 To Order
Photo Part No Description Price (each) Stock
12604178 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
12644424 WASHER 6.15-15 X 1 $1.62 To Order
Photo Part No Description Price (each) Stock
233862 LH BRACKET FOR UPPER FIXING WATER RADIATOR $68.73 To Order
Photo Part No Description Price (each) Stock
16044624 SCREW $2.83 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
12601374 WASHERD. 8,40-15X 0,8 $1.62 To Order
Photo Part No Description Price (each) Stock
14040711 NUT M8 FLANGED $2.05 To Order
Photo Part No Description Price (each) Stock
268185 CLAMP $1.97 To Order
Photo Part No Description Price (each) Stock
263143 Fan Assembly $929.48 To Order
Photo Part No Description Price (each) Stock
16044824 SCREW $2.83 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
197585 BUSH $7.89 To Order
Photo Part No Description Price (each) Stock
197584 RUBBER BUSHING $6.87 To Order
Photo Part No Description Price (each) Stock
263140 Resistor $115.21 To Order
Photo Part No Description Price (each) Stock
233535 PROFILE $2.83 To Order
Photo Part No Description Price (each) Stock
233735 PROFILE $2.83 To Order
Photo Part No Description Price (each) Stock
15699804 SCREW $1.97 To Order
Photo Part No Description Price (each) Stock
980139638 PLUG $12.85 To Order
Photo Part No Description Price (each) Stock
266658 L.H. LOWER SUPPORT $57.41 To Order
266659 R.H. LOWER SUPPORT $57.41 To Order
Photo Part No Description Price (each) Stock
242693 Hood Dans Air Duct $163.33 To Order
Photo Part No Description Price (each) Stock
16043534 SCREW M8 X 22 $2.39 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
12601374 WASHERD. 8,40-15X 0,8 $1.62 To Order
Photo Part No Description Price (each) Stock
15698304 SCREW $2.83 To Order
Photo Part No Description Price (each) Stock
14039614 NUT $1.54 To Order
Photo Part No Description Price (each) Stock
12643724 Washer 6.15-18x1.5 $1.62 To Order
Photo Part No Description Price (each) Stock
268185 CLAMP $1.97 To Order
View All

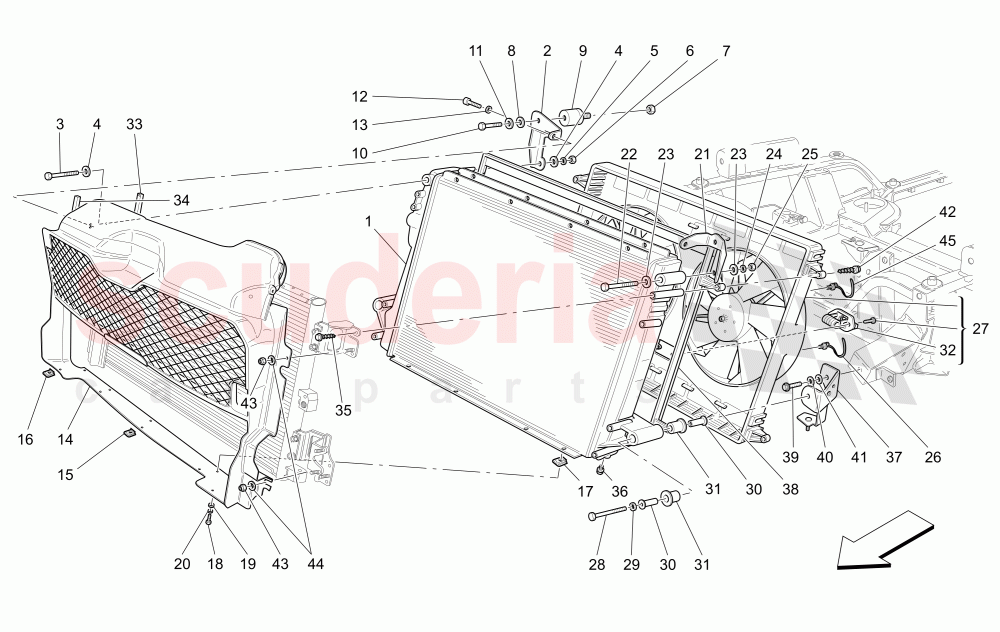

COOLING: AIR RADIATORS AND DUCTS of Maserati Maserati Quattroporte (2009-2012) Sport GTS Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 220979
WATER RADIATOR 		$809.52 1
2 233863
RH BRACKET FOR UPPER FIXING WATER RADIATOR 		$30.43 1
3 16044624
SCREW 		$2.83 1
4 84653800
WASHER 		- 2 Enquire
5 12601374
WASHERD. 8,40-15X 0,8 		$1.62 1
6 14040711
NUT M8 FLANGED 		$2.05 1
7 14054511
NUT 		$1.41 2
8 14496524
WASHER
D. 8.40-17 X1.6 		$2.05 4
9 181114
Pad 		$14.60 2
10 16043021
SCREW 		$1.97 2
11 12601374
WASHERD. 8,40-15X 0,8 		$1.62 2
12 248334
SCREW M6 X 14MM 		$3.53 2
13 12648925
WASHER
D. 6,40-16.3 X1 		- 2 Enquire
14 234470
RADIATOR AIR DUCT 		$597.42 1

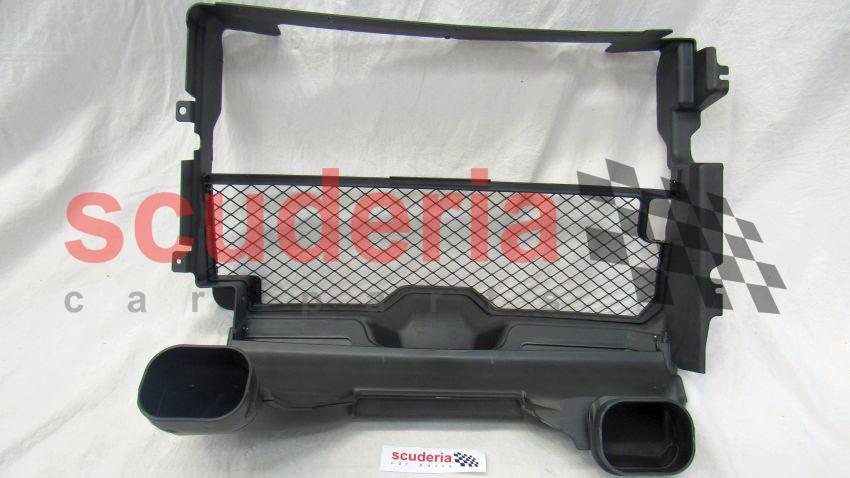

15 61789700
Bracket 		$2.00 5
16 81637900
BRACKET 		$4.22 2
17 67257100
BRACKET 		$2.05 5
18 14304624
SCREW 		$1.27 5
19 12604178
WASHER
D.5.3-11X0.5 		- 5 Enquire
20 12644424
WASHER 6.15-15 X 1 		$1.62 5
21 233862
LH BRACKET FOR UPPER FIXING WATER RADIATOR 		$68.73 1
22 16044624
SCREW 		$2.83 1
23 84653800
WASHER 		- 2 Enquire
24 12601374
WASHERD. 8,40-15X 0,8 		$1.62 1
25 14040711
NUT M8 FLANGED 		$2.05 1
26 268185
CLAMP 		$1.97 1
27 263143
Fan Assembly 		$929.48 1
28 16044824
SCREW 		$2.83 2
29 84653800
WASHER 		- 2 Enquire
30 197585
BUSH 		$7.89 4
31 197584
RUBBER BUSHING 		$6.87 4
32 263140
Resistor 		$115.21 1
33 233535
PROFILE 		$2.83 1
34 233735
PROFILE 		$2.83 1
35 15699804
SCREW 		$1.97 7
36 980139638
PLUG 		$12.85 1
37 266658
L.H. LOWER SUPPORT 		$57.41 1
37 266659
R.H. LOWER SUPPORT 		$57.41 1
38 242693
Hood Dans Air Duct 		$163.33 1
39 16043534
SCREW M8 X 22 		$2.39 2
40 84653800
WASHER
D. 8,15-17 X2 		- 2 Enquire
41 12601374
WASHERD. 8,40-15X 0,8 		$1.62 2
42 15698304
SCREW 		$2.83 4
43 14039614
NUT 		$1.54 4
44 12643724
Washer 6.15-18x1.5 		$1.62 4
45 268185
CLAMP 		$1.97 1
