LUBRICATION AND GEARBOX OIL COOLING

Find Your Part

Maserati Quattroporte (2003-2007) DuoSelect - LUBRICATION AND GEARBOX OIL COOLING

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
211710 UNION FOR OIL RECYCLING $40.68 To Order
Photo Part No Description Price (each) Stock
277407 UNION Enquire To Order
Photo Part No Description Price (each) Stock
10280060 WASHER COPPER D14. 20 X 1.5 $1.32 To Order
Photo Part No Description Price (each) Stock
13414691 OIL BREAHTER $10.14 To Order
Photo Part No Description Price (each) Stock
186900 VENT ADAPTER $91.71 To Order
Photo Part No Description Price (each) Stock
13415400 COPPER GASKET $1.97 To Order
Photo Part No Description Price (each) Stock
219954 LUBRICATION TUBE $176.87 To Order
Photo Part No Description Price (each) Stock
10902224 SCREW M6 X 16 $1.97 To Order
Photo Part No Description Price (each) Stock
10979424 SCREW $1.97 To Order
Photo Part No Description Price (each) Stock
11194379 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
137192 O.R. GASKET $2.05 To Order
Photo Part No Description Price (each) Stock
185714 OIL TILE $18.02 To Order
Photo Part No Description Price (each) Stock
182416 GEARBOX OIL FILTER $117.71 To Order
Photo Part No Description Price (each) Stock
182119 GEARBOX OIL FILTER O-RING $6.12 To Order
Photo Part No Description Price (each) Stock
10977624 SCREW $1.97 To Order
Photo Part No Description Price (each) Stock
11199277 WASHER $3.40 To Order
Photo Part No Description Price (each) Stock
183962 OIL DRAIN PLUG MAGNETIC 22X1.5 $26.19 To Order
Photo Part No Description Price (each) Stock
10263460 COPPER GASKET D.28-22.3 X 1.5 $2.05 To Order
Photo Part No Description Price (each) Stock
10305111 THREADED PLUG $18.86 To Order
Photo Part No Description Price (each) Stock
16286121 SCREW $2.83 To Order
Photo Part No Description Price (each) Stock
10297760 GASKET $1.27 To Order
Photo Part No Description Price (each) Stock
14303624 SCREW $2.83 To Order
Photo Part No Description Price (each) Stock
10571379 WASHER $1.97 To Order
Photo Part No Description Price (each) Stock
182279 COMPLETE OIL PUMP $599.64 To Order
Photo Part No Description Price (each) Stock
198622 PIN $95.65 To Order
Photo Part No Description Price (each) Stock
185713 OIL GALLERY $28.53 To Order
Photo Part No Description Price (each) Stock
10263460 COPPER GASKET D.28-22.3 X 1.5 $2.05 To Order
View All

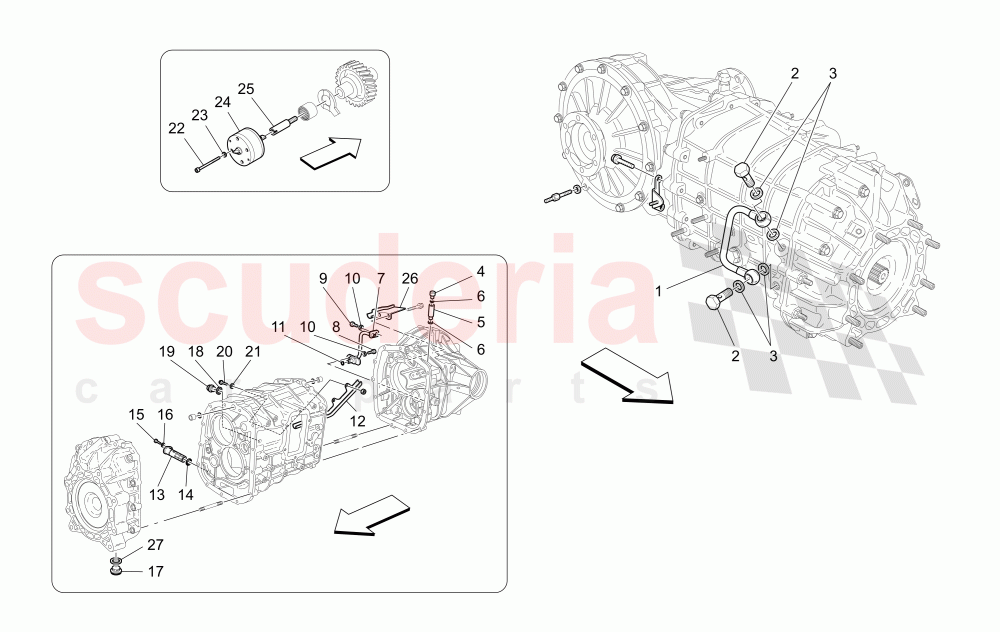

LUBRICATION AND GEARBOX OIL COOLING of Maserati Maserati Quattroporte (2003-2007) DuoSelect Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 211710
UNION FOR OIL RECYCLING 		$40.68 1
2 277407
UNION 		- 2 Enquire
3 10280060
WASHER COPPER D14. 20 X 1.5 		$1.32 4
4 13414691
OIL BREAHTER 		$10.14 (25.6% off) 1
5 186900
VENT ADAPTER 		$91.71 1
6 13415400
COPPER GASKET 		$1.97 2
7 219954
LUBRICATION TUBE 		$176.87 1
8 10902224
SCREW M6 X 16 		$1.97 1
9 10979424
SCREW
TE M6X10 		$1.97 1
10 11194379
WASHER 		- 2 Enquire
11 137192
O.R. GASKET 		$2.05 1
12 185714
OIL TILE 		$18.02 1
13 182416
GEARBOX OIL FILTER 		$117.71 1
14 182119
GEARBOX OIL FILTER O-RING 		$6.12 1
15 10977624
SCREW 		$1.97 1
16 11199277
WASHER 		$3.40 1
17 183962
OIL DRAIN PLUG MAGNETIC 22X1.5 		$26.19 1
18 10263460
COPPER GASKET D.28-22.3 X 1.5 		$2.05 1
19 10305111
THREADED PLUG 		$18.86 1
20 16286121
SCREW 		$2.83 2
21 10297760
GASKET 		$1.27 2
22 14303624
SCREW 		$2.83 4
23 10571379
WASHER 		$1.97 4
24 182279
COMPLETE OIL PUMP 		$599.64 1
25 198622
PIN 		$95.65 1
26 185713
OIL GALLERY 		$28.53 1
27 10263460
COPPER GASKET D.28-22.3 X 1.5 		$2.05 1
