Find Your Part

Authorised by Maserati SPA

View All

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	226381	F1 GEARBOX SENSOR KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	207447	F1 SENSOR SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14303224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519224	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14304424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519378	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980001158	Clutch Sensor Kit	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203294	PRESSURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140605	O.R. GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	225759	PRESSURE SENSOR CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305024	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	224539	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441590	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	159521	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059214	Nut Flanged M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	226182	F1 CLUTCH CONNECTOR HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059114	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67909700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	226381	F1 GEARBOX SENSOR KIT	226381 F1 GEARBOX SENSOR KIT	-	1	Enquire
2	207447	F1 SENSOR SUPPORT	207447 F1 SENSOR SUPPORT	-	1	Enquire
3	14303224	SCREW	14303224 SCREW	-	2	Enquire
4	10519224	WASHER	10519224 WASHER	-	2	Enquire
5	14304424	SCREW	14304424 SCREW	-	2	Enquire
6	10519378	WASHER	10519378 WASHER	-	2	Enquire
7	980001158	Clutch Sensor Kit	980001158 Clutch Sensor Kit	-	1	Enquire
8	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	-	1	Enquire
9	14039614	NUT	14039614 NUT M6	-	1	Enquire
10	203294	PRESSURE SENSOR	203294 PRESSURE SENSOR	-	1	Enquire
11	140605	O.R. GASKET	140605 O.R. GASKET	-	1	Enquire
12	225759	PRESSURE SENSOR CABLE	225759 PRESSURE SENSOR CABLE	-	1	Enquire
13	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	-	2	Enquire
14	14305024	SCREW	14305024 SCREW	-	2	Enquire
15	224539	CLIP	224539 CLIP	-	1	Enquire
16	10441590	BRACKET WITH SHEATH	10441590 BRACKET WITH SHEATH	-	2	Enquire
17	159521	CLIP	159521 CLIP	-	1	Enquire
18	14059214	Nut Flanged M6	14059214 Nut Flanged M6 M6	-	3	Enquire
19	226182	F1 CLUTCH CONNECTOR HEAT SHIELD	226182 F1 CLUTCH CONNECTOR HEAT SHIELD	-	1	Enquire
20	14059114	NUT	14059114 NUT M5	-	2	Enquire
21	67909700	SCREW	67909700 SCREW	-	2	Enquire
22	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4	-	2	Enquire

Haven't found what you're looking for?

View Cart / Checkout

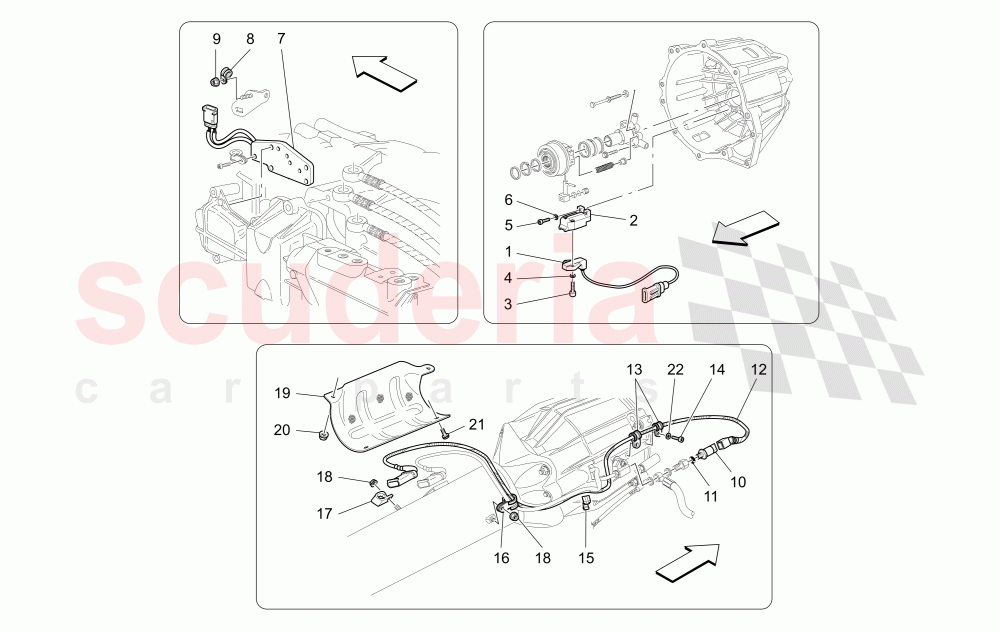

Electronic Clutch Control For F1 Gearbox

Maserati Quattroporte (2003-2007) DuoSelect
