FRONT SEATS: MECHANICS AND ELECTRONICS (Not available with: Rear Seat Entertainment+Tv Tuner (DVBT), SPORT EQUIPMENT) of Maserati Maserati Quattroporte (2017+) S Q4

View All

Maserati Quattroporte (2017+) S Q4 - FRONT SEATS: MECHANICS AND ELECTRONICS (Not available with: Rear Seat Entertainment+Tv Tuner...

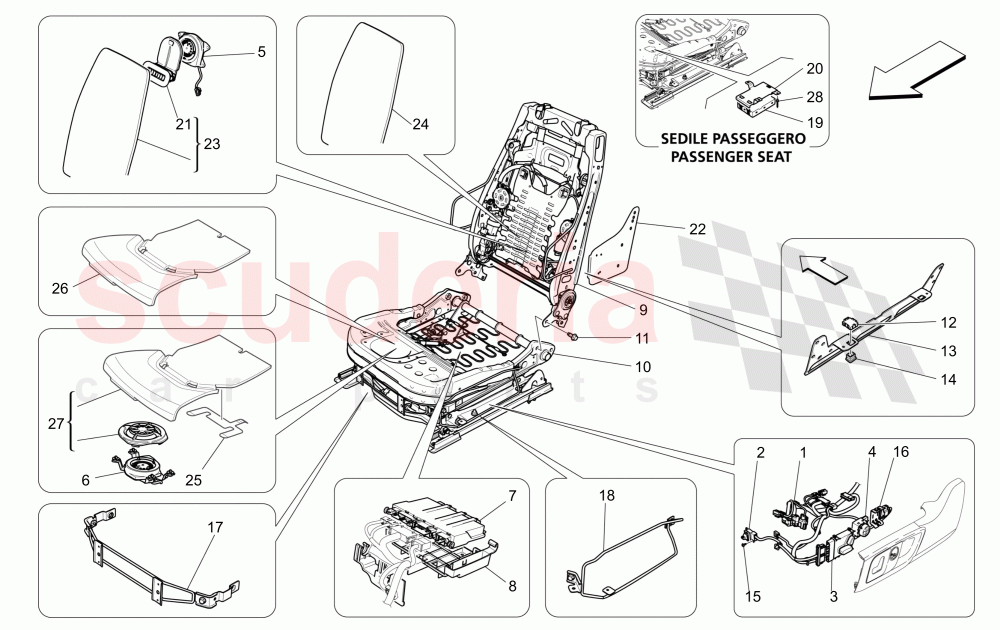

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670008436	LH SEAT WIRING HARNESS - EU CN JP ME KO	Enquire	To Order
	670006100	LH SEAT WIRING HARNESS - SEAT TRACK POSITION / EU CN JP ME KO	Enquire	To Order
	670008435	LH SEAT WIRING HARNESS - FRONT SEAT VENTILATION FULL NATURAL LEATHER INTERIOR UPHOLSTERY AND NATURAL DRILLED LEATHER SEAT UPHOLSTERY / EU CN JP ME KO	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	673000294	PUSH-BUTTON SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673000295	8-WAY SWITCH	Enquire	To Order
	673000296	8-WAY SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673000293	LUMBAR SUPPORT ADJUSTMENT JOYSTICK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673000320	FRONT SEAT BACK FAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673000321	SEAT FAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670035026	FRONT SEAT SETTING ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673000318	LH SUPPORT	Enquire	To Order
	673000319	RH SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670007530	FRONT SEAT BACK FRAME	Enquire	To Order
	670007531	FRONT SEAT BACK FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673000229	FRONT CUSHION FRAME	Enquire	To Order
	673000230	FRONT CUSHION FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673000233	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670006705	SEATBACK REAR PANEL LED LIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673000234	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670006649	TRIM PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673000325	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670006150	SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670007533	FRONT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673000291	LH SIDE CASING MOUNTING BRACKET	Enquire	To Order
	673000292	RH SIDE CASING MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670035027	HEATER-FAN ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673000299	CONTROL UNIT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670006706	AIR VENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670007272	LH PROTECTION COVER	Enquire	To Order
	670007271	RH PROTECTION COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673008279	CPL. FRONT SEAT BACK HEATER	Enquire	To Order
	670006056	CPL. FRONT SEAT BACK HEATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670006039	FRONT SEAT BACK HEATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670006155	SBR SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670006055	CPL. FRONT SEAT CUSHION HEATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670006057	CPL. FRONT SEAT CUSHION HEATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673000326	RIVET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670008436	LH SEAT WIRING HARNESS - EU CN JP ME KO	670008436 LH SEAT WIRING HARNESS - EU CN JP ME KO	-	1	Enquire
1	670006100	LH SEAT WIRING HARNESS - SEAT TRACK POSITION / EU CN JP ME KO	670006100 LH SEAT WIRING HARNESS - SEAT TRACK POSITION / EU CN JP ME KO	-	1	Enquire
1	670008435	LH SEAT WIRING HARNESS - FRONT SEAT VENTILATION FULL NATURAL LEATHER INTERIOR UPHOLSTERY AND NATURAL DRILLED LEATHER SEAT UPHOLSTERY / EU CN JP ME KO	670008435 LH SEAT WIRING HARNESS - FRONT SEAT VENTILATION FULL NATURAL LEATHER INTERIOR UPHOLSTERY AND NATURAL DRILLED LEATHER SEAT UPHOLSTERY / EU CN JP ME KO	-	1	Enquire
1	670006098	LH SEAT WIRING HARNESS - FRONT SEAT VENTILATION SEAT TRACK POSITION FULL NATURAL LEATHER INTERIOR UPHOLSTERY AND NATURAL DRILLED LEATHER SEAT UPHOLSTERY / EU CN JP ME KO	670006098 LH SEAT WIRING HARNESS - FRONT SEAT VENTILATION SEAT TRACK POSITION FULL NATURAL LEATHER INTERIOR UPHOLSTERY AND NATURAL DRILLED LEATHER SEAT UPHOLSTERY / EU CN JP ME KO	-	1	Enquire
1	670009404	RH SEAT WIRING HARNESS - EU CN JP ME KO	670009404 RH SEAT WIRING HARNESS - EU CN JP ME KO	-	1	Enquire
1	670006101	RH SEAT WIRING HARNESS - SEAT TRACK POSITION / EU CN JP ME KO	670006101 RH SEAT WIRING HARNESS - SEAT TRACK POSITION / EU CN JP ME KO	-	1	Enquire
1	670009403	RH SEAT WIRING HARNESS - FRONT SEAT VENTILATION FULL NATURAL LEATHER INTERIOR UPHOLSTERY AND NATURAL DRILLED LEATHER SEAT UPHOLSTERY / EU CN JP ME KO	670009403 RH SEAT WIRING HARNESS - FRONT SEAT VENTILATION FULL NATURAL LEATHER INTERIOR UPHOLSTERY AND NATURAL DRILLED LEATHER SEAT UPHOLSTERY / EU CN JP ME KO	-	1	Enquire
1	670006099	RH SEAT WIRING HARNESS - FRONT SEAT VENTILATION SEAT TRACK POSITION FULL NATURAL LEATHER INTERIOR UPHOLSTERY AND NATURAL DRILLED LEATHER SEAT UPHOLSTERY / EU CN JP ME KO	670006099 RH SEAT WIRING HARNESS - FRONT SEAT VENTILATION SEAT TRACK POSITION FULL NATURAL LEATHER INTERIOR UPHOLSTERY AND NATURAL DRILLED LEATHER SEAT UPHOLSTERY / EU CN JP ME KO	-	1	Enquire
2	673000294	PUSH-BUTTON SWITCH	673000294 PUSH-BUTTON SWITCH	-	1	Enquire
3	673000295	8-WAY SWITCH	673000295 8-WAY SWITCH Driver side	-	1	Enquire
3	673000296	8-WAY SWITCH	673000296 8-WAY SWITCH Passenger side	-	1	Enquire
4	673000293	LUMBAR SUPPORT ADJUSTMENT JOYSTICK	673000293 LUMBAR SUPPORT ADJUSTMENT JOYSTICK	-	1	Enquire
5	673000320	FRONT SEAT BACK FAN	673000320 FRONT SEAT BACK FAN	-	1	Enquire
6	673000321	SEAT FAN	673000321 SEAT FAN	-	2	Enquire
7	670035026	FRONT SEAT SETTING ECU	670035026 FRONT SEAT SETTING ECU	-	1	Enquire
8	673000318	LH SUPPORT	673000318 LH SUPPORT	-	1	Enquire
8	673000319	RH SUPPORT	673000319 RH SUPPORT	-	1	Enquire
9	670007530	FRONT SEAT BACK FRAME	670007530 FRONT SEAT BACK FRAME Driver side	-	1	Enquire
9	670007531	FRONT SEAT BACK FRAME	670007531 FRONT SEAT BACK FRAME Passenger side	-	1	Enquire
10	673000229	FRONT CUSHION FRAME	673000229 FRONT CUSHION FRAME Driver side	-	1	Enquire
10	673000230	FRONT CUSHION FRAME	673000230 FRONT CUSHION FRAME Passenger side	-	1	Enquire
11	673000233	SCREW	673000233 SCREW	-	4	Enquire
12	670006705	SEATBACK REAR PANEL LED LIGHT	670006705 SEATBACK REAR PANEL LED LIGHT	-	1	Enquire
13	673000234	BRACKET	673000234 BRACKET	-	1	Enquire
14	670006649	TRIM PLATE	670006649 TRIM PLATE	-	2	Enquire
15	673000325	SCREW	673000325 SCREW	-	2	Enquire
16	670006150	SUPPORT	670006150 SUPPORT	-	1	Enquire
17	670007533	FRONT BRACKET	670007533 FRONT BRACKET	-	1	Enquire
18	673000291	LH SIDE CASING MOUNTING BRACKET	673000291 LH SIDE CASING MOUNTING BRACKET	-	1	Enquire
18	673000292	RH SIDE CASING MOUNTING BRACKET	673000292 RH SIDE CASING MOUNTING BRACKET	-	1	Enquire
19	670035027	HEATER-FAN ECU	670035027 HEATER-FAN ECU	-	1	Enquire
20	673000299	CONTROL UNIT BRACKET	673000299 CONTROL UNIT BRACKET	-	1	Enquire
21	670006706	AIR VENT	670006706 AIR VENT	-	1	Enquire
22	670007272	LH PROTECTION COVER	670007272 LH PROTECTION COVER	-	1	Enquire
22	670007271	RH PROTECTION COVER	670007271 RH PROTECTION COVER	-	1	Enquire
23	673008279	CPL. FRONT SEAT BACK HEATER	673008279 CPL. FRONT SEAT BACK HEATER	-	1	Enquire
23	670006056	CPL. FRONT SEAT BACK HEATER	670006056 CPL. FRONT SEAT BACK HEATER When over, it is necessary to couple padding and heating pad	-	1	Enquire
24	670006039	FRONT SEAT BACK HEATER	670006039 FRONT SEAT BACK HEATER	-	1	Enquire
25	670006155	SBR SENSOR	670006155 SBR SENSOR Passenger side	-	1	Enquire
26	670006055	CPL. FRONT SEAT CUSHION HEATER	670006055 CPL. FRONT SEAT CUSHION HEATER	-	1	Enquire
27	670006057	CPL. FRONT SEAT CUSHION HEATER	670006057 CPL. FRONT SEAT CUSHION HEATER	-	1	Enquire
28	673000326	RIVET	673000326 RIVET	-	3	Enquire
