Braking Devices On Rear Wheels (Available With: Dual Cast Braking System (Front - 360 Mm) Cast-Iron...

Maserati Quattroporte (2017+) Diesel

Find Your Part

Maserati Quattroporte (2017+) Diesel - BRAKING DEVICES ON REAR WHEELS (Available with: DUAL CAST BRAKING SYSTEM (FRONT - 360 MM) CAST-IRON...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670035019 REAR BRAKE DISC Enquire To Order
Photo Part No Description Price (each) Stock
675000279 SCREW - 19" ZEFIRO STAGGERED ALLOY WHEEL RIMS Front 265/50 - Rear 295/45 Zefiro Enquire To Order
Photo Part No Description Price (each) Stock

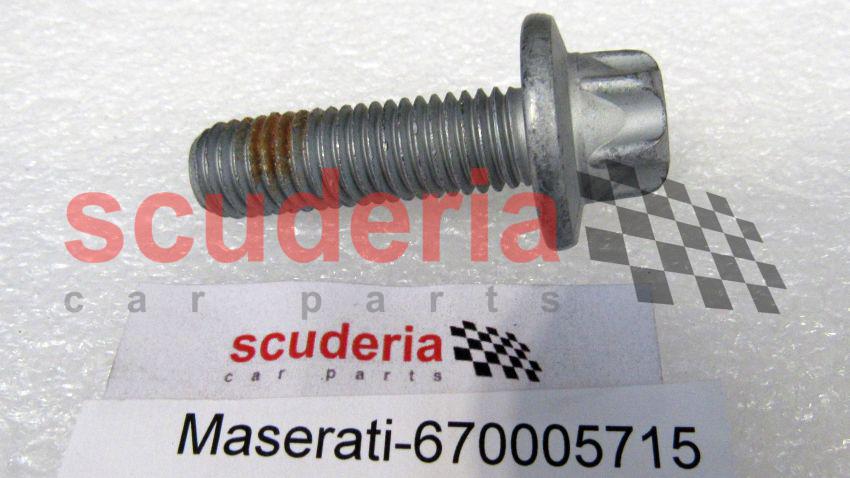

670005715 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
670039775 LH REAR CALIPER ASSEMBLY Enquire To Order
670039773 LH REAR CALIPER ASSEMBLY - BRAKE CALIPERS PAINTED IN POLISHED SILVER Enquire To Order
670039771 LH REAR CALIPER ASSEMBLY - BRAKE CALIPERS PAINTED IN SILVER Enquire To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
673012039 Rear Pads Kit Enquire To Order
Photo Part No Description Price (each) Stock
670155385 FLEXIBLE HOSE FOR REAR BRAKE Enquire To Order
Photo Part No Description Price (each) Stock
670036873 LH REAR BRACKET Enquire To Order
670036872 RH REAR BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
670035284 LH REAR CALIPER RIGID PIPE Enquire To Order
670035283 RH REAR CALIPER RIGID PIPE Enquire To Order
Photo Part No Description Price (each) Stock
673000029 CALIPER RIGID PIPE Enquire To Order
Photo Part No Description Price (each) Stock
152954 BLEEDER SCREW Enquire To Order
Photo Part No Description Price (each) Stock
215666 DUST SEAL Enquire To Order
Photo Part No Description Price (each) Stock
673000030 BRACKET AND SCREW Enquire To Order
673000031 BRACKET AND SCREW Enquire To Order
Photo Part No Description Price (each) Stock
673000062 28 MM DIAMETER BOOT Enquire To Order
Photo Part No Description Price (each) Stock
673000027 32 MM DIAMETER BOOT Enquire To Order
Photo Part No Description Price (each) Stock
675000180 SCREWM6X14 Enquire To Order
Photo Part No Description Price (each) Stock
675000276 SPRING PLATE Enquire To Order
Photo Part No Description Price (each) Stock
673012380 REAR PARKING BRAKE PADS KIT Enquire To Order
Photo Part No Description Price (each) Stock
673006240 PARKING BRAKE CALIPER Enquire To Order
673006241 PARKING BRAKE CALIPER Enquire To Order
Photo Part No Description Price (each) Stock
670036017 L.H. PARKING BRAKE CALIPER ASSEMBLY Enquire To Order
670036018 R.H. PARKING BRAKE CALIPER ASSEMBLY Enquire To Order
Photo Part No Description Price (each) Stock
673006243 GUIDE PARKING BRAKE KIT Enquire To Order
Photo Part No Description Price (each) Stock
673006245 GASKET KIT Enquire To Order
Photo Part No Description Price (each) Stock
670037035 LH GUARD Enquire To Order
670037036 RH GUARD Enquire To Order
Photo Part No Description Price (each) Stock
670035277 SCREW Enquire To Order
View All

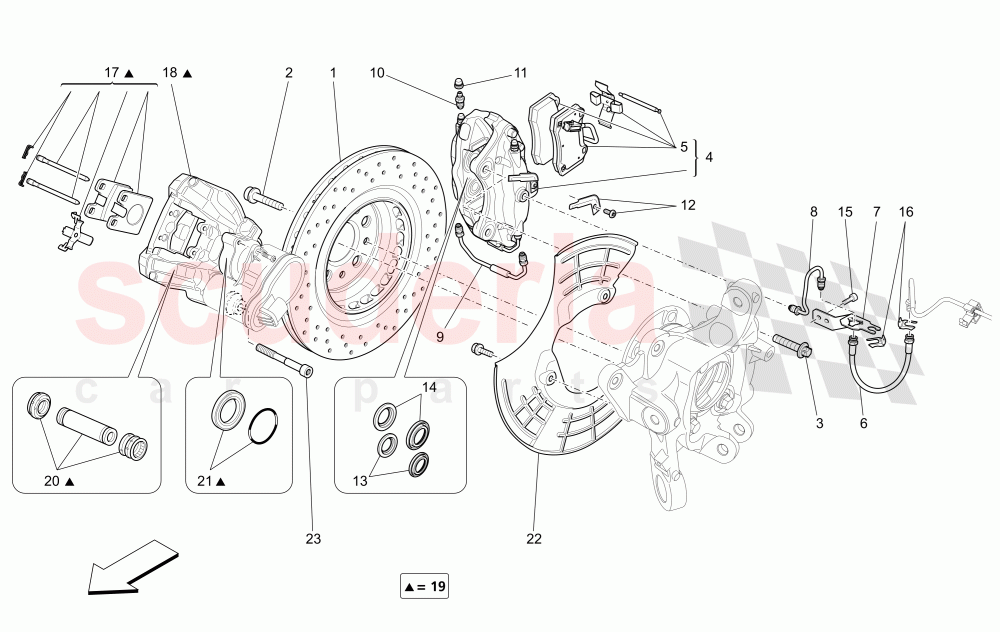

BRAKING DEVICES ON REAR WHEELS (Available with: DUAL CAST BRAKING SYSTEM (FRONT - 360 MM) CAST-IRON (REAR - 345 MM) Not available with: Dual Cast Braking System (Front - 345 mm) ; (Rear - 330 mm) - Coloured brake calipers) of Maserati Maserati Quattroporte (2017+) Diesel Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670035019
REAR BRAKE DISC 		- 2 Enquire
2 675000279
SCREW - 19" ZEFIRO STAGGERED ALLOY WHEEL RIMS Front 265/50 - Rear 295/45 Zefiro 		- 2 Enquire
3 670005715
SCREW 		- 4 Enquire
4 670039775
LH REAR CALIPER ASSEMBLY 		- 1 Enquire
4 670039773
LH REAR CALIPER ASSEMBLY - BRAKE CALIPERS PAINTED IN POLISHED SILVER 		- 1 Enquire
4 670039771
LH REAR CALIPER ASSEMBLY - BRAKE CALIPERS PAINTED IN SILVER 		- 1 Enquire
4 670039769
LH REAR CALIPER ASSEMBLY - BRAKE CALIPERS PAINTED IN BLUE 		- 1 Enquire
4 670039765
LH REAR CALIPER ASSEMBLY - BRAKE CALIPERS PAINTED IN BLACK 		- 1 Enquire
4 670039767
LH REAR CALIPER ASSEMBLY - BRAKE CALIPERS PAINTED IN RED 		- 1 Enquire
4 670039776
RH REAR CALIPER ASSEMBLY 		- 1 Enquire
4 670039774
RH REAR CALIPER ASSEMBLY - BRAKE CALIPERS PAINTED IN POLISHED SILVER 		- 1 Enquire
4 670039772
RH REAR CALIPER ASSEMBLY - BRAKE CALIPERS PAINTED IN SILVER 		- 1 Enquire
4 670039770
RH REAR CALIPER ASSEMBLY - BRAKE CALIPERS PAINTED IN BLUE 		- 1 Enquire
4 670039766
RH REAR CALIPER ASSEMBLY - BRAKE CALIPERS PAINTED IN BLACK 		- 1 Enquire
4 670039768
RH REAR CALIPER ASSEMBLY - BRAKE CALIPERS PAINTED IN RED 		- 1 Enquire
5 673012039
Rear Pads Kit 		- 1 Enquire
6 670155385
FLEXIBLE HOSE FOR REAR BRAKE 		- 2 Enquire
7 670036873
LH REAR BRACKET 		- 1 Enquire
7 670036872
RH REAR BRACKET 		- 1 Enquire
8 670035284
LH REAR CALIPER RIGID PIPE 		- 1 Enquire
8 670035283
RH REAR CALIPER RIGID PIPE 		- 1 Enquire
9 673000029
CALIPER RIGID PIPE 		- 2 Enquire
10 152954
BLEEDER SCREW 		- 4 Enquire
11 215666
DUST SEAL 		- 4 Enquire
12 673000030
BRACKET AND SCREW 		- 1 Enquire
12 673000031
BRACKET AND SCREW 		- 1 Enquire
13 673000062
28 MM DIAMETER BOOT 		- 4 Enquire
14 673000027
32 MM DIAMETER BOOT 		- 4 Enquire
15 675000180
SCREWM6X14
M6X14 		- 4 Enquire
16 675000276
SPRING PLATE 		- 4 Enquire
17 673012380
REAR PARKING BRAKE PADS KIT 		- 1 Enquire
18 673006240
PARKING BRAKE CALIPER 		- 1 Enquire
18 673006241
PARKING BRAKE CALIPER 		- 1 Enquire
19 670036017
L.H. PARKING BRAKE CALIPER ASSEMBLY 		- 1 Enquire
19 670036018
R.H. PARKING BRAKE CALIPER ASSEMBLY 		- 1 Enquire
20 673006243
GUIDE PARKING BRAKE KIT 		- 2 Enquire
21 673006245
GASKET KIT 		- 2 Enquire
22 670037035
LH GUARD 		- 1 Enquire
22 670037036
RH GUARD 		- 1 Enquire
23 670035277
SCREW 		- 4 Enquire
