Name: COOLING: AIR RADIATORS AND DUCTS
Rating: 4.9 (1 reviews)

COOLING: AIR RADIATORS AND DUCTS of Maserati Maserati Quattroporte (2017+) Diesel

View All

Maserati Quattroporte (2017+) Diesel - COOLING: AIR RADIATORS AND DUCTS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670109996	WATER RADIATOR	$799.44	To Order

Photo	Part No	Description	Price (each)	Stock
	670001324	RH BRACKET FOR UPPER FIXING WATER RADIATOR	$29.73	To Order

Photo	Part No	Description	Price (each)	Stock
	670107327	FLEXIBLE PAD	$77.35	To Order

Photo	Part No	Description	Price (each)	Stock
	670001323	LH BRACKET FOR UPPER FIXING WATER RADIATOR	$29.73	To Order

Photo	Part No	Description	Price (each)	Stock
	670005012	UPPER COVER	$76.64	To Order

Photo	Part No	Description	Price (each)	Stock
	670005011	LOWER COVER	$59.02	To Order

Photo	Part No	Description	Price (each)	Stock
	670005263	AIR DUCT BELLOWS	$114.96	To Order

Photo	Part No	Description	Price (each)	Stock
	670003405	CLIP	$51.55	To Order

Photo	Part No	Description	Price (each)	Stock
	670038331	AIR DUCT ASSEMBLY	$386.38	To Order
	670087439	AIR DUCT ASSEMBLY - ACTIVE GRILLE SHUTTERS AIR SHUTTER / BLACK	$853.59	To Order

Photo	Part No	Description	Price (each)	Stock
	673000009	BLEEDING AND DEGASSING KIT	$61.98	To Order

Photo	Part No	Description	Price (each)	Stock
	673000013	SCREW	$49.16	To Order

Photo	Part No	Description	Price (each)	Stock
	670107328	MANIFOLD COMPLETE WITH FAN	$1,835.02	To Order
	670106014	CPL 650W ELECTROFAN	$1,393.52	To Order
	670106014	CPL 650W ELECTROFAN	$1,393.52	To Order

Photo	Part No	Description	Price (each)	Stock
	673000017	TEMPERATURE SENSOR KIT	$113.19	To Order

Photo	Part No	Description	Price (each)	Stock
	675000354	SCREW	$3.22	To Order

Photo	Part No	Description	Price (each)	Stock
	675000468	SCREW	$2.53	To Order

Photo	Part No	Description	Price (each)	Stock
	673000015	CLIP	$61.70	To Order

Photo	Part No	Description	Price (each)	Stock
	670009556	BUSHING	$3.53	To Order

Photo	Part No	Description	Price (each)	Stock
	670030111	FASTENER BUTTON	$25.05	To Order

View All

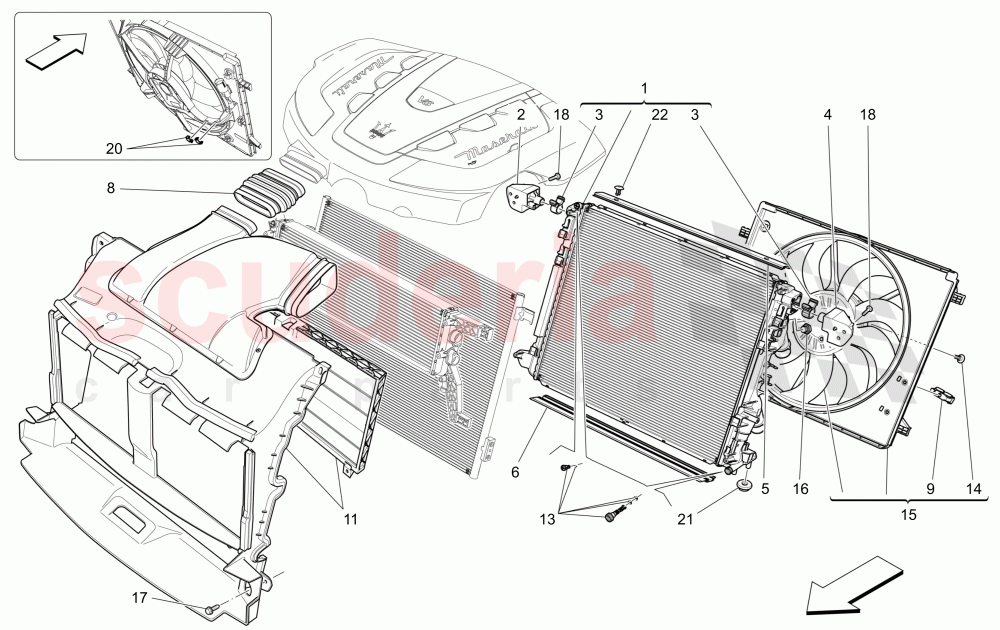

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	670109996	WATER RADIATOR	670109996 WATER RADIATOR	$799.44	1
2	670001324	RH BRACKET FOR UPPER FIXING WATER RADIATOR	670001324 RH BRACKET FOR UPPER FIXING WATER RADIATOR	$29.73	1
3	670107327	FLEXIBLE PAD	670107327 FLEXIBLE PAD	$77.35	2
4	670001323	LH BRACKET FOR UPPER FIXING WATER RADIATOR	670001323 LH BRACKET FOR UPPER FIXING WATER RADIATOR	$29.73	1
5	670005012	UPPER COVER	670005012 UPPER COVER	$76.64	1
6	670005011	LOWER COVER	670005011 LOWER COVER	$59.02	1
8	670005263	AIR DUCT BELLOWS	670005263 AIR DUCT BELLOWS	$114.96	1
9	670003405	CLIP	670003405 CLIP	$51.55	1
11	670038331	AIR DUCT ASSEMBLY	670038331 AIR DUCT ASSEMBLY	$386.38	1
11	670087439	AIR DUCT ASSEMBLY - ACTIVE GRILLE SHUTTERS AIR SHUTTER / BLACK	670087439 AIR DUCT ASSEMBLY - ACTIVE GRILLE SHUTTERS AIR SHUTTER / BLACK	$853.59	1
13	673000009	BLEEDING AND DEGASSING KIT	673000009 BLEEDING AND DEGASSING KIT	$61.98	1
14	673000013	SCREW	673000013 SCREW	$49.16	3
15	670107328	MANIFOLD COMPLETE WITH FAN	670107328 MANIFOLD COMPLETE WITH FAN	$1,835.02	1
15	670106014	CPL 650W ELECTROFAN	670106014 CPL 650W ELECTROFAN	$1,393.52	1
15	670106014	CPL 650W ELECTROFAN	670106014 CPL 650W ELECTROFAN PLEASE, FOR THE CORRECT INSTALLATION OF THE MODULE YOU HAVE TO REMOVE THE x2 CLIPS 670003405	$1,393.52	1
16	673000017	TEMPERATURE SENSOR KIT	673000017 TEMPERATURE SENSOR KIT	$113.19	1
17	675000354	SCREW	675000354 SCREW	$3.22	4
18	675000468	SCREW	675000468 SCREW	$2.53	4
20	673000015	CLIP	673000015 CLIP	$61.70	2
21	670009556	BUSHING	670009556 BUSHING	$3.53	2
22	670030111	FASTENER BUTTON	670030111 FASTENER BUTTON	$25.05	4
