Shields, Trims And Covering Panels

Maserati Quattroporte (2017+) S V6 410bhp

Find Your Part

Maserati Quattroporte (2017+) S V6 410bhp - SHIELDS, TRIMS AND COVERING PANELS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670032481 ENGINE COVER ON INTAKE MANIFOLD Enquire To Order
Photo Part No Description Price (each) Stock
670005638 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
675000442 NUT Enquire To Order
Photo Part No Description Price (each) Stock
675000404 RIVET Enquire To Order
Photo Part No Description Price (each) Stock
675000412 NUT Enquire To Order
Photo Part No Description Price (each) Stock
670006846 SCREWM 6X16 Enquire To Order
Photo Part No Description Price (each) Stock
670025634 UNDER WINDSCREEN PLATE ASSEMBLY - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
675000311 PLUG Enquire To Order
Photo Part No Description Price (each) Stock
670013426 RH UNDER WINDSCREEN PLATE - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
670013488 RH INSPECTION DOOR - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
670013428 LH INSPECTION DOOR Enquire To Order
Photo Part No Description Price (each) Stock
670104211 STEP ASSEMBLY Enquire To Order
670106753 STEP ASSEMBLY Enquire To Order
Photo Part No Description Price (each) Stock

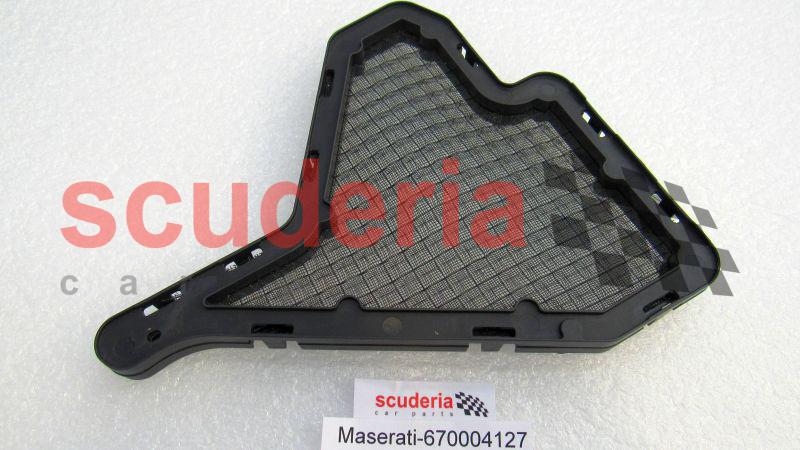

670004127 WATER GUARD GRILL Enquire To Order
Photo Part No Description Price (each) Stock
670103136 RH WATER OUTLET SLEEVE Enquire To Order
Photo Part No Description Price (each) Stock
670005402 CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
670009518 COMPLETE UNDERWINDSCREEN WATER DRAIN RESERVOIR Enquire To Order
Photo Part No Description Price (each) Stock
675000150 FASTENER BUTTON Enquire To Order
Photo Part No Description Price (each) Stock

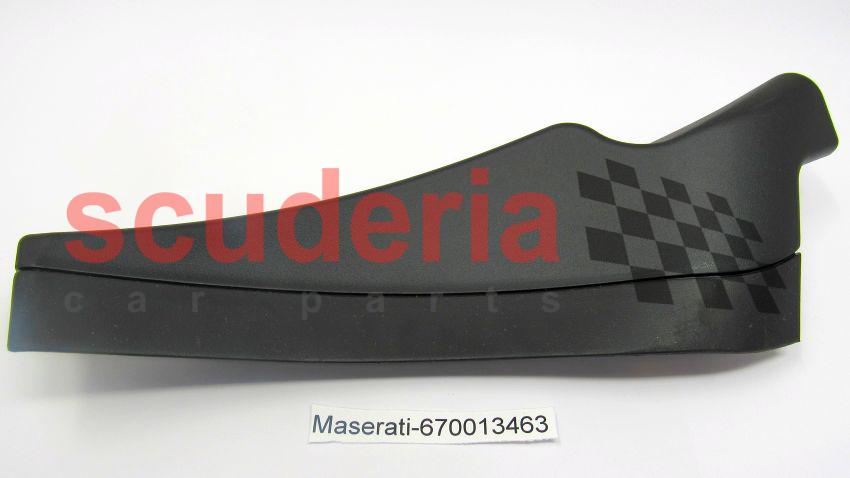

670013463 LH Plate - Black Enquire To Order

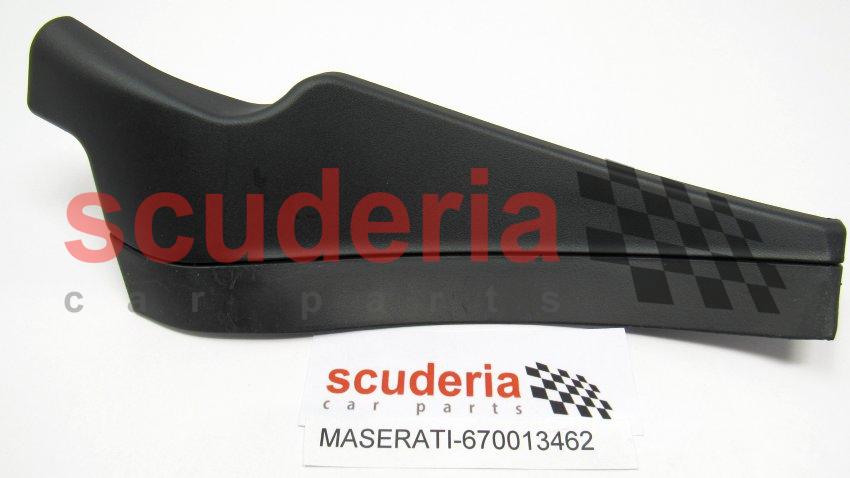

670013462 WINDSHIELD COWL EXTENSION TRIM PANEL COVER RH BLACK Enquire To Order
Photo Part No Description Price (each) Stock
673000069 LH ROOF MOULDING ASSEMBLY Enquire To Order
673000068 RH ROOF MOULDING ASSEMBLY Enquire To Order
Photo Part No Description Price (each) Stock
670148748 LH Central Pillar Moulding Nero Lucido (Cod. 308/022222/00) Enquire To Order
670078582 LH CENTRAL PILLAR MOULDING - CARBON KIT (Door Mirrors, Door Handles, Front Bumper profile, Trunk Spoiler) / POLISHED CARBON Enquire To Order
670148747 RH CENTRAL PILLAR MOULDING - NERO LUCIDO (Cod. 308/022222/00) Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
670013465 LH PILLAR MOULDING COVER - BLACK Enquire To Order
670013464 RH PILLAR MOULDING COVER - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
670004125 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
940000336 REAR LH PROTECTIVE FILM KIT Enquire To Order
940000335 REAR RH PROTECTIVE FILM KIT Enquire To Order
Photo Part No Description Price (each) Stock
675000150 FASTENER BUTTON Enquire To Order
Photo Part No Description Price (each) Stock

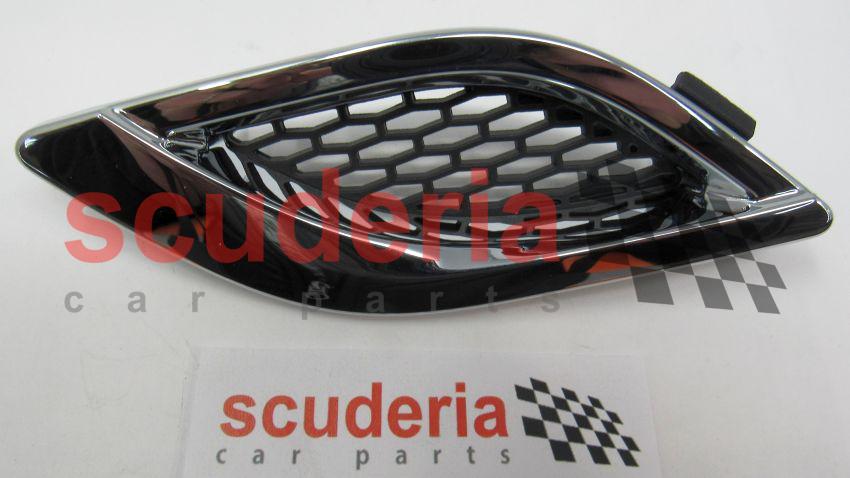

670013530 LH SIDE AIR VENT BRIGHT CHROME Enquire To Order
670137276 L.H. LATERAL AIR VENT - EXTERIOR BLACK AND CARBON KIT Enquire To Order

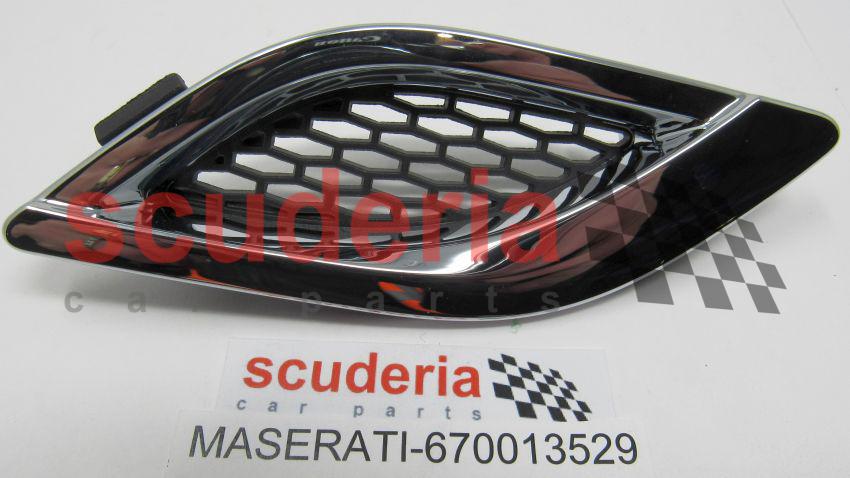

670013529 RH External Air Vent Bright Chrome Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock

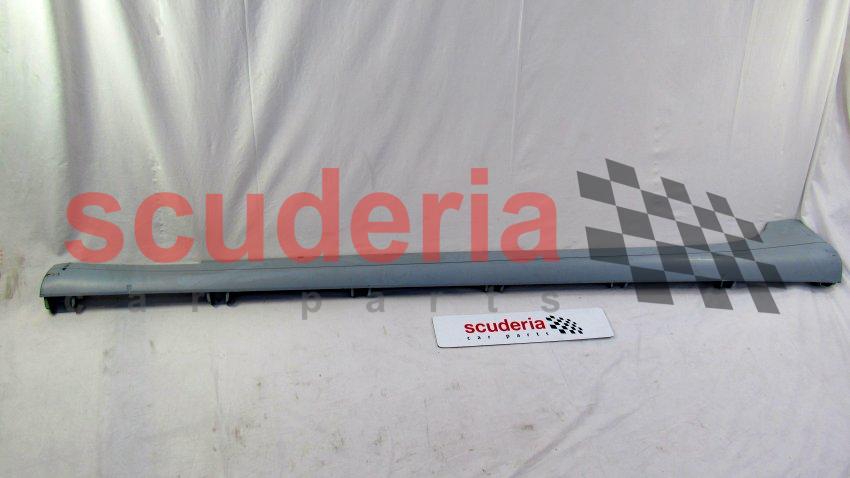

673000023 LH SIDE SKIRT Enquire To Order
673000022 RH SIDE SKIRT Enquire To Order
Photo Part No Description Price (each) Stock
670114683 FRONT KICK PLATE - BRUSHED STAINLESS STEEL Enquire To Order
670078580 FRONT KICK PLATE - CARBON DOOR SILLS / POLISHED CARBON Enquire To Order
Photo Part No Description Price (each) Stock
670114684 REAR KICK PLATE - BRUSHED STAINLESS STEEL Enquire To Order
670078585 REAR KICK PLATE - CARBON DOOR SILLS / POLISHED CARBON Enquire To Order
Photo Part No Description Price (each) Stock
675000058 FASTENER BUTTON Enquire To Order
Photo Part No Description Price (each) Stock

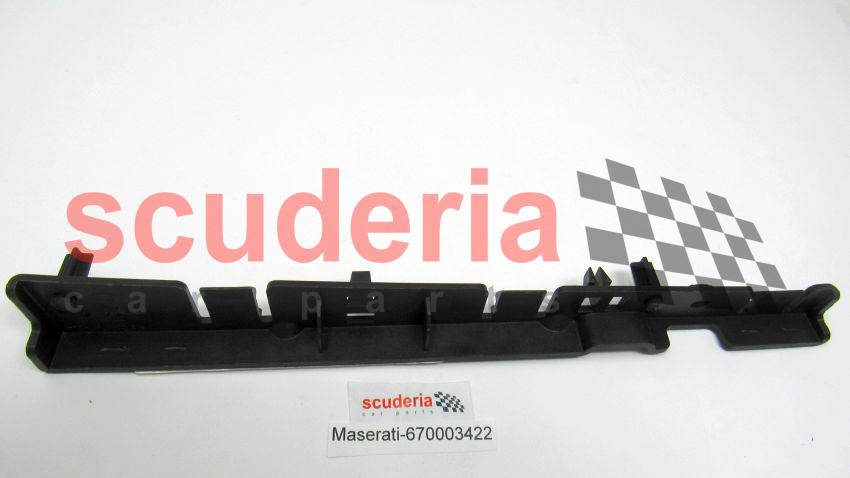

670003422 SKIRT LH MOUNTING BRACKET Enquire To Order
670003421 SKIRT RH MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
675000111 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
670014507 RH LUGGAGE COMPARTMENT CABLE GUIDE FRONT COVER - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
670014508 LH LUGGAGE COMPARTMENT CABLE GUIDE FRONT COVER - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
675000058 FASTENER BUTTON Enquire To Order
Photo Part No Description Price (each) Stock

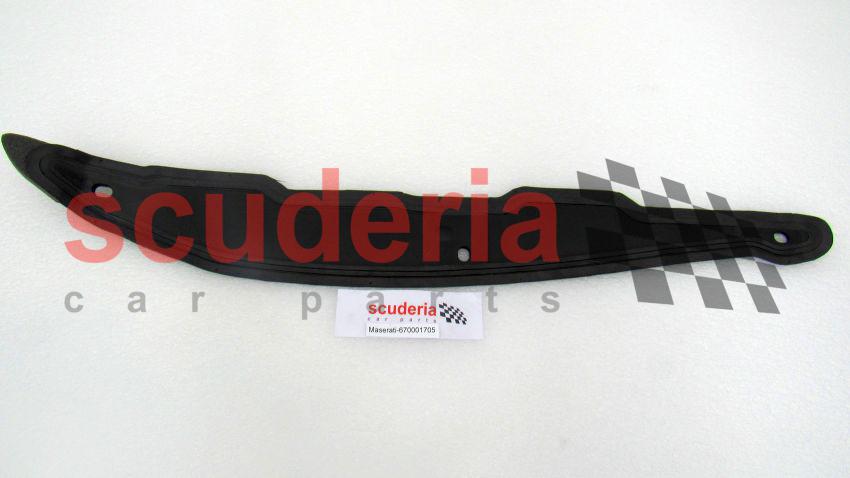

670001705 FRONT LH MUDGUARD Enquire To Order
670001706 FRONT RH MUDGUARD Enquire To Order
Photo Part No Description Price (each) Stock
670014504 BOOT RIGHT CABLE GUIDE OUTER COVER - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
670014505 BOOT LEFT CABLE GUIDE OUTER COVER - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
670014506 BOOT CENTRAL CABLE GUIDE COVER - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
670002093 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
673000064 NUMBER PLATE LIGHT Enquire To Order
Photo Part No Description Price (each) Stock
670071819 LIGHT BAR WITH REAR PARKING CAMERA - REAR PARKING CAMERA WITH DYNAMIC GRIDLINES / BLACK Enquire To Order
670137278 LIGHT BAR WITH REAR PARKING CAMERA - REAR PARKING CAMERA WITH DYNAMIC GRIDLINES EXTERIOR BLACK AND CARBON KIT / BLACK Enquire To Order
670122640 LIGHT BAR WITH REAR PARKING CAMERA - SURROUND VIEW CAMERA SYSTEM, INCLUDES COURTESY LAMPS ON SIDE MIRRORS / BLACK Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
673000065 MICROSWITCH REPLACEMENT KIT Enquire To Order
Photo Part No Description Price (each) Stock
673000066 FASTENER BUTTON Enquire To Order
Photo Part No Description Price (each) Stock

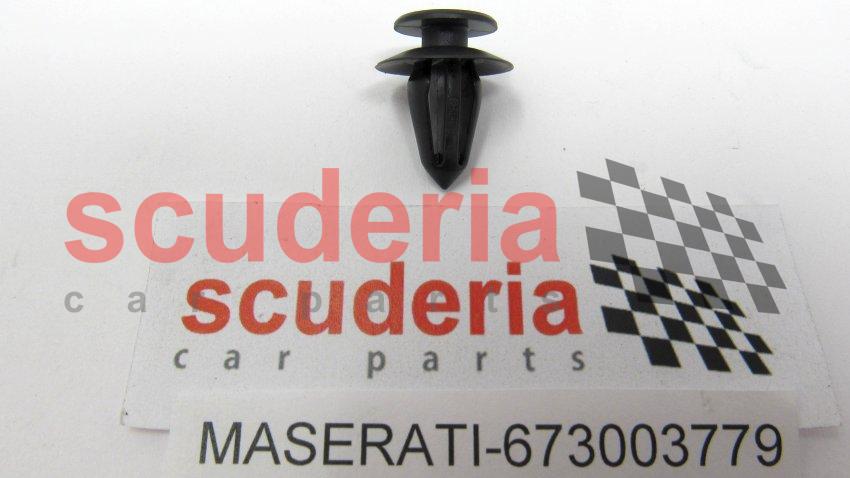

673003779 Fixing Pin Enquire To Order
Photo Part No Description Price (each) Stock
673002766 DIPSTICK PLUG Enquire To Order
View All

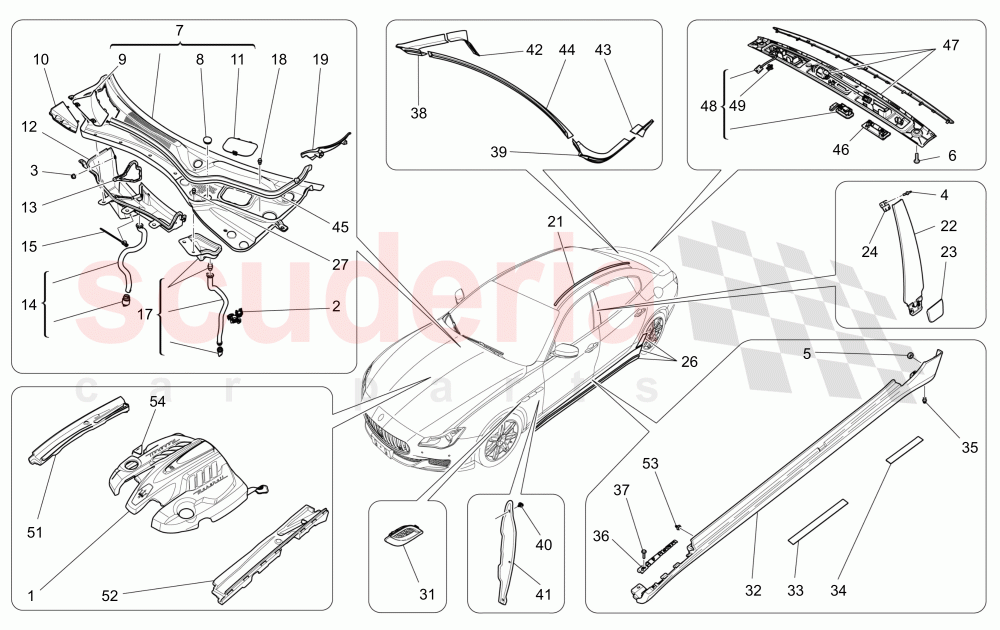

SHIELDS, TRIMS AND COVERING PANELS of Maserati Maserati Quattroporte (2017+) S V6 410bhp Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670032481
ENGINE COVER ON INTAKE MANIFOLD 		- 1 Enquire
2 670005638
CLIP 		- 1 Enquire
3 675000442
NUT 		- 4 Enquire
4 675000404
RIVET 		- 4 Enquire
5 675000412
NUT 		- 2 Enquire
6 670006846
SCREWM 6X16
M 6X16 		- 4 Enquire
7 670025634
UNDER WINDSCREEN PLATE ASSEMBLY - BLACK 		- 1 Enquire
8 675000311
PLUG 		- 1 Enquire
9 670013426
RH UNDER WINDSCREEN PLATE - BLACK 		- 1 Enquire
10 670013488
RH INSPECTION DOOR - BLACK 		- 1 Enquire
11 670013428
LH INSPECTION DOOR 		- 1 Enquire
12 670104211
STEP ASSEMBLY 		- 1 Enquire
12 670106753
STEP ASSEMBLY 		- 1 Enquire
13 670004127
WATER GUARD GRILL 		- 1 Enquire
14 670103136
RH WATER OUTLET SLEEVE 		- 1 Enquire
15 670005402
CLAMP 		- 2 Enquire
17 670009518
COMPLETE UNDERWINDSCREEN WATER DRAIN RESERVOIR 		- 1 Enquire
18 675000150
FASTENER BUTTON 		- 11 Enquire
19 670013463
LH Plate - Black 		- 1 Enquire
19 670013462
WINDSHIELD COWL EXTENSION TRIM PANEL COVER RH BLACK 		- 1 Enquire
21 673000069
LH ROOF MOULDING ASSEMBLY 		- 1 Enquire
21 673000068
RH ROOF MOULDING ASSEMBLY 		- 1 Enquire
22 670148748
LH Central Pillar Moulding Nero Lucido (Cod. 308/022222/00) 		- 1 Enquire
22 670078582
LH CENTRAL PILLAR MOULDING - CARBON KIT (Door Mirrors, Door Handles, Front Bumper profile, Trunk Spoiler) / POLISHED CARBON 		- 1 Enquire
22 670148747
RH CENTRAL PILLAR MOULDING - NERO LUCIDO (Cod. 308/022222/00) 		- 1 Enquire
22 670078581
RH CENTRAL PILLAR MOULDING - CARBON KIT (Door Mirrors, Door Handles, Front Bumper profile, Trunk Spoiler) / POLISHED CARBON 		- 1 Enquire
23 670013465
LH PILLAR MOULDING COVER - BLACK 		- 1 Enquire
23 670013464
RH PILLAR MOULDING COVER - BLACK 		- 1 Enquire
24 670004125
BRACKET 		- 2 Enquire
26 940000336
REAR LH PROTECTIVE FILM KIT 		- 1 Enquire
26 940000335
REAR RH PROTECTIVE FILM KIT 		- 1 Enquire
27 675000150
FASTENER BUTTON 		- 2 Enquire
31 670013530
LH SIDE AIR VENT BRIGHT CHROME 		- 3 Enquire
31 670137276
L.H. LATERAL AIR VENT - EXTERIOR BLACK AND CARBON KIT 		- 3 Enquire
31 670013529
RH External Air Vent Bright Chrome 		- 3 Enquire
31 670137275
RH LATERAL AIR VENT - EXTERIOR BLACK AND CARBON KIT 		- 3 Enquire
32 673000023
LH SIDE SKIRT 		- 1 Enquire
32 673000022
RH SIDE SKIRT 		- 1 Enquire
33 670114683
FRONT KICK PLATE - BRUSHED STAINLESS STEEL 		- 2 Enquire
33 670078580
FRONT KICK PLATE - CARBON DOOR SILLS / POLISHED CARBON 		- 2 Enquire
34 670114684
REAR KICK PLATE - BRUSHED STAINLESS STEEL 		- 2 Enquire
34 670078585
REAR KICK PLATE - CARBON DOOR SILLS / POLISHED CARBON 		- 2 Enquire
35 675000058
FASTENER BUTTON 		- 14 Enquire
36 670003422
SKIRT LH MOUNTING BRACKET 		- 1 Enquire
36 670003421
SKIRT RH MOUNTING BRACKET 		- 1 Enquire
37 675000111
SCREW 		- 2 Enquire
38 670014507
RH LUGGAGE COMPARTMENT CABLE GUIDE FRONT COVER - BLACK 		- 1 Enquire
39 670014508
LH LUGGAGE COMPARTMENT CABLE GUIDE FRONT COVER - BLACK 		- 1 Enquire
40 675000058
FASTENER BUTTON 		- 6 Enquire
41 670001705
FRONT LH MUDGUARD 		- 1 Enquire
41 670001706
FRONT RH MUDGUARD 		- 1 Enquire
42 670014504
BOOT RIGHT CABLE GUIDE OUTER COVER - BLACK 		- 1 Enquire
43 670014505
BOOT LEFT CABLE GUIDE OUTER COVER - BLACK 		- 1 Enquire
44 670014506
BOOT CENTRAL CABLE GUIDE COVER - BLACK 		- 1 Enquire
45 670002093
GASKET 		- 1 Enquire
46 673000064
NUMBER PLATE LIGHT 		- 2 Enquire
47 670071819
LIGHT BAR WITH REAR PARKING CAMERA - REAR PARKING CAMERA WITH DYNAMIC GRIDLINES / BLACK 		- 1 Enquire
47 670137278
LIGHT BAR WITH REAR PARKING CAMERA - REAR PARKING CAMERA WITH DYNAMIC GRIDLINES EXTERIOR BLACK AND CARBON KIT / BLACK 		- 1 Enquire
47 670122640
LIGHT BAR WITH REAR PARKING CAMERA - SURROUND VIEW CAMERA SYSTEM, INCLUDES COURTESY LAMPS ON SIDE MIRRORS / BLACK 		- 1 Enquire
47 670137280
LIGHT BAR WITH REAR PARKING CAMERA - SURROUND VIEW CAMERA SYSTEM, INCLUDES COURTESY LAMPS ON SIDE MIRRORS EXTERIOR BLACK AND CARBON KIT / BLACK 		- 1 Enquire
47 670018241
LIGHT BAR WITHOUT REAR PARKING CAMERA - BLACK 		- 1 Enquire
47 670137277
LIGHT BAR WITHOUT REAR PARKING CAMERA - EXTERIOR BLACK AND CARBON KIT / BLACK 		- 1 Enquire
48 673000065
MICROSWITCH REPLACEMENT KIT 		- 1 Enquire
49 673000066
FASTENER BUTTON 		- 1 Enquire
53 673003779
Fixing Pin 		- 24 Enquire
54 673002766
DIPSTICK PLUG 		- 1 Enquire
