FUEL PUMPS AND CONNECTION LINES of Maserati Maserati Quattroporte (2017+) S V6 410bhp

View All

Maserati Quattroporte (2017+) S V6 410bhp - FUEL PUMPS AND CONNECTION LINES

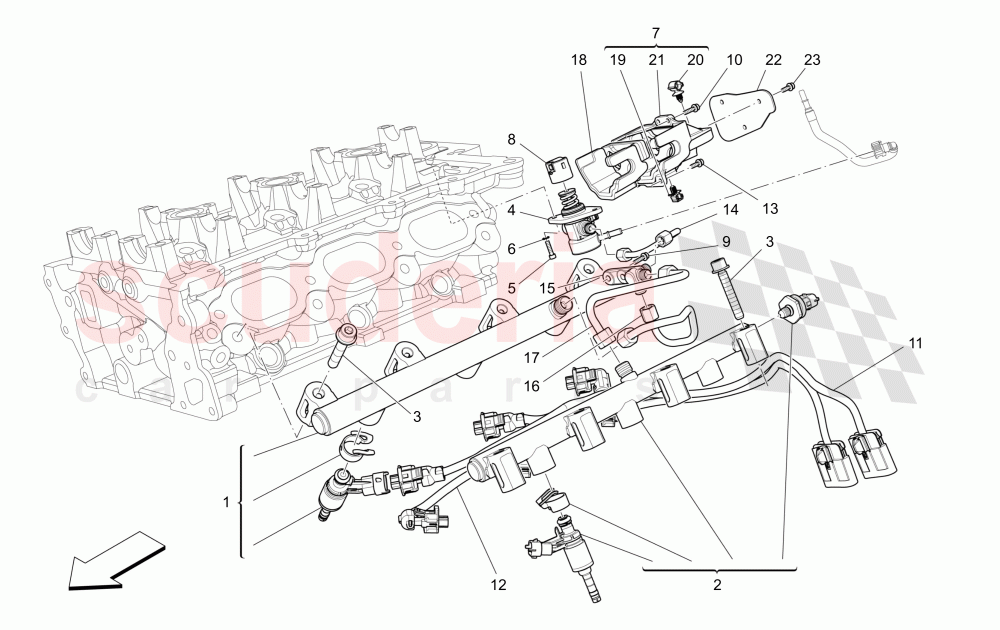

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	327905	RH FUEL PIPE WITH INJECTORS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	327906	LH FUEL PIPE WITH INJECTORS	Enquire	To Order
	298008	LH FUEL INJECTORS PIPE	Enquire	To Order
	327906	LH FUEL PIPE WITH INJECTORS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285494	SCREWM8X50	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	336326	HIGH PRESSURE FUEL PUMP	Enquire	To Order
	329202	HIGH PRESSURE FUEL PUMPNBD26 PHP099	Enquire	To Order
	336324	HP FUEL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305434	SCREWM6X25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12639724	WASHERD.6.15-11X1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	333541	ACOUSTIC COVER	Enquire	To Order
	309160	CPL. ACOUSTIC COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	279504	BOWL	Enquire	To Order
	270601	HIG PRESSURE PUMP BUCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW M6 X 25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW M6 X 25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296209	RH CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296210	LH CABLE	Enquire	To Order
	311644	LH CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	305402	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282570	HIGH-PRESSURE FUEL PIPE BETWEEN PUMP AND DISTRIBUTOR	Enquire	To Order
	310550	HIGH-PRESSURE FUEL PIPE BETWEEN PUMP AND DISTRIBUTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	298649	DISTRIBUTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282572	RH RAIL-PUMP HIGH-PRESSURE FUEL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282571	LH RAIL-PUMP HIGH-PRESSURE FUEL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	302810	SOUNDPROOFING ELEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303438	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303438	CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	327905	RH FUEL PIPE WITH INJECTORS	327905 RH FUEL PIPE WITH INJECTORS	-	1	Enquire
2	327906	LH FUEL PIPE WITH INJECTORS	327906 LH FUEL PIPE WITH INJECTORS	-	1	Enquire
2	298008	LH FUEL INJECTORS PIPE	298008 LH FUEL INJECTORS PIPE Please see picture attached to define the right set of Rails for this V6 turbo engine car	-	1	Enquire
2	327906	LH FUEL PIPE WITH INJECTORS	327906 LH FUEL PIPE WITH INJECTORS Please see picture attached to define the right set of Rails for this V6 turbo engine car	-	1	Enquire
3	285494	SCREWM8X50	285494 SCREWM8X50 M8X50 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	8	Enquire
4	336326	HIGH PRESSURE FUEL PUMP	336326 HIGH PRESSURE FUEL PUMP NBD26 PHP090	-	1	Enquire
4	329202	HIGH PRESSURE FUEL PUMPNBD26 PHP099	329202 HIGH PRESSURE FUEL PUMPNBD26 PHP099 NBD26 PHP099	-	1	Enquire
4	336324	HP FUEL PUMP	336324 HP FUEL PUMP PLEASE SELL-OUT GDI PUMP P/N 308863 JUST FOR 330HP AND 410 HP RWD MY14 ENGINES; IF OLD PART STOCK = 0 OR TILL NOW FOR 350HP AND AWD MY14 ENGINES, PLEASE ORDER NEW GDI PUMP P/N 323980	-	1	Enquire
5	14305434	SCREWM6X25	14305434 SCREWM6X25 M6X25 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	2	Enquire
6	12639724	WASHERD.6.15-11X1	12639724 WASHERD.6.15-11X1 D.6.15-11X1 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	2	Enquire
7	333541	ACOUSTIC COVER	333541 ACOUSTIC COVER	-	1	Enquire
7	309160	CPL. ACOUSTIC COVER	309160 CPL. ACOUSTIC COVER	-	1	Enquire
8	279504	BOWL	279504 BOWL Diameter 32	-	1	Enquire
8	270601	HIG PRESSURE PUMP BUCKET	270601 HIG PRESSURE PUMP BUCKET Diameter 28	-	1	Enquire
9	231620	SCREW M6 X 25	231620 SCREW M6 X 25 M6X25 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	2	Enquire
10	231620	SCREW M6 X 25	231620 SCREW M6 X 25 M6X25 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	2	Enquire
11	296209	RH CABLE	296209 RH CABLE SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
12	296210	LH CABLE	296210 LH CABLE SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
12	311644	LH CABLE	311644 LH CABLE SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
13	305402	SCREW	305402 SCREW SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	2	Enquire
14	282570	HIGH-PRESSURE FUEL PIPE BETWEEN PUMP AND DISTRIBUTOR	282570 HIGH-PRESSURE FUEL PIPE BETWEEN PUMP AND DISTRIBUTOR	-	1	Enquire
14	310550	HIGH-PRESSURE FUEL PIPE BETWEEN PUMP AND DISTRIBUTOR	310550 HIGH-PRESSURE FUEL PIPE BETWEEN PUMP AND DISTRIBUTOR	-	1	Enquire
15	298649	DISTRIBUTOR	298649 DISTRIBUTOR SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
16	282572	RH RAIL-PUMP HIGH-PRESSURE FUEL PIPE	282572 RH RAIL-PUMP HIGH-PRESSURE FUEL PIPE SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
17	282571	LH RAIL-PUMP HIGH-PRESSURE FUEL PIPE	282571 LH RAIL-PUMP HIGH-PRESSURE FUEL PIPE SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
18	302810	SOUNDPROOFING ELEMENT	302810 SOUNDPROOFING ELEMENT SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
19	303438	CLIP	303438 CLIP SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
20	303438	CLIP	303438 CLIP SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
