RH CYLINDER HEAD of Maserati Maserati Quattroporte (2013-2016) V6 330bhp

View All

Maserati Quattroporte (2013-2016) V6 330bhp - RH CYLINDER HEAD

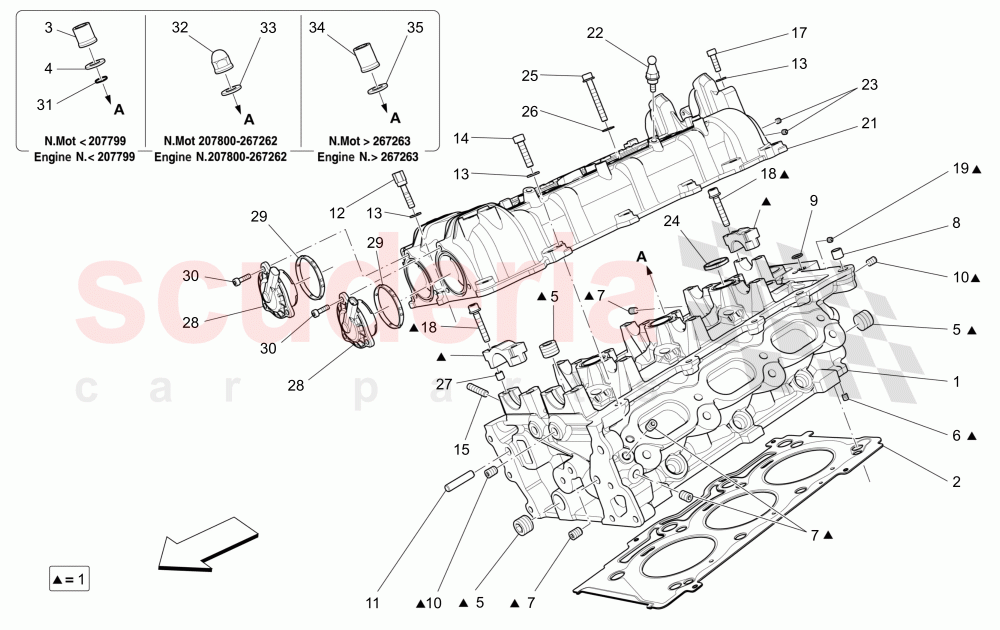

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	310539	RH HEAD ASSEMBLY	Enquire	To Order
	310539	RH HEAD ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

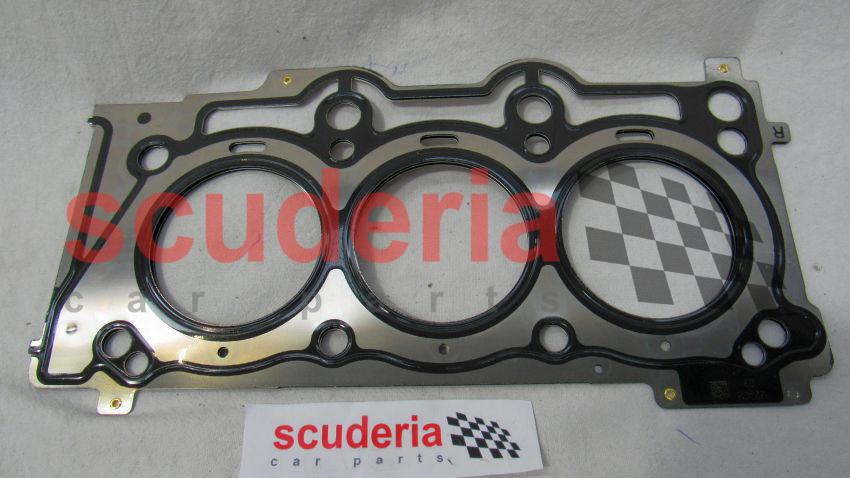

	324016	RH HEAD GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	321187	CYLINDER HEAD NUT & WASHER KIT	Enquire	To Order
	321187	CYLINDER HEAD NUT & WASHER KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	290432	DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296824	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	279564	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134704	O.R. GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282755	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282918	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	339948	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157218	SCREWM6X25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	272605	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	201599	SCREWM6X20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243719	SCREWM6X35	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199760	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	318089	RH CYLINDER HEAD COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292326	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199760	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

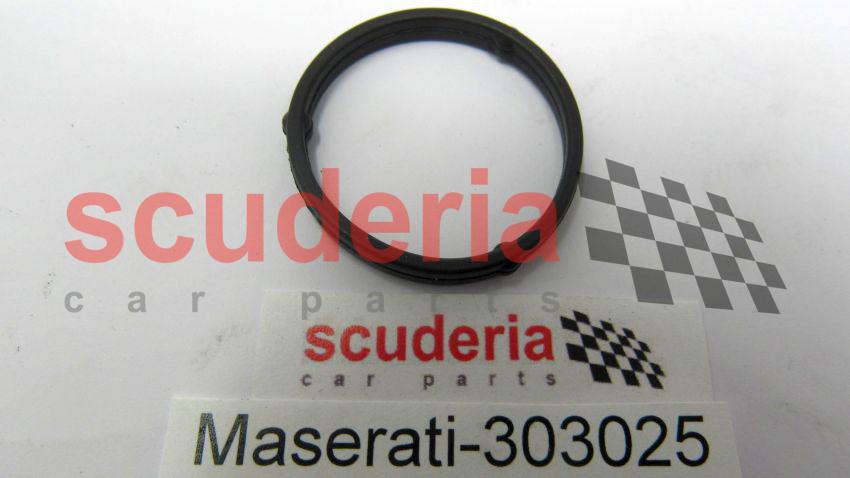

	303025	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296759	SCREWM6X45	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296075	WASHER D.13X5.8	Enquire	To Order
	296075	WASHER D.13X5.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	306857	OIL PRESSURE CHECK VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

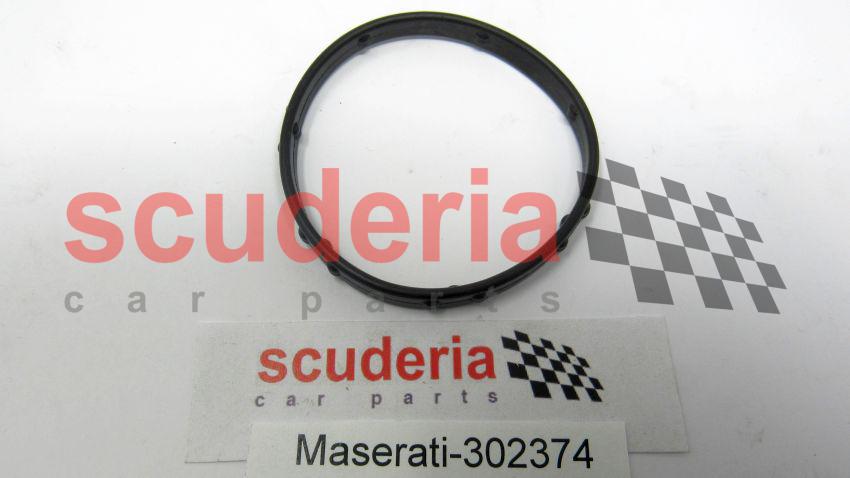

	302374	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14304221	SCREWM5X16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	300708	O.R. GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	321187	CYLINDER HEAD NUT & WASHER KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151117	WASHER 11.25-22X2.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	321187	CYLINDER HEAD NUT & WASHER KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	321187	CYLINDER HEAD NUT & WASHER KIT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	310539	RH HEAD ASSEMBLY	310539 RH HEAD ASSEMBLY	-	1	Enquire
1	310539	RH HEAD ASSEMBLY	310539 RH HEAD ASSEMBLY SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
2	324016	RH HEAD GASKET	324016 RH HEAD GASKET SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
3	321187	CYLINDER HEAD NUT & WASHER KIT	321187 CYLINDER HEAD NUT & WASHER KIT M11 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	8	Enquire
3	321187	CYLINDER HEAD NUT & WASHER KIT	321187 CYLINDER HEAD NUT & WASHER KIT SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	8	Enquire
6	290432	DOWEL	290432 DOWEL SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
7	296824	THREADED PLUG	296824 THREADED PLUG SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	4	Enquire
8	279564	CENTERING DOWEL	279564 CENTERING DOWEL SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	2	Enquire
9	134704	O.R. GASKET	134704 O.R. GASKET SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
10	282755	THREADED PLUG	282755 THREADED PLUG SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	4	Enquire
11	282918	PIN	282918 PIN SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
12	339948	STUD	339948 STUD SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	2	Enquire
13	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	36	Enquire
14	157218	SCREWM6X25	157218 SCREWM6X25 M6X25 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	7	Enquire
15	272605	STUD	272605 STUD SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	6	Enquire
17	201599	SCREWM6X20	201599 SCREWM6X20 M6X20 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
18	243719	SCREWM6X35	243719 SCREWM6X35 M6X35 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	18	Enquire
19	199760	THREADED PLUG	199760 THREADED PLUG SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	2	Enquire
21	318089	RH CYLINDER HEAD COVER	318089 RH CYLINDER HEAD COVER SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
22	292326	PIN	292326 PIN SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	2	Enquire
23	199760	THREADED PLUG	199760 THREADED PLUG SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	2	Enquire
24	303025	GASKET	303025 GASKET SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	3	Enquire
25	296759	SCREWM6X45	296759 SCREWM6X45 M6X45 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	3	Enquire
26	296075	WASHER D.13X5.8	296075 WASHER D.13X5.8 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	3	Enquire
26	296075	WASHER D.13X5.8	296075 WASHER D.13X5.8 D.13X5.8 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	3	Enquire
27	102725	CENTERING DOWEL	102725 CENTERING DOWEL SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	18	Enquire
28	306857	OIL PRESSURE CHECK VALVE	306857 OIL PRESSURE CHECK VALVE SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	2	Enquire
29	302374	GASKET	302374 GASKET SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	2	Enquire
30	14304221	SCREWM5X16	14304221 SCREWM5X16 M5X16 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	6	Enquire
31	300708	O.R. GASKET	300708 O.R. GASKET SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	8	Enquire
32	321187	CYLINDER HEAD NUT & WASHER KIT	321187 CYLINDER HEAD NUT & WASHER KIT SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	8	Enquire
33	151117	WASHER 11.25-22X2.5	151117 WASHER 11.25-22X2.5 D.11.25-22X2.5 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	8	Enquire
34	321187	CYLINDER HEAD NUT & WASHER KIT	321187 CYLINDER HEAD NUT & WASHER KIT SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	8	Enquire
35	321187	CYLINDER HEAD NUT & WASHER KIT	321187 CYLINDER HEAD NUT & WASHER KIT SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	8	Enquire
