GEARBOX HOUSINGS of Maserati Maserati Quattroporte (2013-2016) S V6 410bhp

View All

Maserati Quattroporte (2013-2016) S V6 410bhp - GEARBOX HOUSINGS

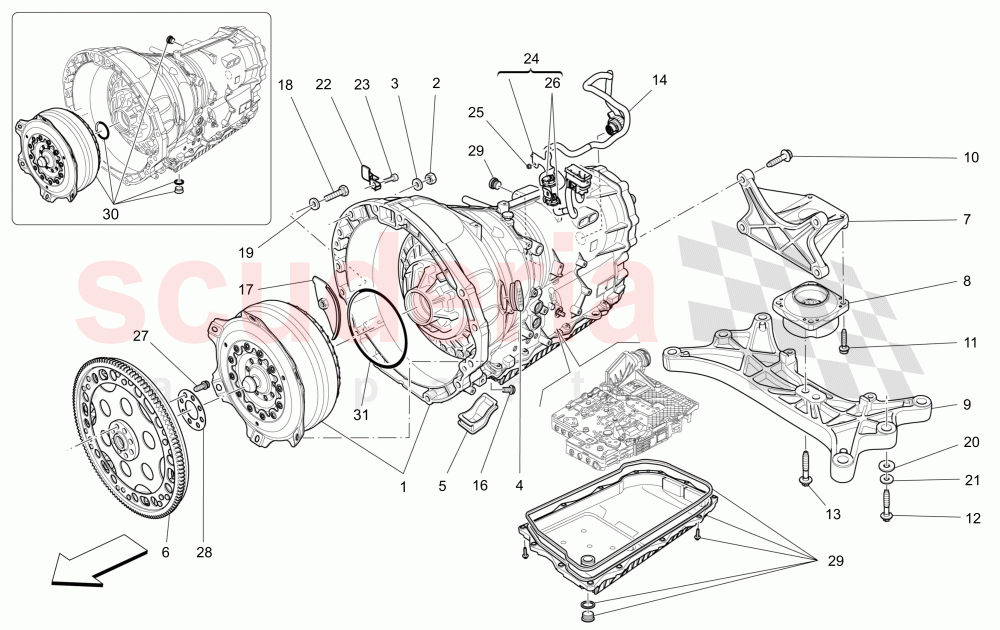

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670031352	AUTOMATIC GEARBOX ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059421	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000098	WASHERD.10.2-22X2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670003520	SIDE PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670003521	LOWER PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670003244	ENGINE FLYWHEEL ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670001542	GEARBOX MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000031	GEARBOX SIDE SUSPENSION BUSHING	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	670003953	GEARBOX MOUNTING CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000120	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000540	SCREW M8X 40MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000145	SCREW M10 X 55	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000145	SCREW M10 X 55	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670007400	AUTOMATIC GEARBOX WIRING HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670005384	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670003684	CLOSURE PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000380	SCREWM8X55	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000378	WASHERD.8.4-17X1.6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000247	WASHERD.10.2-25X3	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000254	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670005079	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670005501	BRACKET ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000093	NUTM6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000500	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670002932	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670002257	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673003178	Auto Transmission Oil Sump	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673003836	CONVERTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980139948	O.R. GASKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670031352	AUTOMATIC GEARBOX ASSEMBLY	670031352 AUTOMATIC GEARBOX ASSEMBLY	-	1	Enquire
2	14059421	NUT	14059421 NUT M10	-	10	Enquire
3	675000098	WASHERD.10.2-22X2	675000098 WASHERD.10.2-22X2 D.10.2-22X2	-	10	Enquire
4	670003520	SIDE PLUG	670003520 SIDE PLUG	-	1	Enquire
5	670003521	LOWER PLUG	670003521 LOWER PLUG	-	1	Enquire
6	670003244	ENGINE FLYWHEEL ASSEMBLY	670003244 ENGINE FLYWHEEL ASSEMBLY	-	1	Enquire
7	670001542	GEARBOX MOUNTING BRACKET	670001542 GEARBOX MOUNTING BRACKET	-	1	Enquire
8	675000031	GEARBOX SIDE SUSPENSION BUSHING ARRIVING SOON	675000031 GEARBOX SIDE SUSPENSION BUSHING ARRIVING SOON	-	1	Enquire
9	670003953	GEARBOX MOUNTING CROSS MEMBER	670003953 GEARBOX MOUNTING CROSS MEMBER	-	1	Enquire
10	675000120	SCREW	675000120 SCREW	-	4	Enquire
11	675000540	SCREW M8X 40MM	675000540 SCREW M8X 40MM M8X40	-	4	Enquire
12	675000145	SCREW M10 X 55	675000145 SCREW M10 X 55 M10X55	-	4	Enquire
13	675000145	SCREW M10 X 55	675000145 SCREW M10 X 55 M10X55	-	2	Enquire
14	670007400	AUTOMATIC GEARBOX WIRING HARNESS	670007400 AUTOMATIC GEARBOX WIRING HARNESS	-	1	Enquire
16	670005384	SCREW	670005384 SCREW	-	6	Enquire
17	670003684	CLOSURE PLATE	670003684 CLOSURE PLATE	-	1	Enquire
18	675000380	SCREWM8X55	675000380 SCREWM8X55 M8X55	-	1	Enquire
19	675000378	WASHERD.8.4-17X1.6	675000378 WASHERD.8.4-17X1.6 D.8.4-17X1.6	-	1	Enquire
20	675000247	WASHERD.10.2-25X3	675000247 WASHERD.10.2-25X3 D.10.2-25X3	-	6	Enquire
21	675000254	WASHER	675000254 WASHER D.10-20X1.9	-	6	Enquire
22	670005079	BRACKET	670005079 BRACKET	-	1	Enquire
23	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6X14	-	1	Enquire
24	670005501	BRACKET ASSEMBLY	670005501 BRACKET ASSEMBLY	-	1	Enquire
25	675000093	NUTM6	675000093 NUTM6 M6	-	2	Enquire
26	675000500	CLIP	675000500 CLIP	-	2	Enquire
27	670002932	SCREW	670002932 SCREW	-	8	Enquire
28	670002257	SHIM	670002257 SHIM	-	1	Enquire
29	673003178	Auto Transmission Oil Sump	673003178 Auto Transmission Oil Sump	-	1	Enquire
30	673003836	CONVERTER	673003836 CONVERTER	-	1	Enquire
31	980139948	O.R. GASKET	980139948 O.R. GASKET	-	1	Enquire
