BRAKING DEVICES ON FRONT WHEELS of Maserati Maserati MC20 Icona Automatic 3.0 BT V6 2WD 630HP

View All

Maserati MC20 Icona Automatic 3.0 BT V6 2WD 630HP - BRAKING DEVICES ON FRONT WHEELS (04101)

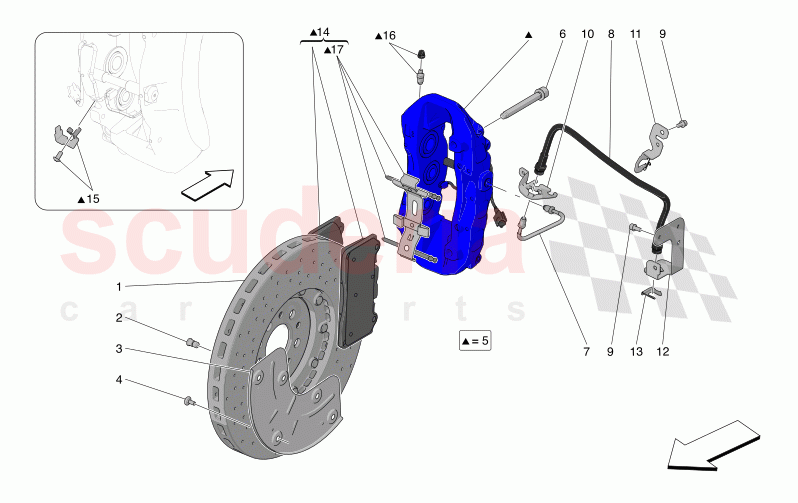

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670306941	FRONT BRAKE DISC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000081	SCREW M10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670316213	SPARE WHEEL	Enquire	To Order
	670220160	BRAKE DISC SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001032	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	910044007	MASERATI ASSISTANCE BOOK	Enquire	To Order
	670220158	RH FRONT CALIPER ASSEMBLY	Enquire	To Order
	910044001	MASERATI ASSISTANCE BOOK	Enquire	To Order

...and 23 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	675001192	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670156217	LH FRONT CALIPER RIGID PIPE	Enquire	To Order
	670178225	RH FRONT CALIPER RIGID PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670178636	FRONT BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000172	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670156495	LH BRACKET	Enquire	To Order
	670161084	RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670161121	LH. FRONT BRAKE PAD FLEXIBLE PIPE BRACKET	Enquire	To Order
	670161122	RH. FRONT BRAKE PAD FLEXIBLE PIPE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670156497	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000276	SPRING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673012306	FRONT PADS KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673010935	RH BRACKET AND SCREW	Enquire	To Order
	673010936	LH BRACKET AND SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673010933	BLEEDER SCREW AND PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673010931	SPRING AND PINS KIT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670306941	FRONT BRAKE DISC	670306941 FRONT BRAKE DISC Bespoke Assembly Number 7003285 - 99999999;	-	2	Enquire
2	675000081	SCREW M10	675000081 SCREW M10	-	2	Enquire
3	670316213	SPARE WHEEL	670316213 SPARE WHEEL	-	2	Enquire
3	670220160	BRAKE DISC SHIELD	670220160 BRAKE DISC SHIELD	-	2	Enquire
4	675001032	SCREW	675001032 SCREW	-	6	Enquire
5	910044007	MASERATI ASSISTANCE BOOK	910044007 MASERATI ASSISTANCE BOOK Available with: FUORISERIE - PINZE FRENO OXIDIZED RED ;	-	1	Enquire
5	670220158	RH FRONT CALIPER ASSEMBLY	670220158 RH FRONT CALIPER ASSEMBLY Available with: FUORISERIE - BRAKE CALIPERS PAINTED - BLU CLASSIC Not available with: FUORISERIE - BRAKE CALIPERS PAINTED - ROSSO CORSE, FUORISERIE - BRAKE CALIPERS PAINTED - GIALLO LIME, FUORISERIE - COPPER BRAKE CALIPERS, FUORISERIE - WHITE BRAKE CALIPERS, FUORISERIE - ORANGE BRAKE CALIPERS;	-	1	Enquire
5	910044001	MASERATI ASSISTANCE BOOK	910044001 MASERATI ASSISTANCE BOOK Available with: FUORISERIE - ORANGE BRAKE CALIPERS Not available with: FUORISERIE - BRAKE CALIPERS PAINTED - ROSSO CORSE, FUORISERIE - BRAKE CALIPERS PAINTED - GIALLO LIME, FUORISERIE - COPPER BRAKE CALIPERS, FUORISERIE - WHITE BRAKE CALIPERS;	-	1	Enquire
5	910044004	MASERATI ASSISTANCE BOOK	910044004 MASERATI ASSISTANCE BOOK Available with: FUORISERIE - WHITE BRAKE CALIPERS Not available with: FUORISERIE - BRAKE CALIPERS PAINTED - ROSSO CORSE, FUORISERIE - BRAKE CALIPERS PAINTED - GIALLO LIME, FUORISERIE - COPPER BRAKE CALIPERS, FUORISERIE - ORANGE BRAKE CALIPERS;	-	1	Enquire
5	910044005	MASERATI ASSISTANCE BOOK	910044005 MASERATI ASSISTANCE BOOK Available with: FUORISERIE - COPPER BRAKE CALIPERS Not available with: FUORISERIE - BRAKE CALIPERS PAINTED - ROSSO CORSE, FUORISERIE - BRAKE CALIPERS PAINTED - GIALLO LIME, FUORISERIE - WHITE BRAKE CALIPERS, FUORISERIE - ORANGE BRAKE CALIPERS;	-	1	Enquire
5	670215200	RH FRONT CALIPER ASSEMBLY	670215200 RH FRONT CALIPER ASSEMBLY Available with: YELLOW BRAKE CALIPERS Not available with: BRAKE CALIPERS ANODIZED IN BLACK, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, BLUE BRAKE CALIPERS, SILVER BRAKE CALIPERS;	-	1	Enquire
5	670215201	RH FRONT CALIPER ASSEMBLY	670215201 RH FRONT CALIPER ASSEMBLY Available with: BRAKE CALIPERS ANODIZED IN BLACK Not available with: BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, BLUE BRAKE CALIPERS, SILVER BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
5	910043980	INFOTAINMENT BOOK	910043980 INFOTAINMENT BOOK Available with: FUORISERIE - BRAKE CALIPERS PAINTED - GIALLO LIME Not available with: FUORISERIE - BRAKE CALIPERS PAINTED - ROSSO CORSE, FUORISERIE - COPPER BRAKE CALIPERS, FUORISERIE - WHITE BRAKE CALIPERS, FUORISERIE - ORANGE BRAKE CALIPERS;	-	1	Enquire
5	910043982	INFOTAINMENT BOOK	910043982 INFOTAINMENT BOOK Available with: FUORISERIE - BRAKE CALIPERS PAINTED - ROSSO CORSE Not available with: FUORISERIE - BRAKE CALIPERS PAINTED - GIALLO LIME, FUORISERIE - COPPER BRAKE CALIPERS, FUORISERIE - WHITE BRAKE CALIPERS, FUORISERIE - ORANGE BRAKE CALIPERS;	-	1	Enquire
5	910044006	MASERATI ASSISTANCE BOOK	910044006 MASERATI ASSISTANCE BOOK Available with: FUORISERIE - PINZE FRENO OXIDIZED RED ;	-	1	Enquire
5	670215196	RH FRONT CALIPER ASSEMBLY	670215196 RH FRONT CALIPER ASSEMBLY Available with: BLACK BRAKE CALIPERS Not available with: BRAKE CALIPERS ANODIZED IN BLACK, RED BRAKE CALIPERS, BLUE BRAKE CALIPERS, SILVER BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
5	670215197	RH FRONT CALIPER ASSEMBLY	670215197 RH FRONT CALIPER ASSEMBLY Available with: RED BRAKE CALIPERS Not available with: BRAKE CALIPERS ANODIZED IN BLACK, BLACK BRAKE CALIPERS, BLUE BRAKE CALIPERS, SILVER BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
5	670215198	RH FRONT CALIPER ASSEMBLY	670215198 RH FRONT CALIPER ASSEMBLY Available with: BLUE BRAKE CALIPERS Not available with: BRAKE CALIPERS ANODIZED IN BLACK, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, SILVER BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
5	670215199	RH FRONT CALIPER ASSEMBLY	670215199 RH FRONT CALIPER ASSEMBLY Available with: SILVER BRAKE CALIPERS Not available with: BRAKE CALIPERS ANODIZED IN BLACK, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, BLUE BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
5	670220154	LH FRONT CALIPER ASSEMBLY	670220154 LH FRONT CALIPER ASSEMBLY Available with: FUORISERIE - BRAKE CALIPERS PAINTED - BLU CLASSIC Not available with: FUORISERIE - BRAKE CALIPERS PAINTED - ROSSO CORSE, FUORISERIE - COPPER BRAKE CALIPERS, FUORISERIE - WHITE BRAKE CALIPERS, FUORISERIE - ORANGE BRAKE CALIPERS;	-	1	Enquire
5	910043976	INFOTAINMENT BOOK	910043976 INFOTAINMENT BOOK Available with: FUORISERIE - ORANGE BRAKE CALIPERS Not available with: FUORISERIE - BRAKE CALIPERS PAINTED - ROSSO CORSE, FUORISERIE - BRAKE CALIPERS PAINTED - GIALLO LIME, FUORISERIE - COPPER BRAKE CALIPERS, FUORISERIE - WHITE BRAKE CALIPERS;	-	1	Enquire
5	910043977	INFOTAINMENT BOOK	910043977 INFOTAINMENT BOOK Available with: FUORISERIE - WHITE BRAKE CALIPERS Not available with: FUORISERIE - BRAKE CALIPERS PAINTED - ROSSO CORSE, FUORISERIE - BRAKE CALIPERS PAINTED - GIALLO LIME, FUORISERIE - COPPER BRAKE CALIPERS, FUORISERIE - ORANGE BRAKE CALIPERS;	-	1	Enquire
5	910043978	INFOTAINMENT BOOK	910043978 INFOTAINMENT BOOK Available with: FUORISERIE - COPPER BRAKE CALIPERS Not available with: FUORISERIE - BRAKE CALIPERS PAINTED - ROSSO CORSE, FUORISERIE - BRAKE CALIPERS PAINTED - GIALLO LIME, FUORISERIE - WHITE BRAKE CALIPERS, FUORISERIE - ORANGE BRAKE CALIPERS;	-	1	Enquire
5	670215193	LH FRONT CALIPER ASSEMBLY	670215193 LH FRONT CALIPER ASSEMBLY Available with: SILVER BRAKE CALIPERS Not available with: BRAKE CALIPERS ANODIZED IN BLACK, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, BLUE BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
5	670215194	LH FRONT CALIPER ASSEMBLY	670215194 LH FRONT CALIPER ASSEMBLY Available with: YELLOW BRAKE CALIPERS Not available with: BRAKE CALIPERS ANODIZED IN BLACK, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, BLUE BRAKE CALIPERS, SILVER BRAKE CALIPERS;	-	1	Enquire
5	670215195	LH FRONT CALIPER ASSEMBLY	670215195 LH FRONT CALIPER ASSEMBLY Available with: BRAKE CALIPERS ANODIZED IN BLACK Not available with: BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, BLUE BRAKE CALIPERS, SILVER BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
5	910043971	INFOTAINMENT BOOK	910043971 INFOTAINMENT BOOK Available with: FUORISERIE - BRAKE CALIPERS PAINTED - GIALLO LIME Not available with: FUORISERIE - BRAKE CALIPERS PAINTED - ROSSO CORSE, FUORISERIE - COPPER BRAKE CALIPERS, FUORISERIE - WHITE BRAKE CALIPERS, FUORISERIE - ORANGE BRAKE CALIPERS;	-	1	Enquire
5	910043975	INFOTAINMENT BOOK	910043975 INFOTAINMENT BOOK Available with: FUORISERIE - BRAKE CALIPERS PAINTED - ROSSO CORSE Not available with: FUORISERIE - BRAKE CALIPERS PAINTED - GIALLO LIME, FUORISERIE - COPPER BRAKE CALIPERS, FUORISERIE - WHITE BRAKE CALIPERS, FUORISERIE - ORANGE BRAKE CALIPERS;	-	1	Enquire
5	670215190	LH FRONT CALIPER ASSEMBLY	670215190 LH FRONT CALIPER ASSEMBLY Available with: BLACK BRAKE CALIPERS Not available with: BRAKE CALIPERS ANODIZED IN BLACK, RED BRAKE CALIPERS, BLUE BRAKE CALIPERS, SILVER BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
5	670215191	LH FRONT CALIPER ASSEMBLY	670215191 LH FRONT CALIPER ASSEMBLY Available with: RED BRAKE CALIPERS Not available with: BRAKE CALIPERS ANODIZED IN BLACK, BLACK BRAKE CALIPERS, BLUE BRAKE CALIPERS, SILVER BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
5	670215192	LH FRONT CALIPER ASSEMBLY	670215192 LH FRONT CALIPER ASSEMBLY Available with: BLUE BRAKE CALIPERS Not available with: BRAKE CALIPERS ANODIZED IN BLACK, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, SILVER BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
6	675001192	SCREW	675001192 SCREW	-	4	Enquire
7	670156217	LH FRONT CALIPER RIGID PIPE	670156217 LH FRONT CALIPER RIGID PIPE Available with: CARBON CERAMIC BRAKES Not available with: DUAL-CAST STEEL BRAKES;	-	1	Enquire
7	670178225	RH FRONT CALIPER RIGID PIPE	670178225 RH FRONT CALIPER RIGID PIPE Available with: CARBON CERAMIC BRAKES Not available with: DUAL-CAST STEEL BRAKES;	-	1	Enquire
8	670178636	FRONT BRAKE PIPE	670178636 FRONT BRAKE PIPE	-	2	Enquire
9	675000172	SCREW	675000172 SCREW	-	8	Enquire
10	670156495	LH BRACKET	670156495 LH BRACKET	-	1	Enquire
10	670161084	RH BRACKET	670161084 RH BRACKET	-	1	Enquire
11	670161121	LH. FRONT BRAKE PAD FLEXIBLE PIPE BRACKET	670161121 LH. FRONT BRAKE PAD FLEXIBLE PIPE BRACKET	-	1	Enquire
11	670161122	RH. FRONT BRAKE PAD FLEXIBLE PIPE BRACKET	670161122 RH. FRONT BRAKE PAD FLEXIBLE PIPE BRACKET	-	1	Enquire
12	670156497	BRACKET	670156497 BRACKET	-	2	Enquire
13	675000276	SPRING PLATE	675000276 SPRING PLATE	-	2	Enquire
14	673012306	FRONT PADS KIT	673012306 FRONT PADS KIT Available with: CARBON CERAMIC BRAKES Not available with: DUAL-CAST STEEL BRAKES;	-	1	Enquire
15	673010935	RH BRACKET AND SCREW	673010935 RH BRACKET AND SCREW	-	1	Enquire
15	673010936	LH BRACKET AND SCREW	673010936 LH BRACKET AND SCREW	-	1	Enquire
16	673010933	BLEEDER SCREW AND PLUG	673010933 BLEEDER SCREW AND PLUG	-	2	Enquire
17	673010931	SPRING AND PINS KIT	673010931 SPRING AND PINS KIT Available with: CARBON CERAMIC BRAKES Not available with: DUAL-CAST STEEL BRAKES;	-	2	Enquire
