UNDERBODY AND UNDERFLOOR GUARDS of Maserati Maserati MC20 Automatic 3.0 BT V6 2WD 630HP

View All

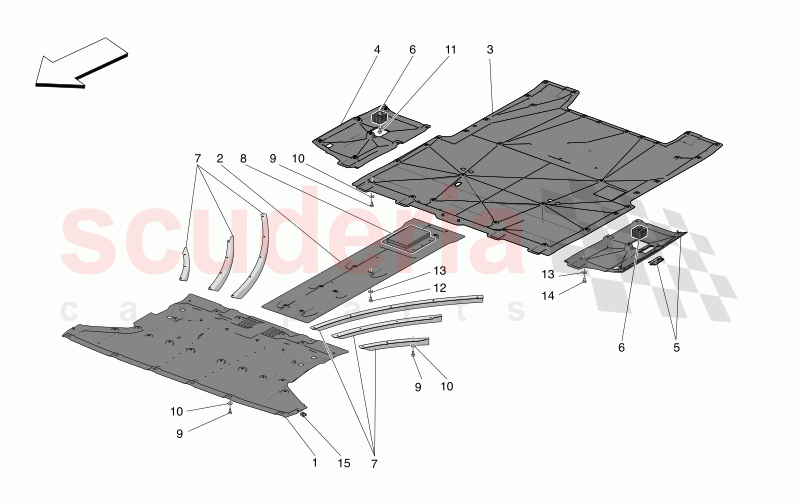

Maserati MC20 Automatic 3.0 BT V6 2WD 630HP - UNDERBODY AND UNDERFLOOR GUARDS (09141)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670158288	FRONT UNDERBODY GUARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670215318	CENTRAL UNDERFLOOR GUARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670158289	CENTRAL AERODYNAMIC UNDERFLOOR CPL.	Enquire	To Order
	670302469	CENTRAL AERODYNAMIC UNDERFLOOR CPL.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670158283	RH CENTER AERODYNAMIC UNDERFLOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670158284	LH CENTER AERODYNAMIC UNDERFLOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670158810	REAR JACKING PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670174913	AIR DAMS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670308847	SCREW	Enquire	To Order
	675001383	SCREW	Enquire	To Order
	675001343	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001257	WASHER	Enquire	To Order
	675001364	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001045	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001383	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001257	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001252	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670303713	CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670158288	FRONT UNDERBODY GUARD	670158288 FRONT UNDERBODY GUARD	-	1	Enquire
2	670215318	CENTRAL UNDERFLOOR GUARD	670215318 CENTRAL UNDERFLOOR GUARD	-	1	Enquire
3	670158289	CENTRAL AERODYNAMIC UNDERFLOOR CPL.	670158289 CENTRAL AERODYNAMIC UNDERFLOOR CPL. Bespoke Assembly Number 0 - 7002374;	-	1	Enquire
3	670302469	CENTRAL AERODYNAMIC UNDERFLOOR CPL.	670302469 CENTRAL AERODYNAMIC UNDERFLOOR CPL. WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 7002375 - 99999999; Not available with: CARBON CERAMIC BRAKES (CCM 2) - PERFORMANCE;	-	1	Enquire
4	670158283	RH CENTER AERODYNAMIC UNDERFLOOR	670158283 RH CENTER AERODYNAMIC UNDERFLOOR	-	1	Enquire
5	670158284	LH CENTER AERODYNAMIC UNDERFLOOR	670158284 LH CENTER AERODYNAMIC UNDERFLOOR	-	1	Enquire
6	670158810	REAR JACKING PAD	670158810 REAR JACKING PAD	-	2	Enquire
7	670174913	AIR DAMS	670174913 AIR DAMS	-	1	Enquire
9	670308847	SCREW	670308847 SCREW Bespoke Assembly Number 7003189 - 99999999;	-	90	Enquire
9	675001383	SCREW	675001383 SCREW Bespoke Assembly Number 0 - 7002344;	-	90	Enquire
9	675001343	SCREW	675001343 SCREW Bespoke Assembly Number 7002345 - 7003188;	-	90	Enquire
10	675001257	WASHER	675001257 WASHER Bespoke Assembly Number 0 - 7002346;	-	90	Enquire
10	675001364	WASHER	675001364 WASHER Bespoke Assembly Number 7002347 - 99999999;	-	90	Enquire
11	675001045	SCREW	675001045 SCREW	-	2	Enquire
12	675001383	SCREW	675001383 SCREW	-	12	Enquire
13	675001257	WASHER	675001257 WASHER	-	22	Enquire
14	675001252	SCREW	675001252 SCREW	-	10	Enquire
15	670303713	CLIP	670303713 CLIP	-	2	Enquire
