Find Your Part

Authorised by Maserati SPA

View All

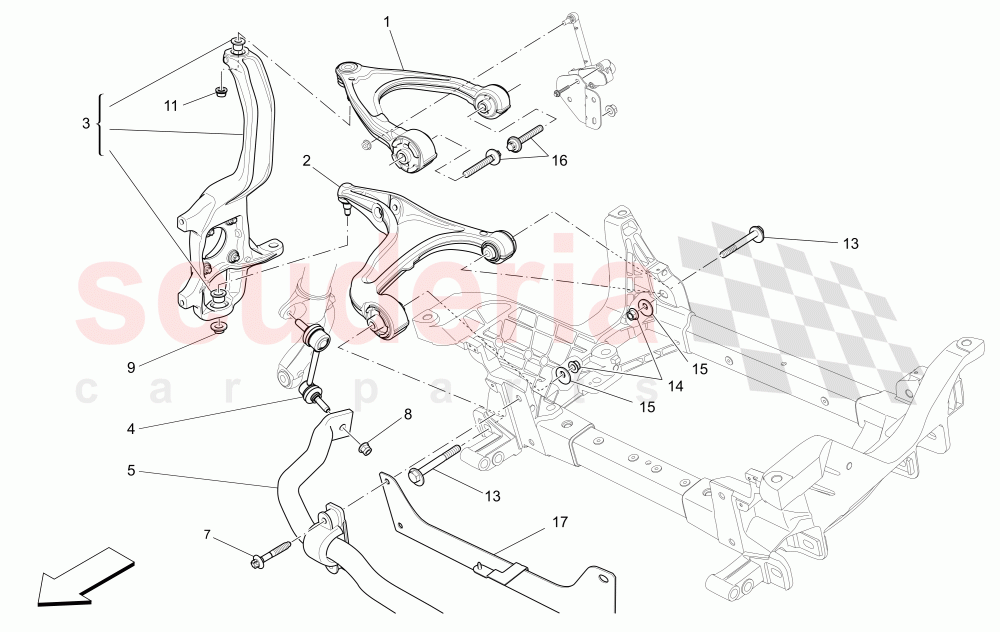

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670031995	LH FRONT UPPER LEVER ASSEMBLY	Enquire	ARRIVING SOON
	670031994	RH FRONT UPPER SUSPENSION LEVER	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	670213730	LH FRONT LOWER LEVER ASSEMBLY	Enquire	To Order
	67021379	CPL RH FRONT LOWER LEVER M161	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670032003	BALL TIE ROD	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	670035434	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000586	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000082	NUT M14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670002916	NUT M10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670035427	SCREW	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	675000585	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670035428	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670007895	SCREW M12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670034476	REINFORCEMENT BRACKET	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670031995	LH FRONT UPPER LEVER ASSEMBLY ARRIVING SOON	670031995 LH FRONT UPPER LEVER ASSEMBLY ARRIVING SOON	-	1	Enquire
1	670031994	RH FRONT UPPER SUSPENSION LEVER ARRIVING SOON	670031994 RH FRONT UPPER SUSPENSION LEVER ARRIVING SOON	-	1	Enquire
2	670213730	LH FRONT LOWER LEVER ASSEMBLY	670213730 LH FRONT LOWER LEVER ASSEMBLY	-	1	Enquire
2	67021379	CPL RH FRONT LOWER LEVER M161	67021379 CPL RH FRONT LOWER LEVER M161	-	1	Enquire
3	670034829	LH FRONT PILLAR ASSEMBLY	670034829 LH FRONT PILLAR ASSEMBLY	-	1	Enquire
3	670034831	RH FRONT PILLAR ASSEMBLY	670034831 RH FRONT PILLAR ASSEMBLY	-	1	Enquire
4	670032003	BALL TIE ROD ARRIVING SOON	670032003 BALL TIE ROD ARRIVING SOON	-	2	Enquire
5	670035787	FRONT STABILIZER BAR	670035787 FRONT STABILIZER BAR	-	1	Enquire
5	670103991	FRONT STABILIZER BAR	670103991 FRONT STABILIZER BAR	-	1	Enquire
7	670035434	SCREW	670035434 SCREW	-	4	Enquire
8	675000586	NUT	675000586 NUT	-	2	Enquire
9	675000082	NUT M14	675000082 NUT M14 M14	-	2	Enquire
11	670002916	NUT M10	670002916 NUT M10 M10	-	2	Enquire
13	670035427	SCREW ARRIVING SOON	670035427 SCREW ARRIVING SOON	-	4	Enquire
14	675000585	NUT	675000585 NUT	-	4	Enquire
15	670035428	WASHER	670035428 WASHER	-	4	Enquire
16	670007895	SCREW M12	670007895 SCREW M12	-	4	Enquire
17	670034476	REINFORCEMENT BRACKET	670034476 REINFORCEMENT BRACKET	-	1	Enquire
