Braking Devices On Front Wheels (Available With: Dual Cast Braking Systemnot Available With: Dual...

Maserati Levante (2017+) S

Find Your Part

Maserati Levante (2017+) S - BRAKING DEVICES ON FRONT WHEELS (Available with: DUAL CAST BRAKING SYSTEMNot available with: Dual...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670037769 FRONT BRAKE DISC Enquire To Order
Photo Part No Description Price (each) Stock
675000081 SCREW M10 Enquire To Order
Photo Part No Description Price (each) Stock
670005714 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
670038823 LH FRONT CALIPER ASSEMBLY - BRAKE CALIPERS PAINTED IN YELLOW Enquire To Order
670038821 LH FRONT CALIPER ASSEMBLY Enquire To Order
670038819 LH FRONT CALIPER ASSEMBLY Enquire To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
673012038 FRONT PADS KIT Enquire To Order
Photo Part No Description Price (each) Stock
670100003 FLEXIBLE PIPE TO FRONT CALIPERS Enquire To Order
Photo Part No Description Price (each) Stock
670003306 LH FRONT BRACKET Enquire To Order
670001817 RH FRONT BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
670032074 LH FRONT CALIPER RIGID PIPE Enquire To Order
670032073 RH FRONT CALIPER RIGID PIPE Enquire To Order
Photo Part No Description Price (each) Stock
675000066 LH FRONT BRAKE DISC GUARD Enquire To Order
675000067 RH FRONT BRAKE DISC GUARD Enquire To Order
Photo Part No Description Price (each) Stock
675000126 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
670007017 LH FRONT BRAKE PIPE Enquire To Order
670007016 RH FRONT BRAKE PIPE Enquire To Order
Photo Part No Description Price (each) Stock
198015 TIE ROD Enquire To Order
Photo Part No Description Price (each) Stock
673000024 LH FRONT CALIPER RIGID PIPE Enquire To Order
673000025 RH FRONT CALIPER RIGID PIPE Enquire To Order
Photo Part No Description Price (each) Stock
152954 BLEEDER SCREW Enquire To Order
Photo Part No Description Price (each) Stock
215666 DUST SEAL Enquire To Order
Photo Part No Description Price (each) Stock
198014 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
673000054 BRACKET AND SCREW Enquire To Order
Photo Part No Description Price (each) Stock
182121 38 MM DIAMETER BOOT Enquire To Order
Photo Part No Description Price (each) Stock
215664 34 MM DIAMETER BOOT Enquire To Order
Photo Part No Description Price (each) Stock
215663 30 MM DIAMETER BOOT Enquire To Order
Photo Part No Description Price (each) Stock
675000281 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
675000286 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
675000272 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
670007373 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
675000126 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
675000276 SPRING PLATE Enquire To Order
Photo Part No Description Price (each) Stock
670037129 LH BRACKET Enquire To Order
670037128 RH BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
675000621 SCREW Enquire To Order
View All

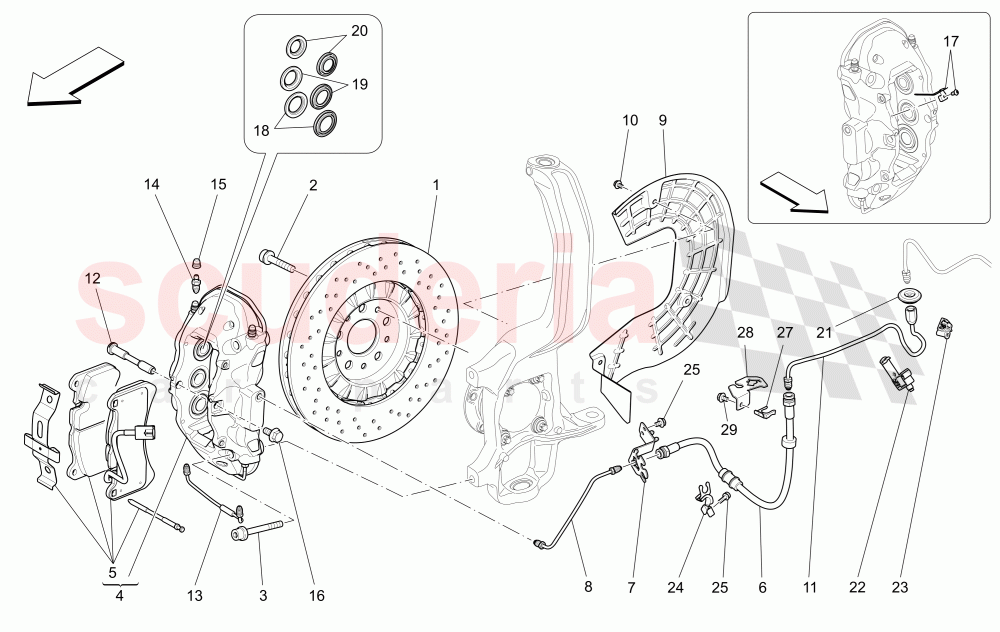

BRAKING DEVICES ON FRONT WHEELS (Available with: DUAL CAST BRAKING SYSTEMNot available with: Dual Cast Braking System (Front - 345 mm) ; (Rear - 330 mm) - Coloured brake calipers) of Maserati Maserati Levante (2017+) S Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670037769
FRONT BRAKE DISC 		- 2 Enquire
2 675000081
SCREW M10
M10 		- 2 Enquire
3 670005714
SCREW 		- 4 Enquire
4 670038823
LH FRONT CALIPER ASSEMBLY - BRAKE CALIPERS PAINTED IN YELLOW 		- 1 Enquire
4 670038821
LH FRONT CALIPER ASSEMBLY 		- 1 Enquire
4 670038819
LH FRONT CALIPER ASSEMBLY 		- 1 Enquire
4 670038817
LH FRONT CALIPER ASSEMBLY - BRAKE CALIPERS PAINTED IN RED 		- 1 Enquire
4 670038815
LH FRONT CALIPER ASSEMBLY - BRAKE CALIPERS PAINTED IN BLACK 		- 1 Enquire
4 670038824
RH FRONT CALIPER ASSEMBLY - BRAKE CALIPERS PAINTED IN YELLOW 		- 1 Enquire
4 670038822
RH FRONT CALIPER ASSEMBLY 		- 1 Enquire
4 670038820
RH FRONT CALIPER ASSEMBLY 		- 1 Enquire
4 670038818
RH FRONT CALIPER ASSEMBLY - BRAKE CALIPERS PAINTED IN RED 		- 1 Enquire
4 670038816
RH FRONT CALIPER ASSEMBLY - BRAKE CALIPERS PAINTED IN BLACK 		- 1 Enquire
5 673012038
FRONT PADS KIT 		- 1 Enquire
6 670100003
FLEXIBLE PIPE TO FRONT CALIPERS 		- 2 Enquire
7 670003306
LH FRONT BRACKET 		- 1 Enquire
7 670001817
RH FRONT BRACKET 		- 1 Enquire
8 670032074
LH FRONT CALIPER RIGID PIPE 		- 1 Enquire
8 670032073
RH FRONT CALIPER RIGID PIPE 		- 1 Enquire
9 675000066
LH FRONT BRAKE DISC GUARD 		- 1 Enquire
9 675000067
RH FRONT BRAKE DISC GUARD 		- 1 Enquire
10 675000126
SCREW 		- 6 Enquire
11 670007017
LH FRONT BRAKE PIPE 		- 1 Enquire
11 670007016
RH FRONT BRAKE PIPE 		- 1 Enquire
12 198015
TIE ROD 		- 2 Enquire
13 673000024
LH FRONT CALIPER RIGID PIPE 		- 1 Enquire
13 673000025
RH FRONT CALIPER RIGID PIPE 		- 1 Enquire
14 152954
BLEEDER SCREW 		- 4 Enquire
15 215666
DUST SEAL 		- 4 Enquire
16 198014
SCREW 		- 2 Enquire
17 673000054
BRACKET AND SCREW
L.h. side 		- 1 Enquire
18 182121
38 MM DIAMETER BOOT 		- 4 Enquire
19 215664
34 MM DIAMETER BOOT 		- 4 Enquire
20 215663
30 MM DIAMETER BOOT 		- 4 Enquire
21 675000281
GASKET 		- 2 Enquire
22 675000286
CLIP 		- 2 Enquire
23 675000272
CLIP 		- 2 Enquire
24 670007373
BRACKET 		- 2 Enquire
25 675000126
SCREW 		- 12 Enquire
27 675000276
SPRING PLATE 		- 4 Enquire
28 670037129
LH BRACKET 		- 1 Enquire
28 670037128
RH BRACKET 		- 1 Enquire
29 675000621
SCREW 		- 2 Enquire
