Name: A/C UNIT: ENGINE COMPARTMENT DEVICES (Not available with: FOUR-ZONE AUTOMATIC CLIMA)
Rating: 5.0 (1 reviews)

A/C UNIT: ENGINE COMPARTMENT DEVICES (Not available with: FOUR-ZONE AUTOMATIC CLIMA) of Maserati Maserati Levante (2017+) Diesel

View All

Maserati Levante (2017+) Diesel - A/C UNIT: ENGINE COMPARTMENT DEVICES (Not available with: FOUR-ZONE AUTOMATIC CLIMA)

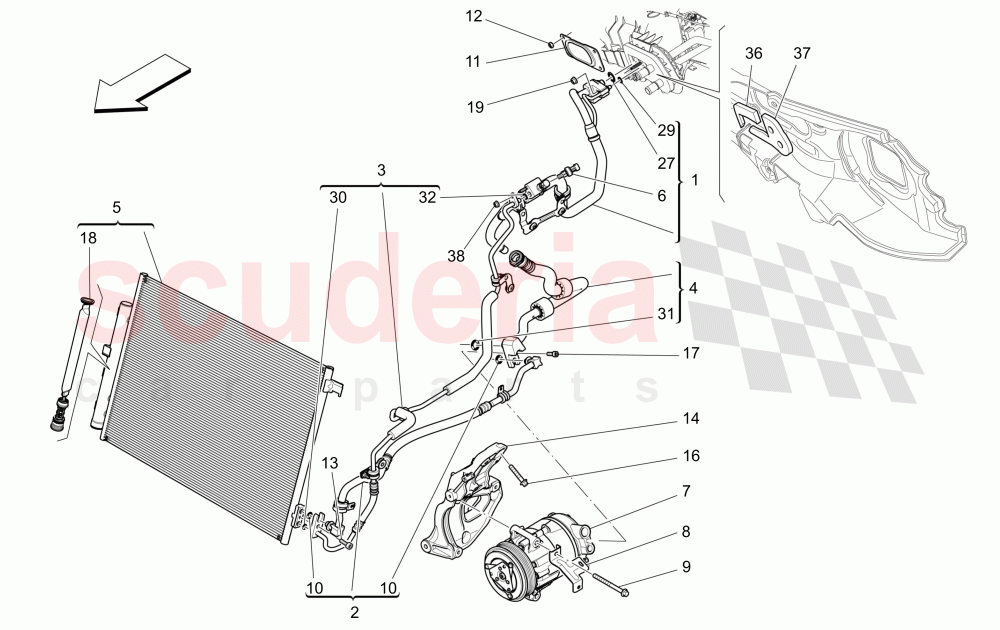

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670033078	PIPE FROM EVAPOURATOR TO UNION	$283.66	To Order

Photo	Part No	Description	Price (each)	Stock
	670033074	PIPE A.C. - COMPRESSOR	$154.13	To Order

Photo	Part No	Description	Price (each)	Stock
	670033082	PIPE BETWEEN CONDENSER AND JUNCTION	$486.02	To Order

Photo	Part No	Description	Price (each)	Stock
	670033075	PIPE FROM COMPRESSOR TO UNION	$502.62	To Order

Photo	Part No	Description	Price (each)	Stock
	670009820	AC CONDENSER	$863.29	To Order

Photo	Part No	Description	Price (each)	Stock
	675000557	PRESSOSTAT	$85.68	To Order

Photo	Part No	Description	Price (each)	Stock
	954108	AC COMPRESSOR	$1,856.24	To Order

Photo	Part No	Description	Price (each)	Stock
	673001244	BRACKET	$29.73	To Order

Photo	Part No	Description	Price (each)	Stock
	46328708	SCREW	$4.22	To Order

Photo	Part No	Description	Price (each)	Stock
	675000122	O-RING 1/2" A/C	$8.26	To Order

Photo	Part No	Description	Price (each)	Stock
	670005087	PLUG	$21.54	To Order

Photo	Part No	Description	Price (each)	Stock
	675000315	NUT	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	675000456	SCREWM8X25	$6.07	To Order

Photo	Part No	Description	Price (each)	Stock
	46328310	COMPRESSOR MOUNTING BRACKET	$127.77	To Order

Photo	Part No	Description	Price (each)	Stock
	46328715	SCREW	$2.83	To Order

Photo	Part No	Description	Price (each)	Stock
	675000249	SCREW	$1.85	To Order

Photo	Part No	Description	Price (each)	Stock
	673000010	DEHYDRATOR FILTER KIT	$287.22	To Order

Photo	Part No	Description	Price (each)	Stock
	675000328	NUT	$1.48	To Order

Photo	Part No	Description	Price (each)	Stock
	675000123	3/4" SEAL	$8.64	To Order

Photo	Part No	Description	Price (each)	Stock
	675000121	3/8" SEAL	$6.74	To Order

Photo	Part No	Description	Price (each)	Stock
	675000121	3/8" SEAL	$6.74	To Order

Photo	Part No	Description	Price (each)	Stock
	675000123	3/4" SEAL	$8.64	To Order

Photo	Part No	Description	Price (each)	Stock
	675000119	O-RING 68 x 187	$2.53	To Order

Photo	Part No	Description	Price (each)	Stock
	670100149	SOUNDPROOFING ELEMENT	$8.95	To Order

Photo	Part No	Description	Price (each)	Stock
	670039321	SOUNDPROOFING ELEMENT	$19.31	To Order

Photo	Part No	Description	Price (each)	Stock
	675000315	NUT	$1.97	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	670033078	PIPE FROM EVAPOURATOR TO UNION	670033078 PIPE FROM EVAPOURATOR TO UNION	$283.66	1
2	670033074	PIPE A.C. - COMPRESSOR	670033074 PIPE A.C. - COMPRESSOR	$154.13	1
3	670033082	PIPE BETWEEN CONDENSER AND JUNCTION	670033082 PIPE BETWEEN CONDENSER AND JUNCTION	$486.02	1
4	670033075	PIPE FROM COMPRESSOR TO UNION	670033075 PIPE FROM COMPRESSOR TO UNION	$502.62	1
5	670009820	AC CONDENSER	670009820 AC CONDENSER	$863.29	1
6	675000557	PRESSOSTAT	675000557 PRESSOSTAT	$85.68	1
7	954108	AC COMPRESSOR	954108 AC COMPRESSOR	$1,856.24	1
8	673001244	BRACKET	673001244 BRACKET	$29.73	1
9	46328708	SCREW	46328708 SCREW	$4.22	3
10	675000122	O-RING 1/2" A/C	675000122 O-RING 1/2" A/C	$8.26	2
11	670005087	PLUG	670005087 PLUG	$21.54	1
12	675000315	NUT	675000315 NUT	$1.97	4
13	675000456	SCREWM8X25	675000456 SCREWM8X25 M8X25	$6.07	1
14	46328310	COMPRESSOR MOUNTING BRACKET	46328310 COMPRESSOR MOUNTING BRACKET	$127.77	1
16	46328715	SCREW	46328715 SCREW	$2.83	4
17	675000249	SCREW	675000249 SCREW	$1.85	1
18	673000010	DEHYDRATOR FILTER KIT	673000010 DEHYDRATOR FILTER KIT	$287.22	1
19	675000328	NUT	675000328 NUT	$1.48	1
27	675000123	3/4" SEAL	675000123 3/4" SEAL	$8.64	1
29	675000121	3/8" SEAL	675000121 3/8" SEAL	$6.74	1
30	675000121	3/8" SEAL	675000121 3/8" SEAL	$6.74	1
31	675000123	3/4" SEAL	675000123 3/4" SEAL	$8.64	1
32	675000119	O-RING 68 x 187	675000119 O-RING 68 x 187 6,8x1,87	$2.53	1
36	670100149	SOUNDPROOFING ELEMENT	670100149 SOUNDPROOFING ELEMENT	$8.95	1
37	670039321	SOUNDPROOFING ELEMENT	670039321 SOUNDPROOFING ELEMENT	$19.31	1
38	675000315	NUT	675000315 NUT	$1.97	2
