Find Your Part

Authorised by Maserati SPA

View All

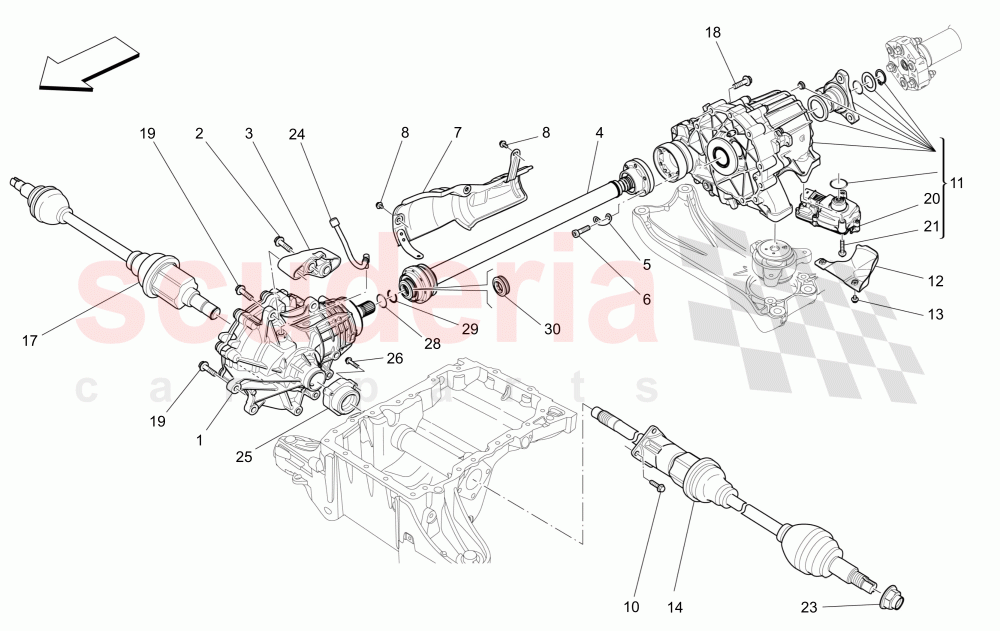

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670033029	FRONT DIFFERENTIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000385	SCREWM10X40	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670032181	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670033028	FRONT DRIVE SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670003772	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000583	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670033030	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000102	SCREWM6X14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000384	SCREWM10X25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670038072	ALL WHEEL DRIVE TRANSFER CASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670032035	LH AXLE SHAFT ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670035142	RH AXLE SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000386	SCREWM10X60	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000385	SCREWM10X40	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670105823	ECU TC MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673009049	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000138	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670033033	VENT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46328814	AXLE SHAFT COMPLETE SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46328688	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673008007	O.R. GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673008008	LOCK RING	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670033029	FRONT DIFFERENTIAL	670033029 FRONT DIFFERENTIAL	-	1	Enquire
2	675000385	SCREWM10X40	675000385 SCREWM10X40 M10X40	-	2	Enquire
3	670032181	BRACKET	670032181 BRACKET	-	1	Enquire
4	670033028	FRONT DRIVE SHAFT	670033028 FRONT DRIVE SHAFT	-	1	Enquire
5	670003772	PLATE	670003772 PLATE	-	3	Enquire
6	675000583	SCREW	675000583 SCREW	-	6	Enquire
7	670033030	HEAT SHIELD	670033030 HEAT SHIELD	-	1	Enquire
8	675000102	SCREWM6X14	675000102 SCREWM6X14 M6X14	-	3	Enquire
10	675000384	SCREWM10X25	675000384 SCREWM10X25 M10X25	-	3	Enquire
11	670038072	ALL WHEEL DRIVE TRANSFER CASE	670038072 ALL WHEEL DRIVE TRANSFER CASE	-	1	Enquire
14	670032035	LH AXLE SHAFT ASSEMBLY	670032035 LH AXLE SHAFT ASSEMBLY	-	1	Enquire
17	670035142	RH AXLE SHAFT	670035142 RH AXLE SHAFT	-	1	Enquire
18	675000386	SCREWM10X60	675000386 SCREWM10X60 M10X60	-	8	Enquire
19	675000385	SCREWM10X40	675000385 SCREWM10X40 M10X40	-	8	Enquire
20	670105823	ECU TC MODULE	670105823 ECU TC MODULE	-	1	Enquire
21	673009049	SCREW	673009049 SCREW	-	2	Enquire
23	675000138	NUT	675000138 NUT	-	2	Enquire
24	670033033	VENT PIPE	670033033 VENT PIPE	-	1	Enquire
25	46328814	AXLE SHAFT COMPLETE SUPPORT	46328814 AXLE SHAFT COMPLETE SUPPORT	-	1	Enquire
26	46328688	SCREW	46328688 SCREW	-	3	Enquire
28	673008007	O.R. GASKET	673008007 O.R. GASKET	-	1	Enquire
29	673008008	LOCK RING	673008008 LOCK RING	-	1	Enquire
