GEARBOX HOUSINGS of Maserati Maserati Levante (2017+)

View All

Maserati Levante (2017+) - GEARBOX HOUSINGS

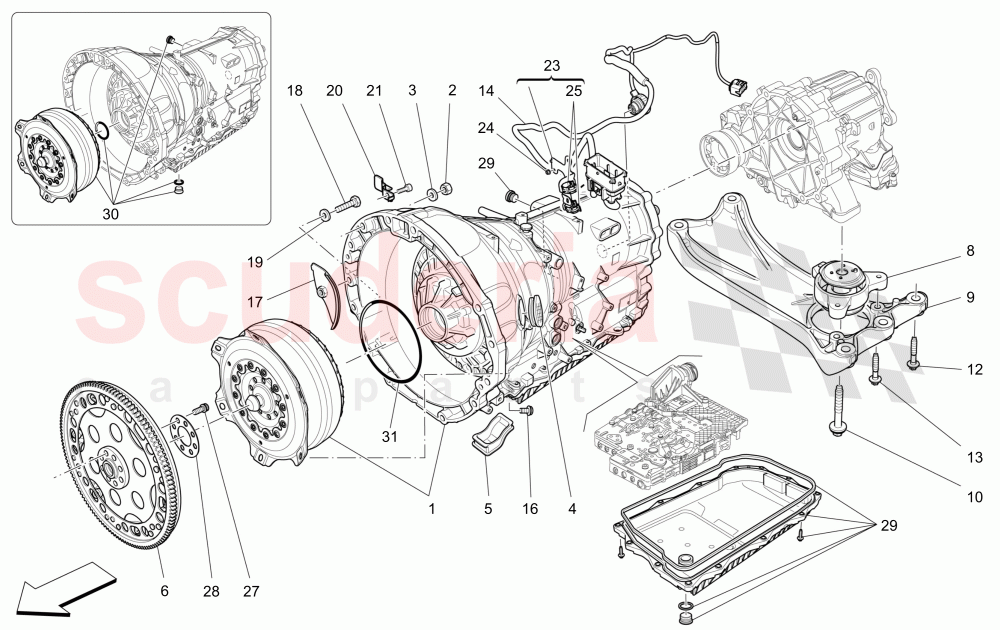

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670036207	AUTOMATIC GEARBOX ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059421	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000098	WASHERD.10.2-22X2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670003520	SIDE PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670003521	LOWER PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670003244	ENGINE FLYWHEEL ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670106865	GEARBOX SIDE SUSPENSION BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670032044	GEARBOX MOUNTING CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670003988	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670035766	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670035590	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670007401	AUTOMATIC GEARBOX WIRING HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670005384	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670003684	CLOSURE PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000380	SCREWM8X55	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000378	WASHERD.8.4-17X1.6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670005079	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000191	SCREWM6X14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670035991	BRACKET ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000093	NUTM6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000500	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670002932	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670002257	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673005766	OIL SUMP KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673005770	CONVERTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980139948	O.R. GASKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670036207	AUTOMATIC GEARBOX ASSEMBLY	670036207 AUTOMATIC GEARBOX ASSEMBLY	-	1	Enquire
2	14059421	NUT	14059421 NUT M10	-	10	Enquire
3	675000098	WASHERD.10.2-22X2	675000098 WASHERD.10.2-22X2 D.10.2-22X2	-	10	Enquire
4	670003520	SIDE PLUG	670003520 SIDE PLUG	-	1	Enquire
5	670003521	LOWER PLUG	670003521 LOWER PLUG	-	1	Enquire
6	670003244	ENGINE FLYWHEEL ASSEMBLY	670003244 ENGINE FLYWHEEL ASSEMBLY	-	1	Enquire
8	670106865	GEARBOX SIDE SUSPENSION BUSHING	670106865 GEARBOX SIDE SUSPENSION BUSHING	-	1	Enquire
9	670032044	GEARBOX MOUNTING CROSS MEMBER	670032044 GEARBOX MOUNTING CROSS MEMBER	-	1	Enquire
10	670003988	SCREW	670003988 SCREW	-	1	Enquire
12	670035766	SCREW	670035766 SCREW	-	5	Enquire
13	670035590	SCREW	670035590 SCREW	-	3	Enquire
14	670007401	AUTOMATIC GEARBOX WIRING HARNESS	670007401 AUTOMATIC GEARBOX WIRING HARNESS	-	1	Enquire
16	670005384	SCREW	670005384 SCREW	-	6	Enquire
17	670003684	CLOSURE PLATE	670003684 CLOSURE PLATE	-	1	Enquire
18	675000380	SCREWM8X55	675000380 SCREWM8X55 M8X55	-	1	Enquire
19	675000378	WASHERD.8.4-17X1.6	675000378 WASHERD.8.4-17X1.6 D.8.4-17X1.6	-	1	Enquire
20	670005079	BRACKET	670005079 BRACKET	-	1	Enquire
21	675000191	SCREWM6X14	675000191 SCREWM6X14 M6X14	-	1	Enquire
23	670035991	BRACKET ASSEMBLY	670035991 BRACKET ASSEMBLY	-	1	Enquire
24	675000093	NUTM6	675000093 NUTM6 M6	-	2	Enquire
25	675000500	CLIP	675000500 CLIP	-	2	Enquire
27	670002932	SCREW	670002932 SCREW	-	8	Enquire
28	670002257	SHIM	670002257 SHIM	-	1	Enquire
29	673005766	OIL SUMP KIT	673005766 OIL SUMP KIT	-	1	Enquire
30	673005770	CONVERTER	673005770 CONVERTER	-	1	Enquire
31	980139948	O.R. GASKET	980139948 O.R. GASKET	-	1	Enquire
