BRAKING DEVICES ON REAR WHEELS of Maserati Maserati Grecale Modena Automatic 2.0 T4 4WD 330HP MHEV

View All

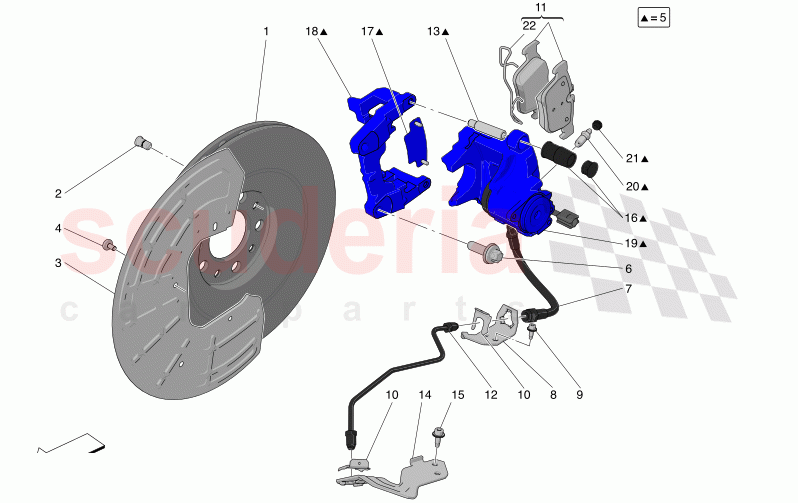

Maserati Grecale Modena Automatic 2.0 T4 4WD 330HP MHEV - BRAKING DEVICES ON REAR WHEELS (04111)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670298244	REAR BRAKE DISC	Enquire	To Order
	670219581	REAR BRAKE DISC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000081	SCREW M10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001525	LH REAR BRAKE DISC SHIELD	Enquire	To Order
	675001524	RH. REAR BRAKE DISC SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001032	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673013270	LH REAR CALIPER ASSEMBLY	Enquire	To Order
	673013273	LH REAR CALIPER ASSEMBLY	Enquire	To Order
	673013272	LH REAR CALIPER ASSEMBLY	Enquire	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	675001840	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670175125	FLEXIBLE PIPE TO REAR CALIPERS	Enquire	To Order
	670156895	FLEXIBLE PIPE TO REAR CALIPERS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001529	LH BRACKET	Enquire	To Order
	670292923	LH BRACKET	Enquire	To Order
	675001530	RH BRACKET	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	675001036	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000276	SPRING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673012304	REAR PADS KIT	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	675001590	RIGID PIPE FROM LH INTERMEDIATE PIPE TO LH REAR WHEEL	Enquire	To Order
	670292926	RIGID PIPE FROM LH INTERMEDIATE PIPE TO LH REAR WHEEL	Enquire	To Order
	675001589	RIGID PIPE FROM RH INTERMEDIATE PIPE TO RH REAR WHEEL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	673005441	CENTERING PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001527	LH BRACKET	Enquire	To Order
	675001526	RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001036	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673005434	REAR BRAKE CALIPER GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673011638	PLATE KIT	Enquire	To Order
	673011639	PLATE KIT	Enquire	To Order
	673011641	PLATE KIT	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	673005437	BRACKET	Enquire	To Order
	673005436	BRACKET	Enquire	To Order
	673005438	BRACKET	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	673005425	LH REAR CALIPER	Enquire	To Order
	673005423	LH REAR CALIPER	Enquire	To Order
	673005427	LH REAR CALIPER	Enquire	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	673004422	BLEEDER SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673004423	DUST SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673005442	CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670298244	REAR BRAKE DISC	670298244 REAR BRAKE DISC Bespoke Assembly Number 2005615 - 99999999;	-	2	Enquire
1	670219581	REAR BRAKE DISC	670219581 REAR BRAKE DISC Bespoke Assembly Number 0 - 2005614;	-	2	Enquire
2	675000081	SCREW M10	675000081 SCREW M10	-	2	Enquire
3	675001525	LH REAR BRAKE DISC SHIELD	675001525 LH REAR BRAKE DISC SHIELD	-	1	Enquire
3	675001524	RH. REAR BRAKE DISC SHIELD	675001524 RH. REAR BRAKE DISC SHIELD	-	1	Enquire
4	675001032	SCREW	675001032 SCREW	-	6	Enquire
5	673013270	LH REAR CALIPER ASSEMBLY	673013270 LH REAR CALIPER ASSEMBLY Available with: BLACK BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
5	673013273	LH REAR CALIPER ASSEMBLY	673013273 LH REAR CALIPER ASSEMBLY Available with: RED BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
5	673013272	LH REAR CALIPER ASSEMBLY	673013272 LH REAR CALIPER ASSEMBLY WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2032180 - 99999999; Available with: YELLOW BRAKE CALIPERS Not available with: BRAKE CALIPERS IN DARK COPPER, FUORISERIE - BRAKE CALIPERS PAINTED - GIALLO LIME, STANDARD BRAKE CALIPERS, FUORISERIE - WHITE BRAKE CALIPERS, FUORISERIE - ORANGE BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
5	673013275	RH REAR CALIPER ASSEMBLY	673013275 RH REAR CALIPER ASSEMBLY Available with: BLACK BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
5	673013276	RH REAR CALIPER ASSEMBLY	673013276 RH REAR CALIPER ASSEMBLY Available with: RED BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
5	673013278	RH REAR CALIPER ASSEMBLY	673013278 RH REAR CALIPER ASSEMBLY WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2032180 - 99999999; Available with: YELLOW BRAKE CALIPERS Not available with: BRAKE CALIPERS IN DARK COPPER, FUORISERIE - BRAKE CALIPERS PAINTED - GIALLO LIME, STANDARD BRAKE CALIPERS, FUORISERIE - WHITE BRAKE CALIPERS, FUORISERIE - ORANGE BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
5	673013271	LH REAR CALIPER ASSEMBLY	673013271 LH REAR CALIPER ASSEMBLY Available with: BRAKE CALIPERS LIGHT BLUE Not available with: STANDARD BRAKE CALIPERS, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
5	673013272	LH REAR CALIPER ASSEMBLY	673013272 LH REAR CALIPER ASSEMBLY Available with: YELLOW BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS;	-	1	Enquire
5	673013277	RH REAR CALIPER ASSEMBLY	673013277 RH REAR CALIPER ASSEMBLY Available with: BRAKE CALIPERS LIGHT BLUE Not available with: STANDARD BRAKE CALIPERS, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
5	673013278	RH REAR CALIPER ASSEMBLY	673013278 RH REAR CALIPER ASSEMBLY Available with: YELLOW BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS;	-	1	Enquire
6	675001840	SCREW	675001840 SCREW	-	4	Enquire
7	670175125	FLEXIBLE PIPE TO REAR CALIPERS	670175125 FLEXIBLE PIPE TO REAR CALIPERS Not available with: AIR SUSPENSION WITH SKYHOOK;	-	2	Enquire
7	670156895	FLEXIBLE PIPE TO REAR CALIPERS	670156895 FLEXIBLE PIPE TO REAR CALIPERS Available with: AIR SUSPENSION WITH SKYHOOK ;	-	2	Enquire
8	675001529	LH BRACKET	675001529 LH BRACKET Not available with: AIR SUSPENSION WITH SKYHOOK;	-	1	Enquire
8	670292923	LH BRACKET	670292923 LH BRACKET Available with: AIR SUSPENSION WITH SKYHOOK ;	-	1	Enquire
8	675001530	RH BRACKET	675001530 RH BRACKET Not available with: AIR SUSPENSION WITH SKYHOOK;	-	1	Enquire
8	670292922	RH BRACKET	670292922 RH BRACKET Available with: AIR SUSPENSION WITH SKYHOOK ;	-	1	Enquire
9	675001036	SCREW	675001036 SCREW	-	4	Enquire
10	675000276	SPRING PLATE	675000276 SPRING PLATE	-	6	Enquire
11	673012304	REAR PADS KIT ARRIVING SOON	673012304 REAR PADS KIT ARRIVING SOON	-	1	Enquire
12	675001590	RIGID PIPE FROM LH INTERMEDIATE PIPE TO LH REAR WHEEL	675001590 RIGID PIPE FROM LH INTERMEDIATE PIPE TO LH REAR WHEEL Not available with: AIR SUSPENSION WITH SKYHOOK;	-	1	Enquire
12	670292926	RIGID PIPE FROM LH INTERMEDIATE PIPE TO LH REAR WHEEL	670292926 RIGID PIPE FROM LH INTERMEDIATE PIPE TO LH REAR WHEEL Available with: AIR SUSPENSION WITH SKYHOOK ;	-	1	Enquire
12	675001589	RIGID PIPE FROM RH INTERMEDIATE PIPE TO RH REAR WHEEL	675001589 RIGID PIPE FROM RH INTERMEDIATE PIPE TO RH REAR WHEEL Not available with: AIR SUSPENSION WITH SKYHOOK;	-	1	Enquire
12	670292927	RIGID PIPE FROM RH INTERMEDIATE PIPE TO RH REAR WHEEL	670292927 RIGID PIPE FROM RH INTERMEDIATE PIPE TO RH REAR WHEEL Available with: AIR SUSPENSION WITH SKYHOOK ;	-	1	Enquire
13	673005441	CENTERING PIN	673005441 CENTERING PIN	-	1	Enquire
14	675001527	LH BRACKET	675001527 LH BRACKET	-	1	Enquire
14	675001526	RH BRACKET	675001526 RH BRACKET	-	1	Enquire
15	675001036	SCREW	675001036 SCREW	-	4	Enquire
16	673005434	REAR BRAKE CALIPER GUIDE	673005434 REAR BRAKE CALIPER GUIDE	-	1	Enquire
17	673011638	PLATE KIT	673011638 PLATE KIT Available with: BLACK BRAKE CALIPERS Not available with: BRAKE CALIPERS LIGHT BLUE, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
17	673011639	PLATE KIT	673011639 PLATE KIT Available with: RED BRAKE CALIPERS Not available with: BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
17	673011641	PLATE KIT	673011641 PLATE KIT Available with: YELLOW BRAKE CALIPERS ;	-	1	Enquire
17	673011641	PLATE KIT	673011641 PLATE KIT Available with: YELLOW BRAKE CALIPERS Not available with: BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS;	-	1	Enquire
17	673013284	PLATE KIT	673013284 PLATE KIT Available with: BRAKE CALIPERS LIGHT BLUE Not available with: BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
18	673005437	BRACKET	673005437 BRACKET Available with: BLACK BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
18	673005436	BRACKET	673005436 BRACKET Available with: RED BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
18	673005438	BRACKET	673005438 BRACKET Available with: YELLOW BRAKE CALIPERS ;	-	1	Enquire
18	673005438	BRACKET	673005438 BRACKET Available with: YELLOW BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS;	-	1	Enquire
18	70008382	RH UNDER-DOOR FULL CARBON VERSION	70008382 RH UNDER-DOOR FULL CARBON VERSION Available with: BRAKE CALIPERS LIGHT BLUE Not available with: STANDARD BRAKE CALIPERS, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
19	673005425	LH REAR CALIPER	673005425 LH REAR CALIPER Available with: BLACK BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
19	673005423	LH REAR CALIPER	673005423 LH REAR CALIPER Available with: RED BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
19	673005427	LH REAR CALIPER	673005427 LH REAR CALIPER Available with: YELLOW BRAKE CALIPERS ;	-	1	Enquire
19	673005426	RH REAR CALIPER	673005426 RH REAR CALIPER Available with: BLACK BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
19	673005424	RH REAR CALIPER	673005424 RH REAR CALIPER Available with: RED BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
19	673005428	RH REAR CALIPER	673005428 RH REAR CALIPER Available with: YELLOW BRAKE CALIPERS ;	-	1	Enquire
19	673005427	LH REAR CALIPER	673005427 LH REAR CALIPER Available with: YELLOW BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS;	-	1	Enquire
19	70008345	COMPL. LH LOWER CAP	70008345 COMPL. LH LOWER CAP Available with: BRAKE CALIPERS LIGHT BLUE Not available with: STANDARD BRAKE CALIPERS, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
19	673005428	RH REAR CALIPER	673005428 RH REAR CALIPER Available with: YELLOW BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS;	-	1	Enquire
19	70008309	LH RACING SEAT	70008309 LH RACING SEAT Available with: BRAKE CALIPERS LIGHT BLUE Not available with: STANDARD BRAKE CALIPERS, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS;	-	1	Enquire
20	673004422	BLEEDER SCREW	673004422 BLEEDER SCREW	-	1	Enquire
21	673004423	DUST SEAL	673004423 DUST SEAL	-	1	Enquire
22	673005442	CLIP	673005442 CLIP	-	1	Enquire
