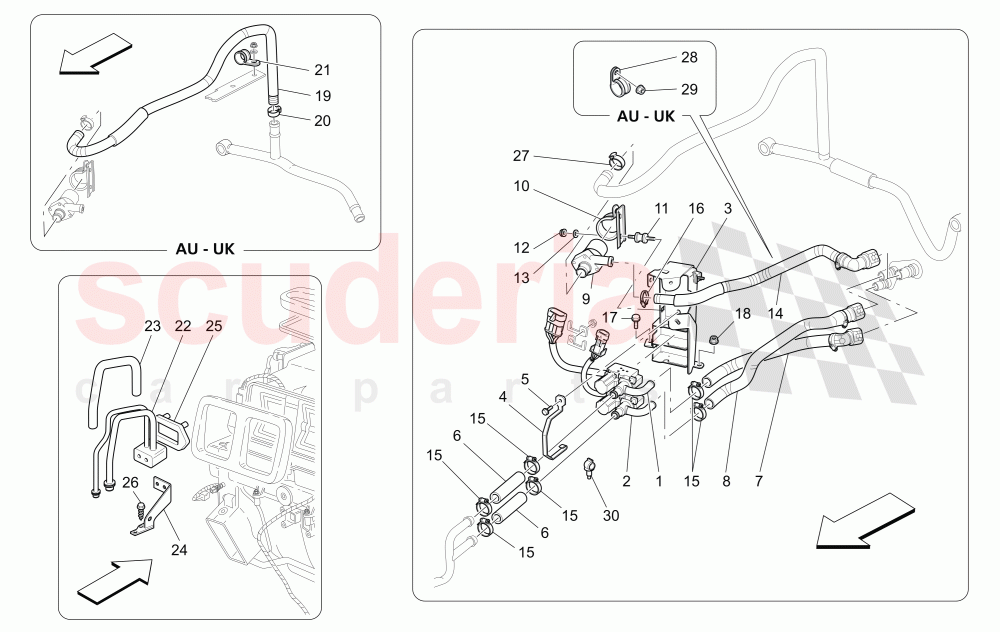

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	67635900	RH TGK VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67444900	LH TGK VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80032700	BRACKET FOR VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67570700	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16286121	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66949700	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81330800	R.H. SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66949600	L.H. SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65460300	WATER RECYCLING PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63994900	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	195373	PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67876100	DELIVERY PIPE FROM PUMP TO EVAPOURATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13097090	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13097190	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16286121	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040614	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68392300	PRESHAPED FREON PIPE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68391400	PROTECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68390300	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68389400	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62771900	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262109	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	227820	CLIP	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	67635900	RH TGK VALVE	67635900 RH TGK VALVE	-	1	Enquire
2	67444900	LH TGK VALVE	67444900 LH TGK VALVE	-	1	Enquire
3	80032700	BRACKET FOR VALVE	80032700 BRACKET FOR VALVE	-	1	Enquire
4	67570700	BRACKET	67570700 BRACKET	-	1	Enquire
5	16286121	SCREW	16286121 SCREW	-	1	Enquire
6	66949700	SLEEVE	66949700 SLEEVE	-	2	Enquire
7	81330800	R.H. SLEEVE	81330800 R.H. SLEEVE	-	1	Enquire
8	66949600	L.H. SLEEVE	66949600 L.H. SLEEVE	-	1	Enquire
9	65460300	WATER RECYCLING PUMP	65460300 WATER RECYCLING PUMP	-	1	Enquire
10	63994900	BRACKET	63994900 BRACKET	-	1	Enquire
11	195373	PAD	195373 PAD	-	2	Enquire
12	14039614	NUT	14039614 NUT	-	2	Enquire
13	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D. 6,40-12X 0,5	-	2	Enquire
14	67876100	DELIVERY PIPE FROM PUMP TO EVAPOURATOR	67876100 DELIVERY PIPE FROM PUMP TO EVAPOURATOR	-	1	Enquire
15	13097090	COLLAR	13097090 COLLAR	-	6	Enquire
16	13097190	COLLAR	13097190 COLLAR	-	1	Enquire
17	16286121	SCREW	16286121 SCREW	-	1	Enquire
18	14040614	NUT	14040614 NUT	-	1	Enquire
22	68392300	PRESHAPED FREON PIPE ASSEMBLY	68392300 PRESHAPED FREON PIPE ASSEMBLY	-	1	Enquire
23	68391400	PROTECTION	68391400 PROTECTION	-	1	Enquire
24	68390300	BRACKET	68390300 BRACKET	-	1	Enquire
25	68389400	GASKET	68389400 GASKET	-	1	Enquire
26	62771900	SCREW	62771900 SCREW	-	-	Enquire
27	262109	COLLAR	262109 COLLAR	-	1	Enquire
30	227820	CLIP	227820 CLIP	-	1	Enquire
