LAY SHAFT GEARS of Maserati Maserati GranTurismo (2011-2012) S

View All

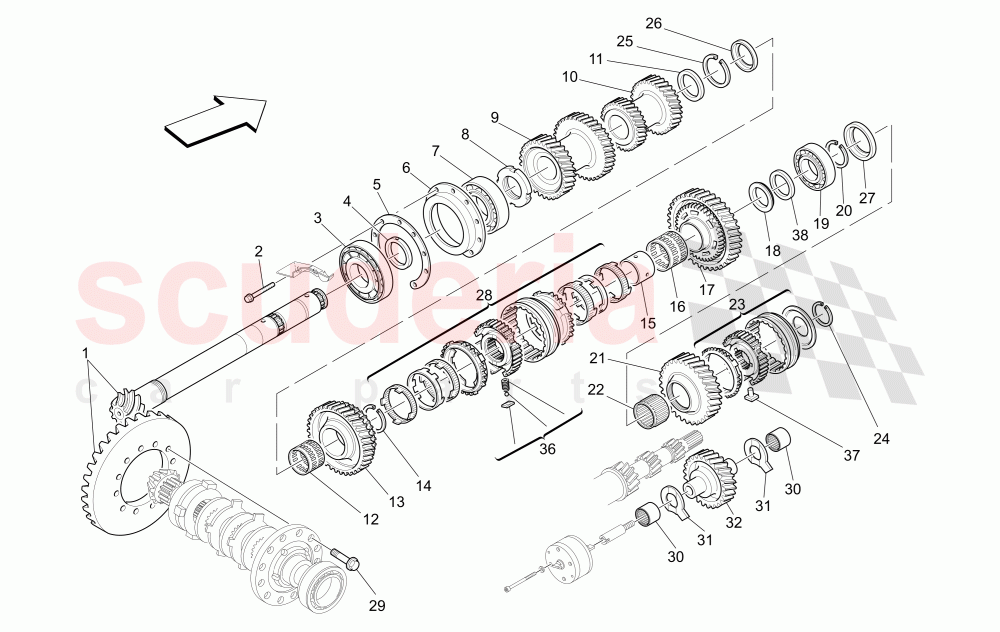

Maserati GranTurismo (2011-2012) S - LAY SHAFT GEARS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	219689	COMPLETE BEVEL SET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16287734	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185022	ROLLER BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	219717	SPACER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185042	SPACER RING	Enquire	To Order
	185043	SPACER RING	Enquire	To Order
	185044	SPACER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	219718	BEARING SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

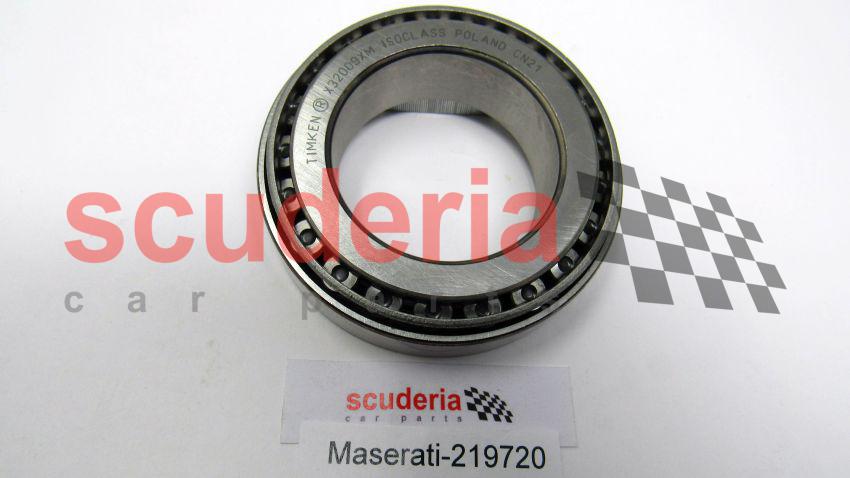

	219720	ROLLER BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196667	GEARBOX RING NUT M45 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	214802	3rd AND 4th DRIVEN GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	214801	5th AND 6th DRIVEN GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188497	SPACER	Enquire	To Order
	212457	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184014	ROLLER CAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	220016	COMPLETE PINION FOR 2nd GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183976	CIRCLIP	Enquire	To Order
	185036	CIRCLIP	Enquire	To Order
	185037	CIRCLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183971	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184016	ROLLER CAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	220015	COMPLETE PINION FOR 1st GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183972	RING	Enquire	To Order
	185040	RING	Enquire	To Order
	185041	RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184020	ROLLER BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184042	CIRCLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198602	COMPLETE PINION FOR REVERSE GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184018	ROLLER CAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	326260	REVERSE GEAR COMPLETE SYNCHRONIZER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184041	CIRCLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183976	CIRCLIP	Enquire	To Order
	185036	CIRCLIP	Enquire	To Order
	185037	CIRCLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203800	RING	Enquire	To Order
	203801	RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200979	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185164	1st AND 2nd GEAR COMPLETE SYNCHRONIZER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183909	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184017	NEEDLE BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183975	RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198612	IDLE GEAR FOR REVERSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188320	PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	193440	PADS/SYNCHRO REVERSE GEAR KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182326	SPACER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	219689	COMPLETE BEVEL SET	219689 COMPLETE BEVEL SET	-	1	Enquire
2	16287734	SCREW	16287734 SCREW	-	9	Enquire
3	185022	ROLLER BEARING	185022 ROLLER BEARING	-	1	Enquire
4	219717	SPACER RING	219717 SPACER RING Thickness mm. 8,60	-	1	Enquire
5	185042	SPACER RING	185042 SPACER RING Thickness mm. 2,8	-	1	Enquire
5	185043	SPACER RING	185043 SPACER RING Thickness mm. 2,5 - Possible fitting	-	1	Enquire
5	185044	SPACER RING	185044 SPACER RING Thickness mm. 2,2 - Possible fitting	-	1	Enquire
6	219718	BEARING SUPPORT	219718 BEARING SUPPORT	-	1	Enquire
7	219720	ROLLER BEARING	219720 ROLLER BEARING	-	1	Enquire
8	196667	GEARBOX RING NUT M45 X 1.5	196667 GEARBOX RING NUT M45 X 1.5	-	1	Enquire
9	214802	3rd AND 4th DRIVEN GEAR	214802 3rd AND 4th DRIVEN GEAR	-	1	Enquire
10	214801	5th AND 6th DRIVEN GEAR	214801 5th AND 6th DRIVEN GEAR	-	1	Enquire
11	188497	SPACER	188497 SPACER Thickness mm. 6,25	-	1	Enquire
11	212457	SPACER	212457 SPACER Thickness mm. 6,00 - As an alternative	-	1	Enquire
12	184014	ROLLER CAGE	184014 ROLLER CAGE	-	1	Enquire
13	220016	COMPLETE PINION FOR 2nd GEAR	220016 COMPLETE PINION FOR 2nd GEAR	-	1	Enquire
14	183976	CIRCLIP	183976 CIRCLIP Thickness mm. 2,10	-	1	Enquire
14	185036	CIRCLIP	185036 CIRCLIP Thickness mm. 1,85 - Possible fitting	-	1	Enquire
14	185037	CIRCLIP	185037 CIRCLIP Thickness mm. 1,60 - Possible fitting	-	1	Enquire
15	183971	BUSHING	183971 BUSHING	-	1	Enquire
16	184016	ROLLER CAGE	184016 ROLLER CAGE	-	1	Enquire
17	220015	COMPLETE PINION FOR 1st GEAR	220015 COMPLETE PINION FOR 1st GEAR	-	1	Enquire
18	183972	RING	183972 RING Thickness mm. 5,10	-	1	Enquire
18	185040	RING	185040 RING Thickness mm. 4,85 - Possible fitting	-	1	Enquire
18	185041	RING	185041 RING Thickness mm. 4,60 - Possible fitting	-	1	Enquire
19	184020	ROLLER BEARING	184020 ROLLER BEARING	-	1	Enquire
20	184042	CIRCLIP	184042 CIRCLIP	-	1	Enquire
21	198602	COMPLETE PINION FOR REVERSE GEAR	198602 COMPLETE PINION FOR REVERSE GEAR	-	1	Enquire
22	184018	ROLLER CAGE	184018 ROLLER CAGE	-	1	Enquire
23	326260	REVERSE GEAR COMPLETE SYNCHRONIZER	326260 REVERSE GEAR COMPLETE SYNCHRONIZER	-	1	Enquire
24	184041	CIRCLIP	184041 CIRCLIP	-	1	Enquire
25	183976	CIRCLIP	183976 CIRCLIP Thickness mm. 2,10	-	1	Enquire
25	185036	CIRCLIP	185036 CIRCLIP Thickness mm. 1,85 - Possible fitting	-	1	Enquire
25	185037	CIRCLIP	185037 CIRCLIP Thickness mm. 1,60 - Possible fitting	-	1	Enquire
26	203800	RING	203800 RING Thickness mm. 7,6	-	1	Enquire
26	203801	RING	203801 RING Thickness mm. 7,3 - As an alternative	-	1	Enquire
27	200979	SPACER	200979 SPACER	-	1	Enquire
28	185164	1st AND 2nd GEAR COMPLETE SYNCHRONIZER	185164 1st AND 2nd GEAR COMPLETE SYNCHRONIZER	-	1	Enquire
29	183909	SCREW	183909 SCREW	-	12	Enquire
30	184017	NEEDLE BEARING	184017 NEEDLE BEARING	-	2	Enquire
31	183975	RING	183975 RING	-	2	Enquire
32	198612	IDLE GEAR FOR REVERSE	198612 IDLE GEAR FOR REVERSE	-	1	Enquire
36	188320	PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT	188320 PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT	-	1	Enquire
37	193440	PADS/SYNCHRO REVERSE GEAR KIT	193440 PADS/SYNCHRO REVERSE GEAR KIT	-	1	Enquire
38	182326	SPACER	182326 SPACER	-	1	Enquire
