Friction Discs And Housing For F1 Gearbox

Maserati GranTurismo (2008-2010) S

Find Your Part

Maserati GranTurismo (2008-2010) S - FRICTION DISCS AND HOUSING FOR F1 GEARBOX

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock

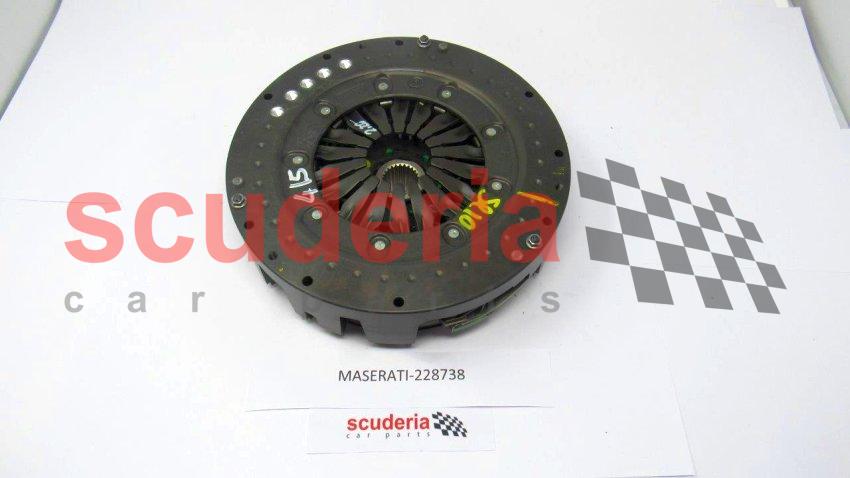

228738 Complete Clutch $3,290.14 To Order
Photo Part No Description Price (each) Stock
230426 Engine Flywheel Assembly $948.18 IN STOCK
Photo Part No Description Price (each) Stock
215963 FLYWHEEL FASTENING WASHER $7.81 IN STOCK
Photo Part No Description Price (each) Stock
201755 Bolt Hex Head M10 x 1.25 $3.56 IN STOCK
Photo Part No Description Price (each) Stock

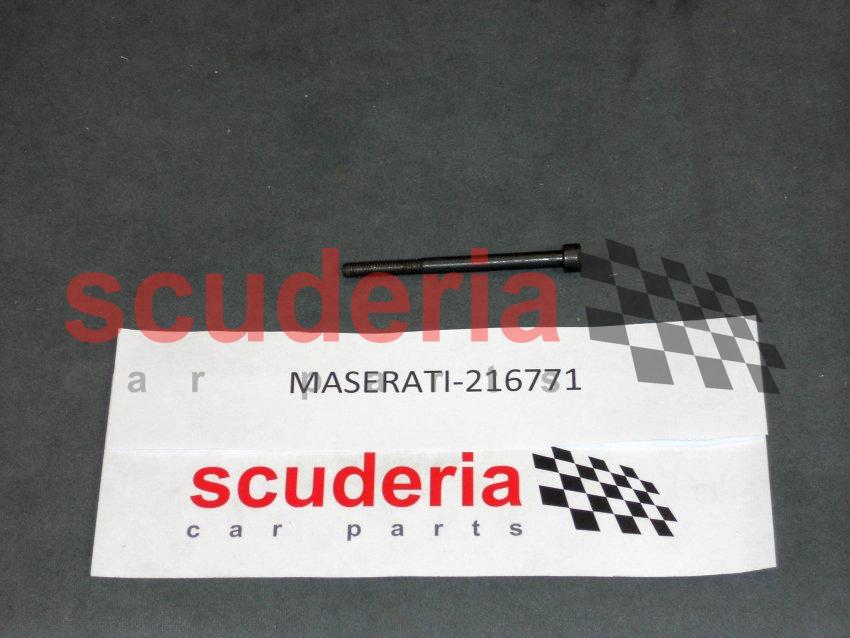

216771 Screw M6 x 75 TCEI $18.44 To Order
Photo Part No Description Price (each) Stock
11194379 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
182952 Bearing Support Flange $682.83 IN STOCK
Photo Part No Description Price (each) Stock
234943 COMPLETE THRUST BEARING Enquire To Order
Photo Part No Description Price (each) Stock
181837 Oil Seal Rings D.33 $36.28 IN STOCK
Photo Part No Description Price (each) Stock
170416 Ring $3.57 IN STOCK
Photo Part No Description Price (each) Stock
181838 Seal Ring $35.26 IN STOCK
Photo Part No Description Price (each) Stock
181828 SEALING RING D.44 $42.93 IN STOCK
Photo Part No Description Price (each) Stock
154507 RING $7.69 IN STOCK
154507 RING $7.69 IN STOCK
Photo Part No Description Price (each) Stock
181836 Oil Seal Rings D.44 $40.29 To Order
Photo Part No Description Price (each) Stock
155207 PRELOAD SPRING $19.52 IN STOCK
Photo Part No Description Price (each) Stock
155206 SPACER FOR SPRING $29.75 To Order
Photo Part No Description Price (each) Stock
231625 SCREWM6X50 $2.84 To Order
Photo Part No Description Price (each) Stock
182955 END STROKE STUD $31.87 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 $2.44 To Order
Photo Part No Description Price (each) Stock
233857 CLUTCH HOUSING CAP $3,128.68 To Order
Photo Part No Description Price (each) Stock
144511 LOCK RING $2.84 To Order
Photo Part No Description Price (each) Stock
174470 GROOVED BALL BEARING D.35-72 $64.91 ARRIVING SOON
Photo Part No Description Price (each) Stock
182963 LOCK RING $8.54 To Order
Photo Part No Description Price (each) Stock
233859 CLUTCH SHAFT $338.57 To Order
Photo Part No Description Price (each) Stock
219574 CLUTCH OIL BLEED PIPE $121.68 To Order
Photo Part No Description Price (each) Stock
219575 CLUTCH OIL DELIVERY PIPE $121.68 To Order
Photo Part No Description Price (each) Stock
13547334 STUD $18.48 To Order
Photo Part No Description Price (each) Stock
14305534 SCREW $7.83 To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 $2.44 To Order
Photo Part No Description Price (each) Stock
240774 TWO-WAY UNION Enquire To Order
Photo Part No Description Price (each) Stock
166676 PIN $77.01 IN STOCK
Photo Part No Description Price (each) Stock
14604170 FLEXIBLE PIN Enquire To Order
Photo Part No Description Price (each) Stock
201935 CLUTCH SENSOR KIT - F1 GEARBOX $452.33 IN STOCK
Photo Part No Description Price (each) Stock
165658 O.R. GASKET $17.78 To Order
Photo Part No Description Price (each) Stock
167802 PLUG $67.35 To Order
Photo Part No Description Price (each) Stock
152954 BLEEDER SCREW $46.94 IN STOCK
Photo Part No Description Price (each) Stock
13546334 STUD $2.84 To Order
Photo Part No Description Price (each) Stock
14059421 NUT $2.08 To Order
Photo Part No Description Price (each) Stock
207451 UNION $240.66 To Order
Photo Part No Description Price (each) Stock
236721 BEARING $71.22 To Order
View All

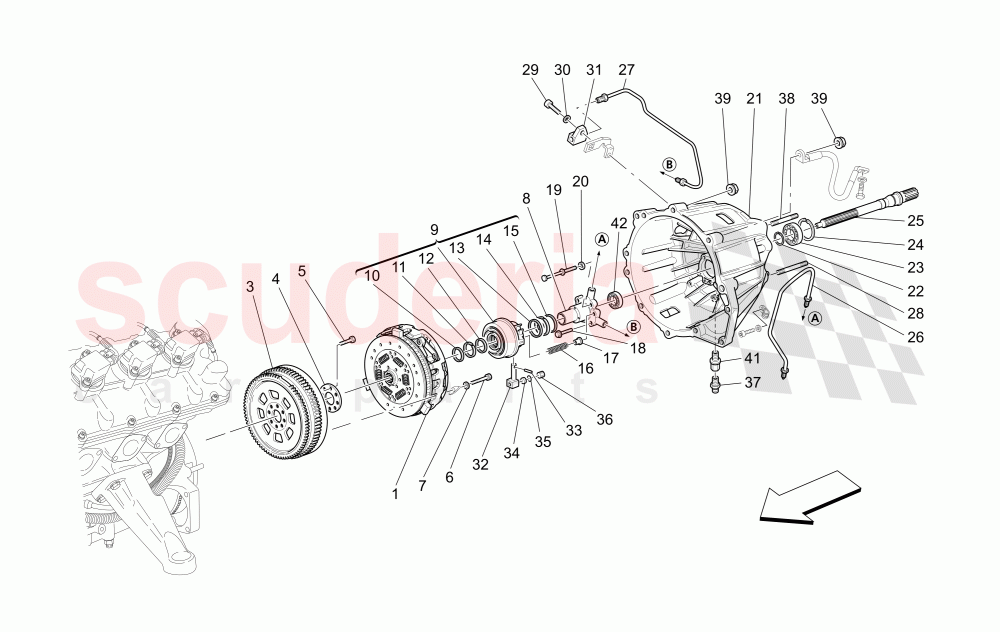

FRICTION DISCS AND HOUSING FOR F1 GEARBOX of Maserati Maserati GranTurismo (2008-2010) S Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 228738
Complete Clutch 		$3,290.14 1
3 230426
Engine Flywheel Assembly
IN STOCK 		$948.18 (23.9% off) 1
4 215963
FLYWHEEL FASTENING WASHER
IN STOCK 		$7.81 1
5 201755
Bolt Hex Head M10 x 1.25
IN STOCK 		$3.56 8
6 216771
Screw M6 x 75 TCEI 		$18.44 9
7 11194379
WASHER 		- 9 Enquire
8 182952
Bearing Support Flange
IN STOCK 		$682.83 (34.6% off) 1
9 234943
COMPLETE THRUST BEARING 		- 1 Enquire
10 181837
Oil Seal Rings D.33
IN STOCK 		$36.28 1
11 170416
Ring
IN STOCK 		$3.57 1
12 181838
Seal Ring
IN STOCK 		$35.26 1
13 181828
SEALING RING D.44
IN STOCK 		$42.93 1
14 154507
RING
IN STOCK 		$7.69 1
14 154507
RING
As an alternative
IN STOCK 		$7.69 1
15 181836
Oil Seal Rings D.44 		$40.29 1
16 155207
PRELOAD SPRING
IN STOCK 		$19.52 2
17 155206
SPACER FOR SPRING
Not for cars with complete thrust bearing 234953 		$29.75 2
18 231625
SCREWM6X50 		$2.84 2
19 182955
END STROKE STUD
IN STOCK 		$31.87 2
20 11197774
WAVY WASHER D.6.4 X 12 X 1.2
D. 6,40-12X 0,5 		$2.44 2
21 233857
CLUTCH HOUSING CAP 		$3,128.68 1
22 144511
LOCK RING 		$2.84 1
23 174470
GROOVED BALL BEARING D.35-72
ARRIVING SOON 		$64.91 1
24 182963
LOCK RING 		$8.54 1
25 233859
CLUTCH SHAFT 		$338.57 1
26 219574
CLUTCH OIL BLEED PIPE 		$121.68 1
27 219575
CLUTCH OIL DELIVERY PIPE 		$121.68 (53.5% off) 1
28 13547334
STUD 		$18.48 2
29 14305534
SCREW 		$7.83 1
30 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		$2.44 1
31 240774
TWO-WAY UNION 		- 1 Enquire
32 166676
PIN
IN STOCK 		$77.01 1
33 14604170
FLEXIBLE PIN 		- 1 Enquire
34 201935
CLUTCH SENSOR KIT - F1 GEARBOX
IN STOCK 		$452.33 (26.9% off) 1
35 165658
O.R. GASKET 		$17.78 1
36 167802
PLUG 		$67.35 1
37 152954
BLEEDER SCREW
IN STOCK 		$46.94 1
38 13546334
STUD 		$2.84 6
39 14059421
NUT 		$2.08 7
41 207451
UNION 		$240.66 1
42 236721
BEARING 		$71.22 1
