FRONT SEATS: TRIM PANELS (Available with: Special EditionNot available with: CENTENNIAL INTERNALS) of Maserati Maserati GranTurismo (2017+) Special Edition CC

View All

Maserati GranTurismo (2017+) Special Edition CC - FRONT SEATS: TRIM PANELS (Available with: Special EditionNot available with: CENTENNIAL INTERNALS)

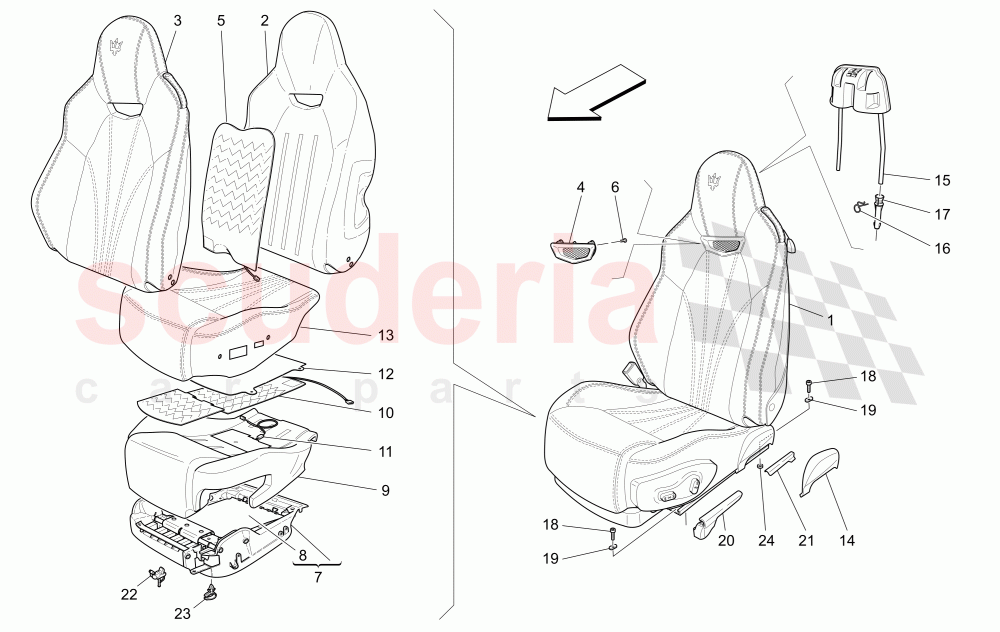

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	959710001	FRONT LH SEAT ASSEMBLY - EU	Enquire	To Order
	959710000	FRONT LH SEAT ASSEMBLY - EU	Enquire	To Order
	959710401	FRONT LH SEAT ASSEMBLY - CARBON SEAT BACK / EU	Enquire	To Order

...and 29 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	980145452	LH FRONT SEAT BACK PADDING	Enquire	To Order
	980145453	RH FRONT SEAT BACK PADDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	959722001	L.H. FRONT SEAT BACK LINING	Enquire	To Order
	959722000	L.H. FRONT SEAT BACK LINING	Enquire	To Order
	959722800	L.H. FRONT SEAT BACK LINING - Alcantara lining	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	953268749	CENTRAL TRIM KIT	Enquire	To Order
	953268751	CENTRAL TRIM KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980145458	FRONT SEAT BACK HEATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980145465	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980145074	COMPLETE L.H. CUSHION BOTTOM	Enquire	To Order
	980145073	COMPLETE R.H. CUSHION BOTTOM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980001122	FRONT CUSHION MEMBRANE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980145454	LH FRONT CUSHION PADDING	Enquire	To Order
	980145455	RH FRONT CUSHION PADDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980145077	FRONT CUSHION HEATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980145078	SBR SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980145079	PROTECTION CARPET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	959722201	L.H. FRONT CUSHION LINING	Enquire	To Order
	959722200	L.H. FRONT CUSHION LINING	Enquire	To Order
	959723000	L.H. FRONT CUSHION LINING - Alcantara lining	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	980138105	LH GUARD	Enquire	To Order
	980138106	RH GUARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980145461	HEADREST INSERT WITH SHAFTS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66370200	L.H. SPRING	Enquire	To Order
	66324600	R.H. SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67285500	HEADREST LH BUSHING	Enquire	To Order
	67285600	HEADREST RH BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	281403	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386900302	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80669600	L.H. FRONT GUIDE COVER	Enquire	To Order
	80669500	R.H. FRONT GUIDE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80669800	L.H. REAR GUIDE COVER	Enquire	To Order
	80669700	R.H. REAR GUIDE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386900406	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386900407	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12628920	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	959710001	FRONT LH SEAT ASSEMBLY - EU	959710001 FRONT LH SEAT ASSEMBLY - EU	-	1	Enquire
1	959710000	FRONT LH SEAT ASSEMBLY - EU	959710000 FRONT LH SEAT ASSEMBLY - EU	-	1	Enquire
1	959710401	FRONT LH SEAT ASSEMBLY - CARBON SEAT BACK / EU	959710401 FRONT LH SEAT ASSEMBLY - CARBON SEAT BACK / EU	-	1	Enquire
1	959710400	FRONT LH SEAT ASSEMBLY - CARBON SEAT BACK / EU	959710400 FRONT LH SEAT ASSEMBLY - CARBON SEAT BACK / EU	-	1	Enquire
1	959710101	FRONT LH SEAT ASSEMBLY - Comfort Pack front seats / EU CD JP ME	959710101 FRONT LH SEAT ASSEMBLY - Comfort Pack front seats / EU CD JP ME	-	1	Enquire
1	959710100	FRONT LH SEAT ASSEMBLY - Comfort Pack front seats / EU CD JP ME	959710100 FRONT LH SEAT ASSEMBLY - Comfort Pack front seats / EU CD JP ME	-	1	Enquire
1	959710501	FRONT LH SEAT ASSEMBLY - Comfort Pack front seats CARBON SEAT BACK / EU CD JP ME	959710501 FRONT LH SEAT ASSEMBLY - Comfort Pack front seats CARBON SEAT BACK / EU CD JP ME	-	1	Enquire
1	959710500	FRONT LH SEAT ASSEMBLY - Comfort Pack front seats CARBON SEAT BACK / EU CD JP ME	959710500 FRONT LH SEAT ASSEMBLY - Comfort Pack front seats CARBON SEAT BACK / EU CD JP ME	-	1	Enquire
1	959710200	FRONT LH SEAT ASSEMBLY - Alcantara lining / EU	959710200 FRONT LH SEAT ASSEMBLY - Alcantara lining / EU	-	1	Enquire
1	959710201	FRONT LH SEAT ASSEMBLY - Alcantara lining / EU	959710201 FRONT LH SEAT ASSEMBLY - Alcantara lining / EU	-	1	Enquire
1	959710600	FRONT LH SEAT ASSEMBLY - Alcantara lining CARBON SEAT BACK / EU	959710600 FRONT LH SEAT ASSEMBLY - Alcantara lining CARBON SEAT BACK / EU	-	1	Enquire
1	959710601	FRONT LH SEAT ASSEMBLY - Alcantara lining CARBON SEAT BACK / EU	959710601 FRONT LH SEAT ASSEMBLY - Alcantara lining CARBON SEAT BACK / EU	-	1	Enquire
1	959710300	FRONT LH SEAT ASSEMBLY - Alcantara lining Comfort Pack front seats / EU CD JP ME	959710300 FRONT LH SEAT ASSEMBLY - Alcantara lining Comfort Pack front seats / EU CD JP ME	-	1	Enquire
1	959710301	FRONT LH SEAT ASSEMBLY - Alcantara lining Comfort Pack front seats / EU CD JP ME	959710301 FRONT LH SEAT ASSEMBLY - Alcantara lining Comfort Pack front seats / EU CD JP ME	-	1	Enquire
1	959710700	FRONT LH SEAT ASSEMBLY - Alcantara lining Comfort Pack front seats CARBON SEAT BACK / EU CD JP ME	959710700 FRONT LH SEAT ASSEMBLY - Alcantara lining Comfort Pack front seats CARBON SEAT BACK / EU CD JP ME	-	1	Enquire
1	959710701	FRONT LH SEAT ASSEMBLY - Alcantara lining Comfort Pack front seats CARBON SEAT BACK / EU CD JP ME	959710701 FRONT LH SEAT ASSEMBLY - Alcantara lining Comfort Pack front seats CARBON SEAT BACK / EU CD JP ME	-	1	Enquire
1	959710801	FRONT RH SEAT ASSEMBLY - EU ME	959710801 FRONT RH SEAT ASSEMBLY - EU ME	-	1	Enquire
1	959710800	FRONT RH SEAT ASSEMBLY - EU ME	959710800 FRONT RH SEAT ASSEMBLY - EU ME	-	1	Enquire
1	959711201	FRONT RH SEAT ASSEMBLY - CARBON SEAT BACK / EU ME	959711201 FRONT RH SEAT ASSEMBLY - CARBON SEAT BACK / EU ME	-	1	Enquire
1	959711200	FRONT RH SEAT ASSEMBLY - CARBON SEAT BACK / EU ME	959711200 FRONT RH SEAT ASSEMBLY - CARBON SEAT BACK / EU ME	-	1	Enquire
1	959710901	FRONT RH SEAT ASSEMBLY - Comfort Pack front seats / EU CD JP ME	959710901 FRONT RH SEAT ASSEMBLY - Comfort Pack front seats / EU CD JP ME	-	1	Enquire
1	959710900	FRONT RH SEAT ASSEMBLY - Comfort Pack front seats / EU CD JP ME	959710900 FRONT RH SEAT ASSEMBLY - Comfort Pack front seats / EU CD JP ME	-	1	Enquire
1	959711301	FRONT RH SEAT ASSEMBLY - Comfort Pack front seats CARBON SEAT BACK / EU CD JP ME	959711301 FRONT RH SEAT ASSEMBLY - Comfort Pack front seats CARBON SEAT BACK / EU CD JP ME	-	1	Enquire
1	959711300	FRONT RH SEAT ASSEMBLY - Comfort Pack front seats CARBON SEAT BACK / EU CD JP ME	959711300 FRONT RH SEAT ASSEMBLY - Comfort Pack front seats CARBON SEAT BACK / EU CD JP ME	-	1	Enquire
1	959711000	FRONT RH SEAT ASSEMBLY - Alcantara lining / EU ME	959711000 FRONT RH SEAT ASSEMBLY - Alcantara lining / EU ME	-	1	Enquire
1	959711001	FRONT RH SEAT ASSEMBLY - Alcantara lining / EU ME	959711001 FRONT RH SEAT ASSEMBLY - Alcantara lining / EU ME	-	1	Enquire
1	959711400	FRONT RH SEAT ASSEMBLY - Alcantara lining CARBON SEAT BACK / EU ME	959711400 FRONT RH SEAT ASSEMBLY - Alcantara lining CARBON SEAT BACK / EU ME	-	1	Enquire
1	959711401	FRONT RH SEAT ASSEMBLY - Alcantara lining CARBON SEAT BACK / EU ME	959711401 FRONT RH SEAT ASSEMBLY - Alcantara lining CARBON SEAT BACK / EU ME	-	1	Enquire
1	959711100	FRONT RH SEAT ASSEMBLY - Alcantara lining Comfort Pack front seats / EU CD JP ME	959711100 FRONT RH SEAT ASSEMBLY - Alcantara lining Comfort Pack front seats / EU CD JP ME	-	1	Enquire
1	959711101	FRONT RH SEAT ASSEMBLY - Alcantara lining Comfort Pack front seats / EU CD JP ME	959711101 FRONT RH SEAT ASSEMBLY - Alcantara lining Comfort Pack front seats / EU CD JP ME	-	1	Enquire
1	959711500	FRONT RH SEAT ASSEMBLY - Alcantara lining Comfort Pack front seats CARBON SEAT BACK / EU CD JP ME	959711500 FRONT RH SEAT ASSEMBLY - Alcantara lining Comfort Pack front seats CARBON SEAT BACK / EU CD JP ME	-	1	Enquire
1	959711501	FRONT RH SEAT ASSEMBLY - Alcantara lining Comfort Pack front seats CARBON SEAT BACK / EU CD JP ME	959711501 FRONT RH SEAT ASSEMBLY - Alcantara lining Comfort Pack front seats CARBON SEAT BACK / EU CD JP ME	-	1	Enquire
2	980145452	LH FRONT SEAT BACK PADDING	980145452 LH FRONT SEAT BACK PADDING	-	1	Enquire
2	980145453	RH FRONT SEAT BACK PADDING	980145453 RH FRONT SEAT BACK PADDING	-	1	Enquire
3	959722001	L.H. FRONT SEAT BACK LINING	959722001 L.H. FRONT SEAT BACK LINING	-	1	Enquire
3	959722000	L.H. FRONT SEAT BACK LINING	959722000 L.H. FRONT SEAT BACK LINING	-	1	Enquire
3	959722800	L.H. FRONT SEAT BACK LINING - Alcantara lining	959722800 L.H. FRONT SEAT BACK LINING - Alcantara lining	-	1	Enquire
3	959722801	L.H. FRONT SEAT BACK LINING - Alcantara lining	959722801 L.H. FRONT SEAT BACK LINING - Alcantara lining	-	1	Enquire
3	959722101	R.H. FRONT SEAT BACK LINING	959722101 R.H. FRONT SEAT BACK LINING	-	1	Enquire
3	959722100	R.H. FRONT SEAT BACK LINING	959722100 R.H. FRONT SEAT BACK LINING	-	1	Enquire
3	959722900	R.H. FRONT SEAT BACK LINING - Alcantara lining	959722900 R.H. FRONT SEAT BACK LINING - Alcantara lining	-	1	Enquire
3	959722901	R.H. FRONT SEAT BACK LINING - Alcantara lining	959722901 R.H. FRONT SEAT BACK LINING - Alcantara lining	-	1	Enquire
4	953268749	CENTRAL TRIM KIT	953268749 CENTRAL TRIM KIT DARK CHROME	-	2	Enquire
4	953268751	CENTRAL TRIM KIT	953268751 CENTRAL TRIM KIT ECOCHROME	-	2	Enquire
5	980145458	FRONT SEAT BACK HEATER	980145458 FRONT SEAT BACK HEATER	-	2	Enquire
6	980145465	SCREW	980145465 SCREW	-	4	Enquire
7	980145074	COMPLETE L.H. CUSHION BOTTOM	980145074 COMPLETE L.H. CUSHION BOTTOM	-	1	Enquire
7	980145073	COMPLETE R.H. CUSHION BOTTOM	980145073 COMPLETE R.H. CUSHION BOTTOM	-	1	Enquire
8	980001122	FRONT CUSHION MEMBRANE	980001122 FRONT CUSHION MEMBRANE	-	2	Enquire
9	980145454	LH FRONT CUSHION PADDING	980145454 LH FRONT CUSHION PADDING	-	1	Enquire
9	980145455	RH FRONT CUSHION PADDING	980145455 RH FRONT CUSHION PADDING	-	1	Enquire
10	980145077	FRONT CUSHION HEATER	980145077 FRONT CUSHION HEATER	-	2	Enquire
11	980145078	SBR SENSOR	980145078 SBR SENSOR Passenger side	-	1	Enquire
12	980145079	PROTECTION CARPET	980145079 PROTECTION CARPET Passenger side	-	1	Enquire
13	959722201	L.H. FRONT CUSHION LINING	959722201 L.H. FRONT CUSHION LINING	-	1	Enquire
13	959722200	L.H. FRONT CUSHION LINING	959722200 L.H. FRONT CUSHION LINING	-	1	Enquire
13	959723000	L.H. FRONT CUSHION LINING - Alcantara lining	959723000 L.H. FRONT CUSHION LINING - Alcantara lining	-	1	Enquire
13	959723001	L.H. FRONT CUSHION LINING - Alcantara lining	959723001 L.H. FRONT CUSHION LINING - Alcantara lining	-	1	Enquire
13	959722301	R.H. FRONT CUSHION LINING	959722301 R.H. FRONT CUSHION LINING	-	1	Enquire
13	959722300	R.H. FRONT CUSHION LINING	959722300 R.H. FRONT CUSHION LINING	-	1	Enquire
13	959723100	R.H. FRONT CUSHION LINING - Alcantara lining	959723100 R.H. FRONT CUSHION LINING - Alcantara lining	-	1	Enquire
13	959723101	R.H. FRONT CUSHION LINING - Alcantara lining	959723101 R.H. FRONT CUSHION LINING - Alcantara lining	-	1	Enquire
14	980138105	LH GUARD	980138105 LH GUARD	-	1	Enquire
14	980138106	RH GUARD	980138106 RH GUARD	-	1	Enquire
15	980145461	HEADREST INSERT WITH SHAFTS	980145461 HEADREST INSERT WITH SHAFTS	-	2	Enquire
16	66370200	L.H. SPRING	66370200 L.H. SPRING	-	2	Enquire
16	66324600	R.H. SPRING	66324600 R.H. SPRING	-	2	Enquire
17	67285500	HEADREST LH BUSHING	67285500 HEADREST LH BUSHING Black color	-	2	Enquire
17	67285600	HEADREST RH BUSHING	67285600 HEADREST RH BUSHING Gray color	-	2	Enquire
18	281403	SCREW	281403 SCREW TCEI M8X30	-	4	Enquire
19	386900302	PLATE	386900302 PLATE	-	8	Enquire

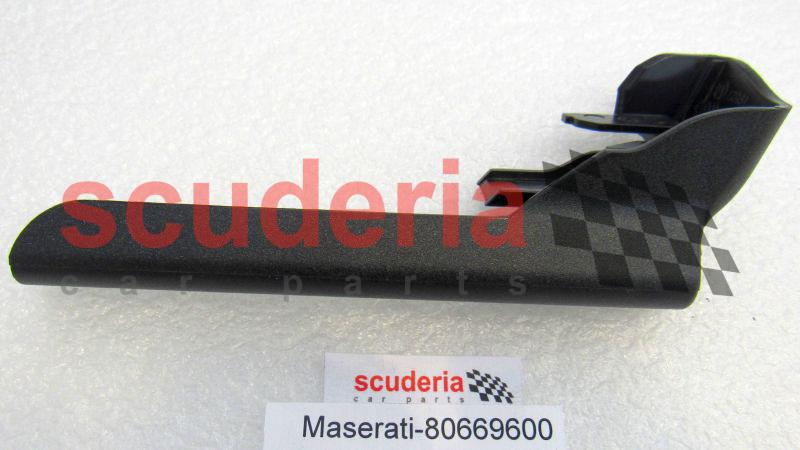

20	80669600	L.H. FRONT GUIDE COVER	80669600 L.H. FRONT GUIDE COVER	-	2	Enquire
20	80669500	R.H. FRONT GUIDE COVER	80669500 R.H. FRONT GUIDE COVER	-	2	Enquire

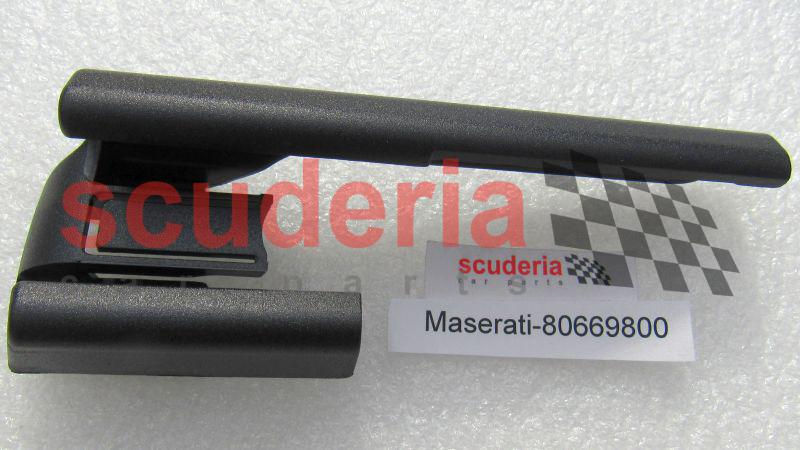

21	80669800	L.H. REAR GUIDE COVER	80669800 L.H. REAR GUIDE COVER	-	2	Enquire
21	80669700	R.H. REAR GUIDE COVER	80669700 R.H. REAR GUIDE COVER	-	2	Enquire
22	386900406	CLIP	386900406 CLIP	-	4	Enquire
23	386900407	CLIP	386900407 CLIP	-	11	Enquire
24	12628920	WASHER	12628920 WASHER D. 8,15-25X4	-	4	Enquire
