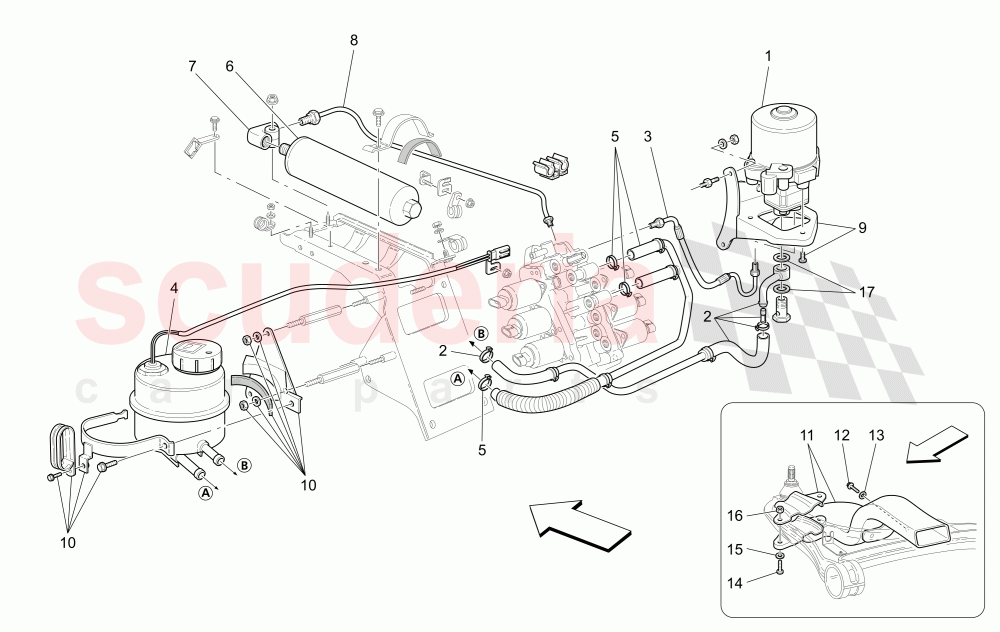

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	248087	HYDRAULIC PUMP KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	260535	COMPLETE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	260532	COMPLETE PIPE FROM PUMP TO POWER UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	260536	OIL TANK KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	260537	COMPLETE PIPE FROM POWER UNIT TO OIL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179143	ACCUMULATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179211	ACCUMULATOR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184269	PIPE FROM ACCUMULATOR TO POWER UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	260540	HYDRAULIC PUMP BRACKET KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	260539	TANK BRACKET KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	241565	AIR DELIVERY DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16297024	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	Washer 6.15-18x1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13276911	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14498824	WASHERD.6.4-16.3X1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	281980	WASHER	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	248087	HYDRAULIC PUMP KIT	248087 HYDRAULIC PUMP KIT	-	1	Enquire
2	260535	COMPLETE PIPE	260535 COMPLETE PIPE	-	1	Enquire
3	260532	COMPLETE PIPE FROM PUMP TO POWER UNIT	260532 COMPLETE PIPE FROM PUMP TO POWER UNIT	-	1	Enquire
4	260536	OIL TANK KIT	260536 OIL TANK KIT	-	1	Enquire
5	260537	COMPLETE PIPE FROM POWER UNIT TO OIL TANK	260537 COMPLETE PIPE FROM POWER UNIT TO OIL TANK	-	1	Enquire
6	179143	ACCUMULATOR	179143 ACCUMULATOR	-	1	Enquire
7	179211	ACCUMULATOR DUCT	179211 ACCUMULATOR DUCT	-	1	Enquire
8	184269	PIPE FROM ACCUMULATOR TO POWER UNIT	184269 PIPE FROM ACCUMULATOR TO POWER UNIT	-	1	Enquire
9	260540	HYDRAULIC PUMP BRACKET KIT	260540 HYDRAULIC PUMP BRACKET KIT	-	1	Enquire
10	260539	TANK BRACKET KIT	260539 TANK BRACKET KIT	-	1	Enquire
11	241565	AIR DELIVERY DUCT	241565 AIR DELIVERY DUCT	-	1	Enquire
12	16297024	SCREW	16297024 SCREW	-	1	Enquire
13	12643724	Washer 6.15-18x1.5	12643724 Washer 6.15-18x1.5 D 6,15-18X 1,5	-	1	Enquire
14	13276911	SCREW	13276911 SCREW	-	1	Enquire
15	14498824	WASHERD.6.4-16.3X1	14498824 WASHERD.6.4-16.3X1 D.6.4-16.3X1	-	1	Enquire
16	14039614	NUT	14039614 NUT	-	1	Enquire
17	281980	WASHER	281980 WASHER	-	2	Enquire
