Name: LH CYLINDER HEAD
Rating: 4.4 (1 reviews)

LH CYLINDER HEAD of Maserati Maserati GranTurismo (2017+) Sport Auto

View All

Maserati GranTurismo (2017+) Sport Auto - LH CYLINDER HEAD

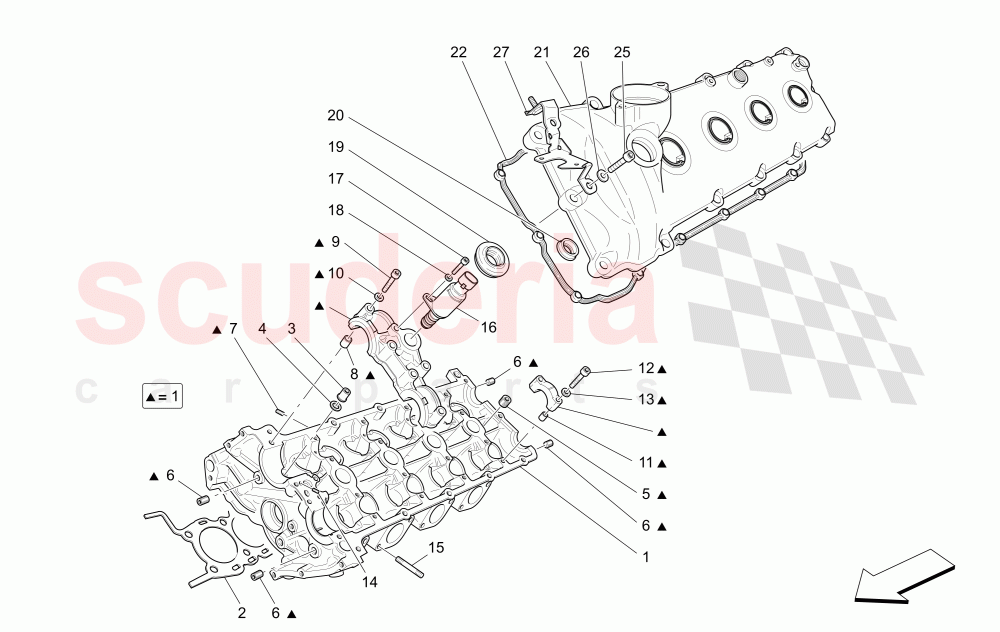

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	271222	LH HEAD ASSEMBLY	$2,305.65	To Order

Photo	Part No	Description	Price (each)	Stock
	266263	LH Head Gasket	$169.42	To Order

Photo	Part No	Description	Price (each)	Stock
	321187	CYLINDER HEAD NUT & WASHER KIT	$29.20	To Order
	321187	CYLINDER HEAD NUT & WASHER KIT	$29.20	To Order

Photo	Part No	Description	Price (each)	Stock
	151117	WASHER 11.25-22X2.5	$27.32	To Order

Photo	Part No	Description	Price (each)	Stock
	282756	THREADED PLUG subject to maserati technical service authorisation	$6.62	To Order

Photo	Part No	Description	Price (each)	Stock
	282755	THREADED PLUG	$4.22	To Order

Photo	Part No	Description	Price (each)	Stock
	199760	THREADED PLUG	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	243721	SCREW	$10.02	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	243719	SCREWM6X35	$2.69	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	226414	DOWEL	$7.61	To Order

Photo	Part No	Description	Price (each)	Stock
	13543424	STUD	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	296016	Oil Pressure Check Valve	$184.00	To Order

Photo	Part No	Description	Price (each)	Stock
	14304124	SCREW TCEI M5 x 12	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	11181574	WASHER	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	228962	Solenoid Valve Gasket	$12.13	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	223982	Spark Plug Hole Gasket	$5.41	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	272788	LH CYLINDER HEAD COVER	$470.41	To Order

Photo	Part No	Description	Price (each)	Stock
	264987	LH Head Cover Gasket	$100.64	To Order

Photo	Part No	Description	Price (each)	Stock
	156830	ALLEN SCREW M6 X 40	$4.68	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	265568	L.H. AIR VALVE FIXING BRACKET	$1,789.21	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	271222	LH HEAD ASSEMBLY	271222 LH HEAD ASSEMBLY	$2,305.65	1
2	266263	LH Head Gasket	266263 LH Head Gasket	$169.42	1
3	321187	CYLINDER HEAD NUT & WASHER KIT	321187 CYLINDER HEAD NUT & WASHER KIT M11	$29.20	10
3	321187	CYLINDER HEAD NUT & WASHER KIT	321187 CYLINDER HEAD NUT & WASHER KIT	$29.20	10
4	151117	WASHER 11.25-22X2.5	151117 WASHER 11.25-22X2.5 D.11.25-22X2.5	$27.32	10
5	282756	THREADED PLUG subject to maserati technical service authorisation	282756 THREADED PLUG subject to maserati technical service authorisation	$6.62	5
6	282755	THREADED PLUG	282755 THREADED PLUG	$4.22	4
7	199760	THREADED PLUG	199760 THREADED PLUG	$1.97	4
8	102725	CENTERING DOWEL	102725 CENTERING DOWEL	$1.97	2
9	243721	SCREW	243721 SCREW	$10.02	6
10	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4	$2.41	6
11	102725	CENTERING DOWEL	102725 CENTERING DOWEL	$1.97	16
12	243719	SCREWM6X35	243719 SCREWM6X35 M6X35	$2.69	16
13	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4	$2.41	16
14	226414	DOWEL	226414 DOWEL	$7.61	1
15	13543424	STUD	13543424 STUD	$1.97	8
16	296016	Oil Pressure Check Valve	296016 Oil Pressure Check Valve	$184.00	1
17	14304124	SCREW TCEI M5 x 12	14304124 SCREW TCEI M5 x 12	$1.97	1
18	11181574	WASHER	11181574 WASHER D.5.3-11X0.9	$1.97	1
19	228962	Solenoid Valve Gasket ARRIVING SOON	228962 Solenoid Valve Gasket ARRIVING SOON	$12.13	1
20	223982	Spark Plug Hole Gasket ARRIVING SOON	223982 Spark Plug Hole Gasket ARRIVING SOON	$5.41	4
21	272788	LH CYLINDER HEAD COVER	272788 LH CYLINDER HEAD COVER	$470.41	1
22	264987	LH Head Cover Gasket	264987 LH Head Cover Gasket	$100.64	1
25	156830	ALLEN SCREW M6 X 40	156830 ALLEN SCREW M6 X 40	$4.68	14
26	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4	$2.41	14
27	265568	L.H. AIR VALVE FIXING BRACKET	265568 L.H. AIR VALVE FIXING BRACKET	$1,789.21	1
