Name: HEAT EXCHANGER
Rating: 5.0 (1 reviews)

View All

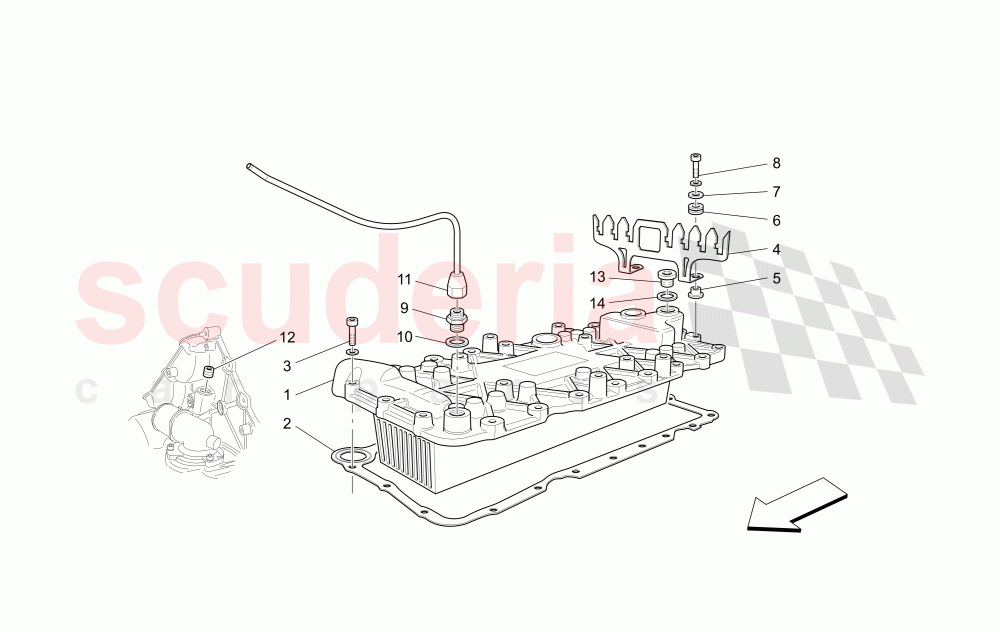

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	239136	HEAT EXCHANGER	$2,007.92	To Order

Photo	Part No	Description	Price (each)	Stock
	322663	Heat Exchanger Gasket	$30.68	To Order

Photo	Part No	Description	Price (each)	Stock
	225828	BRACKET	$24.79	To Order

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	$3.25	To Order

Photo	Part No	Description	Price (each)	Stock
	177576	INTERMEDIATE RING	$6.62	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	Washer 6.15-18x1.5	$1.62	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW M6 X 25	$1.96	To Order

Photo	Part No	Description	Price (each)	Stock
	192327	Union	$26.59	To Order

Photo	Part No	Description	Price (each)	Stock
	10284460	GASKET	$1.32	To Order

Photo	Part No	Description	Price (each)	Stock
	246242	WATER VENT PIPE	$729.77	To Order

Photo	Part No	Description	Price (each)	Stock
	164400	THREADED PLUG	$7.61	To Order

Photo	Part No	Description	Price (each)	Stock
	150731	THREADED PLUG	$4.22	To Order

Photo	Part No	Description	Price (each)	Stock
	10280060	WASHER COPPER D14. 20 X 1.5	$1.32	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	239136	HEAT EXCHANGER	239136 HEAT EXCHANGER	$2,007.92	1
2	322663	Heat Exchanger Gasket	322663 Heat Exchanger Gasket	$30.68	1
3	231620	SCREW M6 X 25	231620 SCREW M6 X 25 M6X25 M 6X25	$1.96	18
3	231621	Allen Screw M6 x 30	231621 Allen Screw M6 x 30 M6X30 M 6X30	$1.27	5
4	225828	BRACKET	225828 BRACKET	$24.79	1
5	149707	SPACER	149707 SPACER	$3.25	2
6	177576	INTERMEDIATE RING	177576 INTERMEDIATE RING	$6.62	2
7	12643724	Washer 6.15-18x1.5	12643724 Washer 6.15-18x1.5 D 6,15-18X 1,5	$1.62	2
8	231620	SCREW M6 X 25	231620 SCREW M6 X 25 M6X25	$1.96	2
9	192327	Union	192327 Union	$26.59	1
10	10284460	GASKET	10284460 GASKET	$1.32	1
11	246242	WATER VENT PIPE	246242 WATER VENT PIPE	$729.77	1
12	164400	THREADED PLUG	164400 THREADED PLUG	$7.61	1
13	150731	THREADED PLUG	150731 THREADED PLUG	$4.22	1
14	10280060	WASHER COPPER D14. 20 X 1.5	10280060 WASHER COPPER D14. 20 X 1.5	$1.32	1
