DASHBOARD DEVICES of Maserati Maserati GranTurismo M189 FOLGORE AUTOMATIC 4WD BEV 560 kW

View All

Maserati GranTurismo M189 FOLGORE AUTOMATIC 4WD BEV 560 kW - DASHBOARD DEVICES

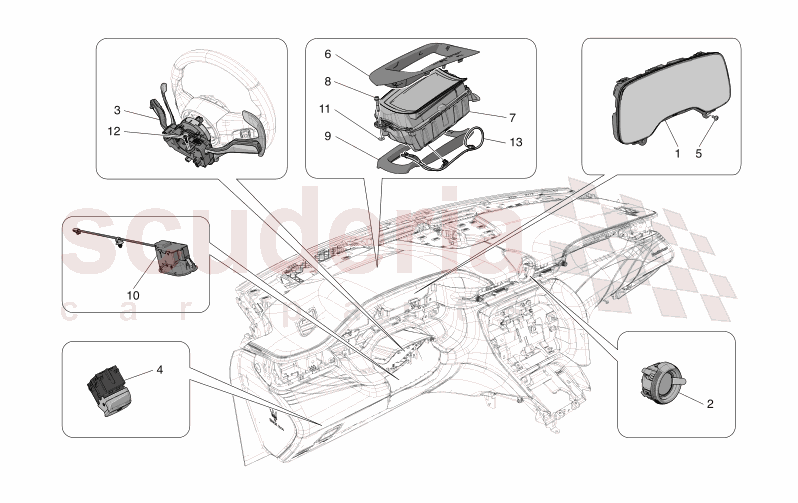

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670305438	INSTRUMENT PANEL ASSEMBLY	Enquire	To Order
	670298461	INSTRUMENT PANEL ASSEMBLY	Enquire	To Order
	670294088	INSTRUMENT PANEL ASSEMBLY	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	670266383	DIGITAL CLOCK	Enquire	To Order
	14AA634SP	ADJUSTMENT PLATE	$28.19	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA278CP	HTM COOLING - RESERVOIR HOSE	$22.08	To Order
	16GA279CP	HTM COOLING - RETURN LINE	$15.10	To Order
	16GA280CP	HTM COOLING PIPE - PUMP INLET	$80.30	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	670168000	ELECTRIC PARKING BRAKE SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670035714	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16GA282CP	CLIP - DIN 3021 - 19 X 12 - 50 CRV4	$12.59	To Order
	16GA351CP	PAN HEAD SCREW ISO14583 - M6X1.0X30	$6.00	To Order

Photo	Part No	Description	Price (each)	Stock
	670158203	HEAD UP DISPLAY	Enquire	To Order
	16GA283CP	E-ENGINE HOUSING ASM	Enquire	To Order
	670158204	HEAD UP DISPLAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000717	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670212872	COVER	Enquire	To Order
	670217109	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670265621	STEERING COLUMN ADJUSTMENT CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000367	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001311	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670212652	LVDS WIRING HARNESS	Enquire	To Order
	670220699	LVDS WIRING HARNESS	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670305438	INSTRUMENT PANEL ASSEMBLY	670305438 INSTRUMENT PANEL ASSEMBLY WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 8002648 - 99999999; EU AU US UK JP ME JRH IN KO N0 N8 UK3 GB;	-	1	Enquire
1	670298461	INSTRUMENT PANEL ASSEMBLY	670298461 INSTRUMENT PANEL ASSEMBLY WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 8002061 - 8002647; Not available with: GSR STEP 1; EU AU US UK JP ME JRH IN KO N0 N8;	-	1	Enquire
1	670294088	INSTRUMENT PANEL ASSEMBLY	670294088 INSTRUMENT PANEL ASSEMBLY WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 8002060; EU AU US UK JP ME JRH IN KO N0 N8;	-	1	Enquire
1	670305438	INSTRUMENT PANEL ASSEMBLY	670305438 INSTRUMENT PANEL ASSEMBLY WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 8002647; Available with: GSR STEP 1 ; EU AU US UK JP ME JRH IN KO N0 N8;	-	1	Enquire
2	670266383	DIGITAL CLOCK	670266383 DIGITAL CLOCK WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 8003411;	-	1	Enquire
2	14AA634SP	ADJUSTMENT PLATE	14AA634SP ADJUSTMENT PLATE WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 8003412 - 99999999;	$28.19	1
3	16GA278CP	HTM COOLING - RESERVOIR HOSE	16GA278CP HTM COOLING - RESERVOIR HOSE Available with: ACTIVE LANE MANAGEMENT Not available with: SPORT STEERING WHEEL HEATABLE;	$22.08	1
3	16GA279CP	HTM COOLING - RETURN LINE	16GA279CP HTM COOLING - RETURN LINE Available with: ACTIVE LANE MANAGEMENT, SPORT STEERING WHEEL HEATABLE ;	$15.10	1
3	16GA280CP	HTM COOLING PIPE - PUMP INLET	16GA280CP HTM COOLING PIPE - PUMP INLET Not available with: ACTIVE LANE MANAGEMENT, SPORT STEERING WHEEL HEATABLE;	$80.30	1
3	16GA281CP	CLIP - DIN 3021 - 26 X 12 - 50 CRV4	16GA281CP CLIP - DIN 3021 - 26 X 12 - 50 CRV4 Available with: SPORT STEERING WHEEL HEATABLE Not available with: ACTIVE LANE MANAGEMENT;	$3.51	1
4	670168000	ELECTRIC PARKING BRAKE SWITCH	670168000 ELECTRIC PARKING BRAKE SWITCH	-	1	Enquire
5	670035714	SCREW	670035714 SCREW	-	2	Enquire
6	16GA282CP	CLIP - DIN 3021 - 19 X 12 - 50 CRV4	16GA282CP CLIP - DIN 3021 - 19 X 12 - 50 CRV4 Available with: HEAD-UP DISPLAY Not available with: PRIMASERIE GREEN; EU CN US JP ME KO N0;	$12.59	1
6	16GA351CP	PAN HEAD SCREW ISO14583 - M6X1.0X30	16GA351CP PAN HEAD SCREW ISO14583 - M6X1.0X30 Available with: HEAD-UP DISPLAY Not available with: PRIMASERIE GREEN; AU UK JRH IN N8 UK3 GB;	$6.00	1
7	670158203	HEAD UP DISPLAY	670158203 HEAD UP DISPLAY WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 8003159; Available with: HEAD-UP DISPLAY ; EU CN US JP ME KO N0;	-	1	Enquire
7	16GA283CP	E-ENGINE HOUSING ASM	16GA283CP E-ENGINE HOUSING ASM WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 8003160 - 99999999; Available with: HEAD-UP DISPLAY ; EU CN US JP ME KO N0;	-	1	Enquire
7	670158204	HEAD UP DISPLAY	670158204 HEAD UP DISPLAY Available with: HEAD-UP DISPLAY ; AU UK JRH IN N8 UK3 GB;	-	1	Enquire
8	675000717	SCREW	675000717 SCREW Available with: HEAD-UP DISPLAY ;	-	3	Enquire
9	670212872	COVER	670212872 COVER Available with: HEAD-UP DISPLAY ; EU CN US JP ME KO N0;	-	1	Enquire
9	670217109	COVER	670217109 COVER Available with: HEAD-UP DISPLAY ; AU UK JRH IN N8 UK3 GB;	-	1	Enquire
10	670265621	STEERING COLUMN ADJUSTMENT CONTROL	670265621 STEERING COLUMN ADJUSTMENT CONTROL	-	1	Enquire
11	675000367	WASHER	675000367 WASHER Available with: HEAD-UP DISPLAY ;	-	3	Enquire
12	675001311	SCREW	675001311 SCREW	-	4	Enquire
13	670212652	LVDS WIRING HARNESS	670212652 LVDS WIRING HARNESS Available with: HEAD-UP DISPLAY ; EU CN US JP ME KO N0;	-	1	Enquire
13	670220699	LVDS WIRING HARNESS	670220699 LVDS WIRING HARNESS Available with: HEAD-UP DISPLAY ; AU UK JRH IN N8 UK3 GB;	-	1	Enquire
