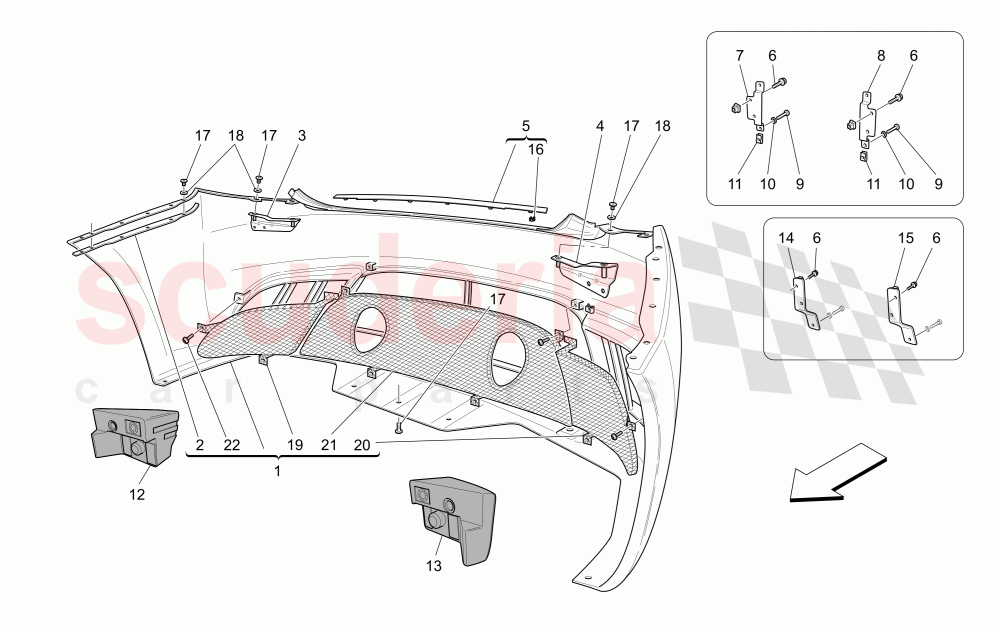

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	980145370	COMPLETE REAR BUMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80084300	RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80084400	LH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980145031	COMPLETE PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15688075	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80269600	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51810310	Screw M6 x 18.5mm	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	312320384	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83534000	R.H. REAR GRILL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83534100	L.H. REAR GRILL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83534200	REAR CENTRAL GRILL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15688807	SCREW	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	980145370	COMPLETE REAR BUMPER	980145370 COMPLETE REAR BUMPER	-	1	Enquire
2	80063900	LH BRACKET	80063900 LH BRACKET	-	1	Enquire
2	80063800	RH BRACKET	80063800 RH BRACKET	-	1	Enquire
3	80084300	RH BRACKET	80084300 RH BRACKET	-	1	Enquire
4	80084400	LH BRACKET	80084400 LH BRACKET	-	1	Enquire
5	980145031	COMPLETE PLATE	980145031 COMPLETE PLATE Rear bumper fixing	-	1	Enquire
6	15688075	SCREW	15688075 SCREW M4,2X13	-	4	Enquire
16	80269600	CLIP	80269600 CLIP	-	6	Enquire
17	51810310	Screw M6 x 18.5mm ARRIVING SOON	51810310 Screw M6 x 18.5mm ARRIVING SOON	-	22	Enquire
18	312320384	GASKET	312320384 GASKET	-	8	Enquire
19	83534000	R.H. REAR GRILL	83534000 R.H. REAR GRILL	-	1	Enquire
20	83534100	L.H. REAR GRILL	83534100 L.H. REAR GRILL	-	1	Enquire
21	83534200	REAR CENTRAL GRILL	83534200 REAR CENTRAL GRILL	-	1	Enquire
22	15688807	SCREW	15688807 SCREW	-	8	Enquire
