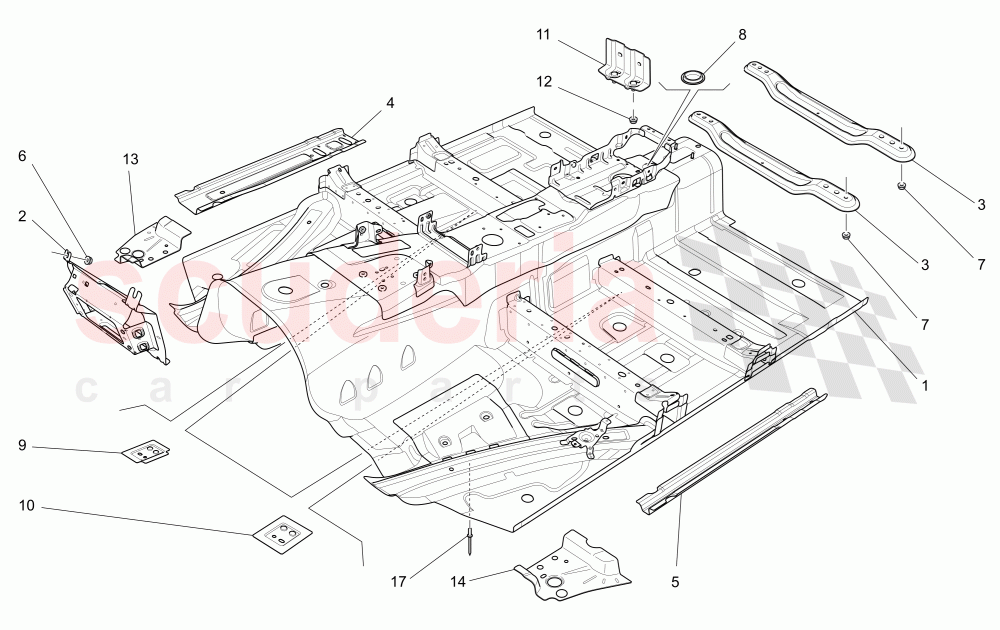

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	673006044	CENTRAL FLOOR ASSEMBLY	$3,306.14	To Order

Photo	Part No	Description	Price (each)	Stock
	670101542	BODY COMPUTER SUPPORT BRACKET	$61.98	To Order

Photo	Part No	Description	Price (each)	Stock

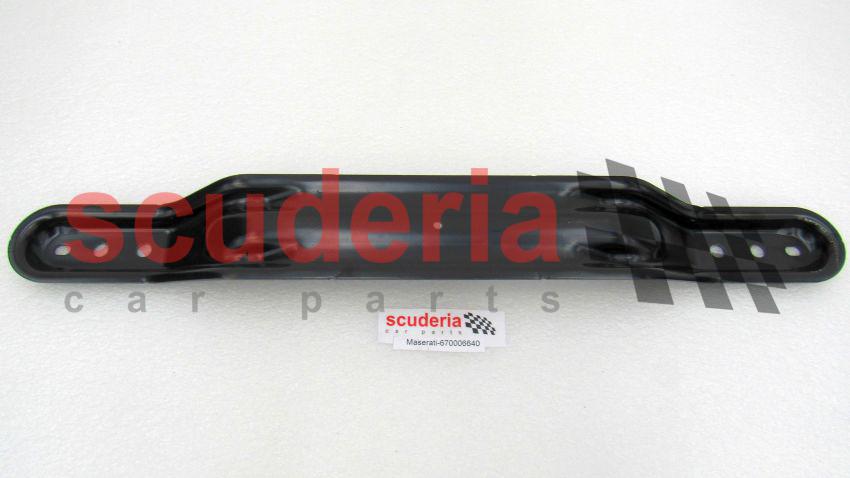

	670006640	UNDERFLOOR TUNNEL REAR REINFORCEMENT	$103.81	To Order

Photo	Part No	Description	Price (each)	Stock
	673001720	RH UNDERFLOOR SIDE RAIL	$75.35	To Order

Photo	Part No	Description	Price (each)	Stock
	673001721	LH UNDERFLOOR SIDE RAIL	$60.34	To Order

Photo	Part No	Description	Price (each)	Stock
	675000412	NUT	$1.41	To Order

Photo	Part No	Description	Price (each)	Stock
	14059311	FLANGED NUT M8 X 1.25	$1.48	To Order

Photo	Part No	Description	Price (each)	Stock
	670005072	PLUG	$16.78	To Order

Photo	Part No	Description	Price (each)	Stock
	670003751	RH PLATE	$59.02	To Order

Photo	Part No	Description	Price (each)	Stock
	670003900	LH PLATE	$59.02	To Order

Photo	Part No	Description	Price (each)	Stock
	673004077	BRACKET KIT	$249.11	To Order

Photo	Part No	Description	Price (each)	Stock
	14059311	FLANGED NUT M8 X 1.25	$1.48	To Order

Photo	Part No	Description	Price (each)	Stock
	670031919	R.H. REINFORCEMENT	$15.92	To Order

Photo	Part No	Description	Price (each)	Stock
	670031920	L.H. REINFORCEMENT	$15.92	To Order

Photo	Part No	Description	Price (each)	Stock
	675000622	RIVET	$3.40	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	673006044	CENTRAL FLOOR ASSEMBLY	673006044 CENTRAL FLOOR ASSEMBLY	$3,306.14	1
2	670101542	BODY COMPUTER SUPPORT BRACKET	670101542 BODY COMPUTER SUPPORT BRACKET	$61.98	1
3	670006640	UNDERFLOOR TUNNEL REAR REINFORCEMENT	670006640 UNDERFLOOR TUNNEL REAR REINFORCEMENT	$103.81	2
4	673001720	RH UNDERFLOOR SIDE RAIL	673001720 RH UNDERFLOOR SIDE RAIL	$75.35	1
5	673001721	LH UNDERFLOOR SIDE RAIL	673001721 LH UNDERFLOOR SIDE RAIL	$60.34	1
6	675000412	NUT	675000412 NUT	$1.41	1
7	14059311	FLANGED NUT M8 X 1.25	14059311 FLANGED NUT M8 X 1.25 M8	$1.48	4
8	670005072	PLUG	670005072 PLUG	$16.78	1
9	670003751	RH PLATE	670003751 RH PLATE	$59.02	1
10	670003900	LH PLATE	670003900 LH PLATE	$59.02	1
11	673004077	BRACKET KIT	673004077 BRACKET KIT	$249.11	2
12	14059311	FLANGED NUT M8 X 1.25	14059311 FLANGED NUT M8 X 1.25 M8	$1.48	4
13	670031919	R.H. REINFORCEMENT	670031919 R.H. REINFORCEMENT	$15.92	1
14	670031920	L.H. REINFORCEMENT	670031920 L.H. REINFORCEMENT	$15.92	1
17	675000622	RIVET	675000622 RIVET	$3.40	2
