Find Your Part

Authorised by Maserati SPA

BRAKING CONTROL SYSTEMS of Maserati Maserati Ghibli (2017+) S

View All

Maserati Ghibli (2017+) S - BRAKING CONTROL SYSTEMS

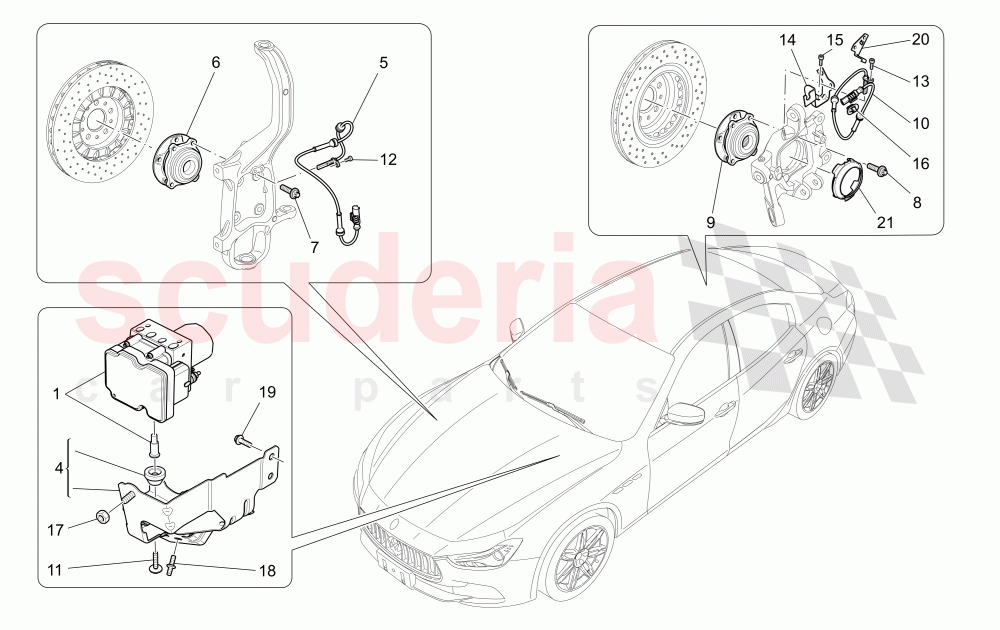

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	673005410	ABS/ASR HYDRAULIC UNIT - DUAL CAST BRAKING SYSTEM (FRONT - 360 MM) CAST-IRON (REAR - 345 MM)	Enquire	To Order
	673005411	ABS/ASR HYDRAULIC UNIT - Dual Cast Braking System (Front - 345 mm) ; (Rear - 330 mm) - Coloured brake calipers	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670032075	ABS/ASR HYDRAULIC GROUP FIXING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

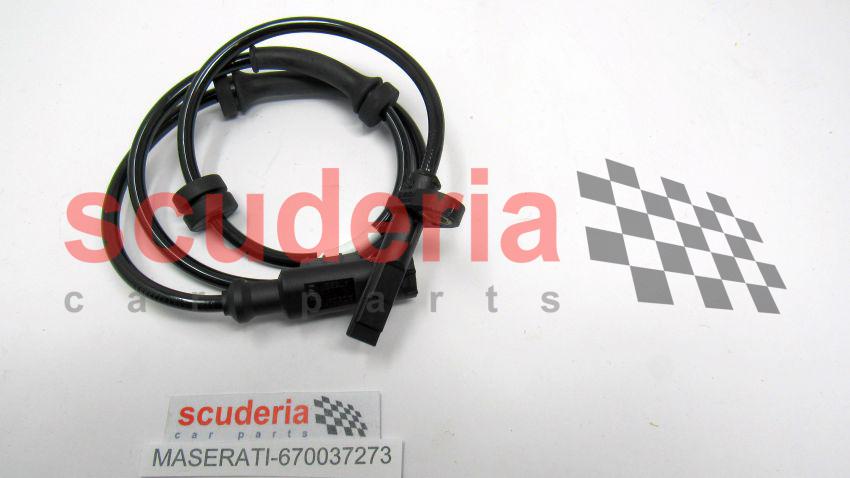

	670037273	FRONT ABS SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

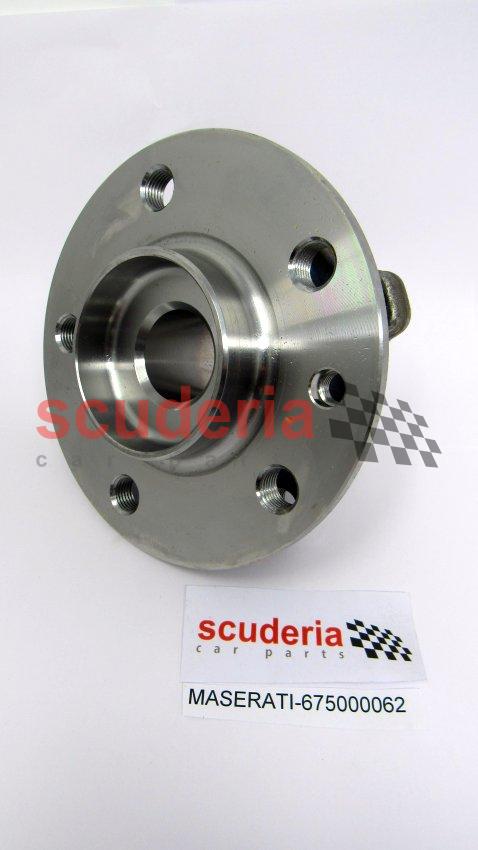

	675000062	FRONT WHEEL BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670006981	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670035429	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670103668	WHEEL BEARING ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670035289	REAR ABS SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000156	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000173	SCREWM6X16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000173	SCREWM6X16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670100063	LH BRACKET	Enquire	To Order
	670036891	LH BRACKET - DUAL CAST BRAKING SYSTEM (FRONT - 360 MM) CAST-IRON (REAR - 345 MM)	Enquire	To Order
	670100064	RH BRACKET	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	675000173	SCREWM6X16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000355	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059314	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000430	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000387	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670036889	LH ABS CABLE BRACKET	Enquire	To Order
	670036875	RH ABS CABLE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670037587	SHIELD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	673005410	ABS/ASR HYDRAULIC UNIT - DUAL CAST BRAKING SYSTEM (FRONT - 360 MM) CAST-IRON (REAR - 345 MM)	673005410 ABS/ASR HYDRAULIC UNIT - DUAL CAST BRAKING SYSTEM (FRONT - 360 MM) CAST-IRON (REAR - 345 MM)	-	1	Enquire
1	673005411	ABS/ASR HYDRAULIC UNIT - Dual Cast Braking System (Front - 345 mm) ; (Rear - 330 mm) - Coloured brake calipers	673005411 ABS/ASR HYDRAULIC UNIT - Dual Cast Braking System (Front - 345 mm) ; (Rear - 330 mm) - Coloured brake calipers	-	1	Enquire
4	670032075	ABS/ASR HYDRAULIC GROUP FIXING BRACKET	670032075 ABS/ASR HYDRAULIC GROUP FIXING BRACKET	-	1	Enquire
5	670037273	FRONT ABS SENSOR	670037273 FRONT ABS SENSOR	-	1	Enquire
6	675000062	FRONT WHEEL BEARING	675000062 FRONT WHEEL BEARING	-	2	Enquire
7	670006981	SCREW	670006981 SCREW	-	8	Enquire
8	670035429	SCREW	670035429 SCREW	-	8	Enquire
9	670103668	WHEEL BEARING ASSEMBLY	670103668 WHEEL BEARING ASSEMBLY	-	2	Enquire
10	670035289	REAR ABS SENSOR	670035289 REAR ABS SENSOR	-	1	Enquire
11	675000156	SCREW	675000156 SCREW M6	-	1	Enquire
12	675000173	SCREWM6X16	675000173 SCREWM6X16 M6X16	-	2	Enquire
13	675000173	SCREWM6X16	675000173 SCREWM6X16 M6X16	-	2	Enquire
14	670100063	LH BRACKET	670100063 LH BRACKET	-	1	Enquire
14	670036891	LH BRACKET - DUAL CAST BRAKING SYSTEM (FRONT - 360 MM) CAST-IRON (REAR - 345 MM)	670036891 LH BRACKET - DUAL CAST BRAKING SYSTEM (FRONT - 360 MM) CAST-IRON (REAR - 345 MM)	-	1	Enquire
14	670100064	RH BRACKET	670100064 RH BRACKET	-	1	Enquire
14	670036877	RH BRACKET - DUAL CAST BRAKING SYSTEM (FRONT - 360 MM) CAST-IRON (REAR - 345 MM)	670036877 RH BRACKET - DUAL CAST BRAKING SYSTEM (FRONT - 360 MM) CAST-IRON (REAR - 345 MM)	-	1	Enquire
15	675000173	SCREWM6X16	675000173 SCREWM6X16 M6X16	-	2	Enquire
16	675000355	CLIP	675000355 CLIP	-	2	Enquire
17	14059314	NUT	14059314 NUT M8	-	1	Enquire
18	675000430	SCREW	675000430 SCREW	-	1	Enquire
19	675000387	SCREW	675000387 SCREW	-	2	Enquire
20	670036889	LH ABS CABLE BRACKET	670036889 LH ABS CABLE BRACKET	-	1	Enquire
20	670036875	RH ABS CABLE BRACKET	670036875 RH ABS CABLE BRACKET	-	1	Enquire
21	670037587	SHIELD	670037587 SHIELD	-	2	Enquire
