Complete Steering Rack Unit

Maserati Ghibli (2014-2016) S Q4

Find Your Part

Maserati Ghibli (2014-2016) S Q4 - COMPLETE STEERING RACK UNIT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670102931 LHD Rack Steering Box Enquire To Order
Photo Part No Description Price (each) Stock
670004538 OIL TANK FOR HYDRAULIC POWER STEERING Enquire To Order
Photo Part No Description Price (each) Stock
14059311 NUTM 8 Enquire To Order
Photo Part No Description Price (each) Stock
670007691 PIPE FROM STEERING BOX TO EXCHANGER Enquire To Order
Photo Part No Description Price (each) Stock
675000278 SCREWM6X25 Enquire To Order
Photo Part No Description Price (each) Stock
675000203 UNION Enquire To Order
Photo Part No Description Price (each) Stock
675000250 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
675000021 UNION Enquire To Order
Photo Part No Description Price (each) Stock
670007690 HOSE BETWEEN STEERING RACK AND PUMP Enquire To Order
Photo Part No Description Price (each) Stock
670006577 PIPE BETWEEN RESERVOIR AND HEAT EXCHANGER Enquire To Order
Photo Part No Description Price (each) Stock
670003487 PIPE FROM TANK TO PUMP Enquire To Order
Photo Part No Description Price (each) Stock
670006487 OIL EXCHANGER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
670001926 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
675000129 SPACER Enquire To Order
Photo Part No Description Price (each) Stock
675000278 SCREWM6X25 Enquire To Order
Photo Part No Description Price (each) Stock
10872624 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
14059311 NUTM 8 Enquire To Order
Photo Part No Description Price (each) Stock
670001945 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
670031618 HEAT EXCHANGER Enquire To Order
Photo Part No Description Price (each) Stock
675000127 NUT M12 Enquire To Order
Photo Part No Description Price (each) Stock
670009685 POWER STEERING CONTROL UNIT Enquire To Order
670009686 POWER STEERING CONTROL UNIT - SUSPENSION PERFORMANCE Enquire To Order
Photo Part No Description Price (each) Stock
670001946 HEAT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
670005277 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
14059211 NUTM6 Enquire To Order
Photo Part No Description Price (each) Stock
675000088 SCREWM6X22 Enquire To Order
Photo Part No Description Price (each) Stock
673000006 RH Tie Rod Enquire To Order
Photo Part No Description Price (each) Stock
673000005 LH Outer Tie-Rod Enquire To Order
Photo Part No Description Price (each) Stock

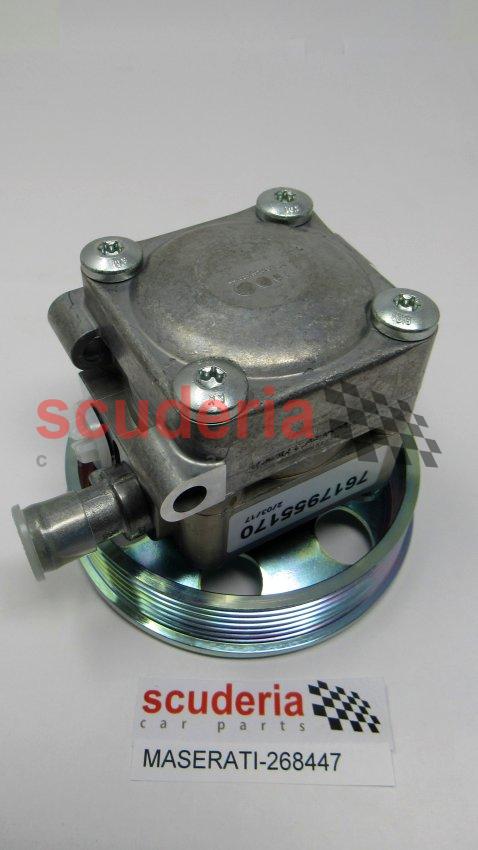

268447 Hydaulic Steering Pump Enquire To Order
Photo Part No Description Price (each) Stock
673000004 Steering Box Gaiter and Clamps Kit Enquire To Order
Photo Part No Description Price (each) Stock
286697 STUD Enquire To Order
Photo Part No Description Price (each) Stock
11193874 WASHERD.8.4-16X1.4 Enquire To Order
Photo Part No Description Price (each) Stock
265097 SCREWM8X40 Enquire To Order
Photo Part No Description Price (each) Stock
670005736 TEMPERATURE SENSOR Enquire To Order
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM Enquire To Order
Photo Part No Description Price (each) Stock
670006581 HEAT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
675000152 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
673001466 STEERING BOX SOLENOID Enquire To Order
Photo Part No Description Price (each) Stock
675000266 COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
675000267 COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
675000088 SCREWM6X22 Enquire To Order
Photo Part No Description Price (each) Stock
675000278 SCREWM6X25 Enquire To Order
Photo Part No Description Price (each) Stock
675000454 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
670005854 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
670005772 BRACKET ASSEMBLY Enquire To Order
Photo Part No Description Price (each) Stock
670009151 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
670031619 UNION Enquire To Order
Photo Part No Description Price (each) Stock
675000148 NUT M14 Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
View All

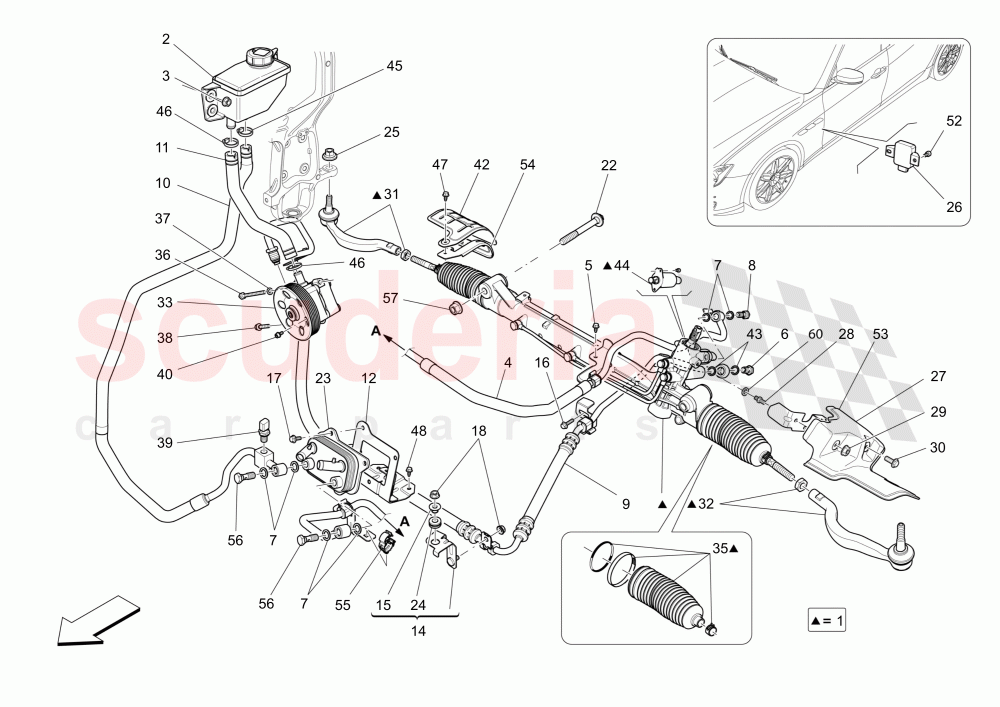

COMPLETE STEERING RACK UNIT of Maserati Maserati Ghibli (2014-2016) S Q4 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670102931
LHD Rack Steering Box 		- 1 Enquire
2 670004538
OIL TANK FOR HYDRAULIC POWER STEERING 		- 1 Enquire
3 14059311
NUTM 8
M8 		- 3 Enquire
4 670007691
PIPE FROM STEERING BOX TO EXCHANGER 		- 1 Enquire
5 675000278
SCREWM6X25
M6X25 		- 3 Enquire
6 675000203
UNION 		- 1 Enquire
7 675000250
GASKET 		- 6 Enquire
8 675000021
UNION 		- 1 Enquire
9 670007690
HOSE BETWEEN STEERING RACK AND PUMP 		- 1 Enquire
10 670006577
PIPE BETWEEN RESERVOIR AND HEAT EXCHANGER 		- 1 Enquire
11 670003487
PIPE FROM TANK TO PUMP 		- 1 Enquire
12 670006487
OIL EXCHANGER BRACKET 		- 1 Enquire
14 670001926
BRACKET 		- 1 Enquire
15 675000129
SPACER 		- 1 Enquire
16 675000278
SCREWM6X25
M6X25 		- 4 Enquire
17 10872624
SCREW
M6X16 		- 3 Enquire
18 14059311
NUTM 8
M8 		- 2 Enquire
22 670001945
SCREW 		- 2 Enquire
23 670031618
HEAT EXCHANGER 		- 1 Enquire
25 675000127
NUT M12
M12 		- 2 Enquire
26 670009685
POWER STEERING CONTROL UNIT 		- 1 Enquire
26 670009686
POWER STEERING CONTROL UNIT - SUSPENSION PERFORMANCE 		- 1 Enquire
27 670001946
HEAT SHIELD 		- 1 Enquire
28 670005277
SCREW 		- 1 Enquire
29 14059211
NUTM6
M6 		- 1 Enquire
30 675000088
SCREWM6X22
M6X22 		- 1 Enquire
31 673000006
RH Tie Rod 		- 1 Enquire
32 673000005
LH Outer Tie-Rod 		- 1 Enquire
33 268447
Hydaulic Steering Pump
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		- 1 Enquire
35 673000004
Steering Box Gaiter and Clamps Kit
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		- 2 Enquire
36 286697
STUD
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		- 1 Enquire
37 11193874
WASHERD.8.4-16X1.4
D.8.4-16X1.4 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		- 1 Enquire
38 265097
SCREWM8X40
M8X40 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		- 1 Enquire
39 670005736
TEMPERATURE SENSOR 		- 1 Enquire
40 248334
SCREW M6 X 14MM
M6X14 		- 1 Enquire
42 670006581
HEAT SHIELD 		- 1 Enquire
43 675000152
GASKET 		- 4 Enquire
44 673001466
STEERING BOX SOLENOID 		- 1 Enquire
45 675000266
COLLAR
D.17,5 		- 1 Enquire
46 675000267
COLLAR
D.21,5 		- 2 Enquire
47 675000088
SCREWM6X22
M6X22 		- 2 Enquire
48 675000278
SCREWM6X25
M6X25 		- 2 Enquire
52 675000454
SCREW
M5X12 		- 2 Enquire
53 670005854
BRACKET 		- 1 Enquire
54 670005772
BRACKET ASSEMBLY 		- 1 Enquire
55 670009151
CLIP 		- 1 Enquire
56 670031619
UNION 		- 2 Enquire
57 675000148
NUT M14
M14 		- 2 Enquire
60 11197774
WAVY WASHER D.6.4 X 12 X 1.2
D.6.4-12X2.4 		- 1 Enquire
