LUBRICATION AND GEARBOX OIL COOLING

Find Your Part

Maserati Ghibli (2014-2016) S - LUBRICATION AND GEARBOX OIL COOLING

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
673004769 TRANSMISSION OIL EXCHANGER AND PIPES KIT $489.70 To Order
Photo Part No Description Price (each) Stock
675000319 COLLARD.22,5 $12.30 To Order
Photo Part No Description Price (each) Stock
670003113 UPPER BRACKET ASSEMBLY $11.71 To Order
Photo Part No Description Price (each) Stock
670009273 OIL COOLING OUTLET PIPE $92.20 To Order
Photo Part No Description Price (each) Stock
673004769 TRANSMISSION OIL EXCHANGER AND PIPES KIT $489.70 To Order
Photo Part No Description Price (each) Stock
14457081 O-RING D.2.62 $2.22 To Order
Photo Part No Description Price (each) Stock
670003311 O.R. GASKET $1.27 To Order
Photo Part No Description Price (each) Stock
670003115 CLIP $5.22 To Order
Photo Part No Description Price (each) Stock
675000191 SCREWM6X14 $2.52 To Order
Photo Part No Description Price (each) Stock
670002255 GEARBOX PIPES FIXING BRACKET $12.40 To Order
Photo Part No Description Price (each) Stock
675000365 SCREWM6X18 $2.76 To Order
Photo Part No Description Price (each) Stock
675000102 SCREWM6X14 $3.46 To Order
Photo Part No Description Price (each) Stock
675000085 SCREWM8X25 $2.39 To Order
Photo Part No Description Price (each) Stock
675000099 WASHERD.8.4-15X0.5 $2.21 To Order
Photo Part No Description Price (each) Stock
670007587 WATER RETURN PIPE FROM OIL EXCHANGER TO COOLER $46.88 To Order
Photo Part No Description Price (each) Stock
670007586 WATER DELIVERY PIPE FROM ENGINE TO EXCHANGER $48.60 To Order
Photo Part No Description Price (each) Stock
670003083 LOWER BRACKET FASTENING PIPES TO GEARBOX $9.30 To Order
Photo Part No Description Price (each) Stock
675000372 COLLARD.20,5 $1.88 To Order
Photo Part No Description Price (each) Stock
675000658 SNAP HOSE CLAMP $7.22 ARRIVING SOON
Photo Part No Description Price (each) Stock
673004769 TRANSMISSION OIL EXCHANGER AND PIPES KIT $489.70 To Order
Photo Part No Description Price (each) Stock
675000191 SCREWM6X14 $2.52 To Order
Photo Part No Description Price (each) Stock
675000565 WASHER $1.41 To Order
Photo Part No Description Price (each) Stock
670034967 OIL HEAT EXCHANGER $249.16 To Order
Photo Part No Description Price (each) Stock
670218189 OIL COOLING INLET PIPE $128.28 To Order
Photo Part No Description Price (each) Stock
670218190 OIL COOLING OUTLET PIPE $135.45 To Order
Photo Part No Description Price (each) Stock
670034963 UPPER BRACKET ASSEMBLY $13.22 To Order
Photo Part No Description Price (each) Stock
675000565 WASHER $1.41 To Order
View All

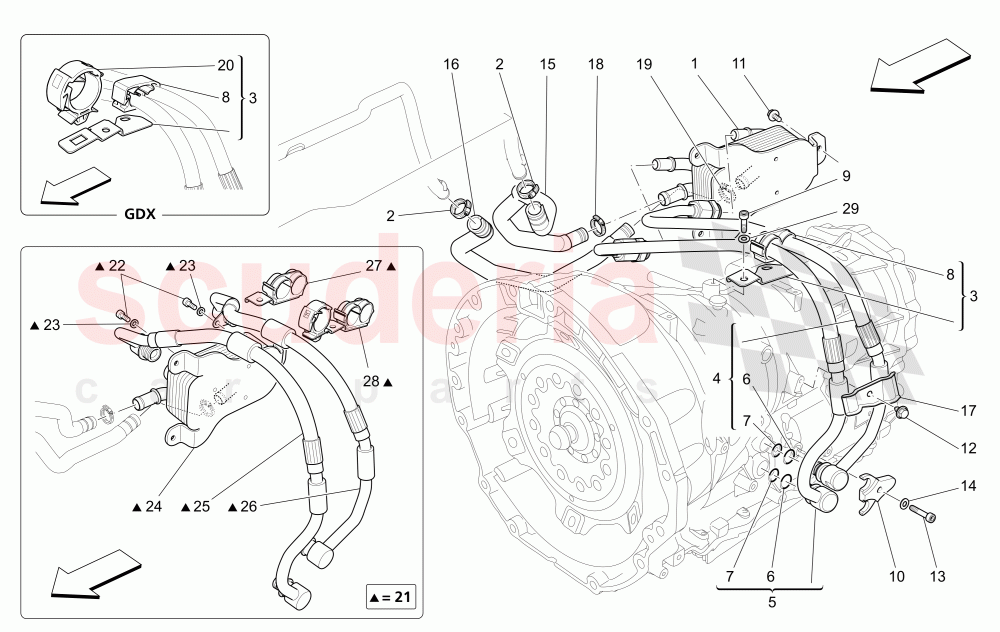

LUBRICATION AND GEARBOX OIL COOLING of Maserati Maserati Ghibli (2014-2016) S Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 673004769
TRANSMISSION OIL EXCHANGER AND PIPES KIT
IF STOCK=0, FOR THE FIRST REPLACE OF THE COMPONENT PLEASE SELL-OUT COMPLETE PN 673004769 AND UPDATE VARIANT TRACKING. FOR THE NEXT REPLACE YOU CAN ORDER ONLY NEW PN 		$489.70 1
2 675000319
COLLARD.22,5
D.22,5 		$12.30 2
3 670003113
UPPER BRACKET ASSEMBLY
IF STOCK=0, FOR THE FIRST REPLACE OF THE COMPONENT PLEASE SELL-OUT COMPLETE PN 673004769 AND UPDATE VARIANT TRACKING. FOR THE NEXT REPLACE YOU CAN ORDER ONLY NEW PN 		$11.71 1
4 670009273
OIL COOLING OUTLET PIPE
IF STOCK=0, FOR THE FIRST REPLACE OF THE COMPONENT PLEASE SELL-OUT COMPLETE PN 673004769 AND UPDATE VARIANT TRACKING. FOR THE NEXT REPLACE YOU CAN ORDER ONLY NEW PN 		$92.20 1
5 673004769
TRANSMISSION OIL EXCHANGER AND PIPES KIT
IF STOCK=0, FOR THE FIRST REPLACE OF THE COMPONENT PLEASE SELL-OUT COMPLETE PN 673004769 AND UPDATE VARIANT TRACKING. FOR THE NEXT REPLACE YOU CAN ORDER ONLY NEW PN 		$489.70 1
6 14457081
O-RING D.2.62 		$2.22 2
7 670003311
O.R. GASKET 		$1.27 2
8 670003115
CLIP 		$5.22 1
9 675000191
SCREWM6X14
M6X14 		$2.52 1
10 670002255
GEARBOX PIPES FIXING BRACKET 		$12.40 1
11 675000365
SCREWM6X18
M6X18 		$2.76 3
12 675000102
SCREWM6X14
M6X14 		$3.46 1
13 675000085
SCREWM8X25
M8X25 		$2.39 1
14 675000099
WASHERD.8.4-15X0.5
D.8.4-15X0.5 		$2.21 1
15 670007587
WATER RETURN PIPE FROM OIL EXCHANGER TO COOLER 		$46.88 1
16 670007586
WATER DELIVERY PIPE FROM ENGINE TO EXCHANGER 		$48.60 1
17 670003083
LOWER BRACKET FASTENING PIPES TO GEARBOX 		$9.30 1
18 675000372
COLLARD.20,5
D.20,5 		$1.88 1
19 675000658
SNAP HOSE CLAMP
ARRIVING SOON 		$7.22 1
21 673004769
TRANSMISSION OIL EXCHANGER AND PIPES KIT 		$489.70 1
22 675000191
SCREWM6X14
M6X14 		$2.52 2
23 675000565
WASHER 		$1.41 2
24 670034967
OIL HEAT EXCHANGER 		$249.16 1
25 670218189
OIL COOLING INLET PIPE 		$128.28 1
26 670218190
OIL COOLING OUTLET PIPE 		$135.45 1
27 670034963
UPPER BRACKET ASSEMBLY 		$13.22 1
29 675000565
WASHER 		$1.41 1
