WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS of Maserati Maserati 4200 Coupe (2005-2007) CC

View All

Maserati 4200 Coupe (2005-2007) CC - WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS

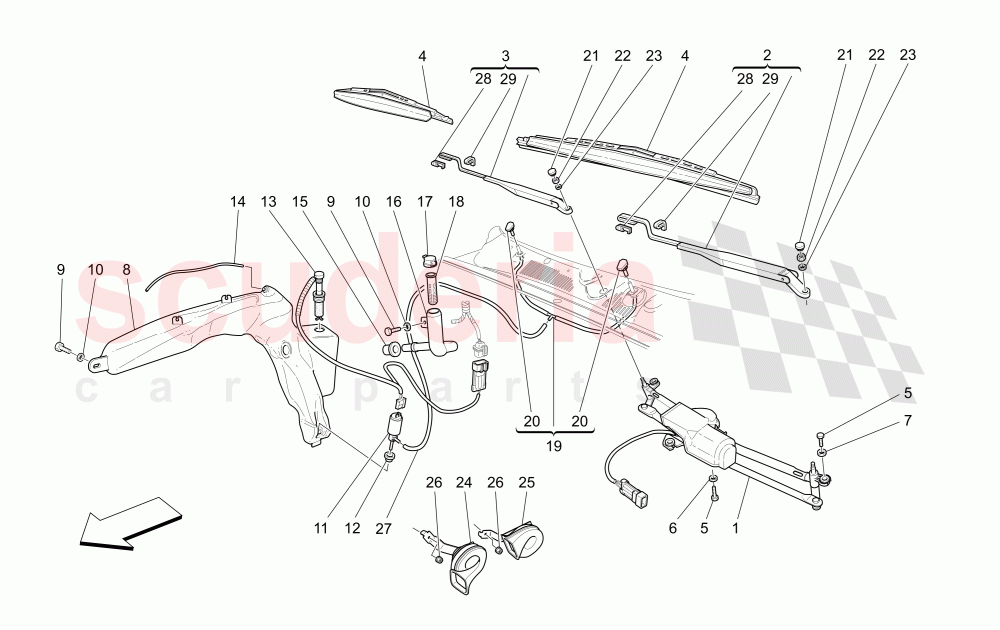

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	67115800	WINDSCREEN WIPER SET ASSEMBLY	Enquire	To Order
	67115900	WINDSCREEN WIPER SET ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66241400	DRIVER SIDE WINDSCREEN WIPER ARM	Enquire	To Order
	66665700	PASSENGER SIDE WINDSCREEN WIPER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66665800	DRIVER SIDE WINDSCREEN WIPER ARM	Enquire	To Order
	66241500	PASSENGER SIDE WINDSCREEN WIPER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66241600	Wiper Brush	Enquire	To Order
	66959000	WIPER BRUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13836424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648925	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10523424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980138310	WINDSHIELD WIPER HOUSING	Enquire	To Order
	66420800	WINDSHIELD WIPER HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	Washer 6.15-18x1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65358700	WINDSHIELD WASHER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65775100	GASKET FOR WASHER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190048	WIRING HARNESS WITH LEVEL SENSOR	Enquire	To Order
	187736	WIRING HARNESS WITH LEVEL SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66420900	VENT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65581700	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66421200	FILLING MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66421300	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66421400	FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66421600	COMPLETE JETS FOR WINDOW WASHING PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	94074166	JET FOR WINDOW WASHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	393350327	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHERD. 8,40-15X 0,8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	193124	HIGH TONE ELECTRO-MAGNETIC HORN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	193125	LOW TONE ELECTRO-MAGNETIC HORN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14054577	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67352500	PIPE CONNECTION PUMP TO JETS FOR WINDOW WASHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	383300500	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	383300299	WIPER ARM CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	67115800	WINDSCREEN WIPER SET ASSEMBLY	67115800 WINDSCREEN WIPER SET ASSEMBLY Not for RHD	-	1	Enquire
1	67115900	WINDSCREEN WIPER SET ASSEMBLY	67115900 WINDSCREEN WIPER SET ASSEMBLY Valid for RHD	-	1	Enquire
2	66241400	DRIVER SIDE WINDSCREEN WIPER ARM	66241400 DRIVER SIDE WINDSCREEN WIPER ARM Not for RHD	-	1	Enquire
2	66665700	PASSENGER SIDE WINDSCREEN WIPER ARM	66665700 PASSENGER SIDE WINDSCREEN WIPER ARM Valid for RHD	-	1	Enquire
3	66665800	DRIVER SIDE WINDSCREEN WIPER ARM	66665800 DRIVER SIDE WINDSCREEN WIPER ARM Valid for RHD	-	1	Enquire
3	66241500	PASSENGER SIDE WINDSCREEN WIPER ARM	66241500 PASSENGER SIDE WINDSCREEN WIPER ARM Not for RHD	-	1	Enquire
4	66241600	Wiper Brush	66241600 Wiper Brush Not for RHD	-	2	Enquire
4	66959000	WIPER BRUSH	66959000 WIPER BRUSH Valid for RHD	-	2	Enquire
5	13836424	SCREW	13836424 SCREW	-	3	Enquire
6	12648925	WASHER	12648925 WASHER D. 6.15-25X 2	-	1	Enquire
7	10523424	WASHER	10523424 WASHER	-	2	Enquire
8	980138310	WINDSHIELD WIPER HOUSING	980138310 WINDSHIELD WIPER HOUSING Optional- -Xeno Headlights and Headligts Washer	-	1	Enquire
8	66420800	WINDSHIELD WIPER HOUSING	66420800 WINDSHIELD WIPER HOUSING Standard	-	1	Enquire
9	10902224	SCREW	10902224 SCREW	-	3	Enquire
10	12643724	Washer 6.15-18x1.5	12643724 Washer 6.15-18x1.5	-	3	Enquire
11	65358700	WINDSHIELD WASHER PUMP	65358700 WINDSHIELD WASHER PUMP	-	1	Enquire
12	65775100	GASKET FOR WASHER PUMP	65775100 GASKET FOR WASHER PUMP	-	1	Enquire
13	190048	WIRING HARNESS WITH LEVEL SENSOR	190048 WIRING HARNESS WITH LEVEL SENSOR Standard	-	1	Enquire
13	187736	WIRING HARNESS WITH LEVEL SENSOR	187736 WIRING HARNESS WITH LEVEL SENSOR Optional- -Xeno Headlights and Headligts Washer	-	1	Enquire
14	66420900	VENT PIPE	66420900 VENT PIPE	-	1	Enquire
15	65581700	GASKET	65581700 GASKET	-	1	Enquire
16	66421200	FILLING MANIFOLD	66421200 FILLING MANIFOLD	-	1	Enquire
17	66421300	PLUG	66421300 PLUG	-	1	Enquire
18	66421400	FILTER	66421400 FILTER	-	1	Enquire
19	66421600	COMPLETE JETS FOR WINDOW WASHING PIPE	66421600 COMPLETE JETS FOR WINDOW WASHING PIPE	-	1	Enquire
20	94074166	JET FOR WINDOW WASHING	94074166 JET FOR WINDOW WASHING	-	2	Enquire
21	393350327	CAP	393350327 CAP	-	2	Enquire
22	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	2	Enquire
23	12601374	WASHERD. 8,40-15X 0,8	12601374 WASHERD. 8,40-15X 0,8	-	2	Enquire
24	193124	HIGH TONE ELECTRO-MAGNETIC HORN	193124 HIGH TONE ELECTRO-MAGNETIC HORN	-	1	Enquire
25	193125	LOW TONE ELECTRO-MAGNETIC HORN	193125 LOW TONE ELECTRO-MAGNETIC HORN	-	1	Enquire
26	14054577	NUT	14054577 NUT M6	-	2	Enquire
27	67352500	PIPE CONNECTION PUMP TO JETS FOR WINDOW WASHING	67352500 PIPE CONNECTION PUMP TO JETS FOR WINDOW WASHING	-	1	Enquire
28	383300500	CLIP	383300500 CLIP	-	2	Enquire
29	383300299	WIPER ARM CLIP	383300299 WIPER ARM CLIP	-	2	Enquire
