Name: BODYWORK AND REAR OUTER TRIM PANELS
Rating: 4.1 (1 reviews)

BODYWORK AND REAR OUTER TRIM PANELS of Maserati Maserati 4200 Coupe (2005-2007) GT

View All

Maserati 4200 Coupe (2005-2007) GT - BODYWORK AND REAR OUTER TRIM PANELS

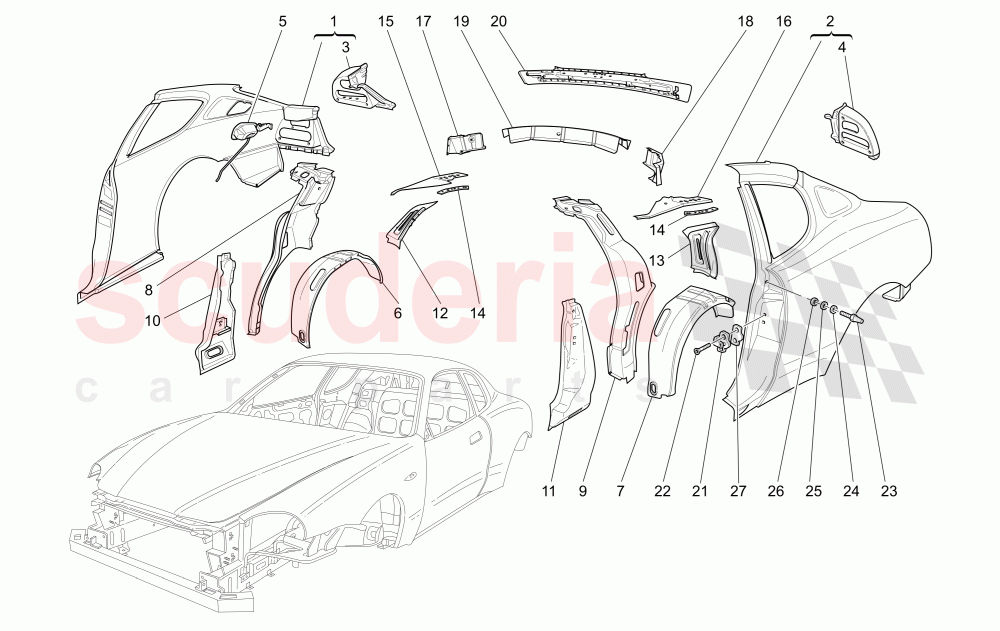

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	980138016	CPL. RH. REAR MUDGUARD	$7,931.32	To Order

Photo	Part No	Description	Price (each)	Stock
	980138015	CPL. LH. REAR MUDGUARD	$7,931.32	To Order

Photo	Part No	Description	Price (each)	Stock
	980138022	R.H. REAR LIGHT FRAME	$1,952.96	To Order

Photo	Part No	Description	Price (each)	Stock
	980138021	L.H. REAR LIGHT FRAME	$1,952.96	To Order

Photo	Part No	Description	Price (each)	Stock
	382500051	COMPLETE FUEL UNION SEAT	$446.41	To Order

Photo	Part No	Description	Price (each)	Stock
	382500406	RH. OUTER REAR WHEEL BOX	$1,799.99	To Order

Photo	Part No	Description	Price (each)	Stock
	382500405	LH. OUTER REAR WHEEL BOX	$1,799.99	To Order

Photo	Part No	Description	Price (each)	Stock
	382500404	R.H. INNER LATERAL FRAME	$342.48	To Order

Photo	Part No	Description	Price (each)	Stock
	382500403	L.H. INNER LATERAL FRAME	$342.48	To Order

Photo	Part No	Description	Price (each)	Stock
	980138014	R.H. CENTRAL ROD	$340.96	To Order

Photo	Part No	Description	Price (each)	Stock
	980138013	L.H. CENTRAL ROD	$340.96	To Order

Photo	Part No	Description	Price (each)	Stock
	382500412	INSERT FOR R.H. REAR INNER SIDE	$42.25	To Order

Photo	Part No	Description	Price (each)	Stock
	382500411	INSERT FOR L.H. REAR INNER SIDE	$45.68	To Order

Photo	Part No	Description	Price (each)	Stock
	82431114	COMPLETE PLATE	$1.71	To Order

Photo	Part No	Description	Price (each)	Stock
	382500382	R.H. REINFORCEMENT FOR TRUNK HOOD HINGE FIXING	$48.09	To Order

Photo	Part No	Description	Price (each)	Stock
	382500381	L.H. REINFORCEMENT FOR TRUNK HOOD HINGE FIXING	$48.09	To Order

Photo	Part No	Description	Price (each)	Stock
	382500392	R.H. LATERAL INSERT FOR UNDER REAR-WINDOW CROSSPIECE	$31.38	To Order

Photo	Part No	Description	Price (each)	Stock
	382500391	L.H. LATERAL INSERT FOR UNDER REAR-WINDOW CROSSPIECE	$419.99	To Order

Photo	Part No	Description	Price (each)	Stock
	382500380	BOOT COMPARTMENT CENTRAL CABLE GUIDE	$200.12	To Order

Photo	Part No	Description	Price (each)	Stock
	66499200	REAR CROSS MEMBER ASSEMBLY	$1,692.12	To Order

Photo	Part No	Description	Price (each)	Stock
	82487460	DOORS LOCK STRIKER	$12.52	To Order

Photo	Part No	Description	Price (each)	Stock
	7789185	SPECIAL SCREW	$2.42	To Order

Photo	Part No	Description	Price (each)	Stock
	60593447	CENTERING PIN	$67.30	To Order

Photo	Part No	Description	Price (each)	Stock
	12646707	WASHER	$1.57	To Order

Photo	Part No	Description	Price (each)	Stock
	12647004	WASHER	$2.00	To Order

Photo	Part No	Description	Price (each)	Stock
	60623675	THREADED BUSHING	$5.27	To Order

Photo	Part No	Description	Price (each)	Stock
	67235900	SHIM	$5.96	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	980138016	CPL. RH. REAR MUDGUARD	980138016 CPL. RH. REAR MUDGUARD	$7,931.32	1
2	980138015	CPL. LH. REAR MUDGUARD	980138015 CPL. LH. REAR MUDGUARD	$7,931.32	1
3	980138022	R.H. REAR LIGHT FRAME	980138022 R.H. REAR LIGHT FRAME	$1,952.96	1
4	980138021	L.H. REAR LIGHT FRAME	980138021 L.H. REAR LIGHT FRAME	$1,952.96	1
5	382500051	COMPLETE FUEL UNION SEAT	382500051 COMPLETE FUEL UNION SEAT	$446.41	1
6	382500406	RH. OUTER REAR WHEEL BOX	382500406 RH. OUTER REAR WHEEL BOX	$1,799.99	1
7	382500405	LH. OUTER REAR WHEEL BOX	382500405 LH. OUTER REAR WHEEL BOX	$1,799.99	1
8	382500404	R.H. INNER LATERAL FRAME	382500404 R.H. INNER LATERAL FRAME	$342.48	1
9	382500403	L.H. INNER LATERAL FRAME	382500403 L.H. INNER LATERAL FRAME	$342.48	1
10	980138014	R.H. CENTRAL ROD	980138014 R.H. CENTRAL ROD	$340.96	1
11	980138013	L.H. CENTRAL ROD	980138013 L.H. CENTRAL ROD	$340.96	1
12	382500412	INSERT FOR R.H. REAR INNER SIDE	382500412 INSERT FOR R.H. REAR INNER SIDE	$42.25	1
13	382500411	INSERT FOR L.H. REAR INNER SIDE	382500411 INSERT FOR L.H. REAR INNER SIDE	$45.68	1
14	82431114	COMPLETE PLATE	82431114 COMPLETE PLATE	$1.71	2
15	382500382	R.H. REINFORCEMENT FOR TRUNK HOOD HINGE FIXING	382500382 R.H. REINFORCEMENT FOR TRUNK HOOD HINGE FIXING	$48.09	1
16	382500381	L.H. REINFORCEMENT FOR TRUNK HOOD HINGE FIXING	382500381 L.H. REINFORCEMENT FOR TRUNK HOOD HINGE FIXING	$48.09	1
17	382500392	R.H. LATERAL INSERT FOR UNDER REAR-WINDOW CROSSPIECE	382500392 R.H. LATERAL INSERT FOR UNDER REAR-WINDOW CROSSPIECE	$31.38	1
18	382500391	L.H. LATERAL INSERT FOR UNDER REAR-WINDOW CROSSPIECE	382500391 L.H. LATERAL INSERT FOR UNDER REAR-WINDOW CROSSPIECE	$419.99	1
19	382500380	BOOT COMPARTMENT CENTRAL CABLE GUIDE	382500380 BOOT COMPARTMENT CENTRAL CABLE GUIDE	$200.12	1
20	66499200	REAR CROSS MEMBER ASSEMBLY	66499200 REAR CROSS MEMBER ASSEMBLY	$1,692.12	1
21	82487460	DOORS LOCK STRIKER	82487460 DOORS LOCK STRIKER	$12.52	2
22	7789185	SPECIAL SCREW	7789185 SPECIAL SCREW	$2.42	4
23	60593447	CENTERING PIN	60593447 CENTERING PIN	$67.30	2
24	12646707	WASHER	12646707 WASHER	$1.57	2
25	12647004	WASHER	12647004 WASHER	$2.00	2
26	60623675	THREADED BUSHING	60623675 THREADED BUSHING	$5.27	2
27	67235900	SHIM	67235900 SHIM Possible fitting	$5.96	-

Bodywork And Rear Outer Trim Panels

Maserati 4200 Coupe (2005-2007) GT

Maserati 4200 Coupe (2005-2007) GT - BODYWORK AND REAR OUTER TRIM PANELS
