Name: BODYWORK AND FRONT OUTER TRIM PANELS
Rating: 4.1 (1 reviews)

BODYWORK AND FRONT OUTER TRIM PANELS of Maserati Maserati 4200 Coupe (2002-2004) GT

View All

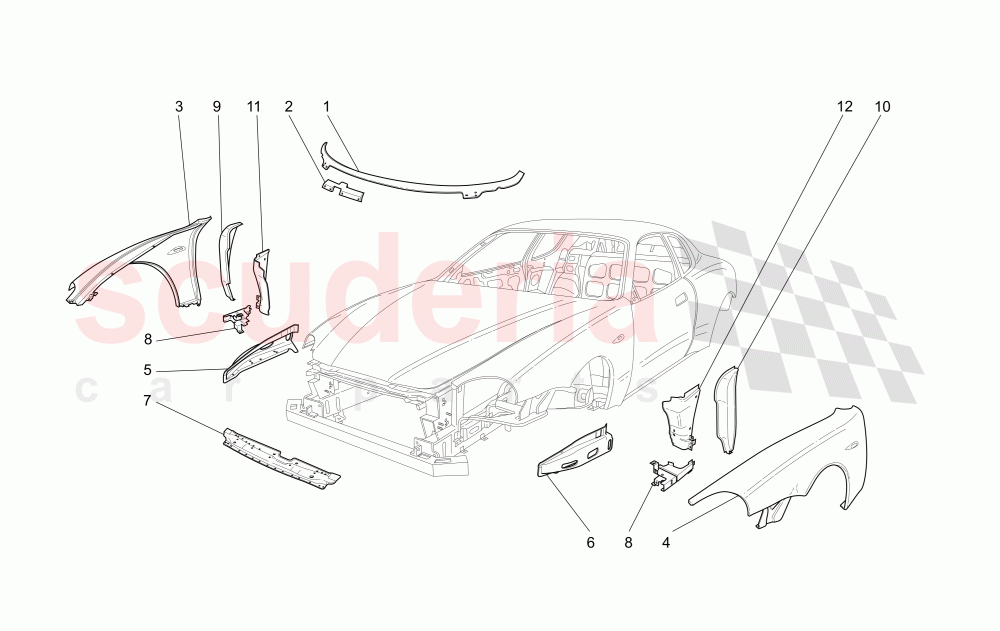

Maserati 4200 Coupe (2002-2004) GT - BODYWORK AND FRONT OUTER TRIM PANELS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	66736500	COMPLETE UNDERWINDSCREEN FRAME	$379.20	To Order

Photo	Part No	Description	Price (each)	Stock
	66414000	SHIELD FOR WATER FIXING PLATE	$32.45	To Order
	66726500	SHIELD FOR WATER FIXING PLATE	$32.45	To Order

Photo	Part No	Description	Price (each)	Stock
	66605500	FRONT RH MUDGUARD ASSEMBLY	$2,970.67	To Order
	67813700	FRONT RH MUDGUARD ASSEMBLY	$1,345.12	To Order

Photo	Part No	Description	Price (each)	Stock
	65966900	FRONT LH MUDGUARD ASSEMBLY	$3,053.18	To Order
	67813800	FRONT LH MUDGUARD ASSEMBLY	$2,461.81	To Order

Photo	Part No	Description	Price (each)	Stock
	67236200	R.H. COMPLETE FRONT STRUT	$1,517.33	To Order

Photo	Part No	Description	Price (each)	Stock
	67236300	L.H. COMPLETE FRONT STRUT	$1,517.33	To Order

Photo	Part No	Description	Price (each)	Stock
	980001047	COMPLETE FRONT CROSS MEMBER	$803.80	To Order

Photo	Part No	Description	Price (each)	Stock
	66247000	BRACKET FOR LONGITUDINAL MEMBER	$239.75	To Order

Photo	Part No	Description	Price (each)	Stock
	382500308	FRONT RH MUDGUARD CONNECTION	$251.89	To Order

Photo	Part No	Description	Price (each)	Stock
	382500307	FRONT LH MUDGUARD CONNECTION	$218.79	To Order

Photo	Part No	Description	Price (each)	Stock
	980001174	COMPLETE R.H. FRONT ROD REINFORCEMENT	$462.18	To Order

Photo	Part No	Description	Price (each)	Stock
	980001173	COMPLETE L.H. FRONT ROD REINFORCEMENT	$492.62	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	1001961	SOUNDPROOFING KIT	1001961 SOUNDPROOFING KIT Valid for F1- -Valid for RHD	$1,520.48	1
-	1001958	SOUNDPROOFING KIT	1001958 SOUNDPROOFING KIT Not for F1- -Not for RHD	$1,351.95	1
-	1001959	SOUNDPROOFING KIT	1001959 SOUNDPROOFING KIT Not for F1- -Valid for RHD	$1,270.65	1
-	1001960	SOUNDPROOFING KIT	1001960 SOUNDPROOFING KIT Valid for F1- -Not for RHD	$1,423.12	1
1	66736500	COMPLETE UNDERWINDSCREEN FRAME	66736500 COMPLETE UNDERWINDSCREEN FRAME	$379.20	1
2	66414000	SHIELD FOR WATER FIXING PLATE	66414000 SHIELD FOR WATER FIXING PLATE Not for RHD	$32.45	1
2	66726500	SHIELD FOR WATER FIXING PLATE	66726500 SHIELD FOR WATER FIXING PLATE Valid for RHD	$32.45	1
3	66605500	FRONT RH MUDGUARD ASSEMBLY	66605500 FRONT RH MUDGUARD ASSEMBLY Standard	$2,970.67	1
3	67813700	FRONT RH MUDGUARD ASSEMBLY	67813700 FRONT RH MUDGUARD ASSEMBLY Optional- -Vintage version	$1,345.12	1
4	65966900	FRONT LH MUDGUARD ASSEMBLY	65966900 FRONT LH MUDGUARD ASSEMBLY Standard	$3,053.18	1
4	67813800	FRONT LH MUDGUARD ASSEMBLY	67813800 FRONT LH MUDGUARD ASSEMBLY Optional- -Vintage version	$2,461.81	1
5	67236200	R.H. COMPLETE FRONT STRUT	67236200 R.H. COMPLETE FRONT STRUT	$1,517.33	1
6	67236300	L.H. COMPLETE FRONT STRUT	67236300 L.H. COMPLETE FRONT STRUT	$1,517.33	1
7	980001047	COMPLETE FRONT CROSS MEMBER	980001047 COMPLETE FRONT CROSS MEMBER	$803.80	1
8	66247000	BRACKET FOR LONGITUDINAL MEMBER	66247000 BRACKET FOR LONGITUDINAL MEMBER	$239.75	2
9	382500308	FRONT RH MUDGUARD CONNECTION	382500308 FRONT RH MUDGUARD CONNECTION	$251.89	1
10	382500307	FRONT LH MUDGUARD CONNECTION	382500307 FRONT LH MUDGUARD CONNECTION	$218.79	1
11	980001174	COMPLETE R.H. FRONT ROD REINFORCEMENT	980001174 COMPLETE R.H. FRONT ROD REINFORCEMENT	$462.18	1
12	980001173	COMPLETE L.H. FRONT ROD REINFORCEMENT	980001173 COMPLETE L.H. FRONT ROD REINFORCEMENT	$492.62	1
