POWER STEERING SYSTEM of Maserati Maserati 3200 GT / Assetto Corsa

View All

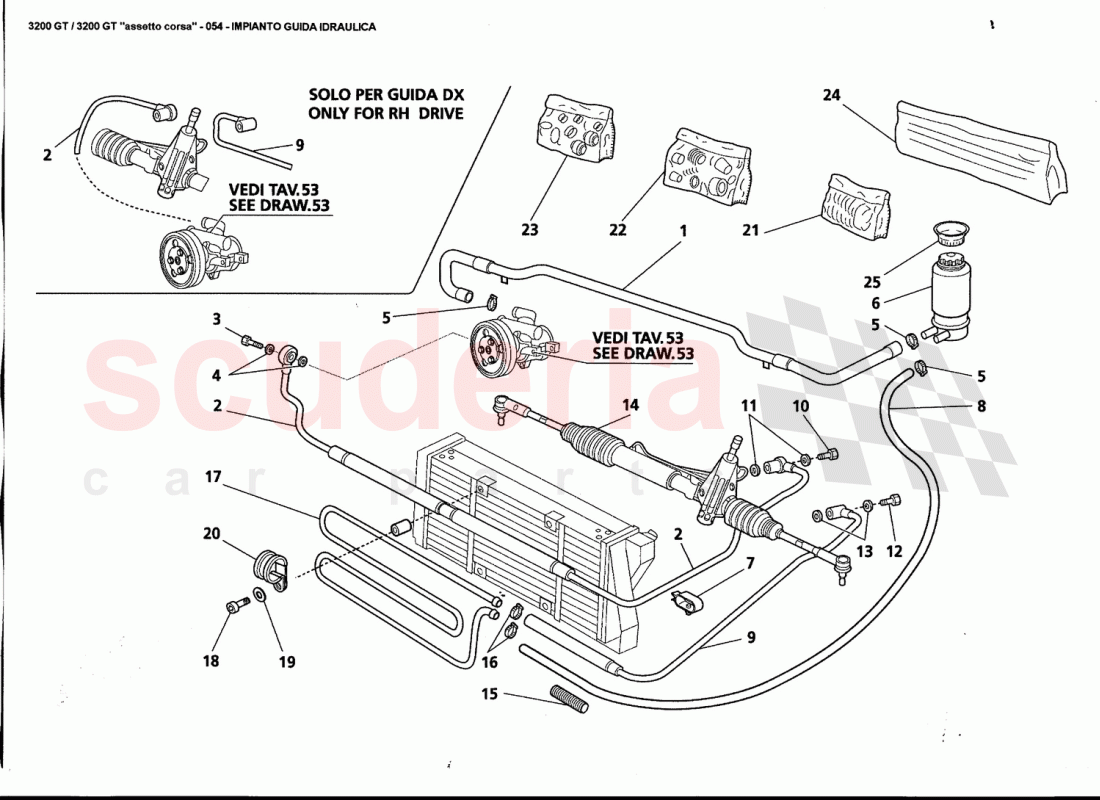

Maserati 3200 GT / Assetto Corsa - POWER STEERING SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	387800370	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	387810207	SLEEVE	Enquire	To Order
	387800207	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	387800390	UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	311855316	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	374091381	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	377896130	POWER STEERING OIL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177805	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	387800636	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	387810612	SLEEVE	Enquire	To Order
	387800612	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	387800380	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10261260	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	387800387	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10298460	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	387800226	POWER STEERING BOX	Enquire	To Order
	189274	POWER STEERING BOX	Enquire	To Order
	387810225	POWER STEERING BOX	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	338700332	CURRUGATED PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	317832389	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	387800618	POWER STEERING OIL RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14440724	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	377492352	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980001706	Ball Joint Replacement Kit for Steering Rack	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980001707	Gaitor Kit (Steering Rack)	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	980000971	OIL UNIONS AND TUBES REPL. KIT	Enquire	To Order
	980000970	OIL UNIONS AND TUBES REPL. KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980001705	TIE ROD REPLACEMENT KIT FOR STEERING RACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179301	RING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	387800370	SLEEVE	387800370 SLEEVE	-	1	Enquire
2	387810207	SLEEVE	387810207 SLEEVE Only GD	-	1	Enquire
2	387800207	SLEEVE	387800207 SLEEVE Only GS	-	1	Enquire
3	387800390	UNION	387800390 UNION Only GS	-	1	Enquire
4	311855316	GASKET	311855316 GASKET Only GS	-	2	Enquire
5	374091381	CLAMP	374091381 CLAMP	-	3	Enquire
6	377896130	POWER STEERING OIL TANK	377896130 POWER STEERING OIL TANK	-	1	Enquire
7	177805	CLIP	177805 CLIP	-	2	Enquire
8	387800636	SLEEVE	387800636 SLEEVE	-	1	Enquire
9	387810612	SLEEVE	387810612 SLEEVE Only GD	-	1	Enquire
9	387800612	SLEEVE	387800612 SLEEVE Only GS	-	1	Enquire
10	387800380	SCREW	387800380 SCREW	-	1	Enquire
11	10261260	GASKET	10261260 GASKET	-	2	Enquire
12	387800387	SCREW	387800387 SCREW	-	1	Enquire
13	10298460	Gasket	10298460 Gasket Only GS	-	2	Enquire
14	387800226	POWER STEERING BOX	387800226 POWER STEERING BOX Only GS / Standard	-	1	Enquire
14	189274	POWER STEERING BOX	189274 POWER STEERING BOX Only GS / Optional / Racing trim	-	1	Enquire
14	387810225	POWER STEERING BOX	387810225 POWER STEERING BOX Only GD / Standard	-	1	Enquire
14	189288	POWER STEERING BOX	189288 POWER STEERING BOX Only GD / Optional / Racing trim	-	1	Enquire
15	338700332	CURRUGATED PIPE	338700332 CURRUGATED PIPE Section in meters: order minimum amount of 1 m or multiples	-	-	Enquire
16	317832389	CLAMP	317832389 CLAMP	-	2	Enquire
17	387800618	POWER STEERING OIL RADIATOR	387800618 POWER STEERING OIL RADIATOR	-	1	Enquire
18	14440724	SCREW	14440724 SCREW	-	4	Enquire
19	12638124	WASHER	12638124 WASHER	-	4	Enquire
20	377492352	CLAMP	377492352 CLAMP	-	4	Enquire
21	980001706	Ball Joint Replacement Kit for Steering Rack	980001706 Ball Joint Replacement Kit for Steering Rack	-	2	Enquire
22	980001707	Gaitor Kit (Steering Rack) ARRIVING SOON	980001707 Gaitor Kit (Steering Rack) ARRIVING SOON	-	1	Enquire
23	980000971	OIL UNIONS AND TUBES REPL. KIT	980000971 OIL UNIONS AND TUBES REPL. KIT Only GD	-	1	Enquire
23	980000970	OIL UNIONS AND TUBES REPL. KIT	980000970 OIL UNIONS AND TUBES REPL. KIT Only GS	-	1	Enquire
24	980001705	TIE ROD REPLACEMENT KIT FOR STEERING RACK	980001705 TIE ROD REPLACEMENT KIT FOR STEERING RACK	-	2	Enquire
25	179301	RING	179301 RING	-	2	Enquire
