Name: UNDERBODY TRIM
Rating: 4.5 (1 reviews)

UNDERBODY TRIM of Lamborghini Lamborghini Urus Performante

View All

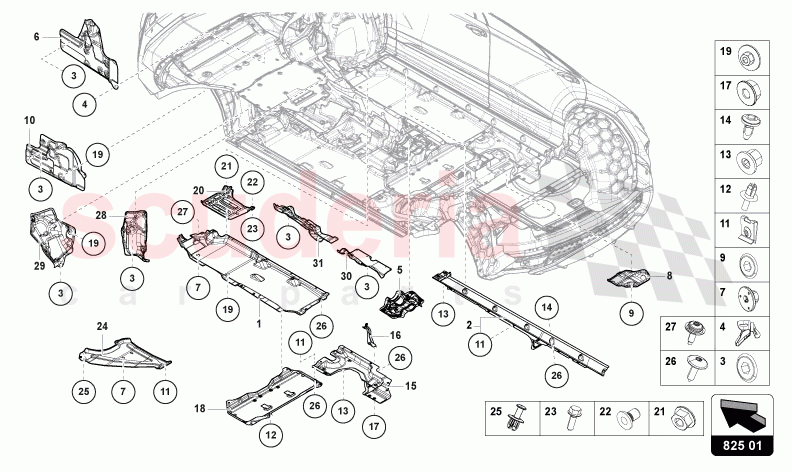

Lamborghini Urus Performante - UNDERBODY TRIM (825.01.00)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4M0825205AA	UNDERBODY TRIM	$114.52	To Order
	4M0825206P	UNDERBODY TRIM	$113.45	To Order

Photo	Part No	Description	Price (each)	Stock
	4M8825211	UNDERBODY TRIM	$44.50	To Order
	4M8825212	UNDERBODY TRIM	$44.50	To Order

Photo	Part No	Description	Price (each)	Stock
	N90708803	SPEED NUT	$0.77	To Order

Photo	Part No	Description	Price (each)	Stock
	4H0804535	SEAL	$1.10	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT003207	HEXAGON PLASTIC COLLAR NUT	$1.87	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0825725D	HEAT SHELF FOR CENTRE SILENCER	$21.65	To Order

Photo	Part No	Description	Price (each)	Stock
	N90708803	SPEED NUT	$0.77	To Order

Photo	Part No	Description	Price (each)	Stock
	N10433701	SPEED NUT	$1.37	To Order

Photo	Part No	Description	Price (each)	Stock
	N0385494	SPREADER RIVET	$0.33	To Order

Photo	Part No	Description	Price (each)	Stock
	N90495301	HEXAGON NUT	$1.68	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT005453	EXPANDING NUT	$0.76	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0825213J	UNDERBODY TRIM	$49.74	To Order
	4M0825214J	UNDERBODY TRIM	$49.74	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0825343B	BRACKET	$12.84	To Order
	4M0825343C	BRACKET	$79.96	To Order

Photo	Part No	Description	Price (each)	Stock
	N01508210	HEXAGON COLLAR NUT	$1.96	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0804033J	COVER	$183.47	To Order

Photo	Part No	Description	Price (each)	Stock
	N90714303	HEX. NUT WITH WASHER	$2.23	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0825912	GUARD PLATE	$162.63	To Order

Photo	Part No	Description	Price (each)	Stock
	N10609201	HEXAGON COLLAR NUT	$0.43	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT004907	RIVETTED CAP NUT	$2.08	To Order

Photo	Part No	Description	Price (each)	Stock
	N10642101	HEX COLLARED BOLT	$0.95	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0825219F	UNDERBODY TRIM	$26.89	To Order

Photo	Part No	Description	Price (each)	Stock
	8K0501329	SPREADER RIVET	$2.69	To Order

Photo	Part No	Description	Price (each)	Stock
	N90974701	HEXAGON SOCKET HEAD PANEL BOLT	$1.00	To Order

Photo	Part No	Description	Price (each)	Stock
	1K0825951	HEXAGON SOCKET FLAT HEAD BOLT, SELF-LOCKING	$2.84	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0825691F	HEAT SHIELD FOR TUNNEL	$36.28	To Order
	4M0825692D	HEAT SHIELD FOR TUNNEL	$36.28	To Order
	4M0825692H	HEAT SHIELD FOR TUNNEL	$36.28	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0825662J	HEAT SHIELD FOR TUNNEL	$42.89	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	4M0825205AA	UNDERBODY TRIM	4M0825205AA UNDERBODY TRIM LEFT	$114.52	1
1	4M0825206P	UNDERBODY TRIM	4M0825206P UNDERBODY TRIM RIGHT	$113.45	1
2	4M8825211	UNDERBODY TRIM	4M8825211 UNDERBODY TRIM LEFT	$44.50	1
2	4M8825212	UNDERBODY TRIM	4M8825212 UNDERBODY TRIM RIGHT	$44.50	1
3	N90708803	SPEED NUT	N90708803 SPEED NUT	$0.77 MSRP: ~~7.28~~ (89.4% off)	1
5	4H0804535	SEAL	4H0804535 SEAL	$1.10	2
7	WHT003207	HEXAGON PLASTIC COLLAR NUT	WHT003207 HEXAGON PLASTIC COLLAR NUT T5	$1.87 MSRP: ~~7.32~~ (74.5% off)	23
8	4M0825725D	HEAT SHELF FOR CENTRE SILENCER	4M0825725D HEAT SHELF FOR CENTRE SILENCER 0E20K01A2	$21.65	1
9	N90708803	SPEED NUT	N90708803 SPEED NUT 5	$0.77 MSRP: ~~7.28~~ (89.4% off)	1
11	N10433701	SPEED NUT	N10433701 SPEED NUT 4 -8X18,6X16	$1.37	17
12	N0385494	SPREADER RIVET	N0385494 SPREADER RIVET 8X12	$0.33	4
13	N90495301	HEXAGON NUT	N90495301 HEXAGON NUT 4.1	$1.68	6
14	WHT005453	EXPANDING NUT	WHT005453 EXPANDING NUT 5X15 -3	$0.76	10
15	4M0825213J	UNDERBODY TRIM	4M0825213J UNDERBODY TRIM LEFT	$49.74	1
15	4M0825214J	UNDERBODY TRIM	4M0825214J UNDERBODY TRIM RIGHT	$49.74	1
16	4M0825343B	BRACKET	4M0825343B BRACKET FROM VIN KLA02579-LEFT	$12.84	1
16	4M0825343C	BRACKET	4M0825343C BRACKET UNTIL VIN KLA02578-LEFT	$79.96	1
17	N01508210	HEXAGON COLLAR NUT	N01508210 HEXAGON COLLAR NUT M6	$1.96	1
18	4M0804033J	COVER	4M0804033J COVER	$183.47	1
19	N90714303	HEX. NUT WITH WASHER	N90714303 HEX. NUT WITH WASHER M6	$2.23	3
20	4M0825912	GUARD PLATE	4M0825912 GUARD PLATE	$162.63	1
21	N10609201	HEXAGON COLLAR NUT	N10609201 HEXAGON COLLAR NUT M8	$0.43 MSRP: ~~7.34~~ (94.1% off)	4
22	WHT004907	RIVETTED CAP NUT	WHT004907 RIVETTED CAP NUT M8	$2.08	2
23	N10642101	HEX COLLARED BOLT	N10642101 HEX COLLARED BOLT M8X25	$0.95 MSRP: ~~7.12~~ (86.7% off)	4
24	4M0825219F	UNDERBODY TRIM	4M0825219F UNDERBODY TRIM RIGHT REAR	$26.89	1
25	8K0501329	SPREADER RIVET	8K0501329 SPREADER RIVET	$2.69	1
26	N90974701	HEXAGON SOCKET HEAD PANEL BOLT	N90974701 HEXAGON SOCKET HEAD PANEL BOLT 5X16	$1.00 MSRP: ~~7.35~~ (86.4% off)	36
27	1K0825951	HEXAGON SOCKET FLAT HEAD BOLT, SELF-LOCKING	1K0825951 HEXAGON SOCKET FLAT HEAD BOLT, SELF-LOCKING M6X20	$2.84	4
30	4M0825691F	HEAT SHIELD FOR TUNNEL	4M0825691F HEAT SHIELD FOR TUNNEL LEFT REAR	$36.28	1
30	4M0825692D	HEAT SHIELD FOR TUNNEL	4M0825692D HEAT SHIELD FOR TUNNEL RIGHT REAR	$36.28	1
30	4M0825692H	HEAT SHIELD FOR TUNNEL	4M0825692H HEAT SHIELD FOR TUNNEL RIGHT REAR	$36.28	1
31	4M0825662J	HEAT SHIELD FOR TUNNEL	4M0825662J HEAT SHIELD FOR TUNNEL RIGHT	$42.89	1
