Name: BONNET
Rating: 5.0 (1 reviews)

View All

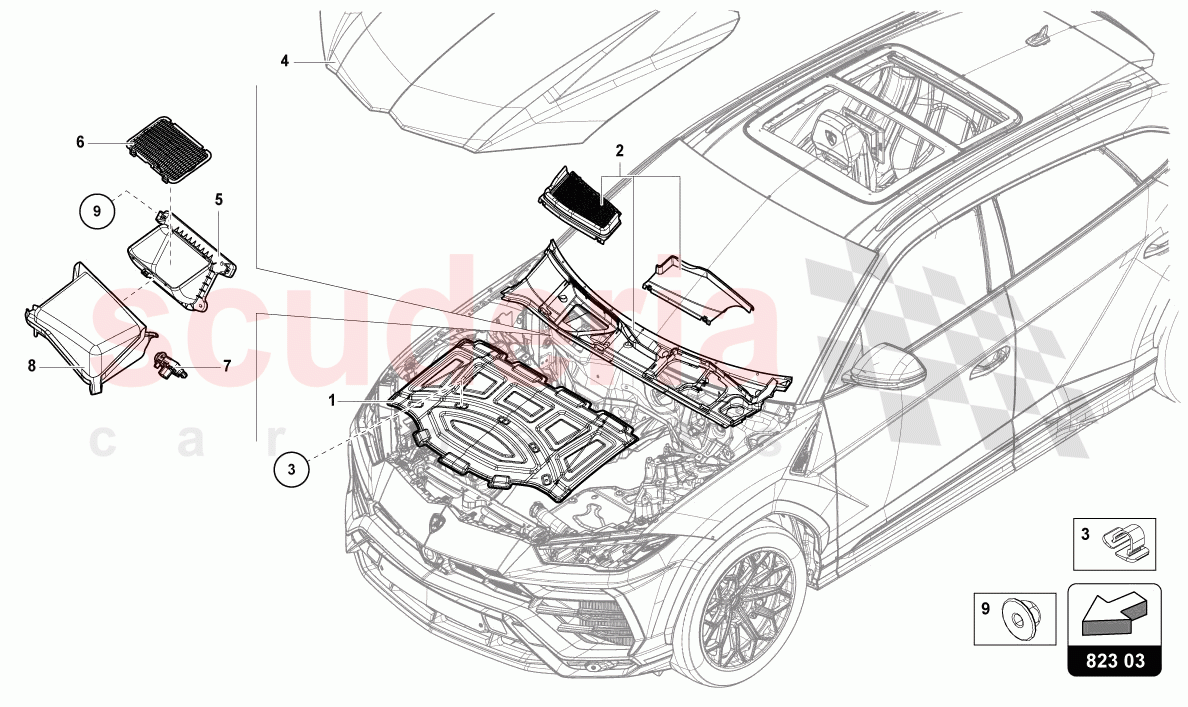

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4ML863825	SOUND ABS. FOR ENGINE BONNET	$145.17	To Order

Photo	Part No	Description	Price (each)	Stock
	8E0863727A	RETAINING CLIP	$0.40	To Order

Photo	Part No	Description	Price (each)	Stock
	4G0907658C	AIR HUMIDITY SENSOR	$160.61	To Order
	4H0907658C	SENSOR FOR AIR QUALITY AND AIR HUMIDITY	$172.72	To Order

Photo	Part No	Description	Price (each)	Stock
	N90887703	HEXAGON FLANGE NUT, SELF-LOCKING	$2.15	To Order
	N91237801	HEXAGON SOCKET HEAD PANEL BOLT	$0.97	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	4ML863825	SOUND ABS. FOR ENGINE BONNET	4ML863825 SOUND ABS. FOR ENGINE BONNET	$145.17	1
2	4M8819401C	PLENUM PANEL COVER	4M8819401C PLENUM PANEL COVER LHD	$80.79	1
2	4M8819401D	COVER	4M8819401D COVER RHD	$78.22	1
3	8E0863727A	RETAINING CLIP	8E0863727A RETAINING CLIP	$0.40	5
5	4M1819904B	INTAKE MANIFOLD	4M1819904B INTAKE MANIFOLD LHD	$40.41	1
5	4M2819904B	INTAKE MANIFOLD	4M2819904B INTAKE MANIFOLD RHD	$40.41	1
6	4M1819408A	FOLIAGE GRILLE	4M1819408A FOLIAGE GRILLE LHD	$20.71	1
6	4M2819408A	FOLIAGE GRILLE	4M2819408A FOLIAGE GRILLE RHD	$20.71	1
7	4G0907658C	AIR HUMIDITY SENSOR	4G0907658C AIR HUMIDITY SENSOR	$160.61	1
7	4H0907658C	SENSOR FOR AIR QUALITY AND AIR HUMIDITY	4H0907658C SENSOR FOR AIR QUALITY AND AIR HUMIDITY	$172.72	1
8	4M1819979B	RAIN CHANNEL	4M1819979B RAIN CHANNEL LHD	$48.00	1
8	4M2819979B	RAIN CHANNEL	4M2819979B RAIN CHANNEL RHD	$48.00	1
9	N90887703	HEXAGON FLANGE NUT, SELF-LOCKING	N90887703 HEXAGON FLANGE NUT, SELF-LOCKING M6	$2.15 MSRP: ~~7.33~~ (70.7% off)	4
9	N91237801	HEXAGON SOCKET HEAD PANEL BOLT	N91237801 HEXAGON SOCKET HEAD PANEL BOLT 6X18 -5	$0.97	4
