Name: UNDERBODY REAR
Rating: 4.3 (1 reviews)

View All

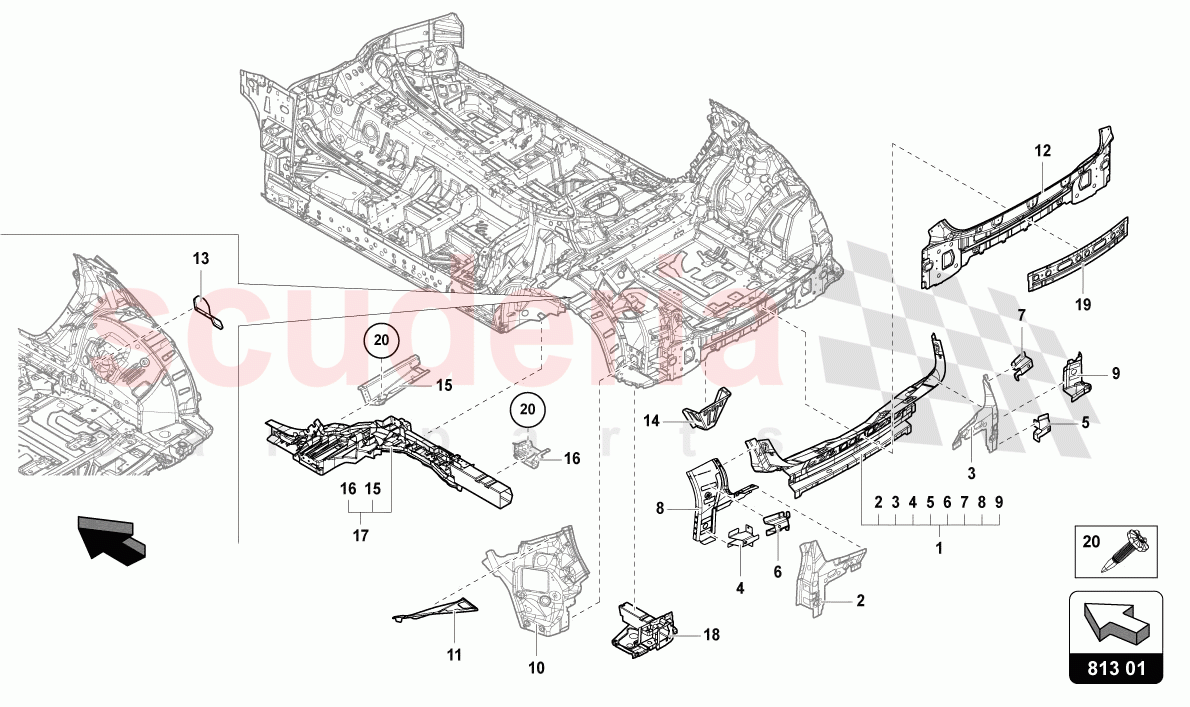

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4M8813253C	REINFORCEMENT	$426.08	To Order

Photo	Part No	Description	Price (each)	Stock
	4M6814307	PARTITION	$28.11	To Order

Photo	Part No	Description	Price (each)	Stock
	4M6814308	PARTITION	$28.11	To Order

Photo	Part No	Description	Price (each)	Stock
	4M8813401A	PARTITION	$40.96	To Order

Photo	Part No	Description	Price (each)	Stock
	4M8813402A	PARTITION	$40.96	To Order

Photo	Part No	Description	Price (each)	Stock
	4M6813393	CONNECTING PLATE	$26.61	To Order

Photo	Part No	Description	Price (each)	Stock
	4M6813394	CONNECTING PLATE	$26.61	To Order

Photo	Part No	Description	Price (each)	Stock
	4M8813303B	PLATE	$870.98	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0813241	STOP	$3.51	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0813314D	SUPPORT	$66.00	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0813625D	CROSS MEMBER	$181.45	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT007093	FLOW DRILL SCREW	$1.55	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4M8813253C	REINFORCEMENT	4M8813253C REINFORCEMENT REAR	$426.08	1
4	4M6814307	PARTITION	4M6814307 PARTITION LEFT	$28.11	1
5	4M6814308	PARTITION	4M6814308 PARTITION RIGHT	$28.11	1
6	4M8813401A	PARTITION	4M8813401A PARTITION LEFT	$40.96	1
7	4M8813402A	PARTITION	4M8813402A PARTITION RIGHT	$40.96	1
8	4M6813393	CONNECTING PLATE	4M6813393 CONNECTING PLATE LEFT	$26.61	1
9	4M6813394	CONNECTING PLATE	4M6813394 CONNECTING PLATE RIGHT	$26.61	1
11	4ML813327A	MOUNTING PLATE	4ML813327A MOUNTING PLATE LEFT REAR	$682.80	1
11	4ML813328A	MOUNTING PLATE	4ML813328A MOUNTING PLATE RIGHT REAR	$682.80	1
12	4M8813303B	PLATE	4M8813303B PLATE REAR	$870.98	1
13	4M0813241	STOP	4M0813241 STOP	$3.51	1
14	4M0813314D	SUPPORT	4M0813314D SUPPORT	$66.00	1
17	4M6813569A	SIDE MEMBER	4M6813569A SIDE MEMBER LEFT REAR	-	1	Enquire
17	4M6813570A	SIDE MEMBER	4M6813570A SIDE MEMBER RIGHT REAR	$1,733.87	1
18	4M6813703A	SIDE MEMBER	4M6813703A SIDE MEMBER LEFT REAR	$606.18	1
18	4M6813704A	SIDE MEMBER	4M6813704A SIDE MEMBER RIGHT REAR	$606.18	1
19	4M0813625D	CROSS MEMBER	4M0813625D CROSS MEMBER REAR	$181.45	1
20	WHT007093	FLOW DRILL SCREW	WHT007093 FLOW DRILL SCREW M5X25	$1.55	26
