Fixed-Calliper Brake Front

Lamborghini Urus Performante

Illustration Number: 615.01.00

Find Your Part

Lamborghini Urus Performante - FIXED-CALLIPER BRAKE FRONT (615.01.00)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4M0615105EQ BRAKE CALIPER HOUSING Enquire To Order
4M0615105GF BRAKE CALIPER HOUSING Enquire To Order
4M0615105GH BRAKE CALIPER HOUSING Enquire To Order
...and 13 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
971698121 BREATHER VALVE Enquire To Order
Photo Part No Description Price (each) Stock
4M0615301BQ CERAMIC BRAKE DISC (VENTED) Enquire To Order
4M0615301BR CERAMIC BRAKE DISC (VENTED) Enquire To Order
4M0615302M CERAMIC BRAKE DISC (VENTED) Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4M0615311N COVER PLATE FOR BRAKE DISC Enquire To Order
4M0615312N COVER PLATE FOR BRAKE DISC Enquire To Order
Photo Part No Description Price (each) Stock
4M0698151BQ SET OF BRAKE PADS Enquire To Order
4M0698151BP BRAKE PAD SET Enquire To Order
Photo Part No Description Price (each) Stock
4M0615121B SENDER WIRE (PAD WEAR INDICATOR) Enquire To Order
Photo Part No Description Price (each) Stock
971698231B 1 SET SPRINGS Enquire To Order
Photo Part No Description Price (each) Stock
971698313 SET OF GASKETS FOR BRAKE CALIPER HOUSING Enquire To Order
Photo Part No Description Price (each) Stock
971615327 BRAKE PIPE Enquire To Order
971615328 BRAKE PIPE Enquire To Order
Photo Part No Description Price (each) Stock
971615207 DUST CAP Enquire To Order
Photo Part No Description Price (each) Stock
N10648301 HEX SOCKET COUNTERSUNK BOLT Enquire To Order
Photo Part No Description Price (each) Stock
N10741402 HEXAGON SOCKET FLAT HEAD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
WHT004572 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD Enquire To Order
View All

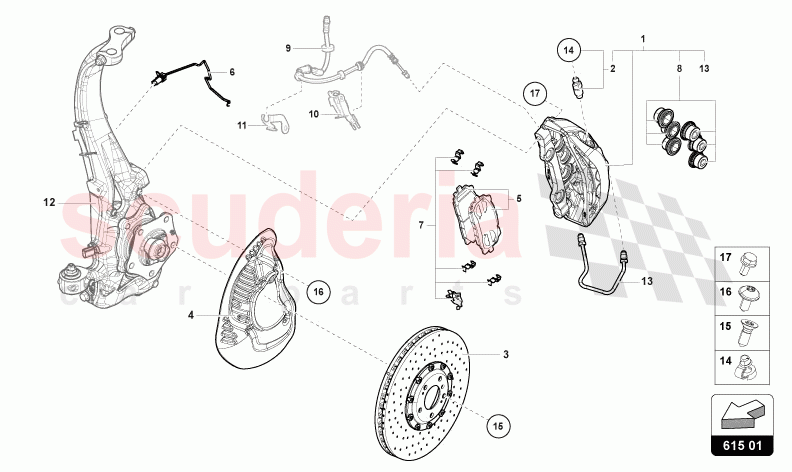

FIXED-CALLIPER BRAKE FRONT of Lamborghini Lamborghini Urus Performante Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4M0615105EQ
BRAKE CALIPER HOUSING
UNTIL VIN ZPBEA1ZL5KLA 00902 REPLACE FOR AXLE-LEFT YELLOW 		- 1 Enquire
1 4M0615105GF
BRAKE CALIPER HOUSING
BLACK LOGO - REPLACE FOR AXLE - UNTIL VIN 12228-LEFT ORANGE 		- 1 Enquire
1 4M0615105GH
BRAKE CALIPER HOUSING
BLACK LOGO - REPLACE FOR AXLE - UNTIL VIN 12238-LEFT GREEN 		- 1 Enquire
1 4M0615105JN
BRAKE CALIPER HOUSING
BLACK LOGO - WITH CCC MARKING AND CU FREE - FROM VIN 12298-LEFT GREY 		- 1 Enquire
1 4M0615105KD
BRAKE CALIPER HOUSING
WHITE LOGO - WITH CCC MARKING AND CU FREE - FROM VIN 12227-LEFT BLACK 		- 1 Enquire
1 4M0615105KE
BRAKE CALIPER HOUSING
BLACK LOGO - WITH CCC MARKING AND CU FREE - FROM VIN 12228-LEFT YELLOW 		- 1 Enquire
1 4M0615105KF
BRAKE CALIPER HOUSING
BLACK LOGO - WITH CCC MARKING AND CU FREE - FROM VIN 12229-LEFT ORANGE 		- 1 Enquire
1 4M0615105KG
BRAKE CALIPER HOUSING
WHITE LOGO - WITH CCC MARKING AND CU FREE - FROM VIN 12230-LEFT RED 		- 1 Enquire
1 4M0615105KH
BRAKE CALIPER HOUSING
BLACK LOGO - WITH CCC MARKING AND CU FREE - FROM VIN 12239-LEFT GREEN 		- 1 Enquire
1 4M0615106HH
BRAKE CALIPER HOUSING
BLACK LOGO-RIGHT GREY WARRANTY 		- 1 Enquire
1 4M0615106JN
BRAKE CALIPER HOUSING
BLACK LOGO - WITH CCC MARKING AND CU FREE - FROM VIN 12298-RIGHT GREY 		- 1 Enquire
1 4M0615106KD
BRAKE CALIPER HOUSING
WHITE LOGO - WITH CCC MARKING AND CU FREE - FROM VIN 12227-RIGHT BLACK 		- 1 Enquire
1 4M0615106KE
BRAKE CALIPER HOUSING
BLACK LOGO - WITH CCC MARKING AND CU FREE - FROM VIN 12228-RIGHT YELLOW 		- 1 Enquire
1 4M0615106KF
BRAKE CALIPER HOUSING
BLACK LOGO - REPLACE FOR AXLE - WITH CCC MARKING AND CU FREE - FROM VIN 12229-RIGHT ORANGE 		- 1 Enquire
1 4M0615106KG
BRAKE CALIPER HOUSING
WHITE LOGO - WITH CCC MARKING AND CU FREE - FROM VIN 12230-RIGHT RED 		- 1 Enquire
1 4M0615106KH
BRAKE CALIPER HOUSING
BLACK LOGO - WITH CCC MARKING AND CU FREE - FROM VIN 12239-RIGHT GREEN 		- 1 Enquire
2 971698121
BREATHER VALVE 		- 2 Enquire
3 4M0615301BQ
CERAMIC BRAKE DISC (VENTED)
CU FREE-440X40 LEFT FRONT 		- 1 Enquire
3 4M0615301BR
CERAMIC BRAKE DISC (VENTED)
WITH CU-440X40 LEFT FRONT 		- 1 Enquire
3 4M0615302M
CERAMIC BRAKE DISC (VENTED)
CU FREE-440X40 RIGHT FRONT 		- 1 Enquire
3 4M0615302N
CERAMIC BRAKE DISC (VENTED)
WITH CU-440X40 RIGHT FRONT 		- 1 Enquire
3 4M0615301BR
CERAMIC BRAKE DISC (VENTED)
440X40 LEFT FRONT 		- 1 Enquire
3 4M0615302N
CERAMIC BRAKE DISC (VENTED)
440X40 RIGHT FRONT 		- 1 Enquire
4 4M0615311N
COVER PLATE FOR BRAKE DISC
LEFT FRONT 		- 1 Enquire
4 4M0615312N
COVER PLATE FOR BRAKE DISC
RIGHT FRONT 		- 1 Enquire
5 4M0698151BQ
SET OF BRAKE PADS
WITH CCC MARKING AND CU FREE-FRONT 		- 1 Enquire
5 4M0698151BP
BRAKE PAD SET
WITH CU + CCC MARKING-FRONT 		- 1 Enquire
6 4M0615121B
SENDER WIRE (PAD WEAR INDICATOR)
380MM FRONT 		- 2 Enquire
7 971698231B
1 SET SPRINGS 		- 2 Enquire
8 971698313
SET OF GASKETS FOR BRAKE CALIPER HOUSING
FRONT 		- 2 Enquire
13 971615327
BRAKE PIPE
LEFT 		- 1 Enquire
13 971615328
BRAKE PIPE
RIGHT 		- 1 Enquire
14 971615207
DUST CAP 		- 4 Enquire
15 N10648301
HEX SOCKET COUNTERSUNK BOLT
M6X16 		- 2 Enquire
16 N10741402
HEXAGON SOCKET FLAT HEAD BOLT
M6X14 		- 8 Enquire
17 WHT004572
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
M14X1 -5X135 		- 4 Enquire
