Name: FOR REAR AXLE DIFFERENTIAL
Rating: 4.4 (1 reviews)

View All

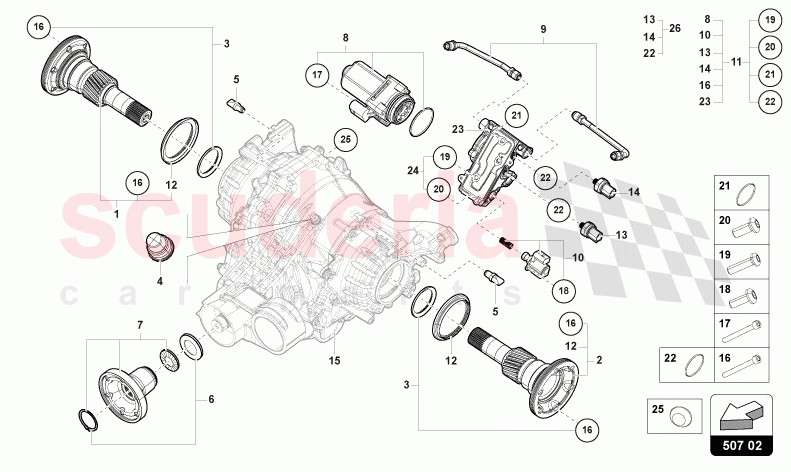

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	BX598072	REPAIR SET	$399.20	To Order

Photo	Part No	Description	Price (each)	Stock
	BX598071	REPAIR SET	$399.20	To Order

Photo	Part No	Description	Price (each)	Stock
	BX598073	REPAIR SET	$66.26	To Order

Photo	Part No	Description	Price (each)	Stock
	AR525093B	BREATHER VALVE	$6.00	To Order

Photo	Part No	Description	Price (each)	Stock
	BE525069	PROTECTIVE CAP	$6.00	To Order

Photo	Part No	Description	Price (each)	Stock
	BX598078	REPAIR SET	$66.26	To Order

Photo	Part No	Description	Price (each)	Stock
	BX598070	REPAIR SET FOR DRIVE FLANGE	$159.95	To Order

Photo	Part No	Description	Price (each)	Stock
	BF598080	REPAIR SET	$336.04	To Order

Photo	Part No	Description	Price (each)	Stock
	BE598077	REPAIR SET	$86.84	To Order

Photo	Part No	Description	Price (each)	Stock
	BF598079	REPAIR SET	$202.28	To Order

Photo	Part No	Description	Price (each)	Stock
	D3598181A	REPAIR KIT FOR ACTUATOR	$922.05	To Order

Photo	Part No	Description	Price (each)	Stock
	BF525375	PROTECTIVE RING	$7.93	To Order

Photo	Part No	Description	Price (each)	Stock
	8K0927221D	OIL TEMPERATURE AND OIL PRESSURE SENDER	$135.74	To Order

Photo	Part No	Description	Price (each)	Stock
	8K0927222D	OIL TEMPERATURE AND OIL PRESSURE SENDER	$135.74	To Order

Photo	Part No	Description	Price (each)	Stock
	BF525345	O-RING	$1.43	To Order

Photo	Part No	Description	Price (each)	Stock
	BF525349	SEAL	$39.06	To Order

Photo	Part No	Description	Price (each)	Stock
	BF598078	1 SET BOLTS	$13.70	To Order

Photo	Part No	Description	Price (each)	Stock
	D3598081	REPAIR SET	$227.15	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	BX598072	REPAIR SET	BX598072 REPAIR SET FOR FLANGED SHAFT-RIGHT	$399.20	1
2	BX598071	REPAIR SET	BX598071 REPAIR SET FOR FLANGED SHAFT-LEFT	$399.20	1
3	BX598073	REPAIR SET	BX598073 REPAIR SET FOR SHAFT OIL SEAL-LEFT A. RIGHT	$66.26	2
4	AR525093B	BREATHER VALVE	AR525093B BREATHER VALVE	$6.00	1
5	BE525069	PROTECTIVE CAP	BE525069 PROTECTIVE CAP	$6.00	2
6	BX598078	REPAIR SET	BX598078 REPAIR SET	$66.26	1
7	BX598070	REPAIR SET FOR DRIVE FLANGE	BX598070 REPAIR SET FOR DRIVE FLANGE	$159.95	1
8	BF598080	REPAIR SET	BF598080 REPAIR SET FOR ENGINE	$336.04	1
9	BE598077	REPAIR SET	BE598077 REPAIR SET FOR OIL PIPE	$86.84	1
10	BF598079	REPAIR SET	BF598079 REPAIR SET FOR SOLENOID VALVE	$202.28	1
11	D3598181A	REPAIR KIT FOR ACTUATOR	D3598181A REPAIR KIT FOR ACTUATOR	$922.05	1
12	BF525375	PROTECTIVE RING	BF525375 PROTECTIVE RING	$7.93	2
13	8K0927221D	OIL TEMPERATURE AND OIL PRESSURE SENDER	8K0927221D OIL TEMPERATURE AND OIL PRESSURE SENDER BLACK	$135.74	1
14	8K0927222D	OIL TEMPERATURE AND OIL PRESSURE SENDER	8K0927222D OIL TEMPERATURE AND OIL PRESSURE SENDER BROWN	$135.74	1
22	BF525345	O-RING	BF525345 O-RING	$1.43	1
23	BF525349	SEAL	BF525349 SEAL	$39.06	1
24	BF598078	1 SET BOLTS	BF598078 1 SET BOLTS	$13.70	1
26	D3598081	REPAIR SET	D3598081 REPAIR SET	$227.15	1
